XYZ MultiCure180 Curing Chamber
XYZ MultiCure180 Curing Chamber

XYZ

XYZ MultiCure180 Curing Chamber

£558.30
Quantity:

Benefits

Benefits 01

Powerful Post Curing Solution

A powerful machine that cures prints made by most of the resin 3D printers in the market including XYZprinting resins. Adjustable wavelength settings and presets let you customize curing programs to suit your resin materials.



Benefits 02

Advantages of UV LED Curing

Unlike some traditional UV lamps, MultiCure180 cures prints with UV LEDs and uses no mercury. It’s both safe and environmentally friendly. LEDs also consume less power and have longer lifespans. With proper care, it’s a machine that will last a long time.



Benefits 03

Hassle-Free Operation with XYZcure

 A software application designed for MultiCure180, XYZcure lets you adjust settings like UV wavelength, curing time, and power levels on your PC. Its intuitive dashboard will guide you seamlessly from start to finish.



Achieve Optimal Performance

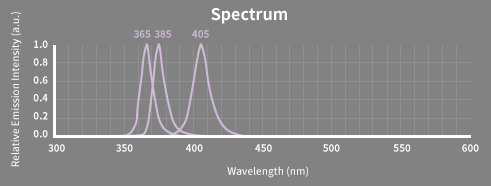

UV LED 355 to 425 nm

Wider wavelength range for curing prints made by a wide range of resin materials.

180 mm x 200 mm (diameter x height)
1 Rotation Per Minute
Intuitive Control Panel

Software

XYZcure



XYZcure lets you adjust settings like curing time and power levels on your PC. Its intuitive dashboard will guide you seamlessly from start to finish.



Specifications

  • Wavelength

UV LED λ 355 - 425 nm

  • Max. Curing Size (Ø x H)

180 x 200 mm

  • Material Compatibility

Photopolymer Resin



Product Properties

  • Wavelength

    UV LED λ 355 - 425 nm

  • Max. Curing Size (Ø x H)

    180 x 200 mm

  • Cure Time

    1 - 60 minutes (Timer included)

  • Turntable Payload

    1.5 kg

  • Connectivity

    USB 2.0 Cable



Operating Requirements

  • Power Requirement

    100V - 240V 120W

  • Operation Temperature

    15 - 30 °C / 59 - 86 °F

Dimensions

  • Product Dimensions (W x D x H)

    255 x 255 x 352 mm (10.0 x 10.0 x 13.9 inch)

  • Product Weight

    3.5 kg (7.7 lbs)

  • Packed Dimensions (W x D x H)

    446 x 360 x 324 mm (17.6 x 14.2 x 12.8 inch)

  • Packed Weight

    6.5 kg (14.3 lbs)



Materials

  • Material Compatibility

    Photopolymer Resin



Software

  • Printing Software

    XYZcure

  • Operating System

    Windows

  • Supported File Formats

    N/A
