EinScan Pro 2X 2020
MPROVE EFFICIENCY OF HIGH-QUALITY 3D MODELING

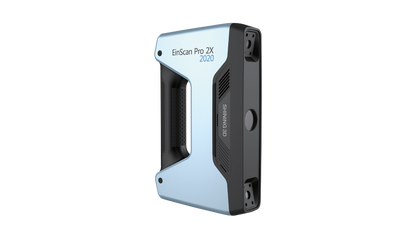

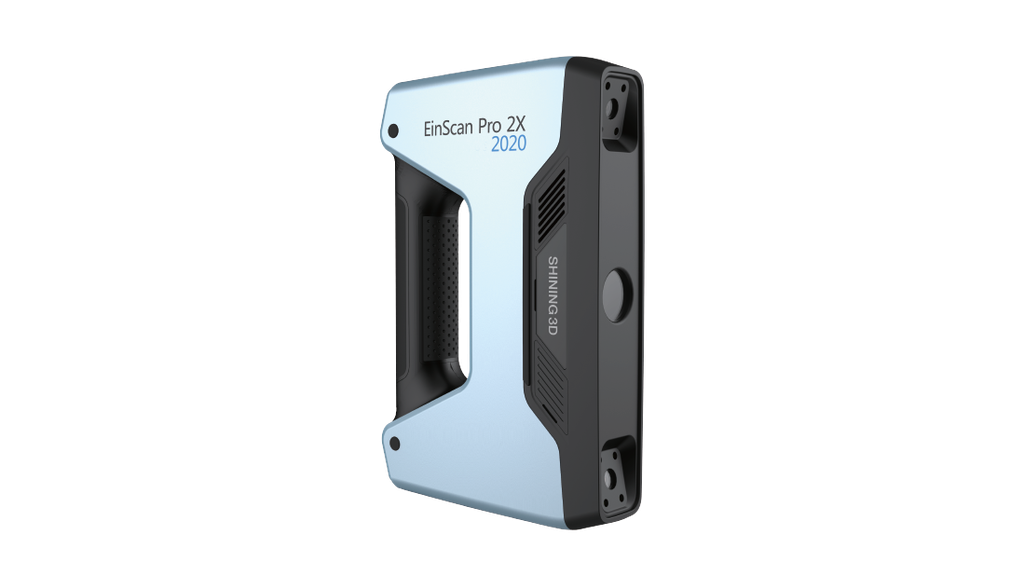

EinScan Pro 2X 2020, the next generation of handheld 3D scanner with the latest technology is based on the feedback from thousands of users and the valuable input of SHINING 3D’s own R&D team. Being faster and more accurate than ever before, the portable versatile EinScan Pro 2X 2020 will improve the efficiency of high-quality 3D modeling.
Portable & User-friendly Design

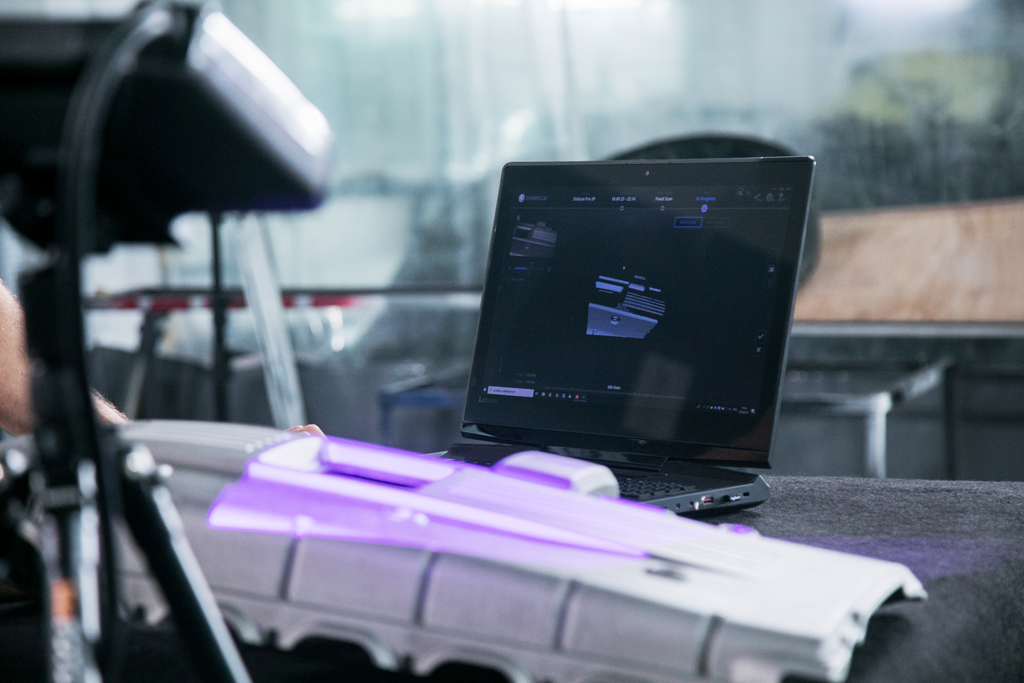

With a light weight and compact size, you can easily take the EinScan Pro 2X 2020 anywhere like a laptop, enjoy plug-and-play installation and unlimited scanning experience.
Scan Faster than Ever Before
The latest development in data capture hardware and optimised algorithms, makes EinScan Pro 2X 2020 a dramatic breakthrough in scanning speed, processing up to 1,500,000 points per second (30 fps) under Handheld Rapid Scan Mode.
High Speed Data Transmission - USB 3.0
High Accuracy
Single scan accuracy under Fixed Scan Mode is up to 0.04 mm. When using markers, the volumetric accuracy under handheld scanning mo- des is up to 0.045mm+0.3mm/m.
Catch Fine Details

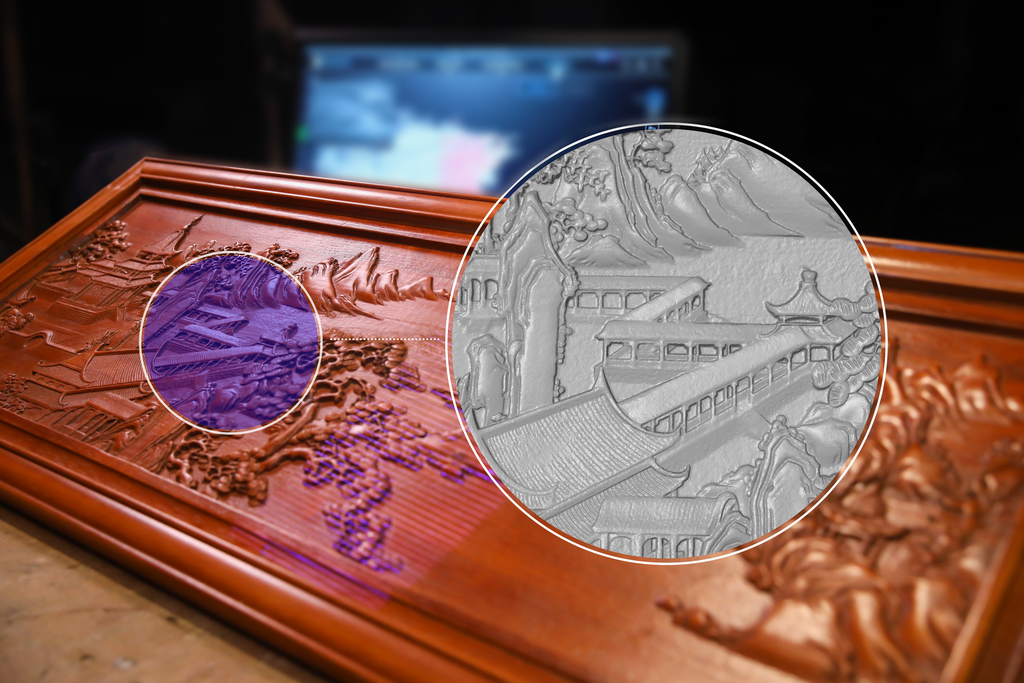

The minimum point distance is up to 0.2mm under Handheld Rapid Scan and Handheld HD Scan modes, generating high resolution 3D data.
Versatile Scan Modes & Align Modes

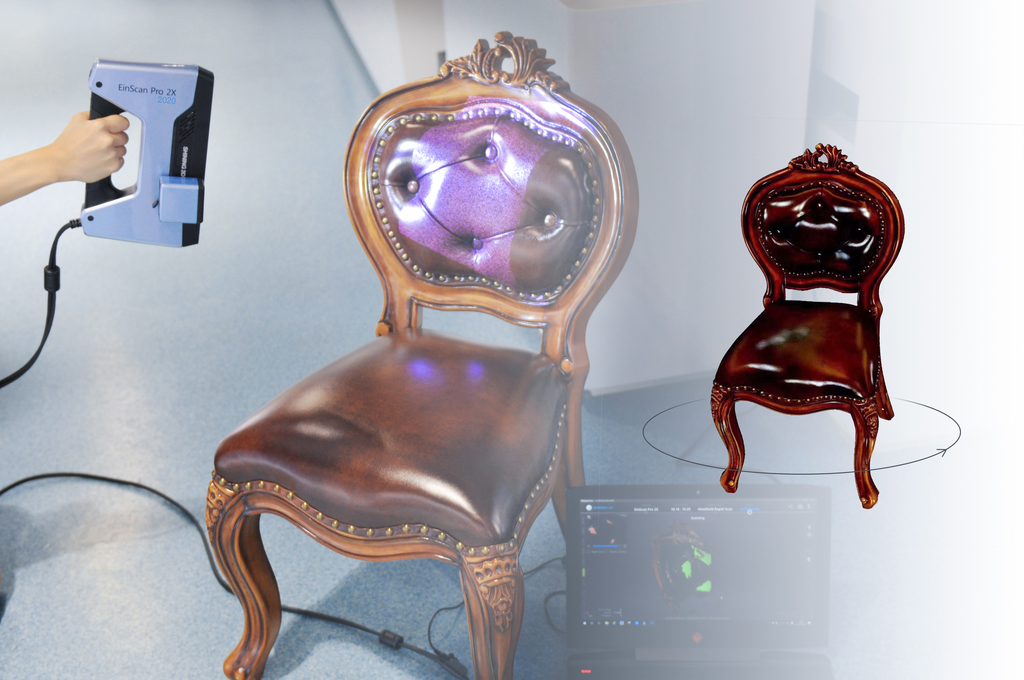

Supports Handheld Rapid Scan, Handheld HD Scan, Fixed Scan wi- thout Turntable, and Fixed Scan with Turntable modes, as well as mul- tiple alignment modes including feature alignment, marker alignment, texture alignment, turntable coded targets alignment, and manual alig- nment.
Modular Design to Meet Wider Range of Applications
Color Pack and Industrial Pack, as optional add-ons to EinScan Pro 2X 2020 for various scanning experiences and applications.
Color Pack
(For EinScan Pro 2X 2020) Gets the full-color texture with geometry.
Industrial Pack
(For EinScan Pro 2X 2020)
Makes a static automatic scan on a tripod possible for a better accuracy.
Scanning Software EXSCAN PRO

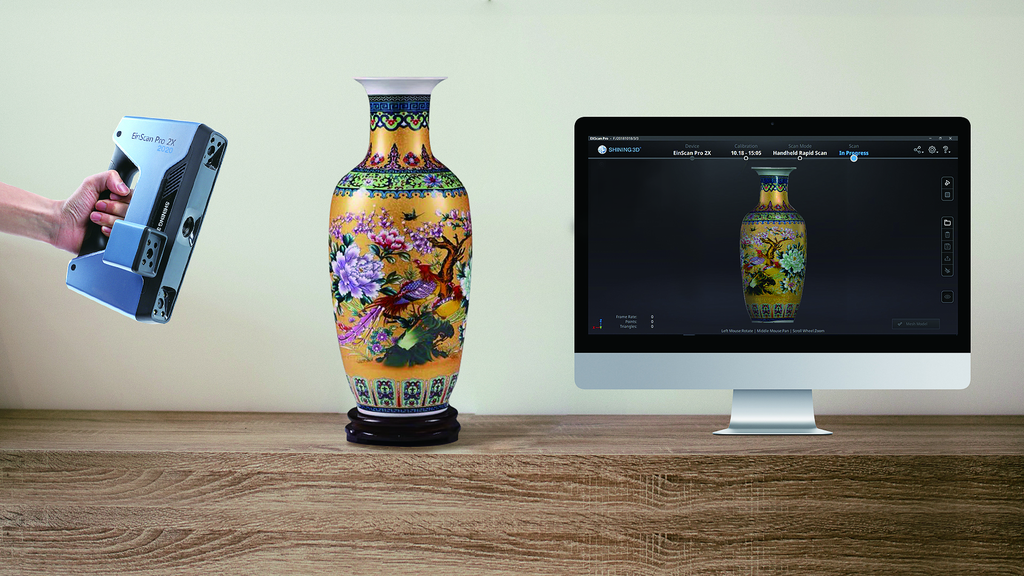

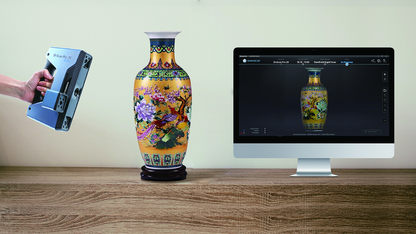

The scanning software EXSCAN PRO makes 3D scan process as simple as taking a video for either new or experienced users.
∙ User-Friendly Operation
∙ New Operation Mode Option
Allows users a faster scanning experience during operation and set the resolution option afterwards during the data processing, which improves scanning efficiency.
∙ Simultaneous Data Display ∙ Multiple Alignments
Free to choose feature alignment, marker alignment, coded target alignment,
texture alignment or manual alignment in different occasions greatly enhance the scanning efficiency.
∙ High Compatibility
Outputs standard file formats includes STL, OBJ, PLY, ASC, 3MF and P3 (global markers file). Compatible with most mainstream software packages in the market.
By saving watertight models, seamlessly connect to 3D printers for 3D printing.
∙ Mesh Editing
Provides mesh editing such as clean, hole filling, data simplification, smoothing, sharpen etc.
Design Tool From SIEMENS PLM Software: Solid Edge SHINING 3D Edition
As a new generation of digital innovation platform, Solid Edge SHINING 3D Edition includes reverse engineering, generative de- sign, and simulation together with CAD tool in one platform. SHINING 3D EinScan series 3D scanners, integrated with Solid Edge SHINING 3D Edition, provide users the solution covering “3D Digitize – Design & Simulate – Additive Manufacture” to generate more high-quality 3D data for production.
TECHNICAL SPECIFICATIONS
Model
EinScan Pro 2X 2020
|
Scan Accuracy |
up to 0.045 mm |
up to 0.1 mm |
0.04 mm |
0.04 mm |
|
Scan Speed |
10 fps |
30 fps |
Single Scan < 1s |
Single Scan < 1s |
|
Single Scan Range |
150*120 mm — 250*200 mm |
|
Working Distance |
400 mm |
|
Align Mode |
Marker Alignment, Feature Alignment [3], Hybrid Alignment [4] |
Marker Alignment, Texture Alignment [2], Feature Alignment [3], Hybrid Alignment [4] |
Turntable Coded Targets, Fea- ture, Marker, Manual Alignment |
Marker, Feature, Manual Alignment |
|
Outdoor Operation |
Set up the shelter or cover to avoid direct sunlight |
|
Printable Data Output |
Able to export watertight 3D model directly to 3D printing |
|
Scanner Body Weight |
1.13kg (include the USB3.0 cable) |
|
Recommended |
Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080;video memory: ≥4G; processor: I7-8700 or higher; memory: ≥64G; interface: high-speed USB 3.0 |
Scan Mode
Volumetric Accuracy [1]
Point Distance Depth of Field Light Source
Texture Scan
Special Objects for Scanning
Output Formats Supported OS
Required
Handheld HD Scan Handheld Rapid Scan
0.3 mm/m (Marker Alignment)
Fixed Scan with Turntable (with Add-on:Industrial Pack)
/
0.16 mm ±100 mm
LED
Fixed Scan without Turntable (with Add-on: Industrial Pack)
/
0.16 mm
0.2 mm-2 mm
0.2 mm-2 mm
Yes (with Add-on: Color Pack)
For the transparent, highly reflective or some dark objects, please spray powder before scanning
OBJ , STL , ASC , PLY , P3 , 3MF Win 10, 64 bit
Graphics card: Equal or higher than NVIDIA Quadro card P1000 or NVIDIA GTX660; processor: Intel (R) Xeon E31230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
