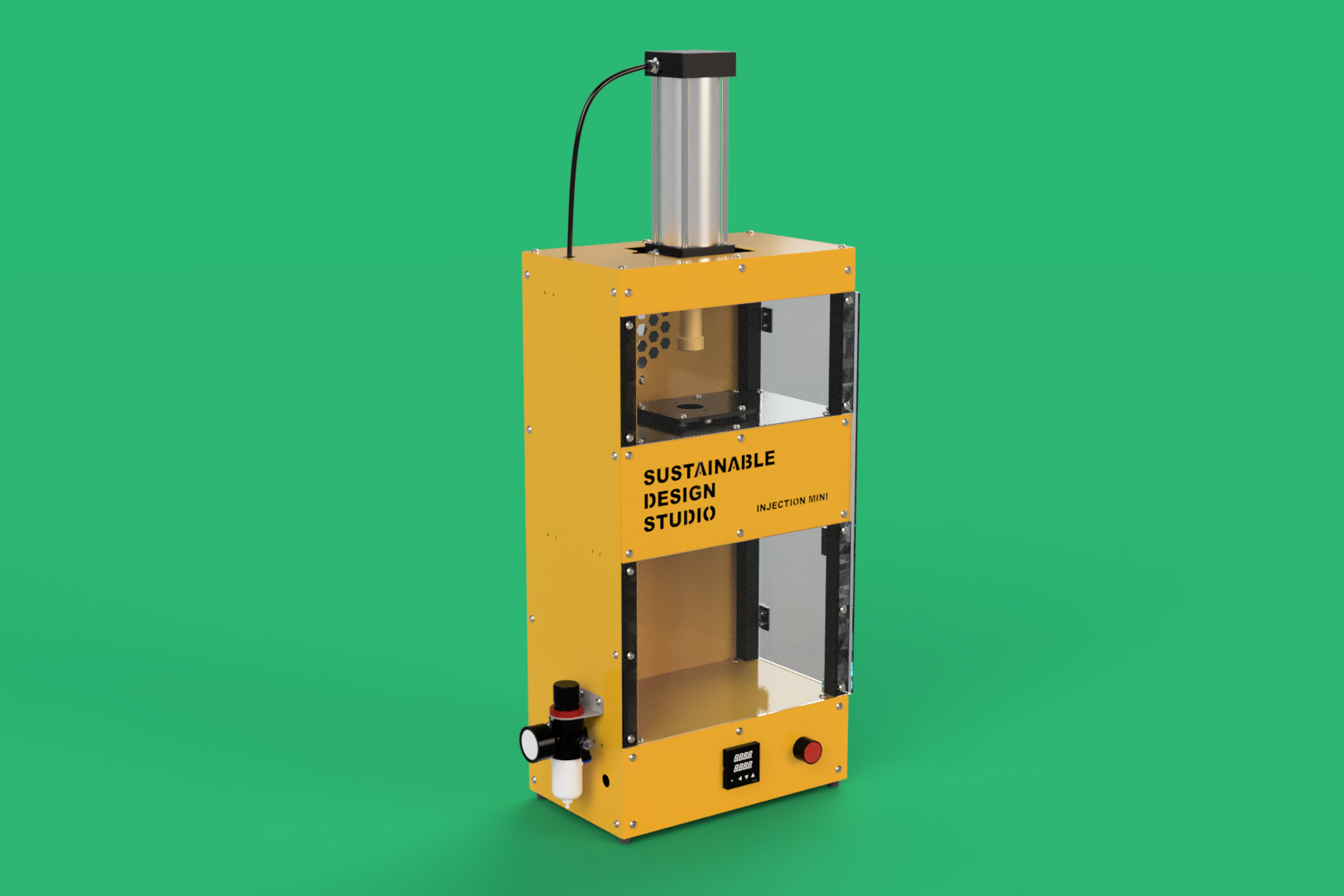

The Injection Mini is a versatile and user-friendly desktop injection moulding machine. With its compact size and precise performance, it enables the creation of high quality plastic items. It’s ideal for prototyping, small-scale production and educational projects.
The Injection Mini uses a Pneumatic Piston to force molten plastic into your mould of choice. and has the huge advantage of being extremely small, light and portable. Perfect for sustainable businesses and educational facilities.
-
Safety Features.
Designed from the ground up for safety and ease of use, the Injection Mini is fully enclosed and has a sensor to ensure no use of the machine can occur if the side door is open.
-
Easier Recycling
The increased barrel size of the Injection Mini means you can add plastic bottle tops directly into the machine without shredding, cutting out a step in the recycling process. Empower your business or educational institution with this sustainable solution.
-
One Button Operation
The Injection Mini is our easiest to use machine yet! With one button operation and an adjustable pressure sensor, you can easily create reliable injections over and over again.
-
12 Months Warranty
-
Compact Desktop Design
-
Fully Powder Coated Frame
-
Pneumatic Injection with a Single Button
-
Fully Enclosed Design With Sensors on the door
-
Quick Release Mould Mechanism
-
Modular and Easily Transported
-
Shipped with Your Countries Plug
-
Designed To Be Connected To Our Fume Extractor or any 150mm (4”) Extraction System
-
Comes with a handy Assembly Guide and a User Manual
-
Air Compressor NOT included
-
1/4” High Flow EU Female fitting required
-
Huge 68g/70cm³ shot size
-
Massive Mould Space 18 x 16 x 29cm (15cm from nozzle centre)
-
Available in 220v or 110v configurations
-
300W Power
-
Plastic Melting Time: 8-12mins
-
Max Temperature of 280°c
-
Supported materials - Wide range of thermoplastics, including PLA, PETG, HDPE, ABS, PS, PP, TPU and LDPE.
-
Machine dimensions: 15×90×35cm (D×H×W)
-
Shipping box dimensions: 23kg; 15×90×35 cm
