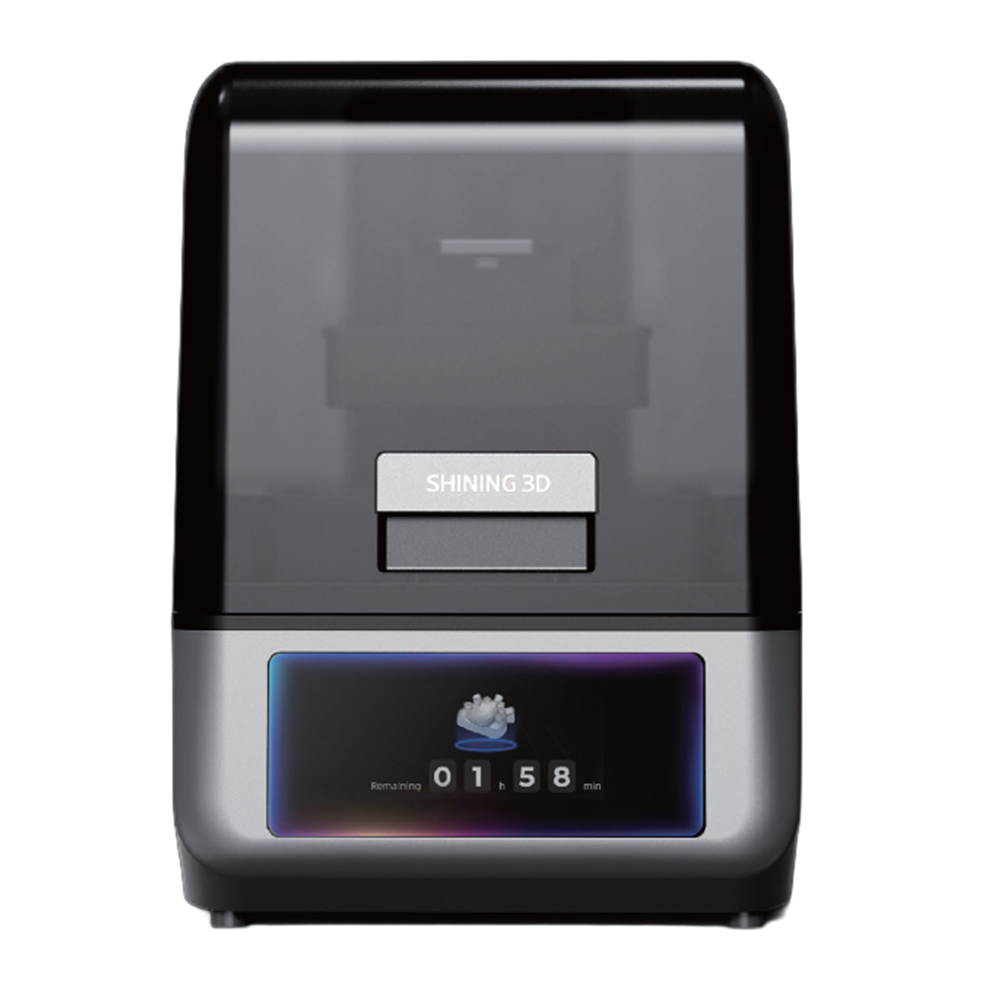

AccuFab-Aris 3D Printer
£1,798.80
Couldn't load pickup availability
SHINING 3D AccuFab-Aris Dental 3D Printer
The AccuFab-Aris is a compact, easy-to-use dental 3D printer designed for everyday clinical workflows. Combining 34 μm precision with automated setup, intelligent monitoring and a small footprint, it helps dental professionals produce accurate parts with minimal training and setup time.
Suitable for restorations, dentures, surgical guides, splints and dental models, the AccuFab-Aris provides a reliable solution for bringing more dental production in-house.
High-Precision Dental Printing
A high-resolution 4K LCD delivers a pixel size of 34 μm, helping to produce detailed dental parts with an accurate fit and reduced need for chairside adjustments.
Key Features
- 34 μm precision: Produces detailed dental parts for a wide range of clinical applications.
- Compact design: A small footprint and weight below 10 kg make it easy to position within a dental clinic or laboratory.
- Automatic levelling: One-click levelling and automatic Z-axis calibration simplify printer setup.
- Heated build platform: Maintains a temperature of 30°C to help reduce resin warping and print detachment.
- Smart fail-safe sensors: Residue detection and NFC resin tank recognition help prevent operating errors and protect the printer.
- Quick maintenance: The quick-release screen can be replaced in approximately 10 seconds.
- Flexible connectivity: Connect using USB, Wi-Fi or Ethernet.

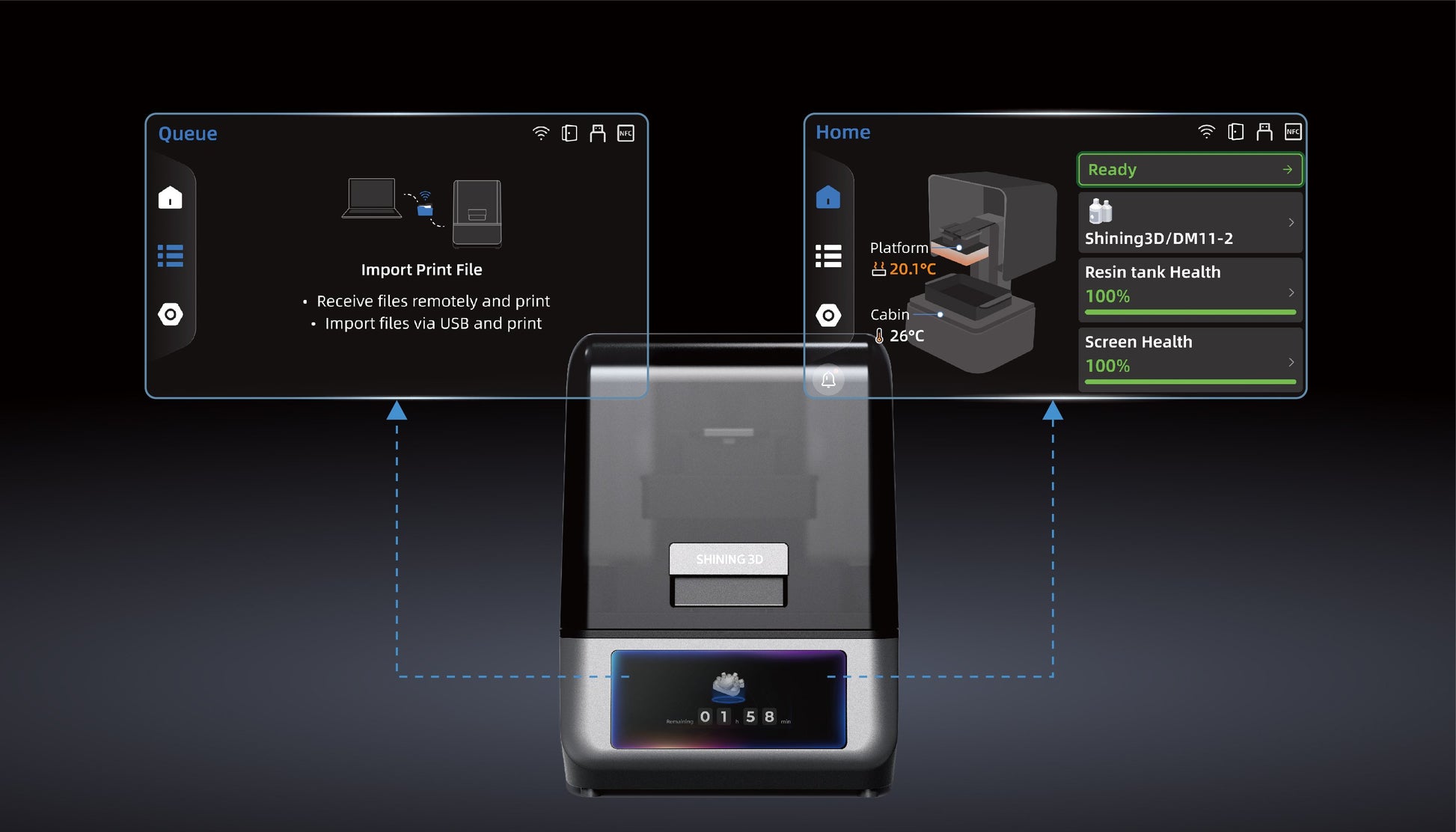

- Health monitoring: The Aris Health Dashboard tracks resin tank and screen lifespan in real time.
Designed for Daily Dental Applications
The AccuFab-Aris supports a broad range of dental printing applications, including:
- Restorations
- Surgical guides
- Dental models
- Dentures
- Splints
Simple, Reliable Operation
The AccuFab-Aris is designed as a plug-and-print system. Automated levelling, automatic calibration and an intuitive software interface reduce the learning curve, allowing users of different experience levels to achieve consistent results.
Integrated Digital Dental Workflow
As part of the SHINING Flow ecosystem, the AccuFab-Aris can be incorporated into a connected scan, design and print workflow. Files can be prepared, nested and sent to the printer digitally, helping reduce manual file handling and improve turnaround times.
Technical Specifications
| Printer Size | 257 × 236 × 364 mm |
| Printer Weight | Under 10 kg |
| Build Platform Size | 130 × 80 mm |
| Pixel Size | 34 μm |
| Print Speed | Up to 60 mm/h |
| Layer Thickness | 50 to 125 μm, adjustable |
| Resin Tank Volume | 200 mL |
| Build Platform Material | Anodised aluminium |
| Connectivity | USB, Wi-Fi and Ethernet |
| Platform Heating | Yes, maintained at 30°C |
| Resin Tank Detection | NFC detection |
| Residue Detection | Yes |
Optional Post-Processing

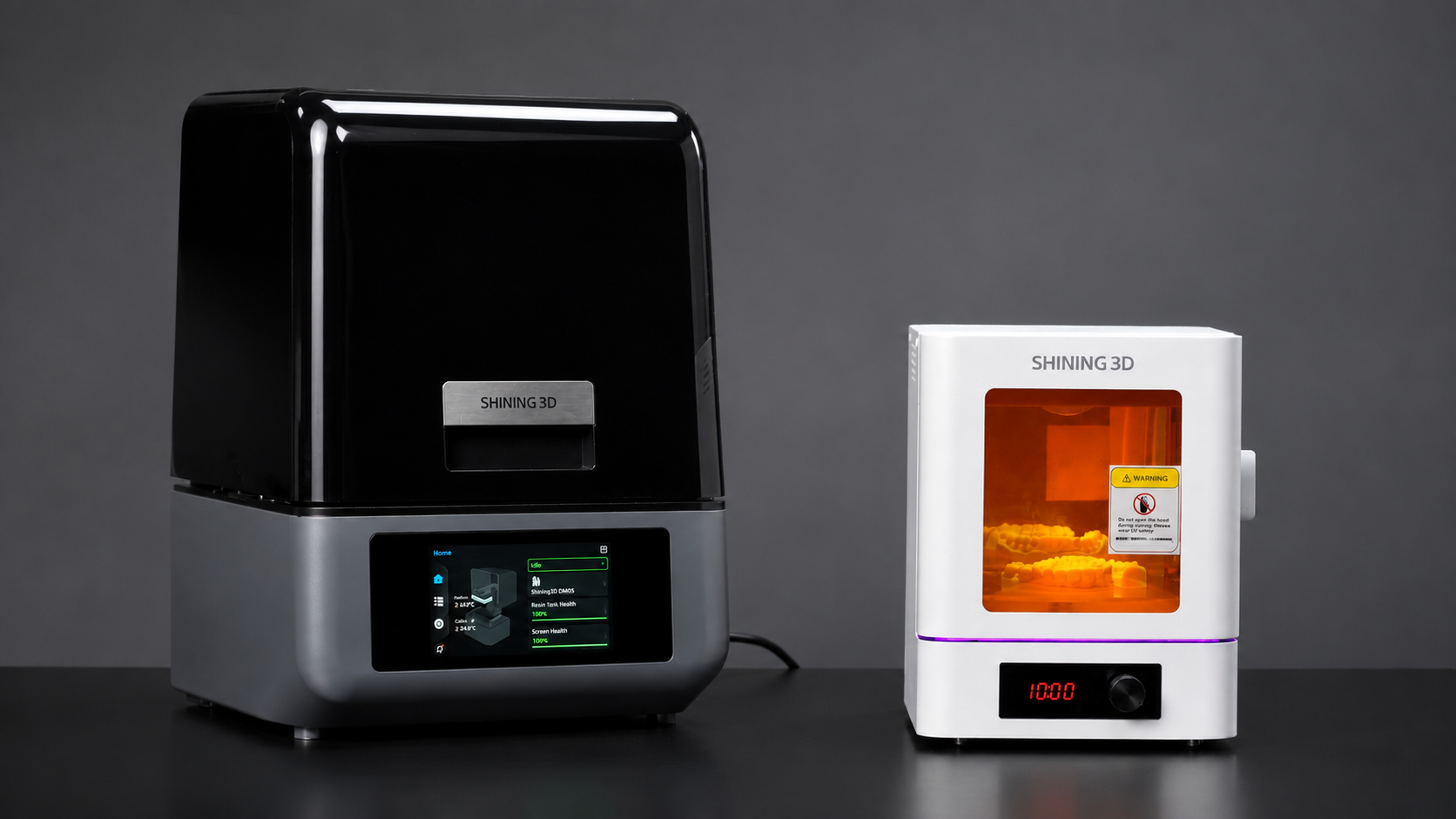

Pair the AccuFab-Aris with the optional FabCure 1S post-curing unit to create a compact and consistent dental printing workflow. Its rotating turntable provides even light exposure for reliable curing from every angle.
Why Choose the AccuFab-Aris?
The AccuFab-Aris combines precision, automated operation and a compact design in a printer built for daily dental use. It is an ideal choice for clinics and laboratories looking to introduce reliable in-house production without adding a complex or space-intensive system.
