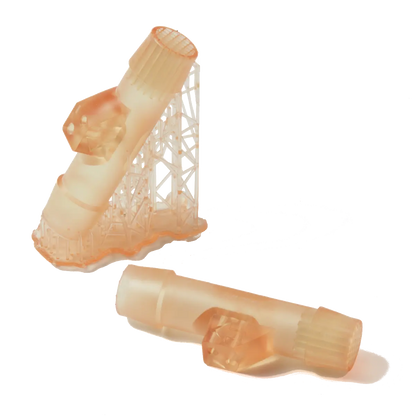

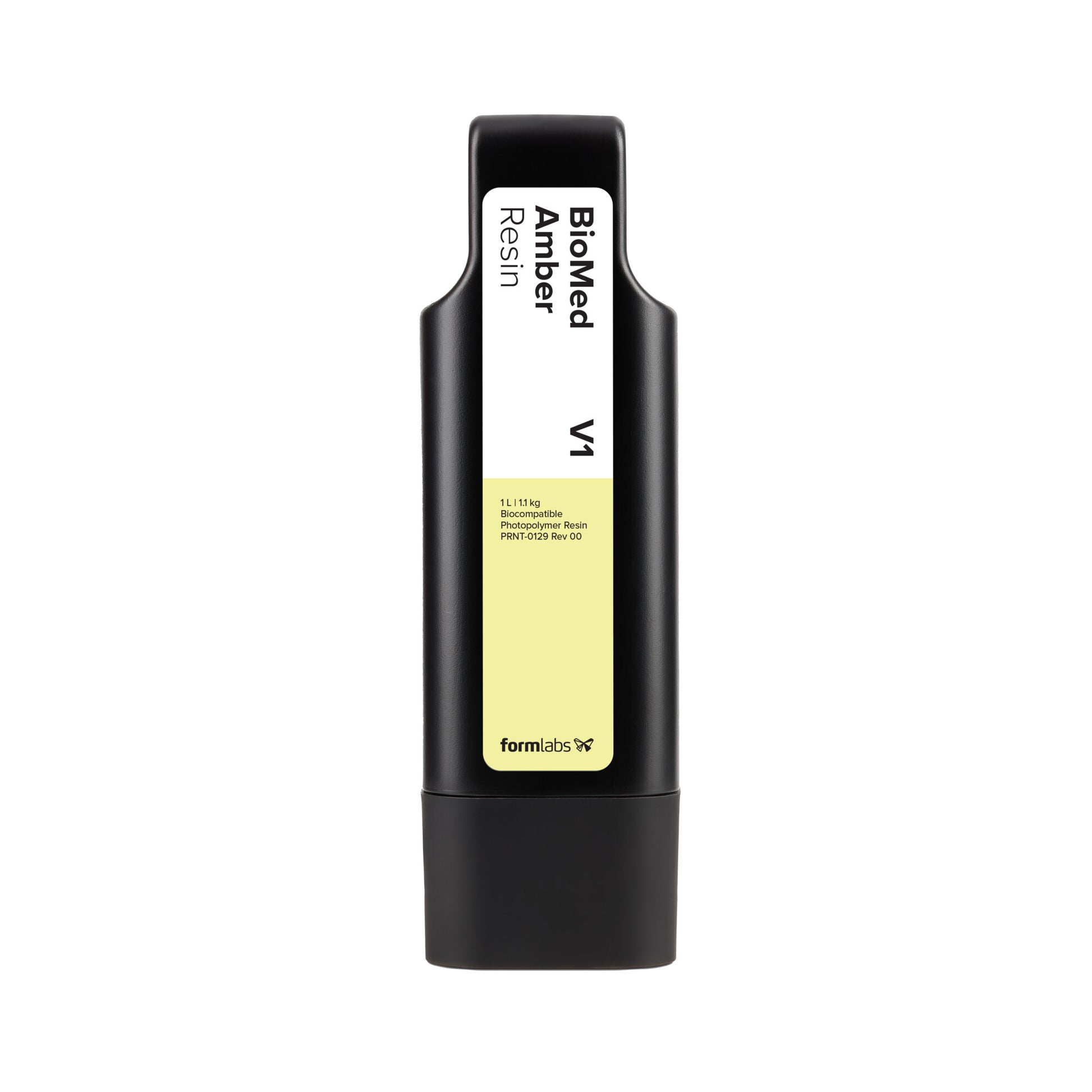

BioMed Amber Resin (Form 4) 1 L
£252.00
Couldn't load pickup availability
BioMed Amber Resin is a strong, stiff material for biocompatible applications requiring long-term skin (>30 days) or short-term bone, tissue, dentin, and mucosal membrane contact (<24 hours). Parts printed with BioMed Amber Resin are compatible with common solvent disinfection and sterilization methods.
BioMed Amber Resin is manufactured in our FDA-registered, ISO 13485-certified facility.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Biocompatibility | Skin Contact, Mucosal Membrane Contact |
| Minimum Layer Thickness | 50 micron |
| Colours | Translucent |
| Categories | Medical |
| Flexural Modulus | 2500.0 MPa |
| Ultimate Tensile Strength | 73.0 MPa |
| Elongation at Break | 12.0% |
| Flexural Strength | 103.0 MPa |
| Notched IZOD | 28.0 J/m |
| Unnotched IZOD | 142.0 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 65.0 °C |
| Heat Deflection Temp. @ 0.45 MPa | 78.0 °C |
Compatibility
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank, Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Printer: Form 4B, Form 4BL, Form 3B, Form 3BL, Form 2
Why Choose BioMed Amber Resin?
Fuel medical innovation using 3D printing and BioMed Amber Resin for producing end-use devices where performance and biocompatibility are critical.
Medical-Grade Material
Leverage a material manufactured within a Quality Management System, with strict adherence to ISO 13485.
Biocompatible and Sterilizable Parts
Testing conducted by Formlabs for common use cases is intended to instil confidence that this material is suitable for biocompatible applications.
Semi-Transparent
Visibility through parts allows light to pass through.
Excellent Definition
Produce parts and assemblies with complex designs and geometries.
Applications*
Use BioMed Amber Resin for producing rigid, transparent parts for point-of-care and medical manufacturing applications requiring biocompatibility.
*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices, and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use. To instil confidence in potential users, Formlabs has tested biocompatibility and sterilisation compatibility for common use cases and manufactures BioMed Resins in an ISO 13485 certified facility.
Manufactured in an ISO 13485-Certified Facility
Formlabs manufactures its BioMed and Medical Device Resins at its FDA-registered facility in Ohio. These materials are designed and manufactured within a robust Quality Management System that is ISO 13485 and EU MDR certified.
Material Properties*
Download the BioMed Amber Resin Technical Data Sheet
Download the BioMed Amber Resin Safety Data Sheet
Request Material Certificate of Analysis (COA)
| Parameter | Value |
|---|---|
| Ultimate Tensile Strength | 73 MPa |
| Young’s Modulus | 2900 MPa |
| Elongation | 12% |
| Flexural Strength | 103 MPa |
| Flexural Modulus | 2500 MPa |
| Shore Hardness | 67 D |
| Notched Izod | 28 J/m |
| Heat Deflection Temperature @ 0.45 MPa | 78 ºC |
1 Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilisation methods used.
2 Data for post-cured samples were measured on Type IV tensile bars printed on Form 2 and Form 3B printers with 100 µm BioMed Amber Resin settings, washed in a Form Wash for 20 minutes in 99% isopropyl alcohol.
3 BioMed Amber Resin was tested at NAMSA World Headquarters, OH, USA.
Post-Processing
Washing
BioMed Amber Resin may be washed using either a Formlabs-validated wash unit or an ultrasonic wash unit.
The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide/IFU for washing instructions.
Settings: Manufacturing Guide
Curing
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide/IFU for proper post-processing.
Settings: Manufacturing Guide
