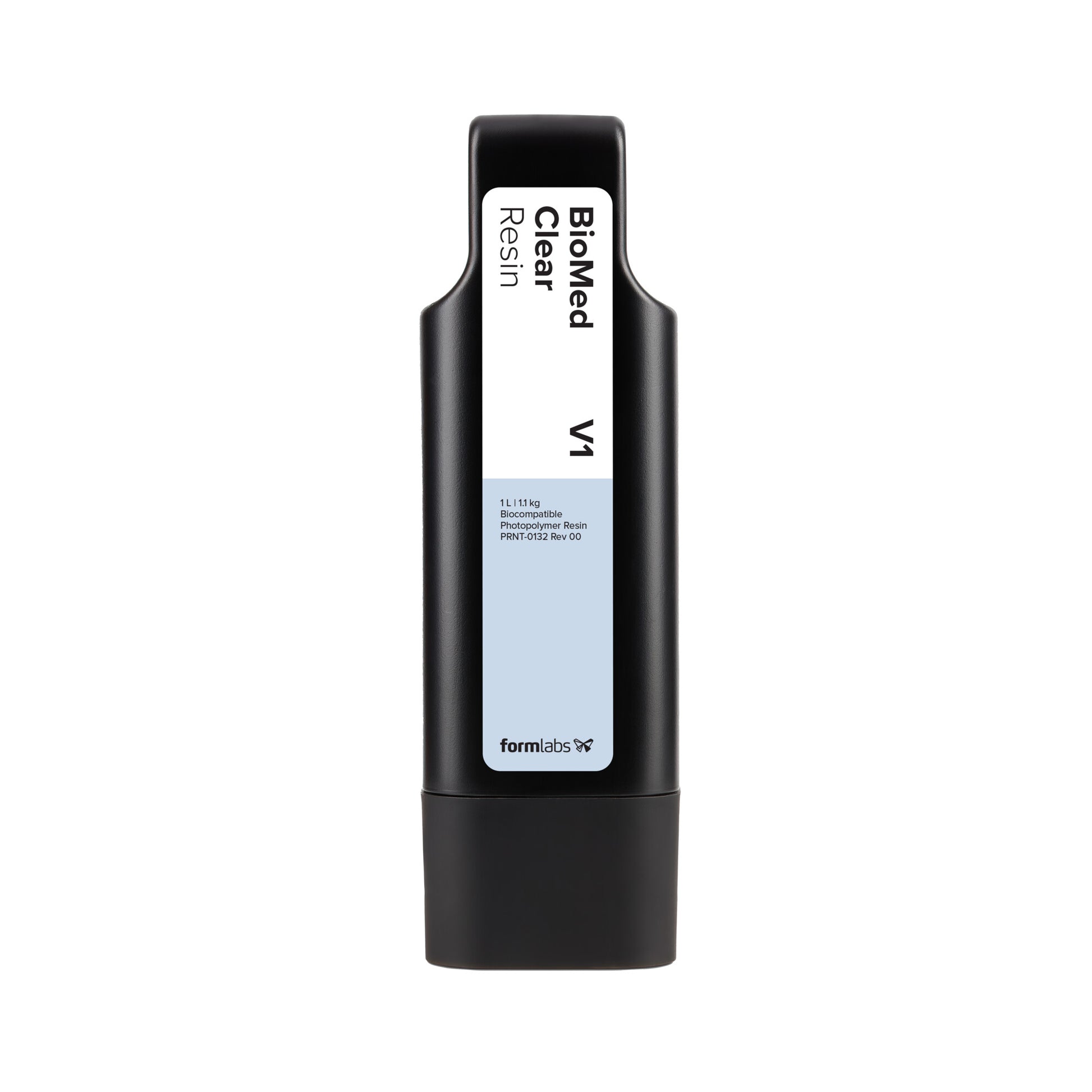

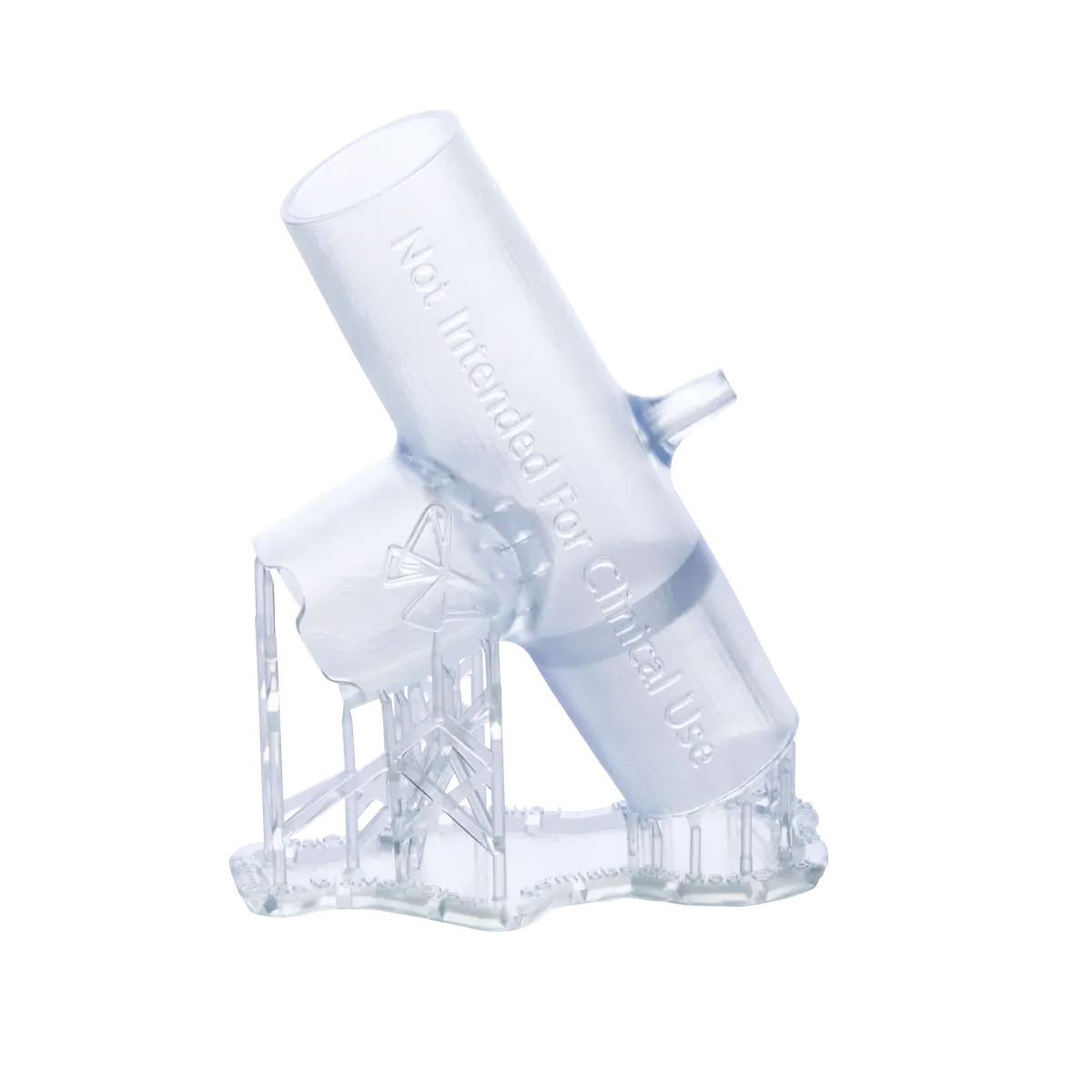

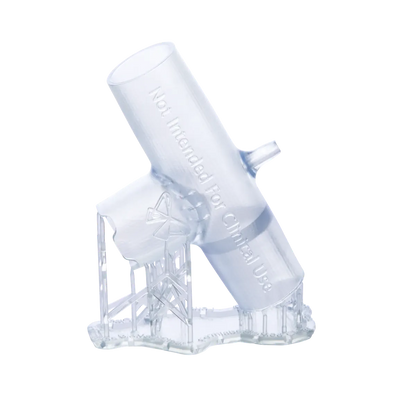

BioMed Clear Resin (Form 4) 1 L
£360.00
Couldn't load pickup availability

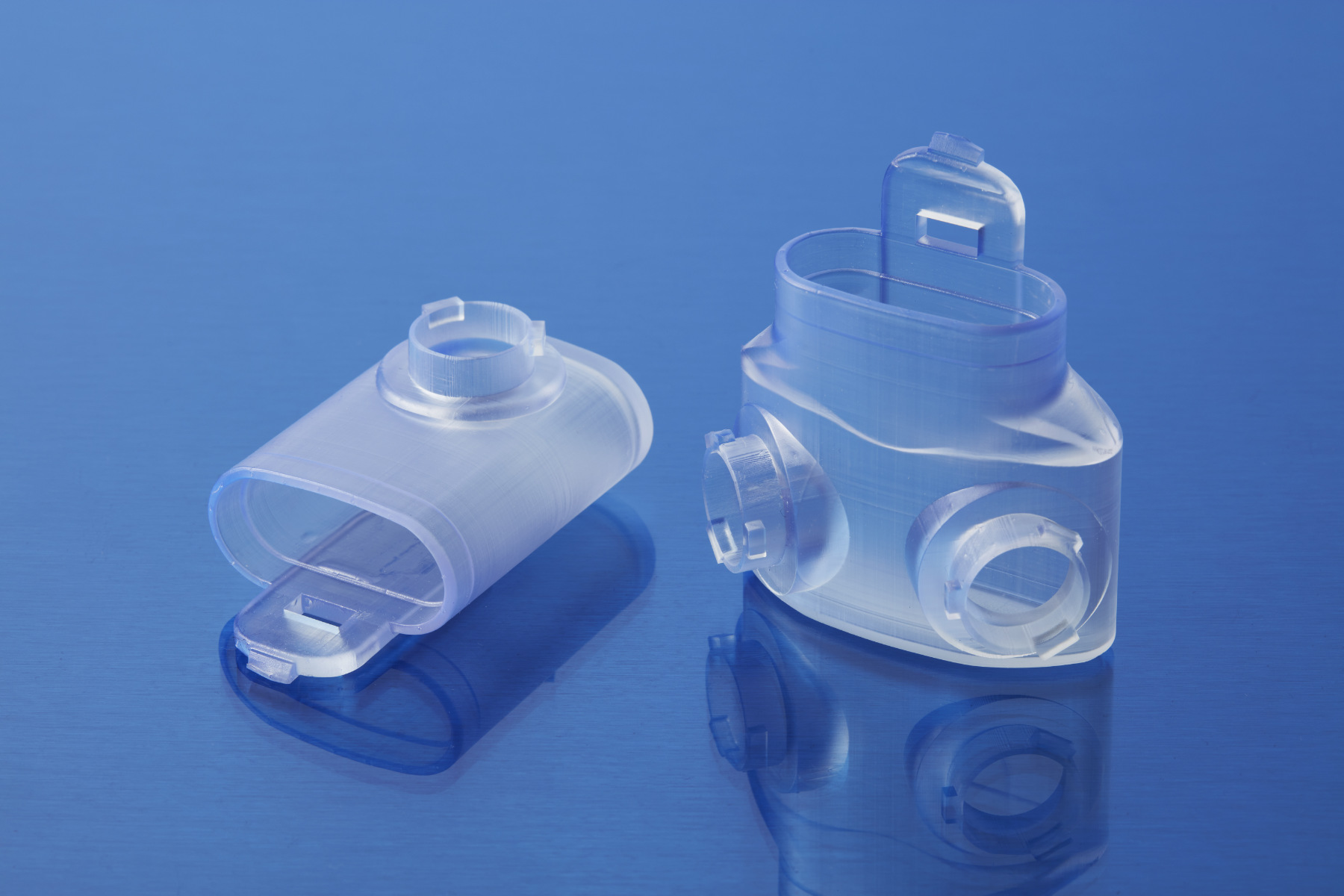

BioMed Clear Resin is a transparent, hard, strong, and wear-resistant material for biocompatible applications requiring long-term skin (>30 days), breathing gas pathways, and mucosal membrane contact (>30 hours) or short-term bone, tissue, and dentin (<24 hours). This USP Class VI certified material is suitable for pharmaceutical and drug delivery applications and uses that require wear resistance and low water absorption over time.
Parts printed with BioMed Clear Resin are compatible with common sterilization methods.
BioMed Clear Resin is manufactured in our FDA-registered, ISO 13485-certified facility and is supported with an FDA Device Master File.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Biocompatibility | Skin Contact, Mucosal Membrane Contact |
| Minimum Layer Thickness | 50 micron |
| Colours | Transparent |
| Categories | Medical |
| Flexural Modulus | 2300.0 MPa |
| Tensile Modulus | 2080.0 MPa |
| Ultimate Tensile Strength | 52.0 MPa |
| Elongation at Break | 12.0% |
| Flexural Strength | 84.0 MPa |
| Shore Hardness | 78.0 D |
| Notched IZOD | 35.0 J/m |
| Unnotched IZOD | 449.0 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 54.0 °C |
| Heat Deflection Temp. @ 0.45 MPa | 67.0 °C |
Compatibility
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank, Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Printer: Form 4B, Form 4BL, Form 3B, Form 3BL, Form 2
Why Choose BioMed Clear Resin?

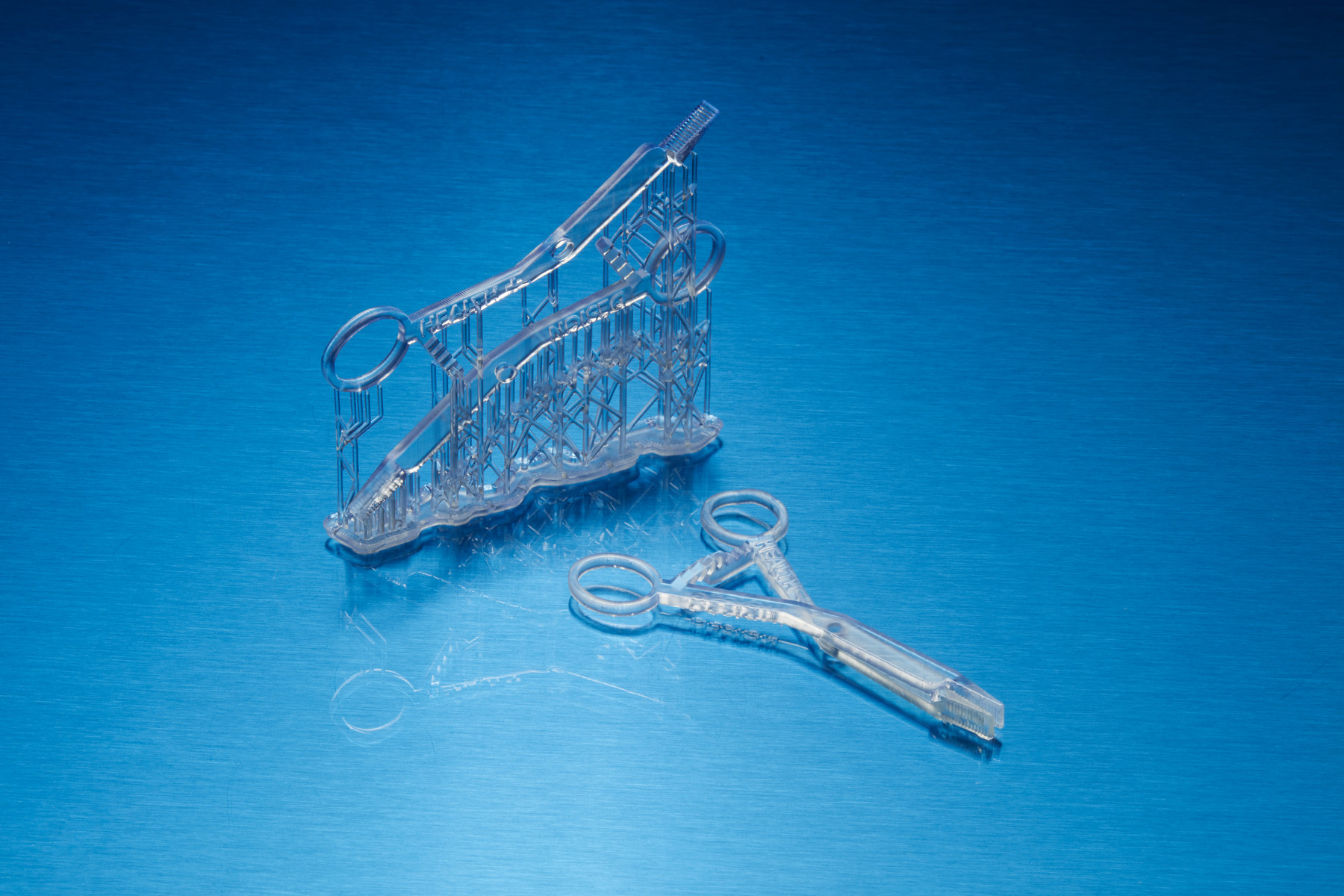

Fuel medical innovation using 3D printing and BioMed Clear Resin for producing end-use devices where performance and biocompatibility are critical.
Medical-Grade Material
Leverage a material manufactured within a Quality Management System, with strict adherence to ISO 13485.
Biocompatible and Sterilisable Parts
Testing conducted by Formlabs for common use cases is intended to instil confidence that this material is suitable for biocompatible applications.
Transparent
Visibility through parts allows light to pass through, making the material suitable for clear medical applications.
Excellent Definition
Produce parts and assemblies with complex designs and geometries.
Applications*

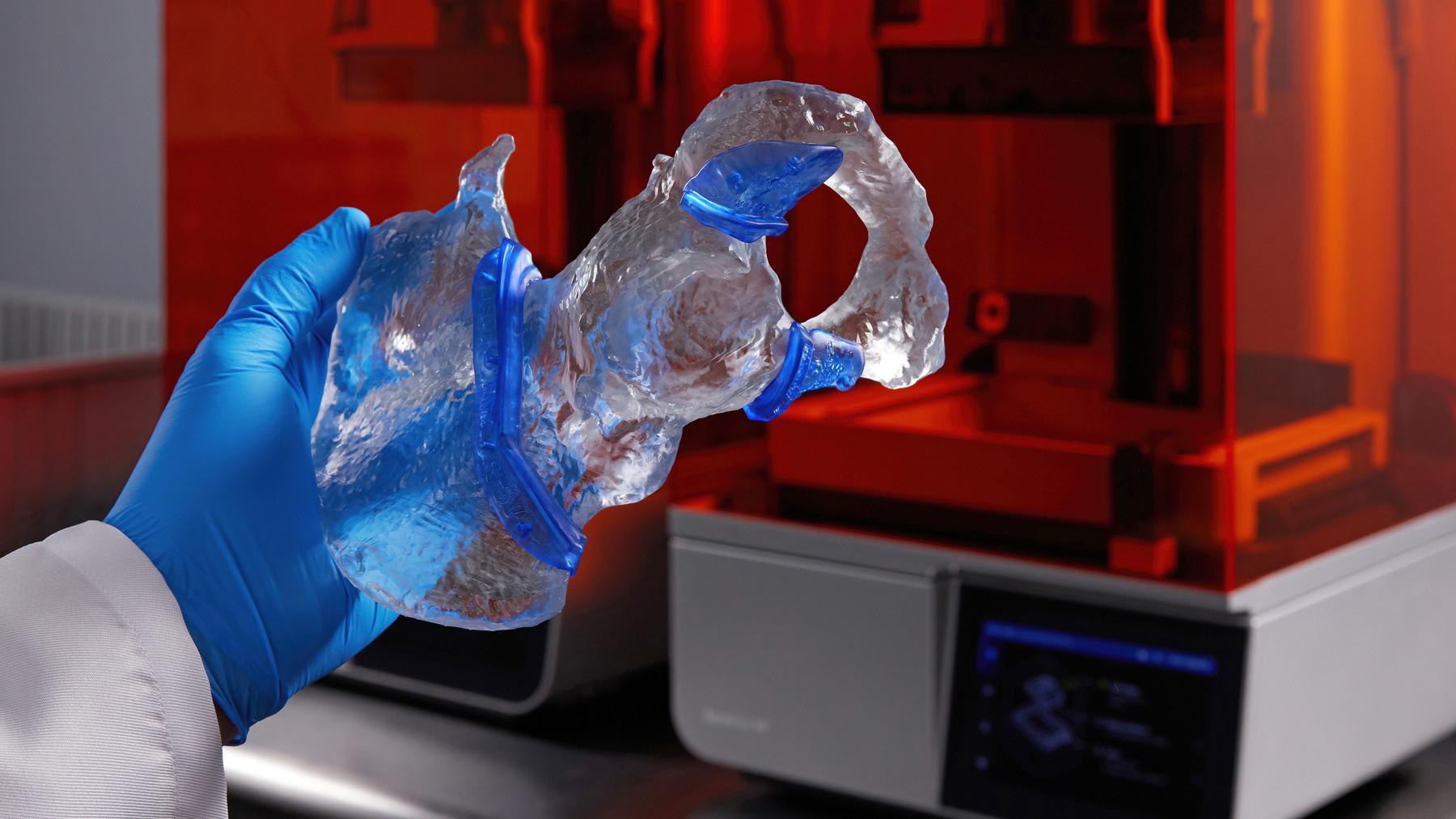

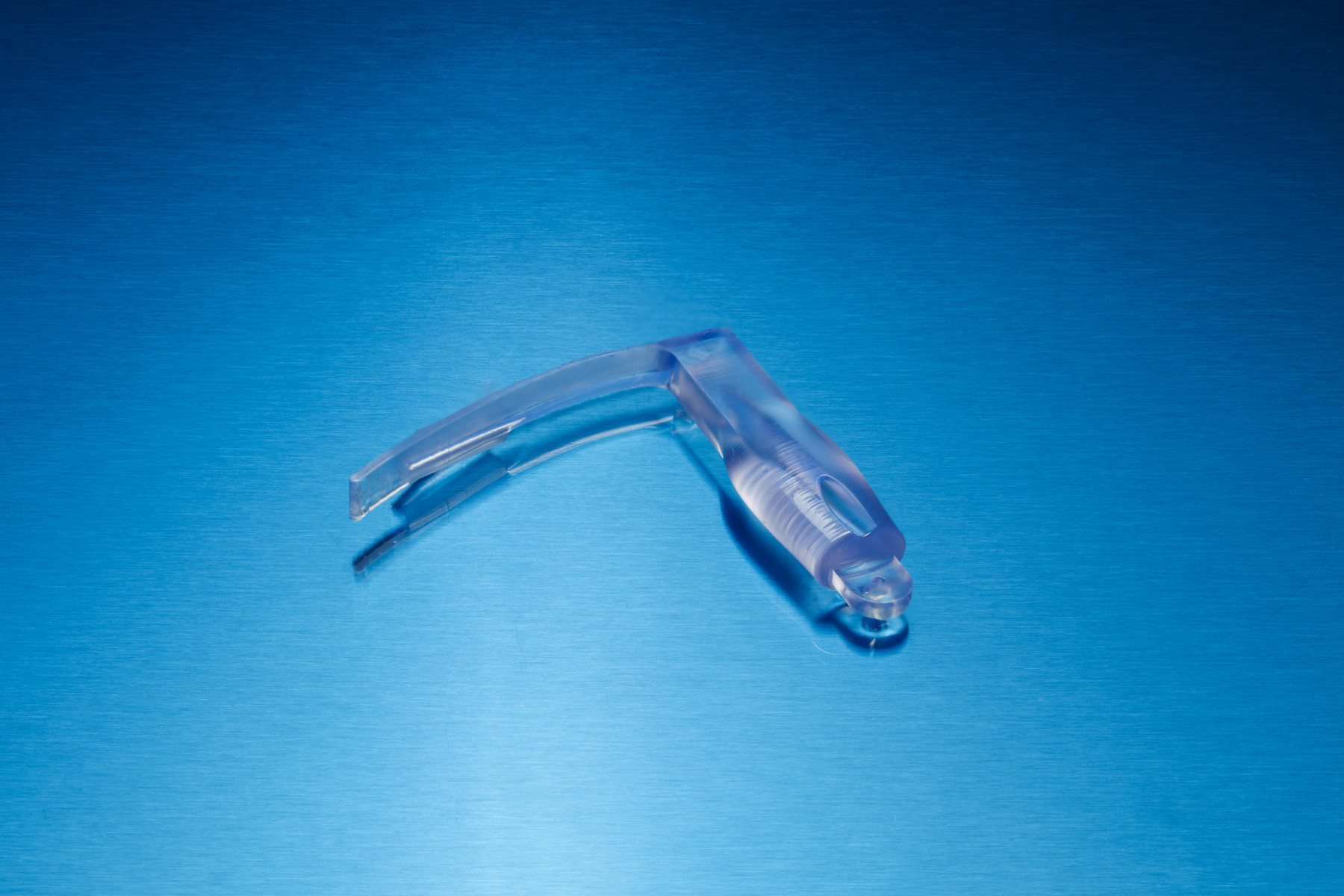

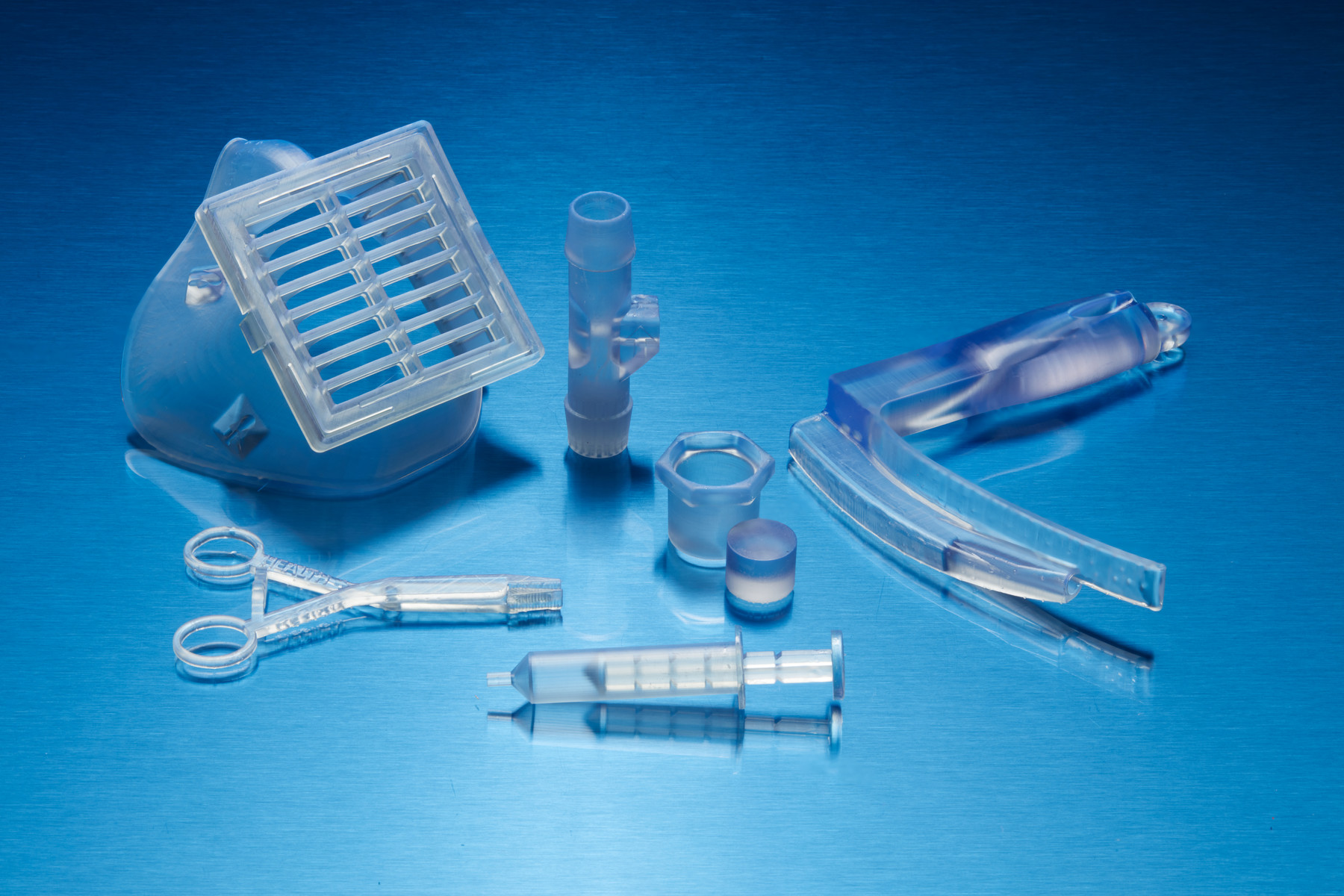

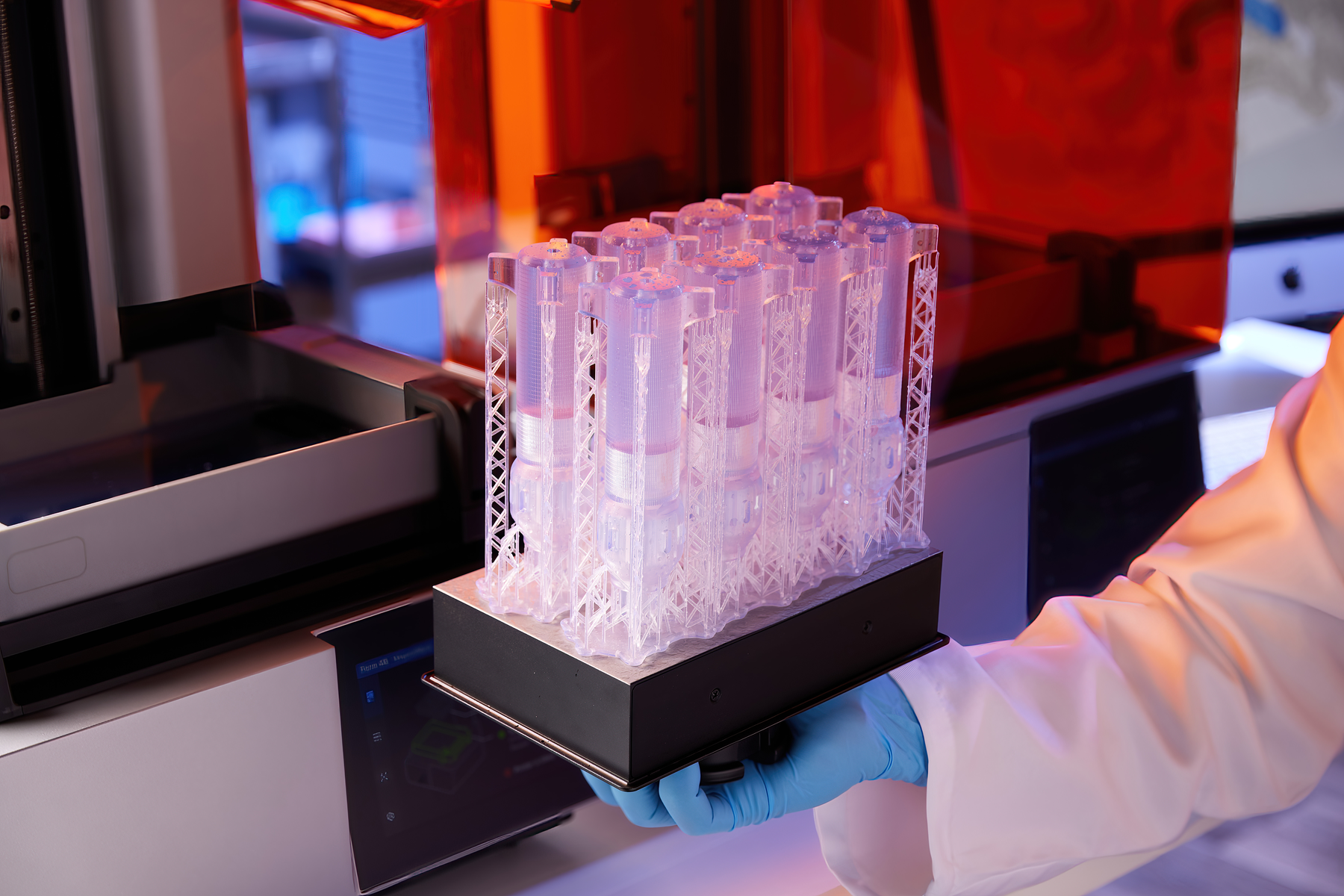

Use BioMed Clear Resin for producing rigid, transparent parts for point-of-care and medical manufacturing applications requiring biocompatibility.
*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices, and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use.
Manufactured in an ISO 13485-Certified Facility
Formlabs manufactures its BioMed and Medical Device Resins at its FDA-registered facility in Ohio. These materials are designed and manufactured within a robust Quality Management System that is ISO 13485 and EU MDR certified. A dedicated team of operators and quality assurance professionals makes the resins inside a certified ISO Class 8 clean room.
Material Properties*
Download the BioMed Clear Resin Technical Data Sheet
Download the BioMed Clear Resin Safety Data Sheet
Request Material Certificate of Analysis (COA)
| Parameter | Value |
|---|---|
| Ultimate Tensile Strength | 52 MPa |
| Young’s Modulus | 2080 MPa |
| Elongation | 12% |
| Flexural Strength | 84 MPa |
| Flexural Modulus | 2300 MPa |
| Shore Hardness | 78 D |
| Notched Izod | 35 J/m |
| Heat Deflection Temperature @ 0.45 MPa | 67 °C |
1 Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilization methods used.
2 BioMed Clear Resin was tested at NAMSA World Headquarters, OH, USA.
Post-Processing
Washing
BioMed Clear Resin may be washed using either a Formlabs-validated wash unit or an ultrasonic wash unit.
The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide/IFU for washing instructions.
Settings: Manufacturing Guide
Curing
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide/IFU for proper post-processing.
Settings: Manufacturing Guide
