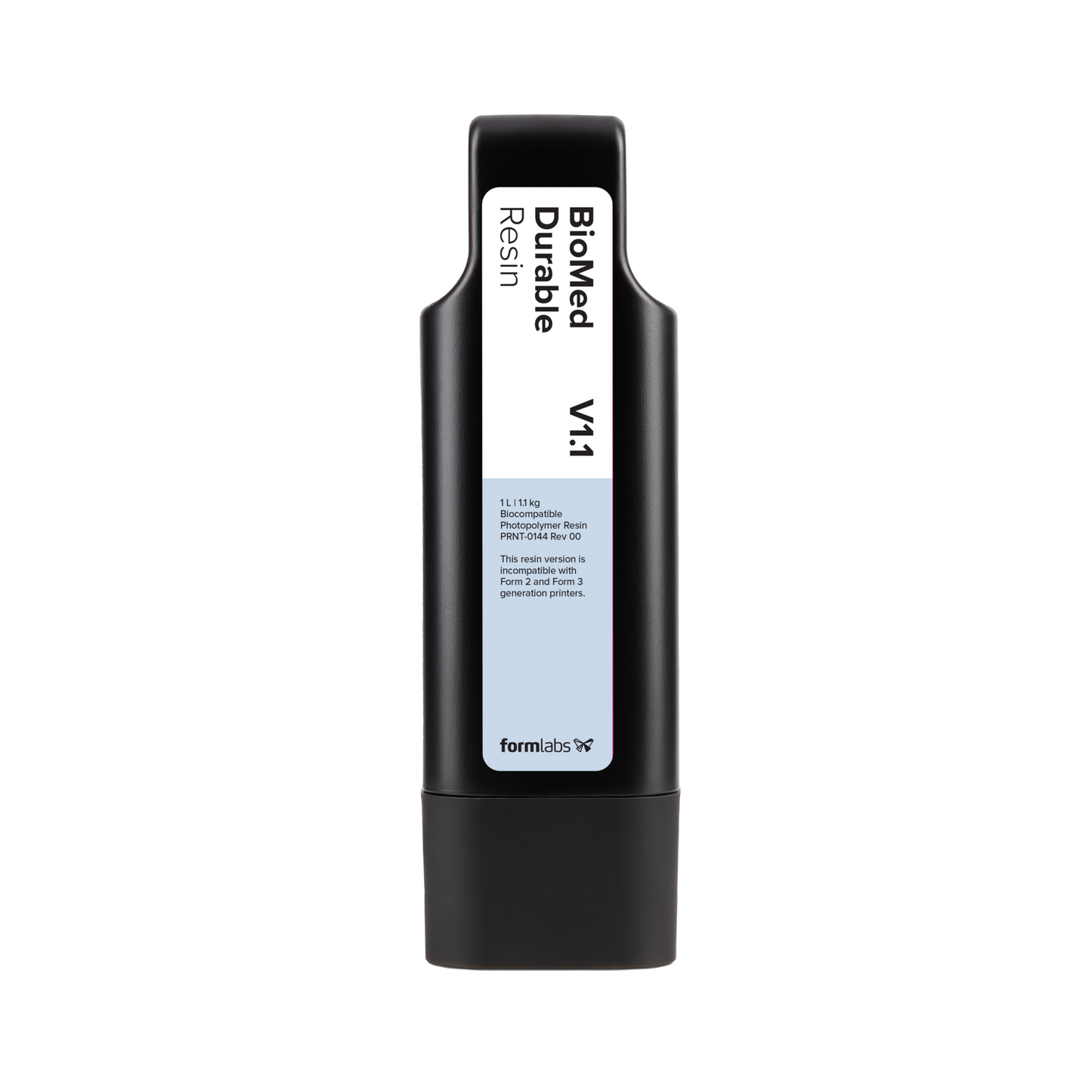

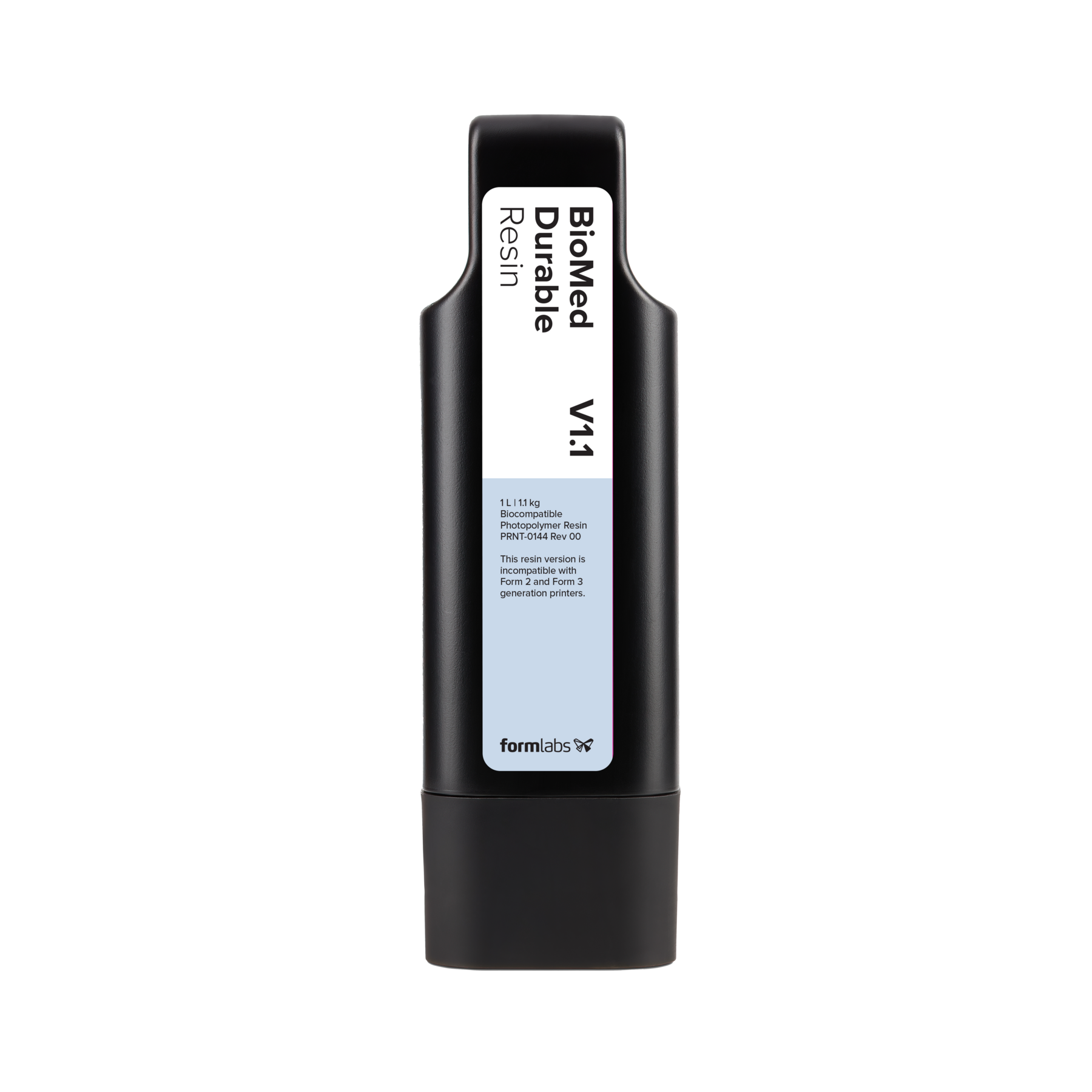

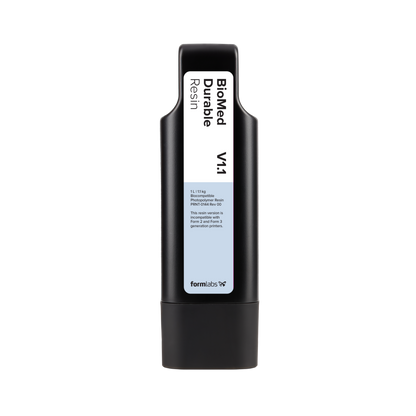

BioMed Durable Resin (Form 4) 1 L
£442.80
Couldn't load pickup availability
BioMed Durable Resin is a transparent 3D printing material for biocompatible applications requiring impact, shatter, and abrasion resistance. This USP Class VI material can be used in applications for long-term skin (>30 days) and mucosal membrane (>30 hours) or short-term tissue, bone, and dentin contact (<24 hours).
BioMed Durable Resin is manufactured in our FDA-registered, ISO 13485-certified facility and is also USP Class VI certified, which makes it suitable for pharmaceutical and drug delivery applications.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Biocompatibility | Skin Contact, Mucosal Membrane Contact |
| Categories | Impact Resistant, Medical |
| Minimum Layer Thickness | 100 micron |
| Colors | Transparent |
| Tensile Modulus | 994.0 MPa |
| Flexural Modulus | 643.0 MPa |
| Ultimate Tensile Strength | 29.1 MPa |
| Elongation at Break | 33.0% |
| Flexural Strength | 21.0 MPa |
| Shore Hardness | 75.0 D |
| Notched IZOD | 98.0 J/m |
| Unnotched IZOD | 1340.0 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 40.0 °C |
| Heat Deflection Temp. @ 0.45 MPa | 46.0 °C |
Compatibility
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Printer: Form 4B, Form 4BL, Form 3B, Form 3BL
Why Choose BioMed Durable Resin?

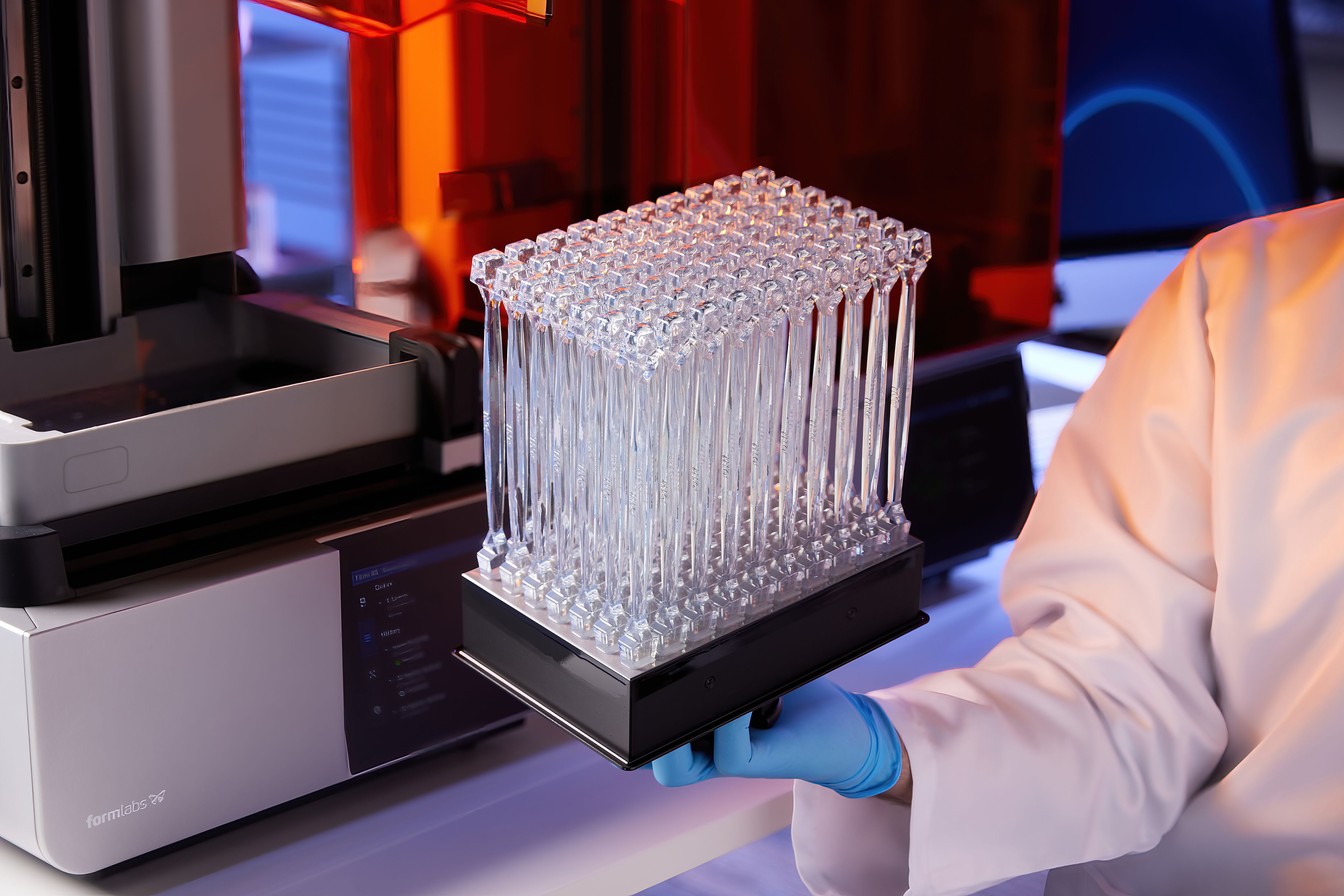

Fuel medical innovation using 3D printing and BioMed Durable Resin for producing end-use devices where performance, impact resistance, and biocompatibility are critical.
Impact, Shatter and Abrasion Resistant
Produce medical-grade parts that are impact resistant with a Notched Izod of 98 J/m.
Certified Medical-Grade Material
Leverage a material manufactured within a Quality Management System, with strict adherence to ISO 13485.
Biocompatible Parts
Common use case testing by Formlabs is intended to instil confidence that this material is suitable for biocompatible applications.
Excellent Clarity and Surface Finish
Parts produced using this material look and feel like end-use parts and have a very smooth surface finish.
Applications*

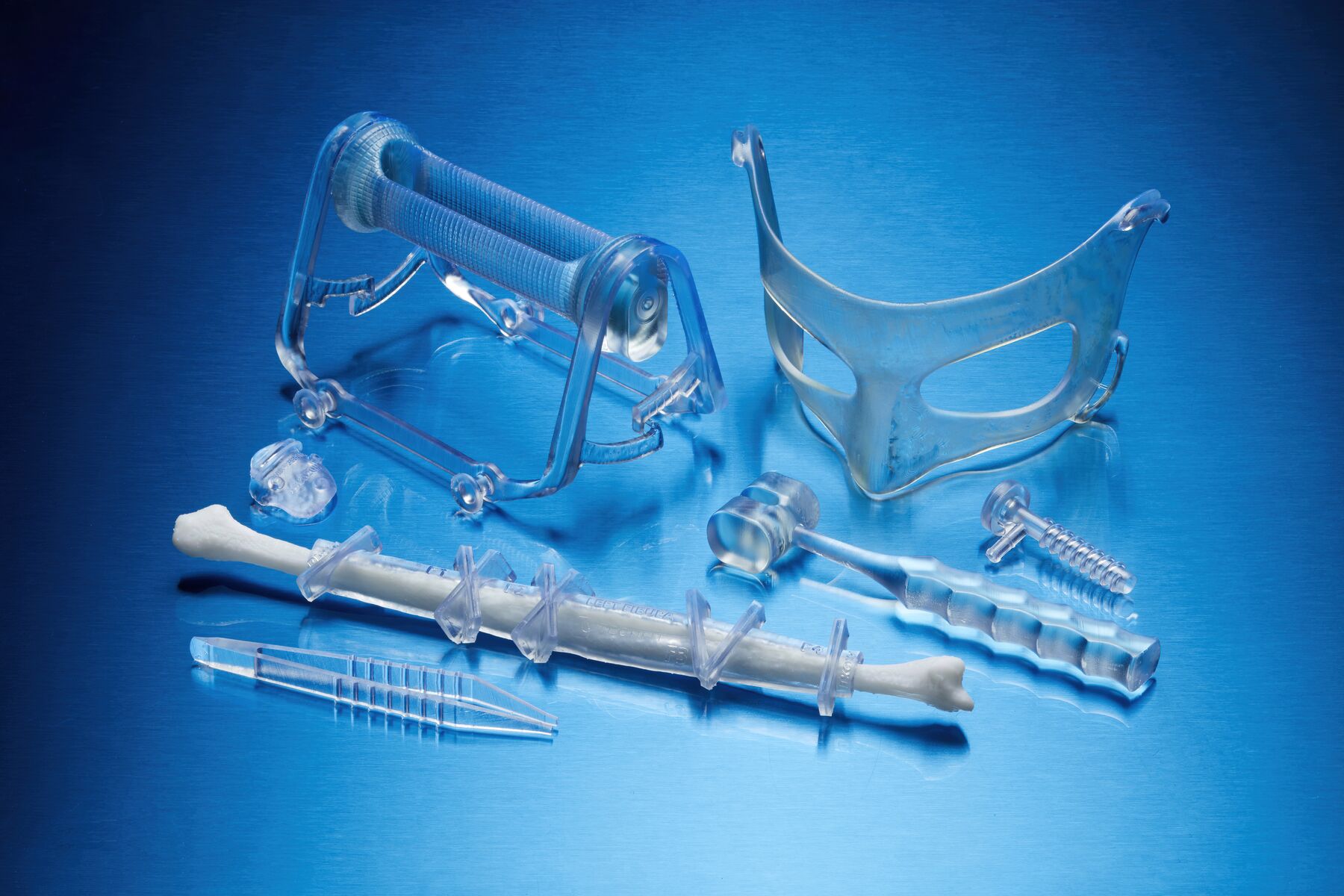

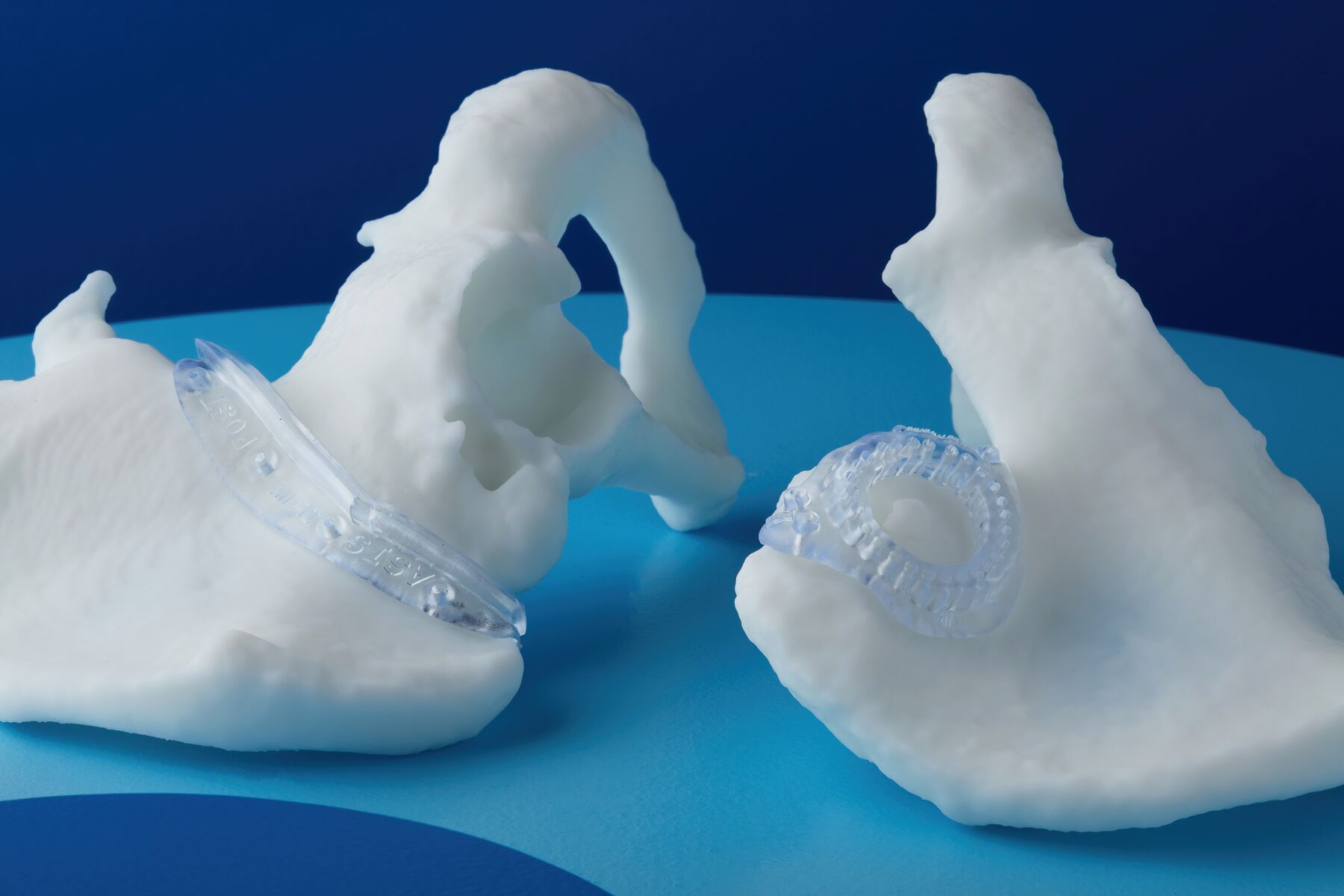

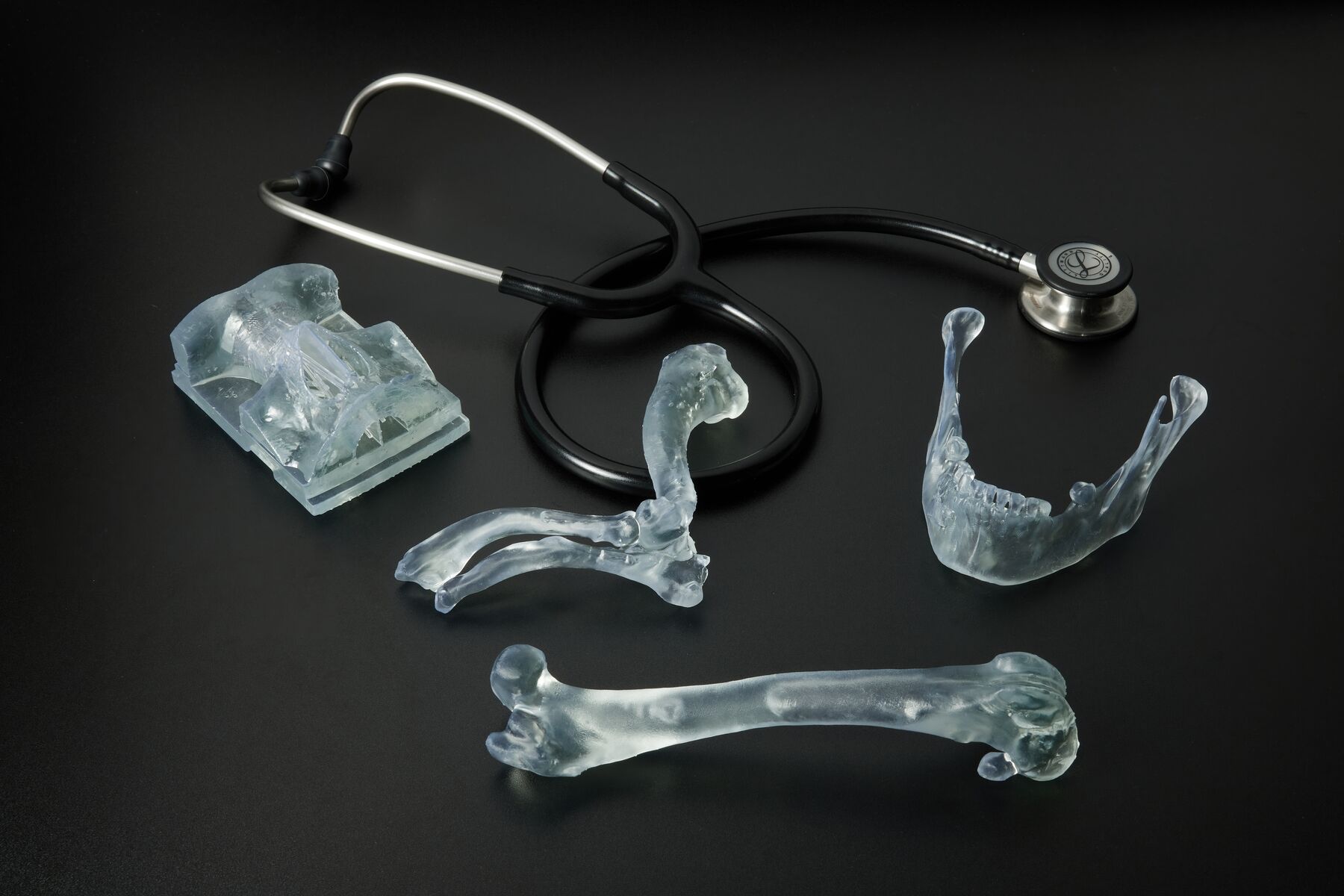

Introduce cutting-edge patient-specific instruments (PSI) and procedure-specific medical devices at the point of care. Improve patient outcomes, reduce complications, and reduce operating time with medical devices printed in BioMed Durable Resin.
*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices, and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use.
Manufactured in an ISO 13485-Certified Facility
Formlabs manufactures its BioMed and Medical Device Resins at its FDA-registered facility in Ohio. These materials are designed and manufactured within a robust Quality Management System that is ISO 13485 and EU MDR certified.
Material Properties*
Download the BioMed Durable Resin Technical Data Sheet
Download the BioMed Durable Resin Safety Data Sheet
Request Material Certificate of Analysis (COA)
| Parameter | Value |
|---|---|
| Ultimate Tensile Strength | 29.1 MPa |
| Tensile Modulus | 994 MPa |
| Elongation at Break | 33% |
| Flexural Strength | 21 MPa |
| Flexural Modulus | 643 MPa |
| Shore Hardness | 75D |
| Notched Izod | 98 J/m |
| Heat Deflection Temperature @ 0.45 MPa | 46 ºC |
Post-Processing
Manufacturing Guide: BioMed Durable Resin
Washing
BioMed Durable Resin may be washed using either a Formlabs-validated wash unit or an ultrasonic wash unit.
The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide or IFU for washing instructions.
Settings: Manufacturing Guide
Curing
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide or IFU for proper post-processing.
Settings: Manufacturing Guide
