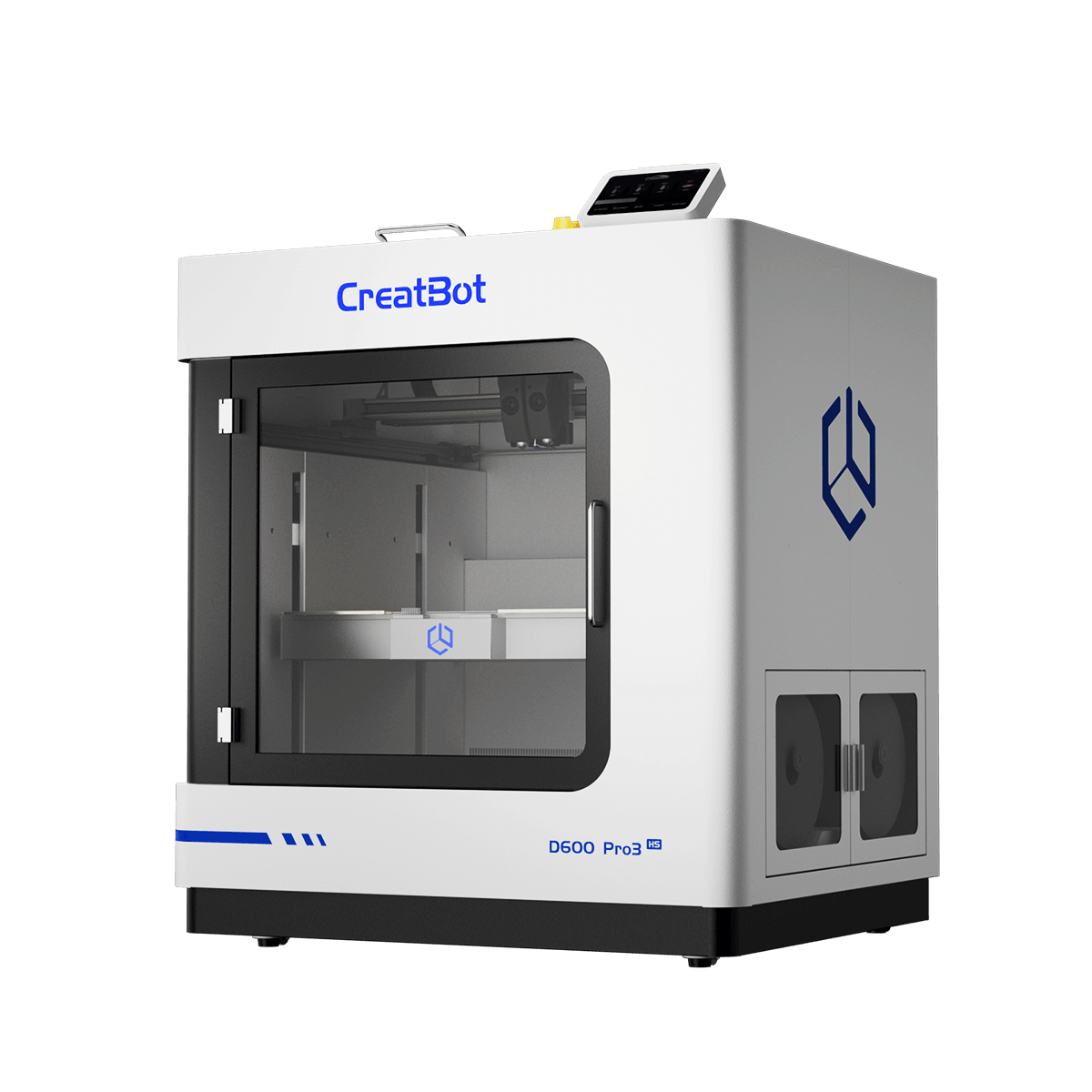

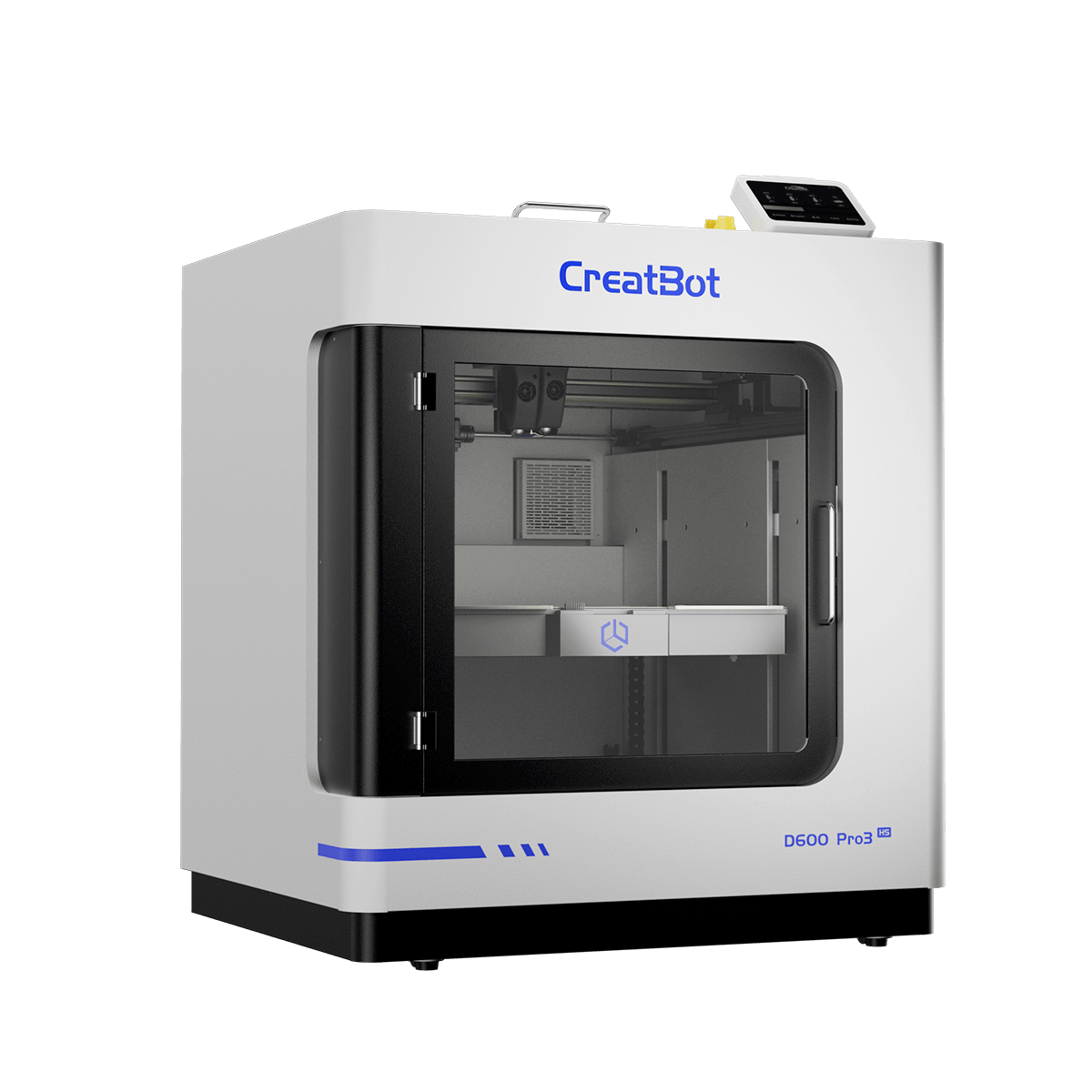

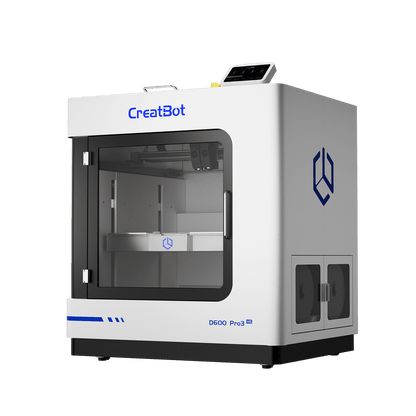

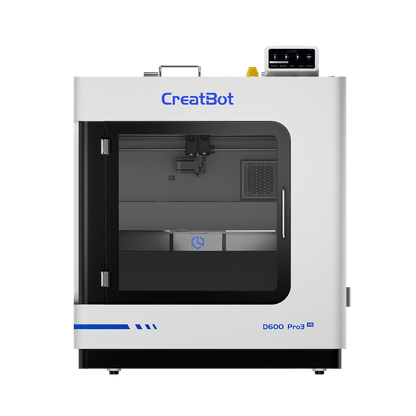

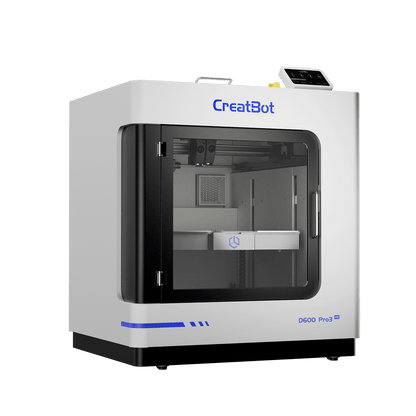

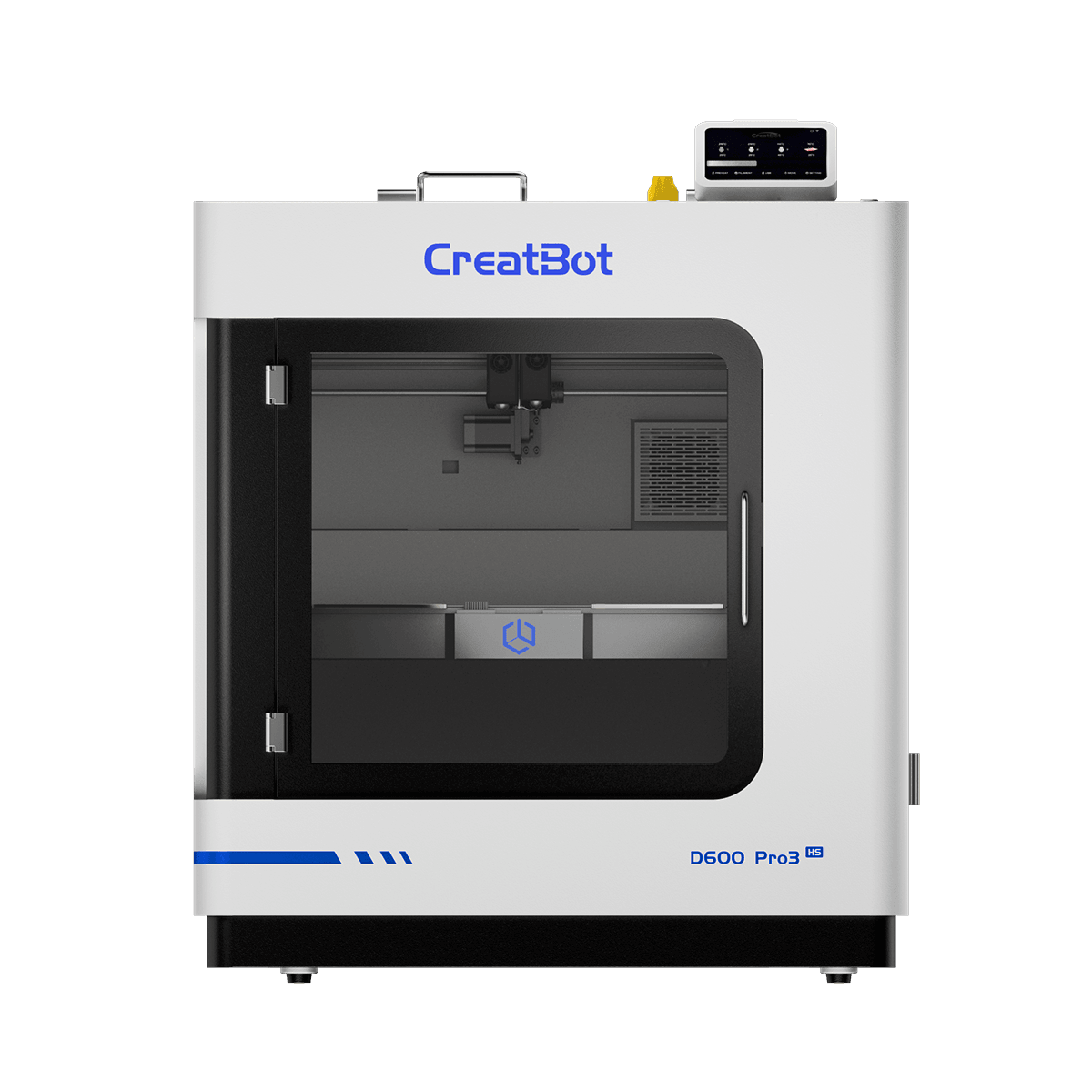

CreatBot D600 PRO3 HS

CreatBot D600 Pro3 HS

Professional Large Format High Speed 3D Printing

The CreatBot D600 Pro3 HS is a fully enclosed industrial large format 3D printer designed for high speed, high temperature and high precision manufacturing.

Built around a 620 × 620 × 620mm build volume, the D600 Pro3 HS combines upgraded Klipper firmware, high flow extrusion and industrial motion systems to deliver stable printing speeds of up to 300mm/s while maintaining reliability for continuous 24/7 operation.

• 620 × 620 × 620mm build volume
• High speed printing up to 300mm/s
• 420°C dual extrusion system
• 120°C heated bed
• 80°C actively heated chamber
• Fully enclosed industrial design
• Automatic dual nozzle calibration
• Eddy current bed levelling
• Independent Quad-Z axis system
• Filament dry storage chamber
• HEPA and carbon air filtration
• WiFi, LAN and remote app control
• Reliable 24/7 operation

High Speed Industrial Printing

The D600 Pro3 HS features deeply optimised Klipper firmware combined with a redesigned high flow hotend capable of extrusion rates up to 90mm³/s.

Its upgraded motion system enables stable printing at speeds up to 300mm/s, helping reduce production times while maintaining print quality.

Large Build Volume

Designed for full scale industrial applications, the printer offers a single extrusion build volume of 620 × 620 × 620mm and a dual extrusion build volume of 565 × 620 × 620mm.

Automatic Dual Nozzle Calibration

The D600 Pro3 HS uses a fully automatic AI-assisted calibration system for precise dual nozzle alignment.

• XY calibration via HD macro camera
• AI visual recognition
• XY accuracy: 0.02mm
• Z calibration via dual photoelectric sensors
• Z accuracy: 0.005mm

Eddy Current Bed Levelling

The advanced eddy current levelling system delivers ultra precise automatic bed calibration with 0.001mm probing accuracy. It improves first layer adhesion, reduces levelling time and supports consistent large format print accuracy.

Smart Auto-Raising Dual Extruders

The upgraded dual extrusion system supports nozzle temperatures up to 420°C and includes automatic nozzle lifting technology to reduce contamination during dual material printing.

• Flow rate: 90mm³/s
• Heat-up time to 400°C: approximately 2 minutes
• Temperature accuracy: ±0.15°C

Compatible materials include PLA, ABS, ASA, PETG, Nylon, TPU, PC, carbon fibre composites, glass fibre composites and PPS-CF.

Dual Nozzle Auto-Resume Printing

If filament runs out during printing, the printer can automatically switch to the backup nozzle to continue the job and reduce the risk of failed prints.

Active Heated Chamber

The actively heated chamber reaches temperatures up to 80°C to reduce warping and improve print consistency with engineering grade materials.

• Reduces thermal stress and warping
• Improves interlayer bonding
• Minimises moisture impact
• Improves process consistency

Thermal Compensation Technology

In large format FFF printing, high chamber temperatures can cause frame expansion, axis misalignment and mechanical movement. CreatBot uses intelligent chamber heating algorithms and Z-axis compensation technology to help maintain surface quality and dimensional accuracy.

Safety Door Protection System

The safety door monitoring system automatically pauses operation when the door is opened, helping support safer operation in professional and industrial environments.

Power Loss Recovery, Filament Detection and Backup Mode

The printer automatically saves print data during a power interruption and can resume from the point where the job stopped. Filament detection pauses printing when material runs out, while backup mode allows the secondary nozzle to continue production if required.

Magnetic Suction Platform

The removable magnetic platform is large, heat resistant over 100°C and designed for easy part removal after printing.

Linear Rails and Servo Motors

The D600 Pro3 HS uses heavy duty linear rails and servo motors to maintain smooth, precise movement at high speed, supporting reliability across large prints.

True External Air Cooling

The external air cooling system uses fresh air to support material solidification inside the heated chamber. This helps improve overhangs, reduce stringing and maintain surface quality during high speed printing.

Filament Dry Room

The integrated filament drying compartment maintains a controllable temperature range of 0–70°C to help prevent moisture absorption in hygroscopic materials such as Nylon, PC, PA-CF and PET-CF.

Independent Quad-Z Axis

The independent four motor Z-axis system allows individual height compensation at each corner of the platform, improving flatness, stability and first layer consistency.

Quad-Z Auto-Leveling

The system automatically detects and fine-tunes the vertical height of each corner to improve parallelism between the build plate and gantry.

Superior Load Capacity and Stability

The four motors work together to support large, heavy models while maintaining platform stability during printing.

Anti-Tilt and Torque Correction

The platform is actively supported to reduce tilt and mechanical twist during large format printing.

Superior Layer Consistency

Smoother Z-axis travel helps reduce visible banding and improve the surface finish of large industrial parts.

Ultra Air Filter System

The dual filter system combines HEPA and activated carbon filtration to help capture fine particles, VOCs and odours during printing.

WiFi, LAN, Internet and App Control

The D600 Pro3 HS supports cloud connectivity, local area network mode and physical connection operation. Users can control the printer, send sliced files and update firmware with or without an internet connection.

Z Magic Box

For tall Z distance printing, the Z Magic Box technology helps reduce or remove Z-axis surface texture, supporting smoother and more consistent surface quality on tall models.

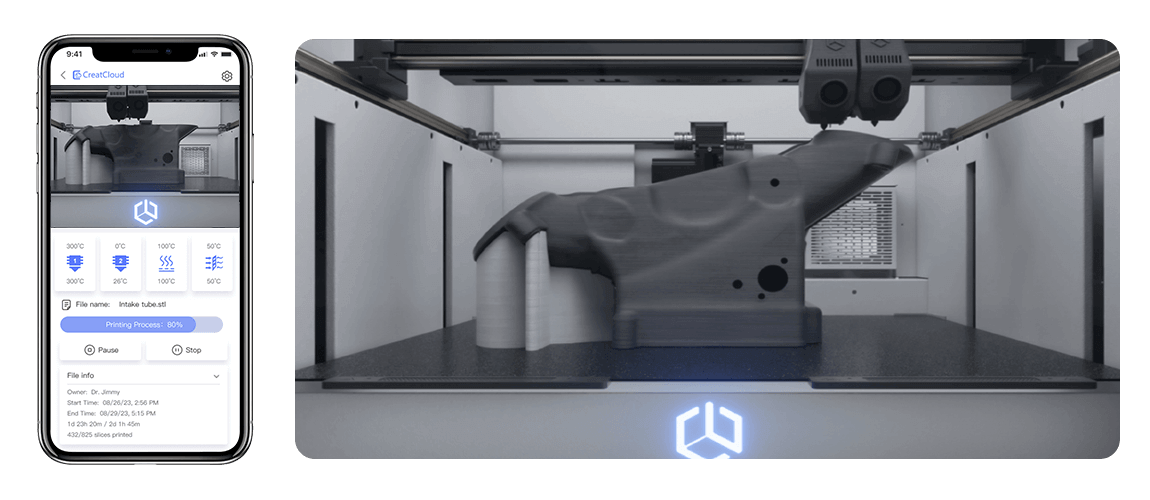

Camera Control Technology

Camera control technology allows users to monitor and control the printing process remotely, including speed, pause and temperature settings.

Technical Specifications

Printing
Print Technology	FDM
Build Volume	Single extrusion: 620 × 620 × 620mm Dual extrusion: 565 × 620 × 620mm
Number of Nozzles	Double
Auto-Raising Extruders	Yes
Minimum Layer Height	0.05mm
Filament Diameter	1.75mm
Material Compatibility	PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF and more
Nozzle Diameter	0.6mm standard, optional 0.3, 0.4, 0.8 and 1.0mm
Print File Type	GCODE
Temperature
Maximum Nozzle Temperature	420°C
Maximum Bed Temperature	120°C
Maximum Chamber Temperature	80°C
Filament Drying Temperature	0–70°C timed
Speed
Maximum Print Speed	300mm/s
Flow Rate	90mm³/s
Electrical
Power Requirements	240V, 50–60Hz
Rated Power	Printer: 2500W, Chamber: 3000W
Screen	7 inch touch screen
Connectivity	USB, U disk, WiFi, LAN
Software
Software Bundle	CreatWare, OrcaSlicer, Cura, Slice3r
Supported File Types	STL, OBJ, AMF
Operating Systems	Windows, Mac OS
Special Features
Air Filter	HEPA and carbon
Filament Detection	Pause printing
Firmware	Klipper high speed
Camera Control	Remote camera monitoring
Dual Nozzle Auto-Resume Printing	Yes
Bed Levelling Technology	Eddy current levelling
XY Offset Technology	HD camera dual nozzle offset
Z Offset Technology	Dual photoelectric sensor
Nozzle Shutter Technology	Dual nozzle shutter
Door Opening Detection	Safety door lock
Chamber Insulation	Internal insulation cotton
External Air Cooling	Yes
Mechanical
Build Plate	Aviation aluminium plate
Build Plate Levelling	Automatic
Extruder	Smart dual extruders
Auto-Raising Extruders	Yes
X/Y Positioning Precision	0.011mm
Z Positioning Precision	0.0025mm
Z-Axis Structure	Independent Quad-Z axis
Size and Weight
Product Dimensions and Weight	1150 × 950 × 1250mm, 250kg
Packing Size and Weight	1175 × 1015 × 1405mm, 290kg
