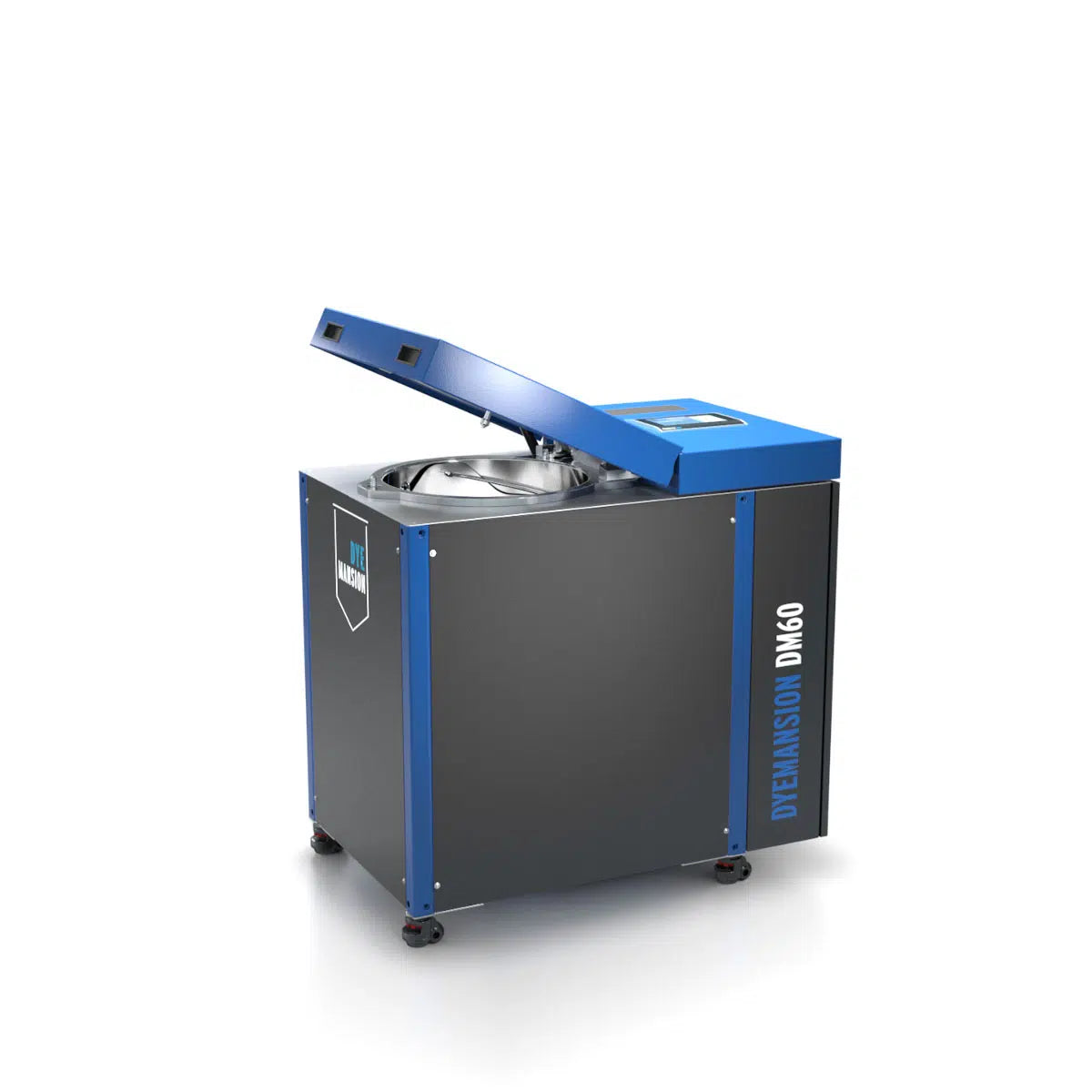

DyeMansion DM60 automated colouring solution ‐ 400V / 50Hz
£61,015.44
Couldn't load pickup availability
DyeMansion DM60
The DyeMansion DM60 is an industrial colouring solution for 3D printed parts, designed to deliver repeatable, high-quality dyeing results across a wide range of colours.
From deep blacks to vibrant custom shades, the DM60 makes it simple to colour parts consistently using exact colour formulas and RFID-tagged dye cartridges.
Key Features
- Unlimited colour options, including standard, RAL, Pantone and custom colours
- Exact, reproducible colour formulas
- RFID-tagged cartridge system for easy operation
- ISO-certified solutions for end-use applications
- Compatible with rigid and semi-rigid materials, including PA11, PA12 and TPU
- Suitable for technologies including SLS, MJF, SAF, HSS, SLA, DLP and CDLP/CLIP
- 150-minute cycle time
Simple Industrial Dyeing
The DM60 removes the complexity from dyeing 3D printed parts. Simply scan the RFID chipped colour cartridge, place cleaned and surfaced parts into the basket, close the lid and start the process. After the cycle, parts are coloured and ready for use.
Built for Professional Applications
With its DeepDye Coloring process, the DM60 supports consistent, repeatable results for industries including consumer goods, healthcare, production, mobility, logistics and service providers.
Technical Highlights
- Process chamber: 80L
- Maximum part size: 390mm x 360mm
- Operating temperature: up to 115°C
- Dimensions: 950mm x 600mm x 945mm
- Dye penetration: material dependent, approximately 0.2mm on EOS PA 2200
Whether you need access to a full colour database or a dedicated black dyeing solution, the DyeMansion DM60 offers a reliable way to turn 3D printed parts into finished, production-ready products.
Technical Specifications
| DM60 | DM60 Black | |
|---|---|---|
| Print-to-Product Workflow | DeepDye Coloring | DeepDye Coloring |
| Colour Options | Unlimited | Black only Full colour software upgrade available |
| Colour Cartridge Options | S, M, L, XL, DM Black L-R (Reusable) & DM Black L-RR (Refresh) | S, M, L, XL, DM Black L-R (Reusable) & DM Black L-RR (Refresh) |
| Cycle Time | 150 minutes | 150 minutes |
| Operating Temperature | Up to 115°C (240°F) | Up to 115°C (240°F) |
| Capacity per Run | Up to ¾ EOS P396, 1× HP Jet Fusion 4200/5200 or approximately 1.5 full-sized Stratasys H350 build jobs | Up to ¾ EOS P396, 1× HP Jet Fusion 4200/5200 or approximately 1.5 full-sized Stratasys H350 build jobs |
| Process Chamber | 80L (21.1 gal) | 80L (21.1 gal) |
| Maximum Part Size (Ø × H) | 390 × 360mm (15.3 × 14.2in) | 390 × 360mm (15.3 × 14.2in) |
| Dimensions | 950 × 600 × 945mm (37.4 × 23.7 × 37.0in) | 950 × 600 × 945mm (37.4 × 23.7 × 37.0in) |
| Compatible Technologies | SLS, SAF, MJF & HSS SLA, DLP & CDLP/CLIP available on request |
SLS, SAF, MJF & HSS SLA, DLP & CDLP/CLIP available on request |
| Dye Penetration | Material dependent (approximately 0.2mm on EOS PA2200) | Material dependent (approximately 0.2mm on EOS PA2200) |
| Connectivity | OPC UA interface via DyeMansion Data Connect (optional), remote VPN support (optional) | OPC UA interface via DyeMansion Data Connect (optional), remote VPN support (optional) |
Specifications are subject to change by DyeMansion without notice.
