EinScan Rigil Lite 24GB
£3,660.00
Couldn't load pickup availability

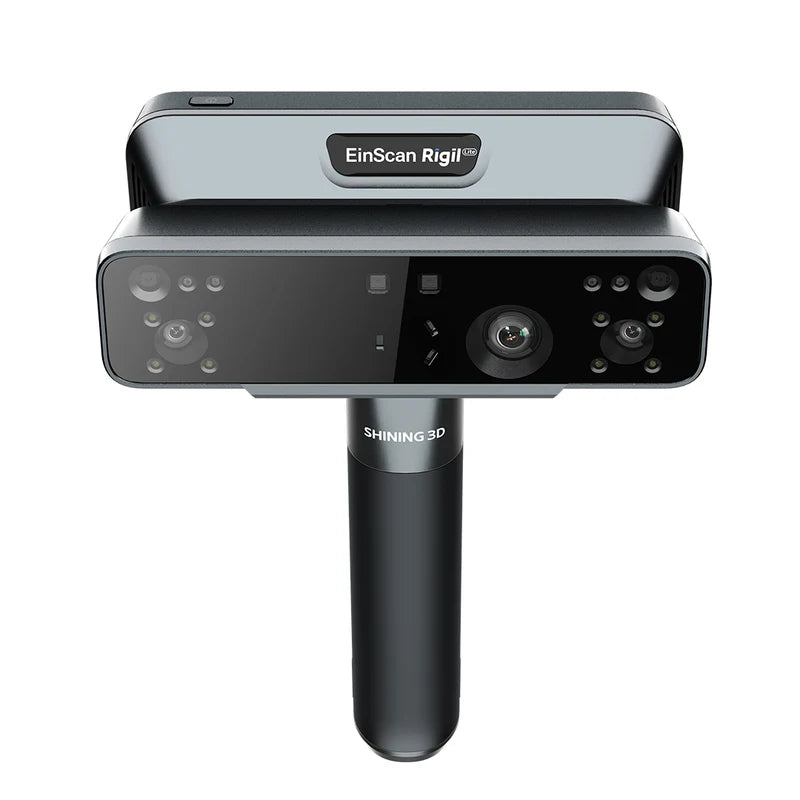

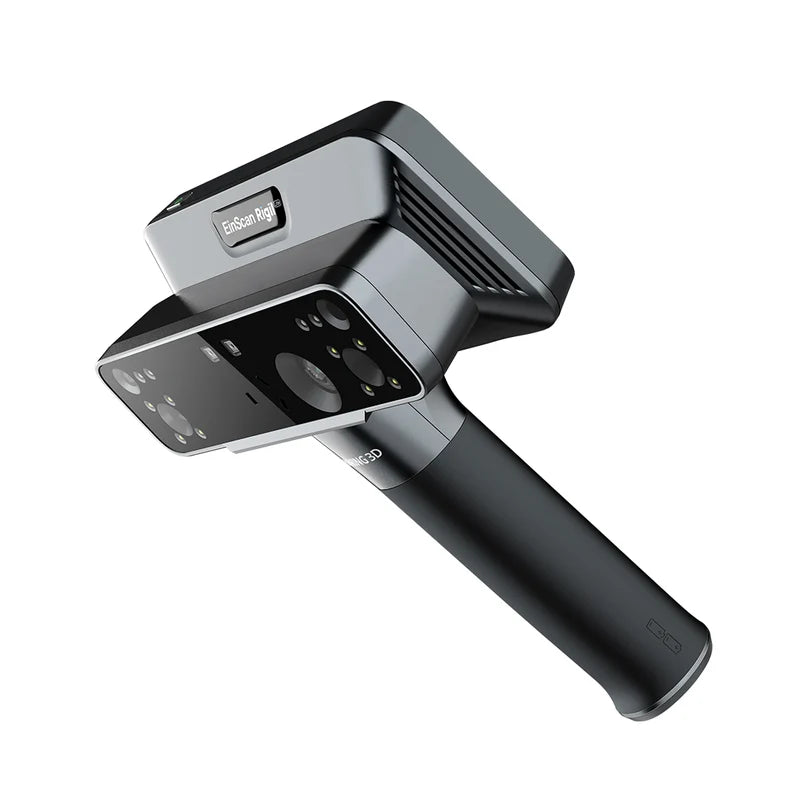

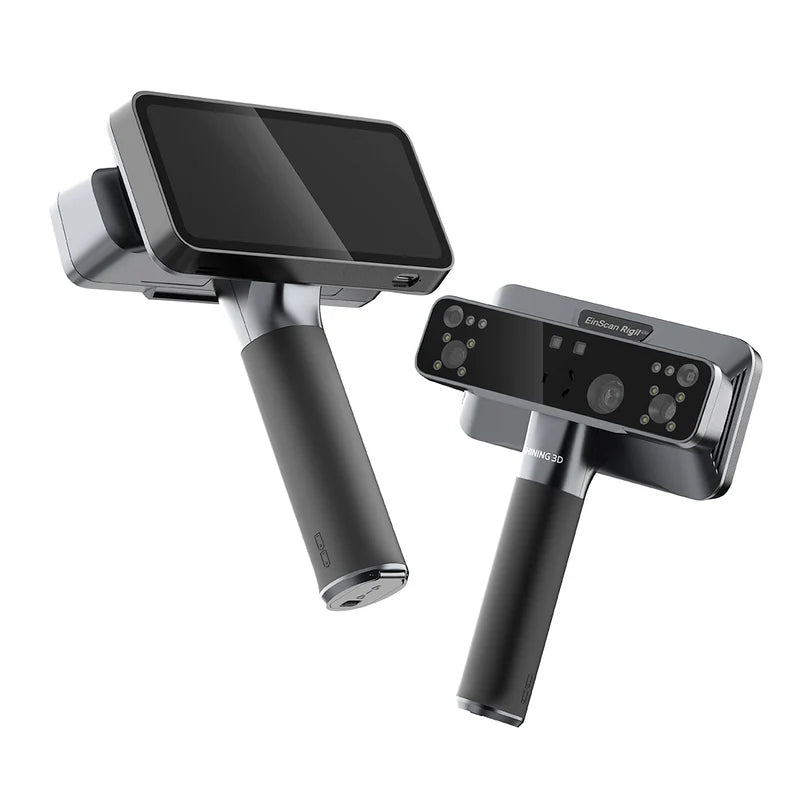

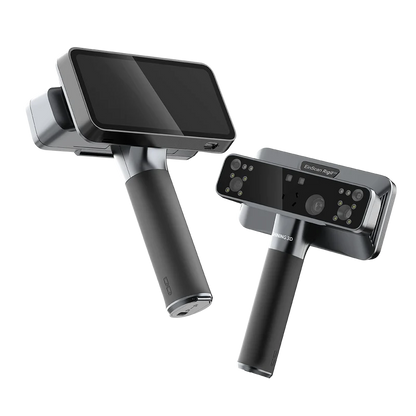

EinScan Rigil Lite 3D Scanner
The EinScan Rigil Lite is a versatile, all-in-one handheld 3D scanner combining blue laser and infrared scanning technologies with a fully standalone workflow. Designed for professionals, engineers and creators, it delivers high-quality 3D scanning without the need for a constant connection to a computer.
Featuring a hybrid light source, marker-free scanning capabilities and a built-in 6.4-inch 2K AMOLED touchscreen, the Rigil Lite makes capturing and processing detailed 3D models straightforward, whether working in the workshop, on-site or outdoors.
With multiple scanning modes, full-colour texture capture and advanced on-device editing tools, the Rigil Lite provides a flexible solution for reverse engineering, product development, 3D printing and digital content creation.
Key Features
- Hybrid Scanning Technology: Combines blue laser and infrared VCSEL light sources for detailed and efficient 3D scanning.
- Standalone Operation: Scan, process and export models directly on the device without requiring a computer.
- Marker-Free Scanning: Supports marker-free laser scanning and flexible alignment methods.
- High-Speed Data Capture: Capture up to 16 million points per second using IR Rapid scanning.
- Full-Colour Scanning: Integrated 5MP texture camera captures detailed colour information.
- Challenging Surface Scanning: Designed to scan dark and reflective surfaces without scanning spray in supported conditions.
- Flexible Connectivity: Operates independently or connects to a PC wirelessly or via USB-C.

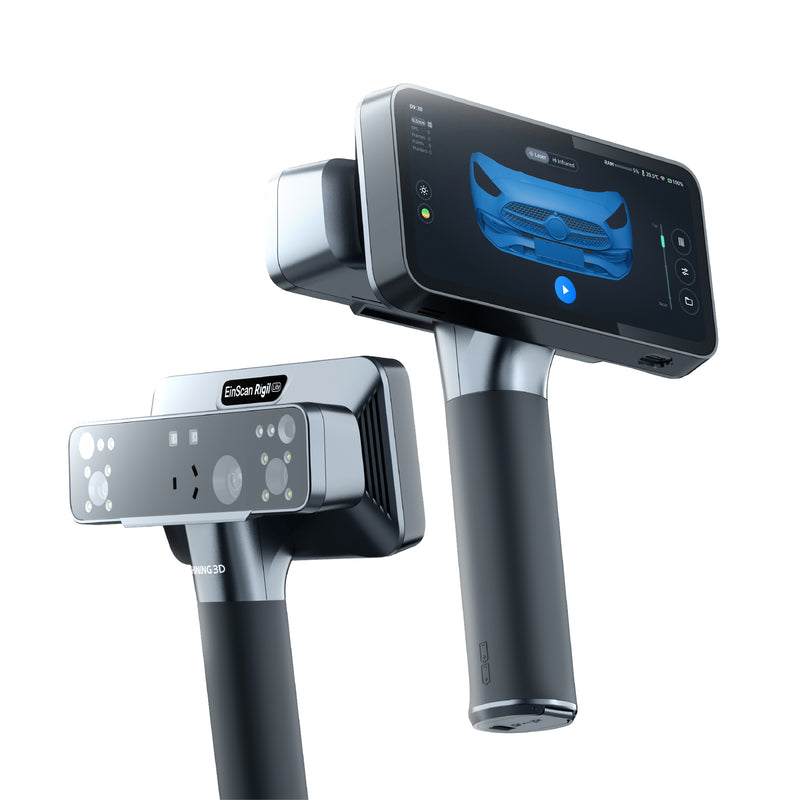

- Integrated Touchscreen: Features a 6.4-inch 2K AMOLED display for convenient operation.
- Advanced Editing Tools: Includes point cloud editing, mesh processing, noise reduction, alignment and measurement functions.
- Portable Design: Weighing approximately 870g with batteries, the scanner is suitable for mobile and on-site applications.
Hybrid Blue Laser and Infrared Scanning
The EinScan Rigil Lite offers two scanning modes to accommodate different objects, surfaces and applications.
Laser HD Mode: Uses 17+17 crossed blue laser lines or 7 parallel blue laser lines for capturing detailed geometry, including complex surfaces and fine features.
IR Rapid Mode: Uses infrared VCSEL technology to capture larger areas quickly, with scanning speeds of up to 16 million points per second and flexible marker-free alignment options.
These technologies provide flexibility when scanning objects of different sizes, materials and surface characteristics.
Complete On-Device Workflow
The Rigil Lite integrates scanning, processing and model preparation into a single portable system. Its built-in software provides a range of tools to simplify complex scanning projects.
- Multi-project alignment for combining separate scans
- Scanning rewind and resume functionality
- Automatic cutting plane detection
- Point cloud editing and unwanted data removal
- Mesh editing and model customisation
- Advanced noise reduction
- Multi-coordinate alignment
- Integrated model measurement tools
- SHINING 3D Cloud sharing
Applications
- Reverse engineering and product development
- 3D printing and rapid prototyping
- Engineering and manufacturing
- Automotive parts and aftermarket components
- Digital archiving and heritage preservation
- 3D modelling and digital content creation
- Education and research
Technical Specifications
| Manufacturer | EINSTAR / SHINING 3D |
| Model | EinScan Rigil Lite |
| Operating Modes | Standalone, Wireless PC, Wired PC |
| Scanning Modes | Laser HD, IR Rapid |
| Laser Light Source | 17+17 crossed blue laser lines / 7 parallel blue laser lines |
| Infrared Light Source | IR VCSEL |
| Laser HD Resolution | 0.05–10 mm |
| IR Rapid Resolution | 0.2–10 mm |
| Laser HD Scanning Speed | Up to 2,940,000 points/s |
| IR Rapid Scanning Speed | Up to 16,000,000 points/s |
| Laser HD Working Distance | 170–550 mm |
| IR Rapid Working Distance | 160–1500 mm |
| Texture Camera | 5MP |
| Laser Classification | Class II |
| Display | 6.4-inch 2K AMOLED Touchscreen |
| Processor | 8-core, 2.4 GHz |
| Memory | 24GB LPDDR5 |
| Storage | 64GB eMMC + 512GB SSD |
| Output Formats | STL, OBJ, PLY, 3MF, ASC, LAS |
| Dimensions | 233 × 180 × 72.8 mm |
| Weight | 870g (including batteries) |
| Connectivity | Wi-Fi 6, USB Type-C |
| Operating Temperature | -10°C to 40°C |
What's in the Box?
- EinScan Rigil Lite 3D Scanner
- Battery
- Battery compartment and charging cable
- Carrying case
- Calibration board
- Universal holder
- Power adaptor
- USB Type-C cable
- Marker removal tool
- 3mm and 6mm reflective markers
- Tempered glass screen protector
- Cleaning cloth
- Packing list
Flexible 3D Scanning for Professional Applications
Whether capturing components for reverse engineering, creating digital models for 3D printing or documenting complex objects, the EinScan Rigil Lite offers a combination of portability, scanning flexibility and integrated processing tools.
With its standalone operation, hybrid scanning technology and comprehensive software features, it provides an accessible way to introduce professional 3D scanning into a wide range of workflows.
