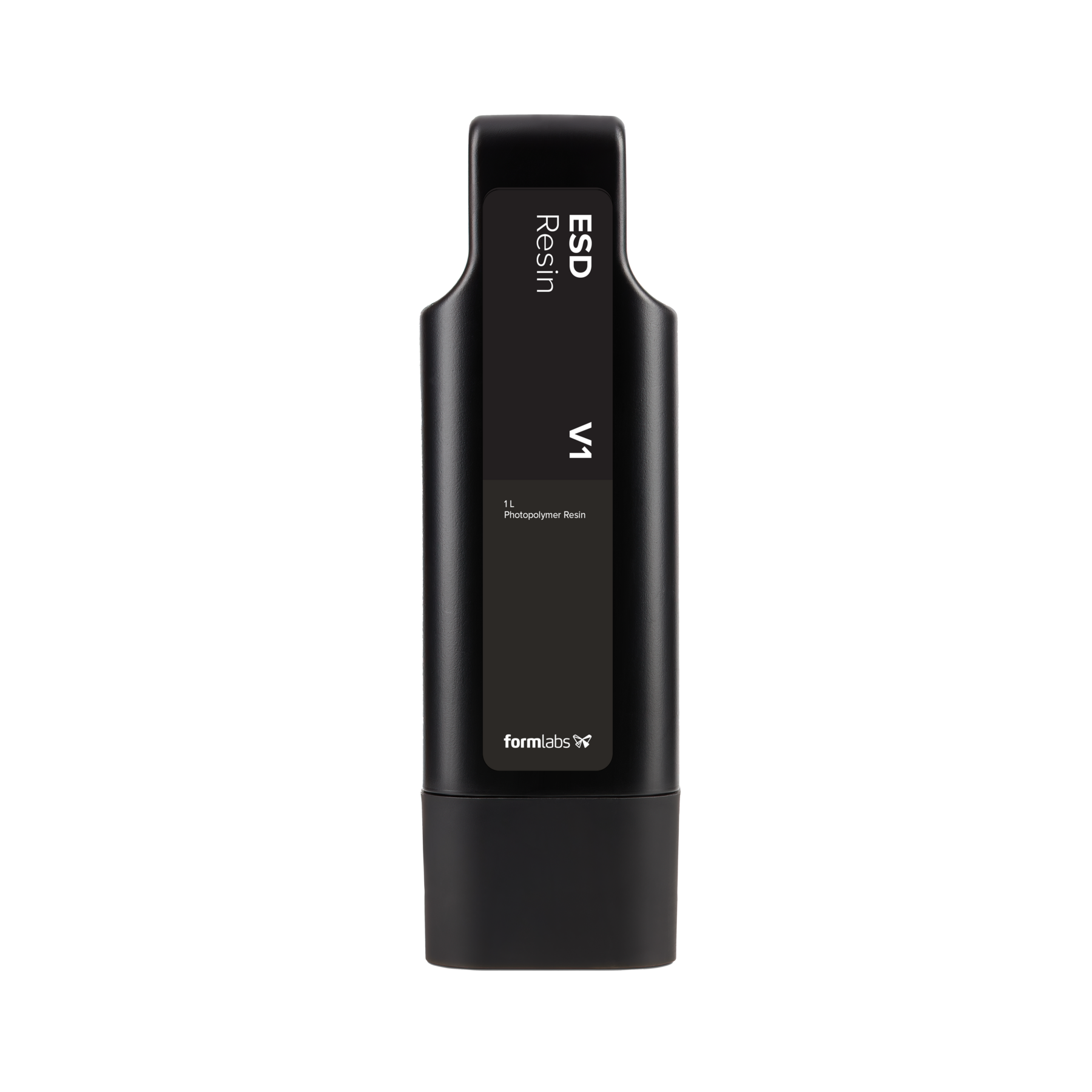

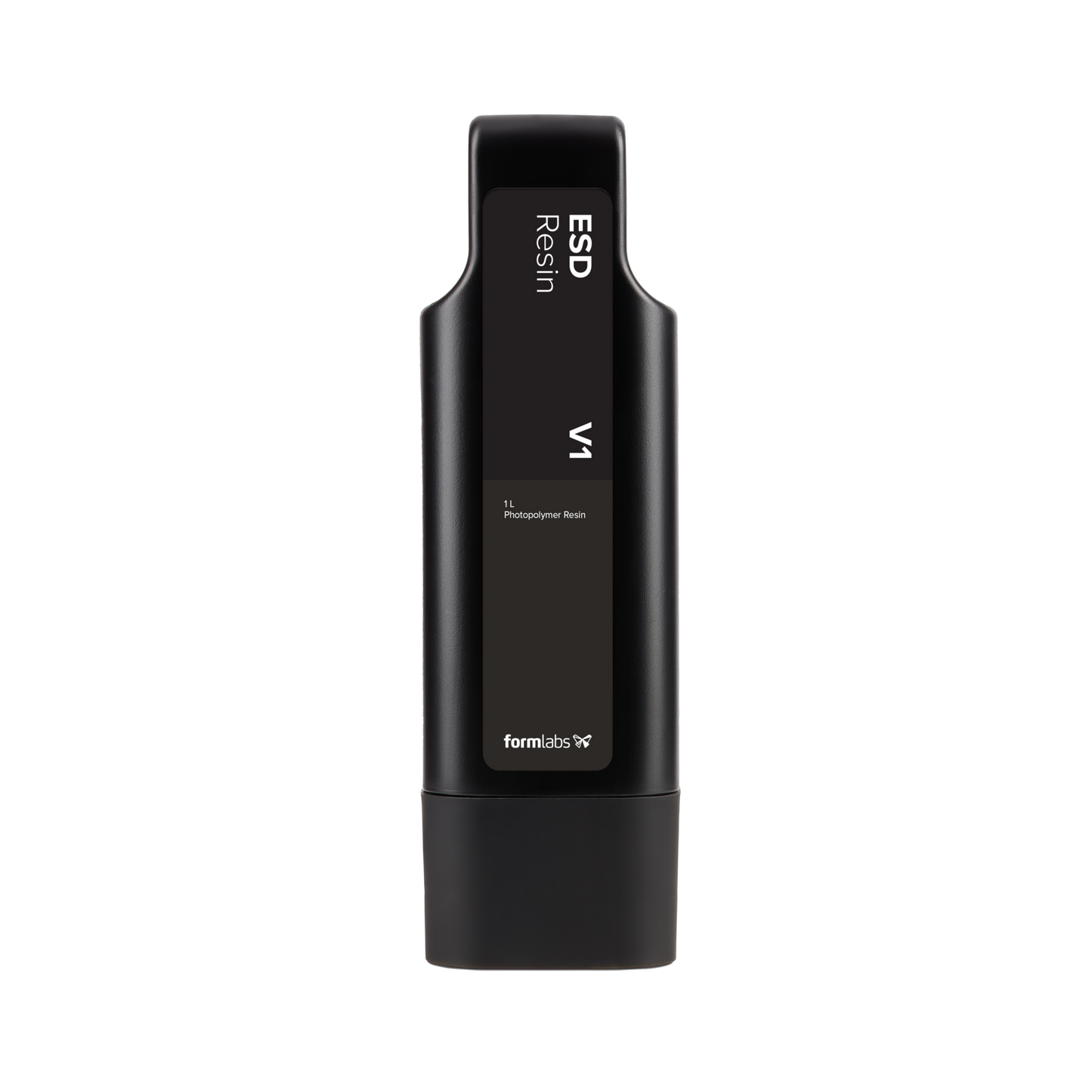

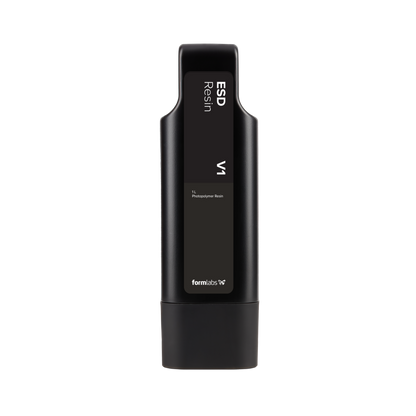

Formlabs ESD Resin (Form 4) 1 L
£204.00
Couldn't load pickup availability
ESD Resin is a specialty material for producing custom ESD-safe prototypes and production tooling to increase operational efficiency and improve the yield of electronics manufacturing lines. Parts printed in ESD Resin are static-dissipative and have high modulus and impact strength similar to ABS.
Choose ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Minimum Layer Thickness | 50 micron |
| Categories | Specialty |
| Applications | Rapid Prototyping |
| Ultimate Tensile Strength | 44.2 MPa |
| Flexural Strength | 61.0 MPa |
| Notched Izod | 26.0 J/m |
| Unnotched Izod | 277.0 J/m |
| Elongation at Break | 12.0% |
| Heat Deflection Temp. @ 1.8 MPa | 54.2 °C |
| Heat Deflection Temp. @ 0.45 MPa | 62.2 °C |
| Thermal Expansion | 123.7 μm/m/°C |
| Tensile Modulus | 1937.0 MPa |
| Flexural Modulus | 1841.0 MPa |
Compatibility
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Printer: Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL
Why Choose ESD Resin?
Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, and electronics manufacturing.
Static-Dissipative
Protect critical electronics from unregulated static discharge to prevent component failures.
High Toughness
With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line.
Applications
ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.

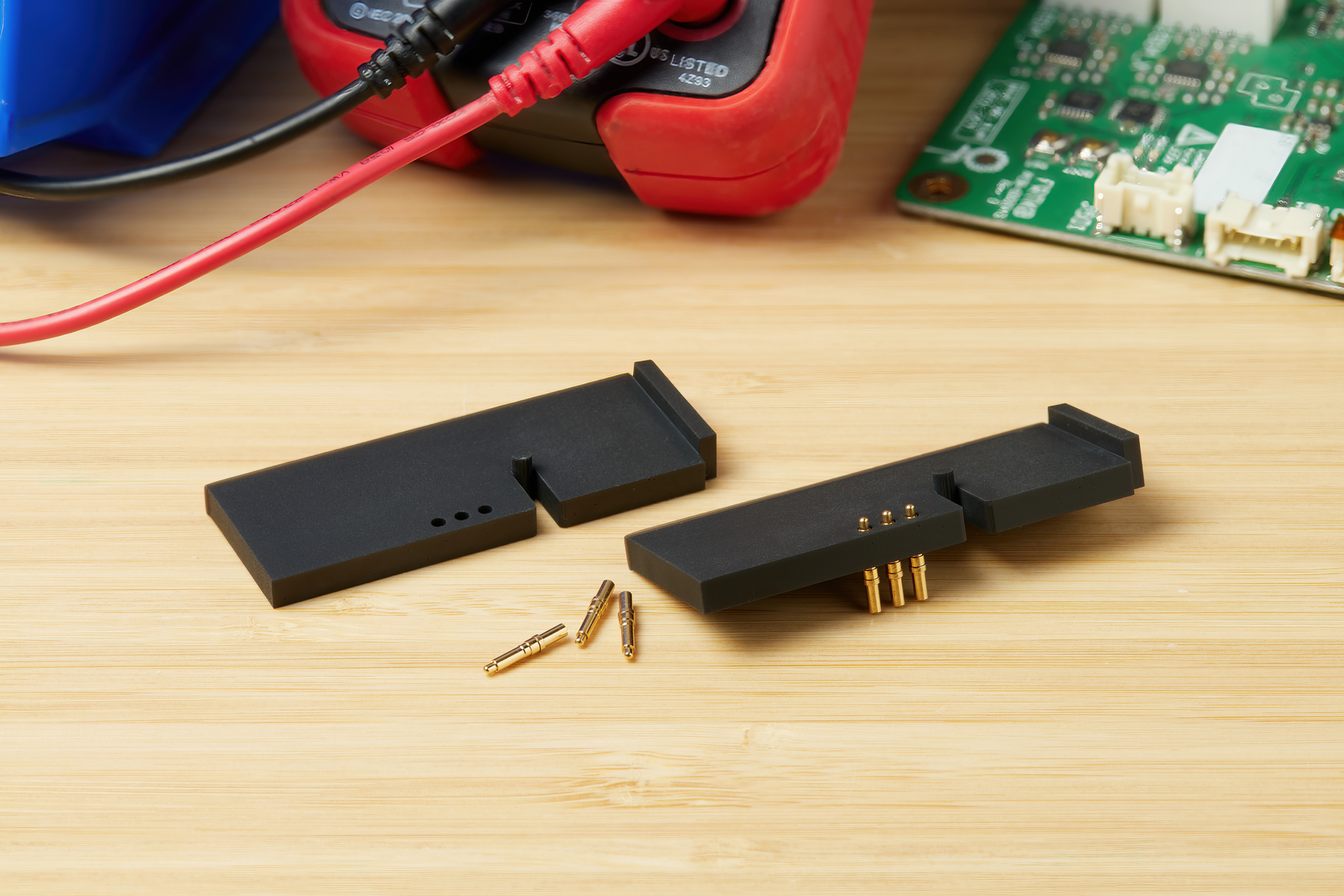

Tooling & Fixturing for Electronics Manufacturing
Create custom tools, jigs, and fixtures for ESD-sensitive manufacturing environments.
Custom Trays for Component Handling and Storage
Produce static-dissipative trays for handling, storage, and workflow organisation.
Anti-Static Prototype and End-Use Components
Prototype and produce components designed to protect sensitive electronics from static discharge.
Material Properties*
Download ESD Resin Technical Data Sheet
| Parameter | Post-cured at 70ºC |
|---|---|
| Surface Resistivity | 105 - 108 Ohms/sq |
| Ultimate Tensile Strength | 44.2 MPa |
| Tensile Modulus | 1.937 GPa |
| Strain at Break | 12% |
| Notched Izod | 26 J/m |
| Heat Deflection Temperature @ 0.45 MPa | 62.2ºC |
| Heat Deflection Temperature @ 1.8 MPa | 54.2ºC |
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
Settings: Form Wash | Form Wash L
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
Settings: Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
