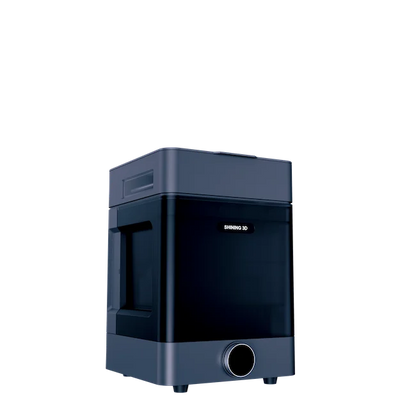

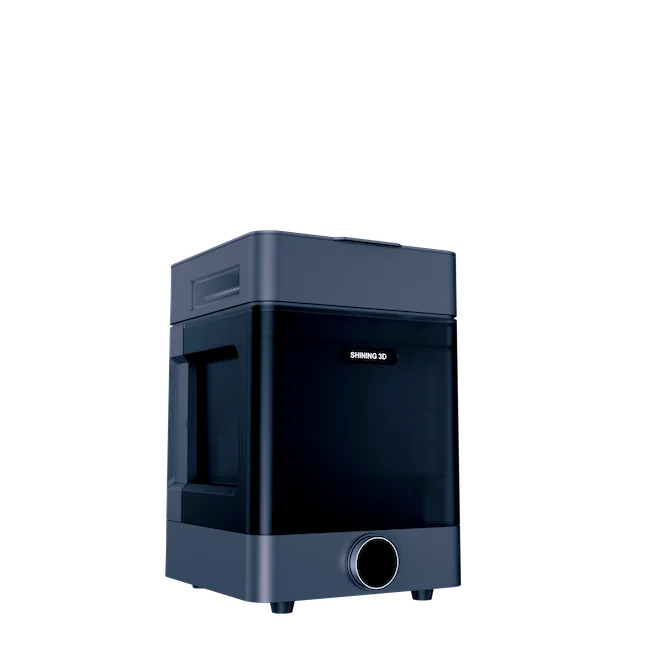

SHINING 3D Dental FabWash

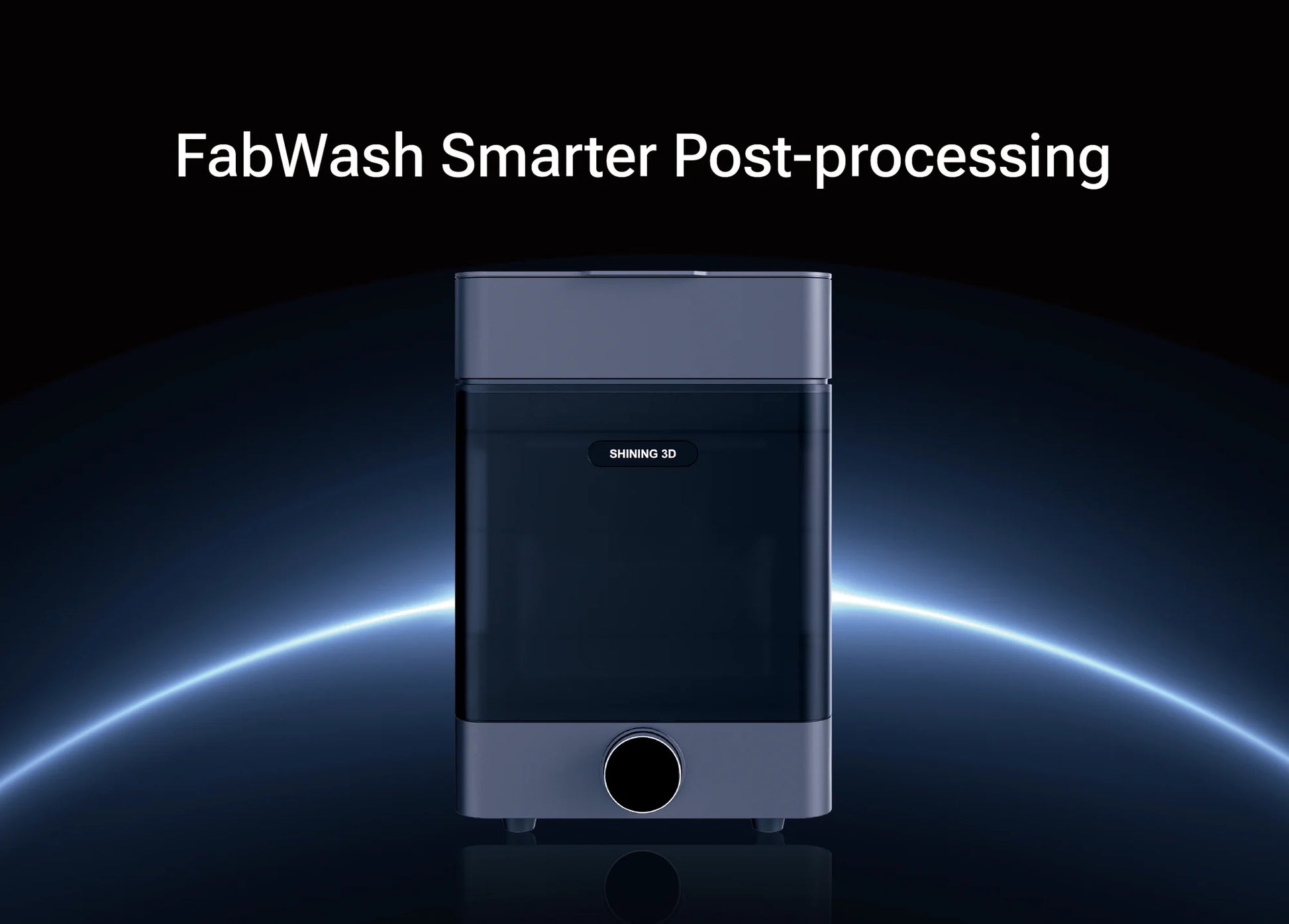

FabWash is a fully automated dental post-processing system designed to release, wash and dry 3D printed parts in one consistent workflow.
Developed for modern dental clinics and laboratories, it helps reduce manual handling, improve cleaning consistency and simplify the process from finished print to ready-to-cure part.
Automated Part Release, Washing and Drying
FabWash combines multiple post-processing stages into one automated system. Material-specific programmes control part release, washing and drying, while the unit automatically lifts the parts and build platform out of the solvent once the cycle is complete.
This reduces the need for manual intervention and helps keep printed parts ready for the next stage of the workflow.
Key Features
- Fully automated workflow: Combines part release, washing and drying in one integrated process.
- Automated part release: Uses material-specific motion settings to separate parts from the build platform without traditional removal tools.
- Thorough cleaning: A magnetically coupled impeller circulates the cleaning solution to remove uncured resin from printed parts.
- Pre-programmed wash profiles: Select material-specific settings without manually calculating wash times.
- Custom programmes: Save frequently used wash and dry profiles for specialist materials and recurring workflows.
- Wide printer compatibility: Designed to work across the SHINING 3D Dental printer range.

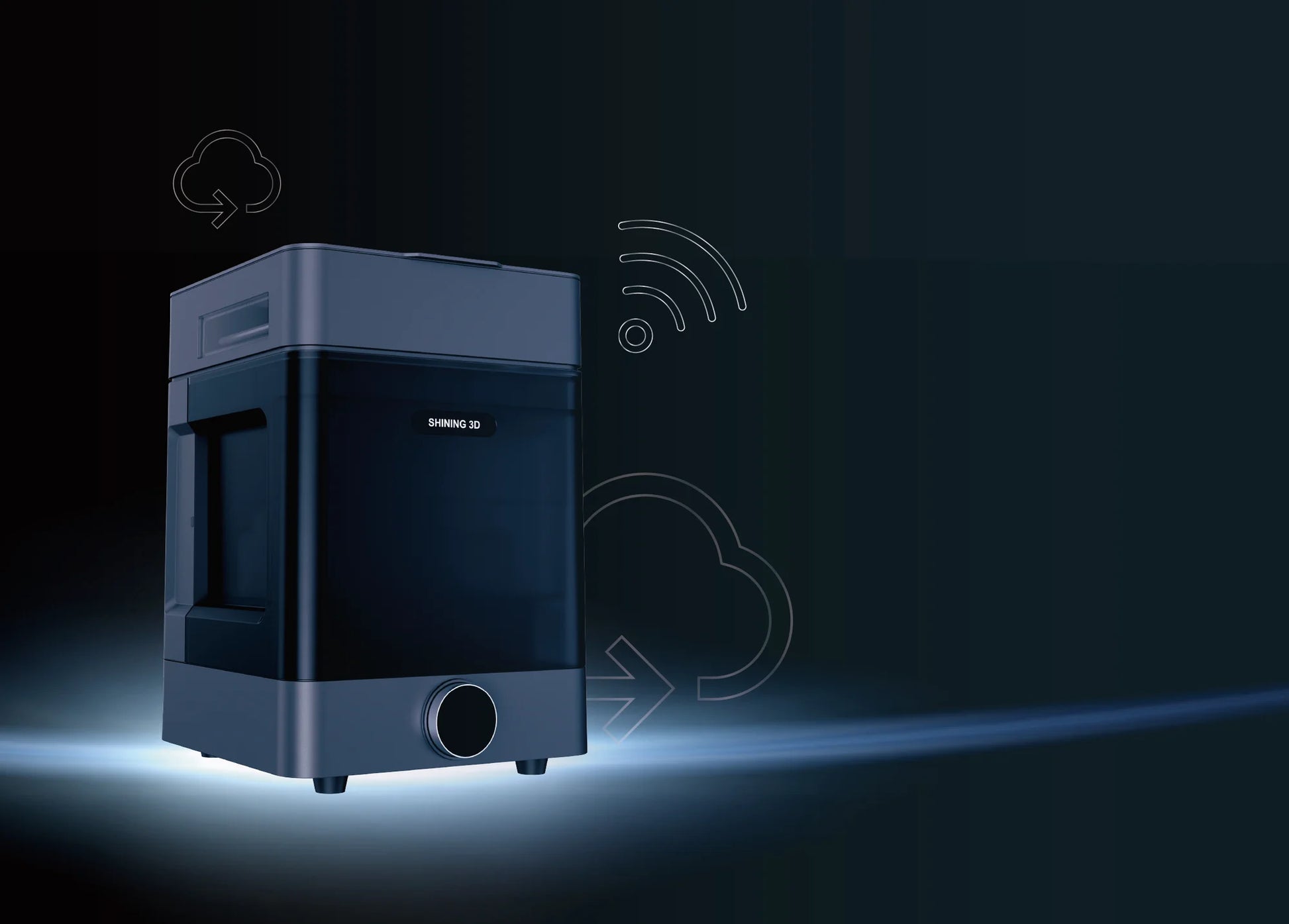

- Wi-Fi connectivity: Supports over-the-air firmware updates and access to the latest material profiles.
- Integrated safety sensors: Monitors the build platform, solvent bucket and system pressure during operation.
Consistent, Repeatable Cleaning
FabWash is pre-programmed with cleaning settings for compatible SHINING 3D Dental materials. These settings help deliver consistent results while reducing the risk of parts being under-washed or left in solvent for too long.
Users can also create and save custom wash and dry programmes, making it easier to process compatible third-party or specialist materials.
Automated Part Release
Traditional part removal tools can damage delicate dental components. FabWash uses an automated release process with optimised movement settings for each material, helping separate parts from the build platform with less manual handling.
This supports a cleaner, more repeatable workflow for dental models, surgical guides, splints, dentures and other printed applications.

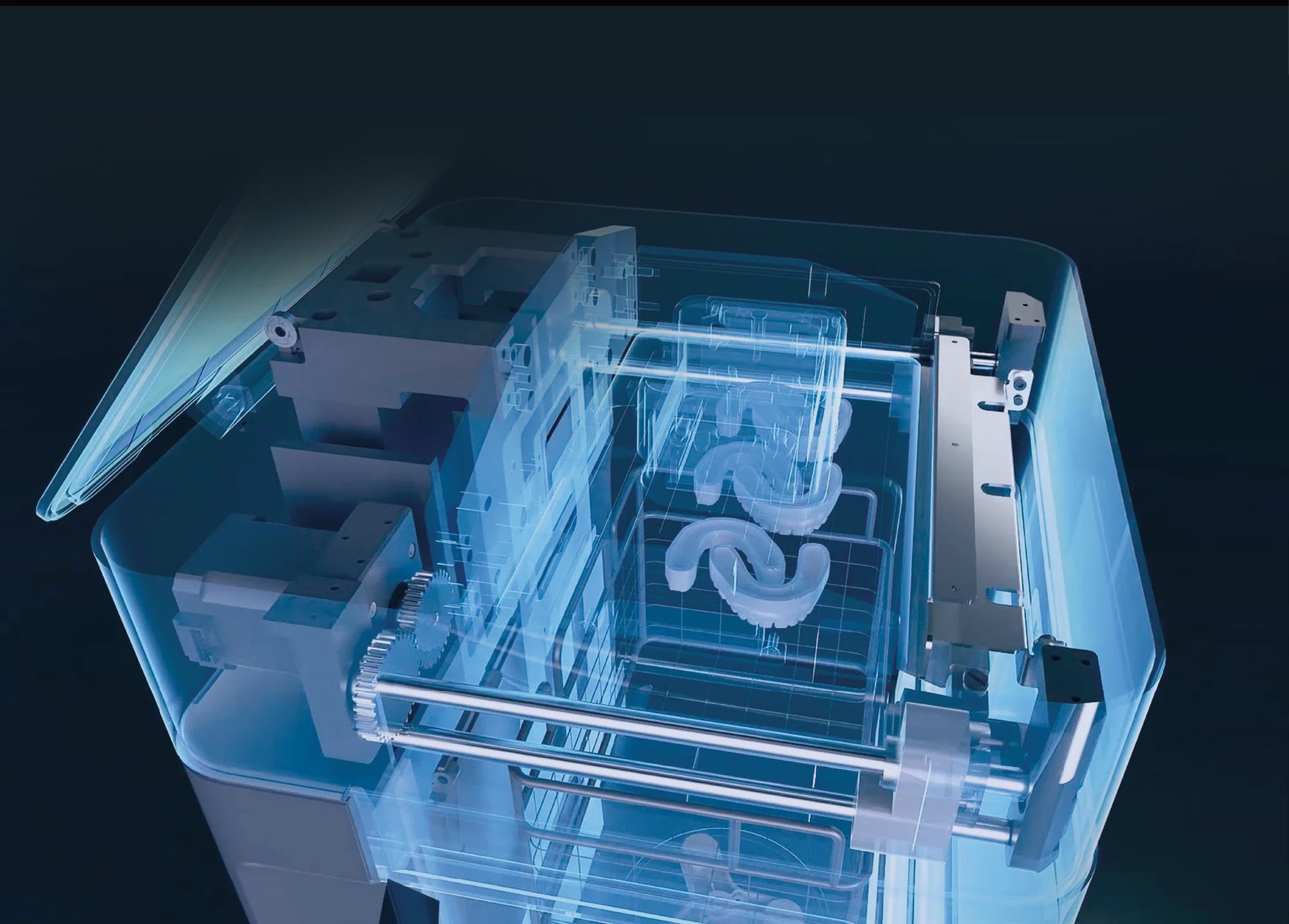

Magnetically Coupled Cleaning System
A magnetically coupled impeller agitates the cleaning solution around the printed parts, helping remove uncured resin from detailed surfaces and complex geometries.
The enclosed system also helps reduce mess and limits direct contact with cleaning solvents compared with manual washing methods.
Compatible Across the SHINING 3D Dental Range

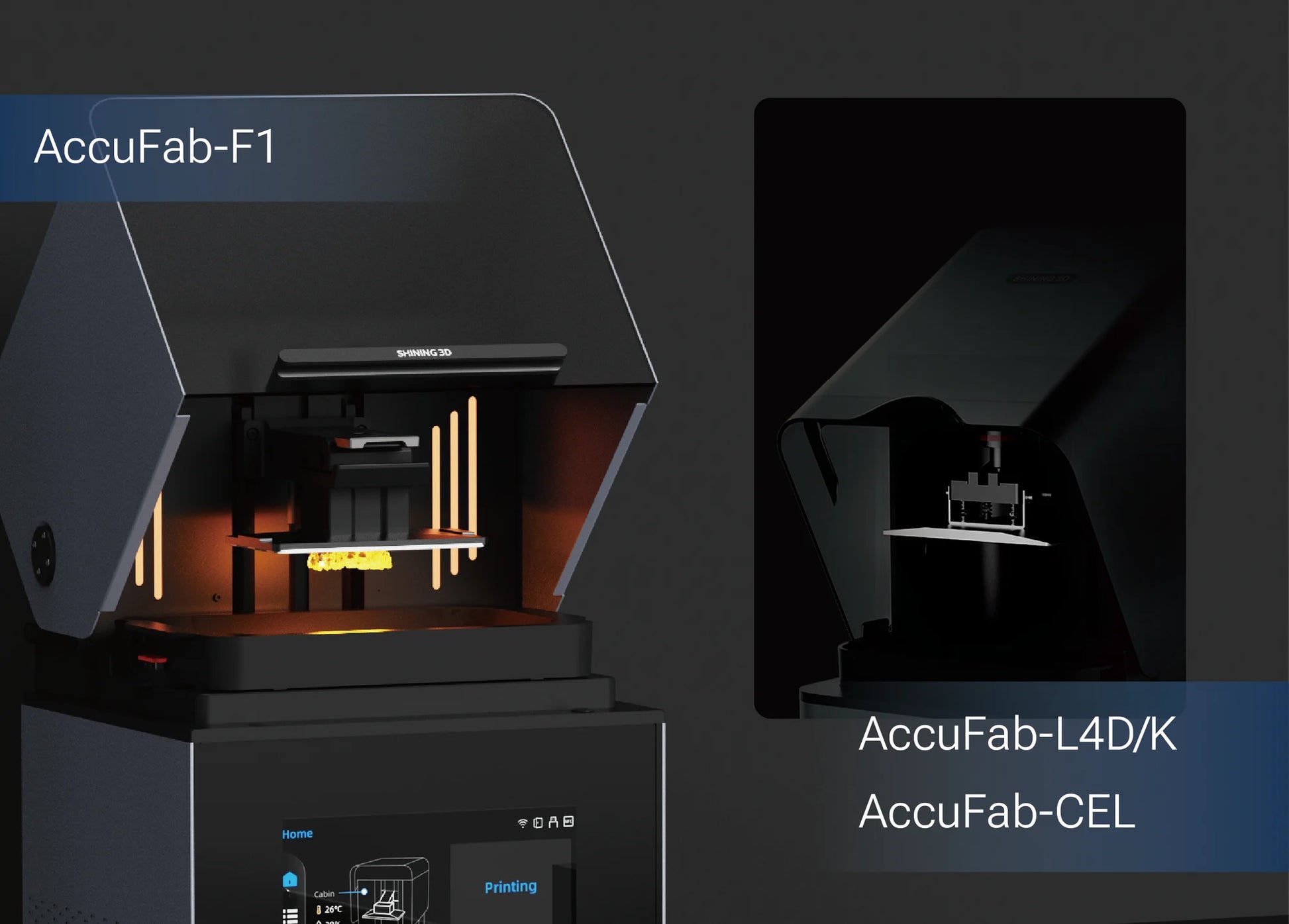

FabWash is designed to integrate with SHINING 3D Dental printers, including AccuFab-D1s, AccuFab-L4D, AccuFab-L4K, AccuFab-CEL and AccuFab-F1.
Some build platforms may require an additional ceramic platform adaptor.
Designed for Dental Clinics and Laboratories
FabWash simplifies post-processing so that different members of the dental team can operate the system with minimal training.
By automating repetitive washing and drying tasks, it can help remove bottlenecks, reduce hands-on processing time and improve productivity in busy clinical and laboratory environments.
Technical Specifications
| Printer Compatibility | AccuFab-D1s, AccuFab-L4D, AccuFab-L4K, AccuFab-CEL and AccuFab-F1 |
| Dimensions | 340 × 303 × 450 mm |
| Height When Open | 750 mm |
| Product Weight | 15 kg |
| Maximum Part Size | 199 × 124 × 180 mm |
| Agitation Method | Magnetically coupled impeller |
| Compatible Cleaning Solutions | Alcohol above 75%, IPA and water |
| Minimum Solvent Volume | 3 litres |
| Recommended Operating Environment | 10 to 30°C, 30% to 70% relative humidity |
| Connectivity | Wi-Fi |
| Power Requirements | 100 to 240 V, 2.0 A, 50/60 Hz, 24 V / 150 W |
| Safety Features | Automatic start and stop sensors, build platform detection, solvent bucket detection, safety pressure sensor and emergency stop switch |
| Included Accessories | Wash bucket, wash basket, scraper, brush, adaptor and quick guide |
Why Choose FabWash?
FabWash provides a faster and more consistent alternative to manual resin washing. Its automated part release, material-specific programmes and integrated drying process help reduce hands-on work while supporting repeatable results.
It is an ideal addition for dental clinics and laboratories looking to create a cleaner, simpler and more productive SHINING 3D Dental workflow.
