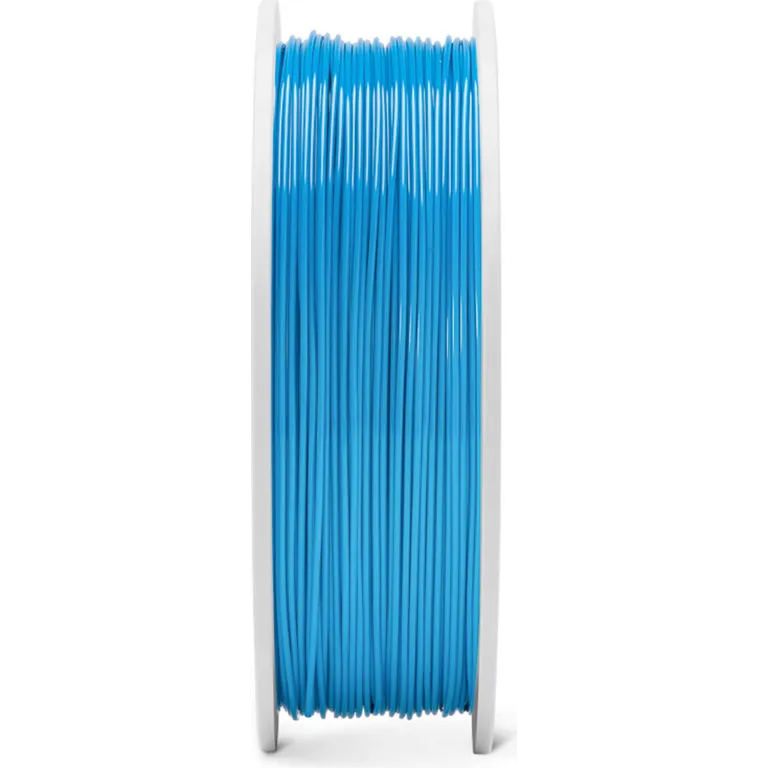

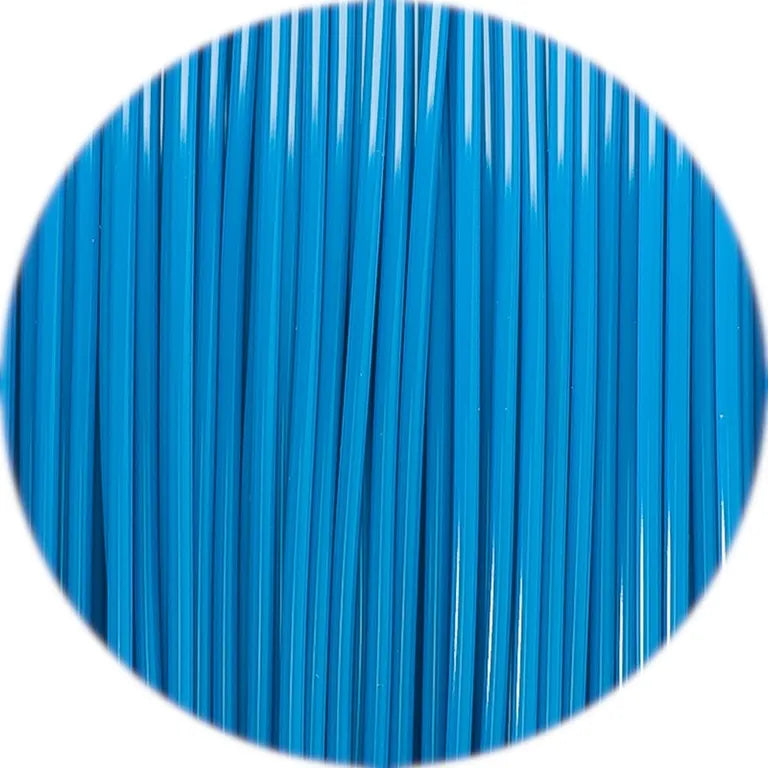

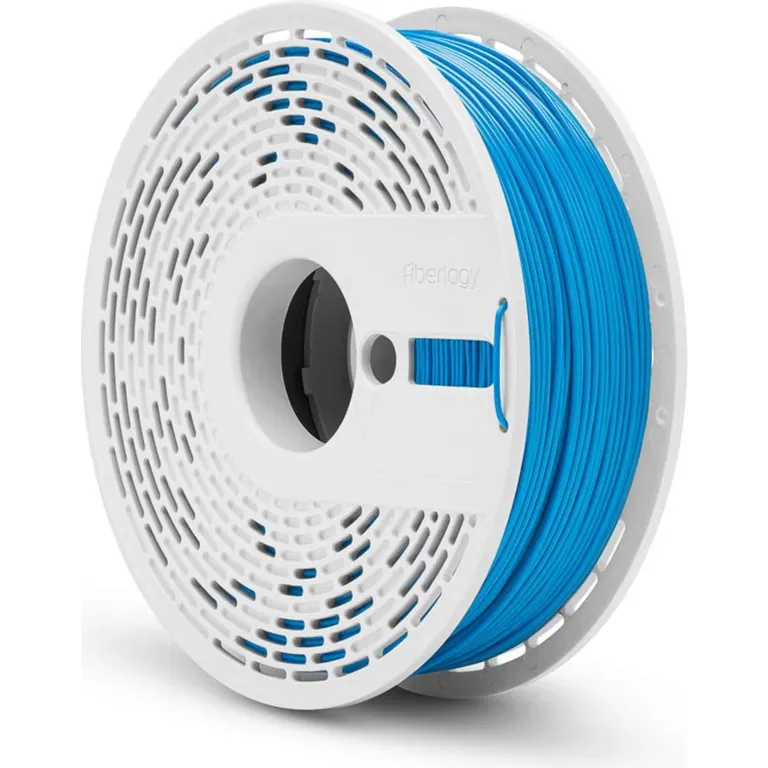

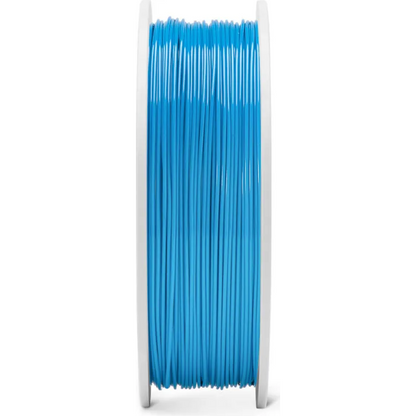

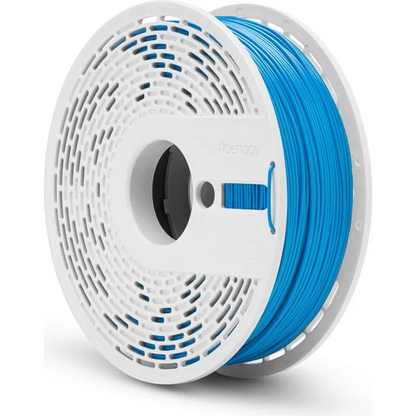

Fiberlogy Filament PCTG Blue 1.75 mm 0.75kg
Fiberlogy Filament PCTG Blue 1.75 mm 0.75kg
Fiberlogy Filament PCTG Blue 1.75 mm 0.75kg

Fiberlogy

Fiberlogy Filament PCTG Blue 1.75 mm 0.75kg

£25.46
Quantity:

PCTG filament belongs to the same family of polyesters as the increasingly popular PET-G. Compared to its more popular counterpart, PCTG offers increased impact strength, temperature resistance and clarity, making it an excellent alternative to PET-G. This filament does not require a heated chamber, which makes it ideal for use with home printers. It ensures high dimensional stability, while low shrinkage prevents the model from cracking. This makes it an easy-to-print material, even for people without a lot of experience in 3D printing.

PCTG is characterized by a much higher impact strength compared to similar materials (e.g. Easy PET-G filament). It achieves results in the region of 90 kJ/m2 (PET-G: 5-8 kJ/m2) in the Izod test (notched sample). PCTG also withstands higher temperatures (up to 76°C).

Fiberlogy PCTG filament is recyclable and approved for contact with food *. The material is BPA free.
* applies to the Pure TR version

APPLICATION IN 3D PRINTING:

  • INDUSTRY: spare parts, short series, utility models
  • AUTOMOTIVE: elements in the engine compartment, housing of vehicle components, air intakes, fluid funnels
  • SPORT: accessories, pads, airsoft elements

PCTG properties:

  • high impact strength (up to 20 times greater than PET-G)
  • high chemical resistance
  • high optical transparency
  • easy to print – dimensional stability and low shrinkage
  • suitable for contact with food – BPA free

How to print PCTG?

The following parameters are only suggested print settings for this material. To ensure the best print quality, it is necessary to choose the appropriate settings for a specific printer and printing conditions.



Nozzle Temperature 250-270°C
Bed Temperature 90-110°C
Closed chamber not required
Fan 0-25%
Flowrate 90-100%
Printing Speed < 100 mm/s
Surface masking tape, PVA glue, hairspray
Retraction (direct) 1-2 mm
Retraction (bowden) 4-6 mm
Retraction Speed 20-45 mm/s
Drying conditions 60°C / 4h
Notes Due to the strong adhesion to the bed, it is not recommended to print directly on its surface or on glass. This can lead to damage. We recommend using a masking tape.
Profiles Bambu Lab X1C/P1S/P1P/A1/A1Mini

Properties of PCTG filament for 3D printer



Raise3D logo

Fiberlogy PCTG has been positively assessed in the Open Filament Program (OFP) project run by Raise3D:


Diameter Diameter tol Oval tol Printing temp Table temp
1.75mm (transparent) +/- 0.02 mm + 0.01 mm 250-270°C 90-110°C
1.75mm (non-translucent) +/- 0.02 mm + 0.01 mm 250-270°C 90-110°C
