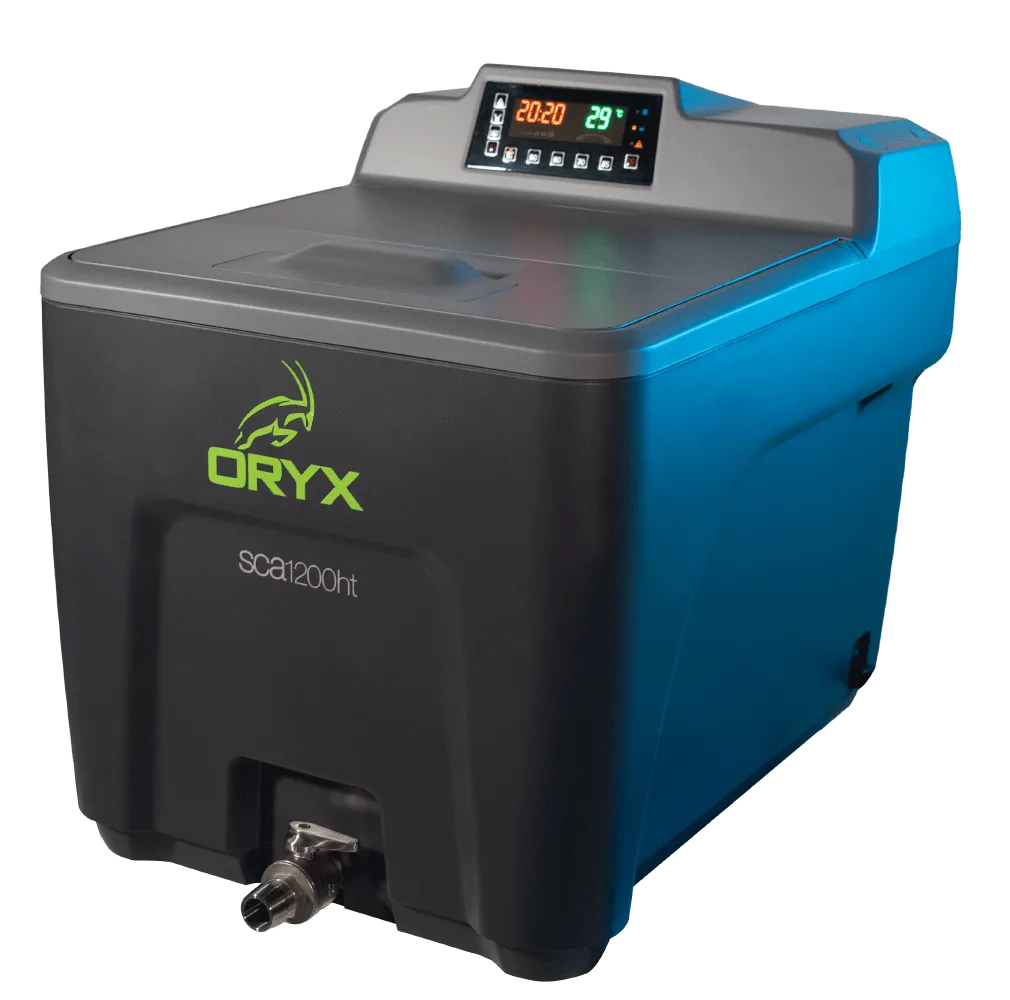

sca1200ht Wash Station for FIM Process
£4,798.80
Couldn't load pickup availability
Designed for User Productivity and Comfort, Engineered for Function and Quality.
The sca1200ht sets the industry standard for cost-effective and automated support removal on 3D Printed Parts. Removal of soluble supports on 3D Printed Models is our expertise and is the preferred method when developing complex geometry. Materials such as ABS, ASA, PC, Nylon, PEEK, Carbon-fiber and more, are supported. In automated removal of supports from Extru- sion Technology or Material Jetting process- es, such as Polyjet or FDM the sca product family provides a wide range of pre-defined settings. These solutions are fully compatible with all soluble support material concentrates, from water to caustics. It further provides the user with the appropriate level of agitation & temperature to balance the needs of aggressive removal while maintaining critical dimensions on delicate or intricate part geometry. With additional features that include a simple electronic interface for pre-set temperature & time, easy part loading & unloading, and durable stainless-steel tank for caustic support removal operations, the sca1200ht is your ideal solution.
Designed for User Productivity and Comfort, Engineered for Function and Quality
- Overall Size: 26.0Lx17.5Wx20.5Hin.(66.0Lx44.5Wx52.0Hcm)
- 10 x 10 x 12 in. (25.0 x 25.0 x 30.0cm) Stainless Steel Removable Parts Basket
- Capacity: 12.2 gallons (46.2 liters)
- Stainless Steel Tank & Durable Pumping System compatible with water-soluble and caustic-soluble printed support materials
- Proven Support Removal from FFF/FDM parts including ABS, ASA, PC, Nylon, PEEK and others
- Presets designed for 3D printed parts temperatures: 50°, 60°, 70° and 85° C
- “Heat Off” temp. selection for Material Jetting & Curing (MJ), such as Polyjet
- User-controlled Digital Timer
-
Unique Spray Nozzle optimizes flow coverage with gentle flow for sensitive parts
- Power Requirements: 100-120V~ 50-60Hz 12A or 220-240V~ 50-60 Hz 9A versions
- Electrical Protection: 15A/ 250VAC Fuse
- Whisper-quiet Operation for in-office use or industrial setting
- Easily-accessed Drain on front
- Integral Hinged Lid to reduce water waste and & maintain accurate temperature
- Built-in Safety Features such as Over Temperature & Water Level Alarms
- Field replaceable Sub-assemblies
- CE/ cTUVus/ RoHS/ WEEE/ RCM Regulatory Approvals
- 1 Year Warranty & US-based Technical/Customer Support with strong AM industry experience
