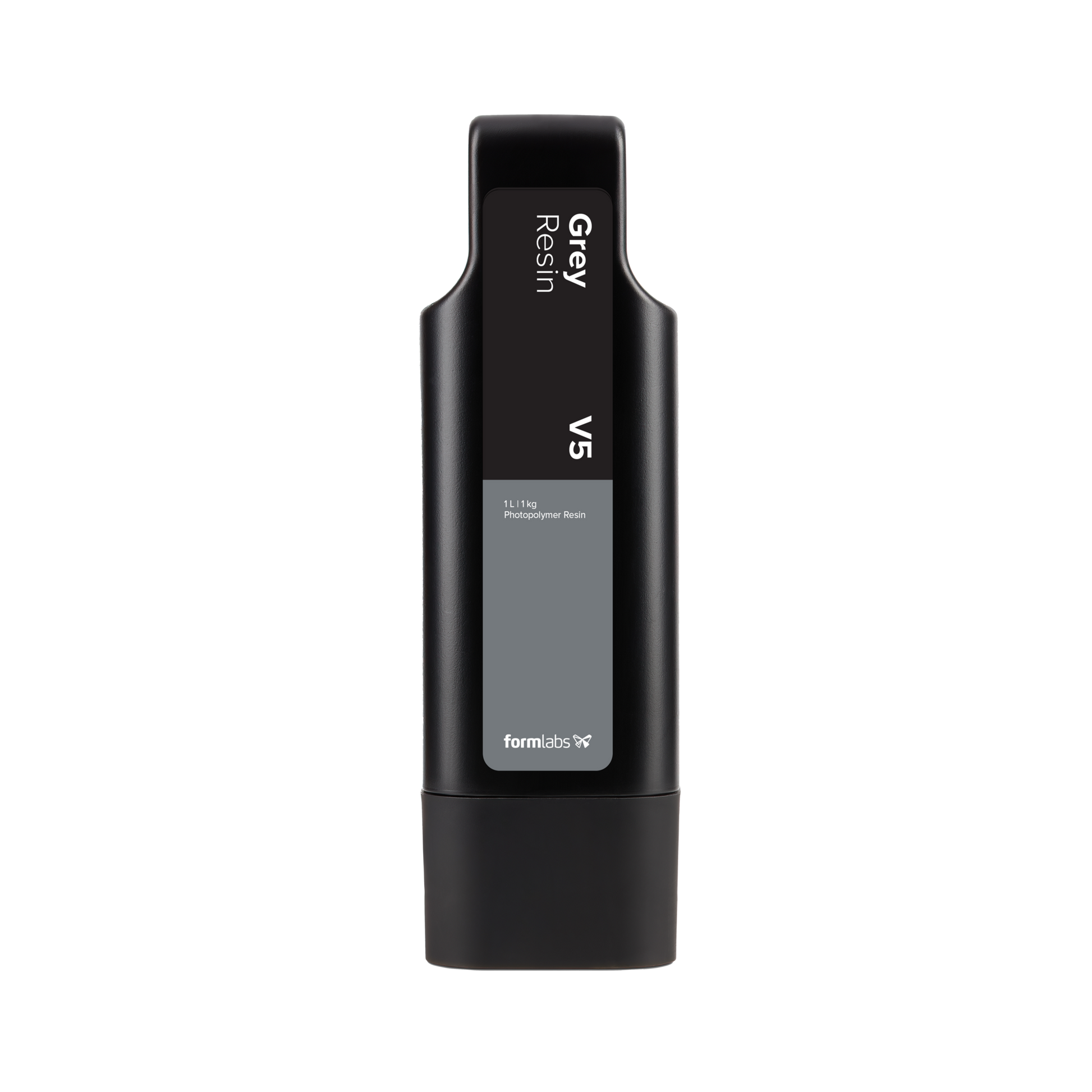

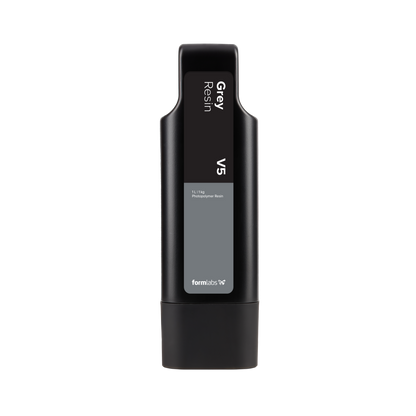

Formlabs Grey Resin V5 (Form 4) 1 L
£94.80
Couldn't load pickup availability
Grey Resin is an exceptionally versatile General Purpose Resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow.
Create parts that are stiff and strong with a surface finish that rivals injection moulding. Grey Resin has a rich, matte colour that captures fine features accurately.
Grey Resin V5 is a new material formulation that leverages the Form 4 Series to print three times faster than the previous version, while offering improved mechanical properties.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Colours | Grey, Matte |
| Categories | General Purpose, Dental |
| Applications | Models & Props, Manufacturing Aids, Rapid Prototyping, Dental |
| Tensile Modulus | 2675 MPa |
| Flexural Modulus | 2750 MPa |
| Ultimate Tensile Strength | 62 MPa |
| Elongation at Break | 13% |
| Flexural Strength | 103 MPa |
| Notched Izod | 32 J/m |
| Heat Deflection Temp. @ 0.45 MPa | 71 °C |
| Heat Deflection Temp. @ 1.8 MPa | 59 °C |
Compatibility
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Printer: Form 4, Form 4B, Form 4L, Form 4BL
Why Choose Grey Resin?
- High Dimensional Accuracy – Achieve precise tolerances with XY dimensional tolerances of ±0.15% (lower limit ±0.02 mm).
- Superior Aesthetics – Rich matte finish with crisp fine feature performance.
- Versatile Mechanical Properties – Excellent balance of strength, toughness and stiffness.
- Extremely Low-Odour Printing – Ultra-low VOC formulation.
Applications
- Form and fit prototyping
- Presentation-ready models with fine features and intricate details
- Jigs and fixtures
What's New With Grey Resin V5?
- Prints up to three times faster on the Form 4 ecosystem.
- 30% higher impact strength than Grey Resin V4.
- Darker, richer colour.
Material Properties
Download the Grey Resin V5 Technical Data Sheet
Post-Processing
Washing: Remove uncured resin using Form Wash or Form Wash L.
Curing: Post-curing is optional but recommended to improve mechanical properties. Compatible with Form Cure V1/V2 and Form Cure L V1/V2.
