IEMAI

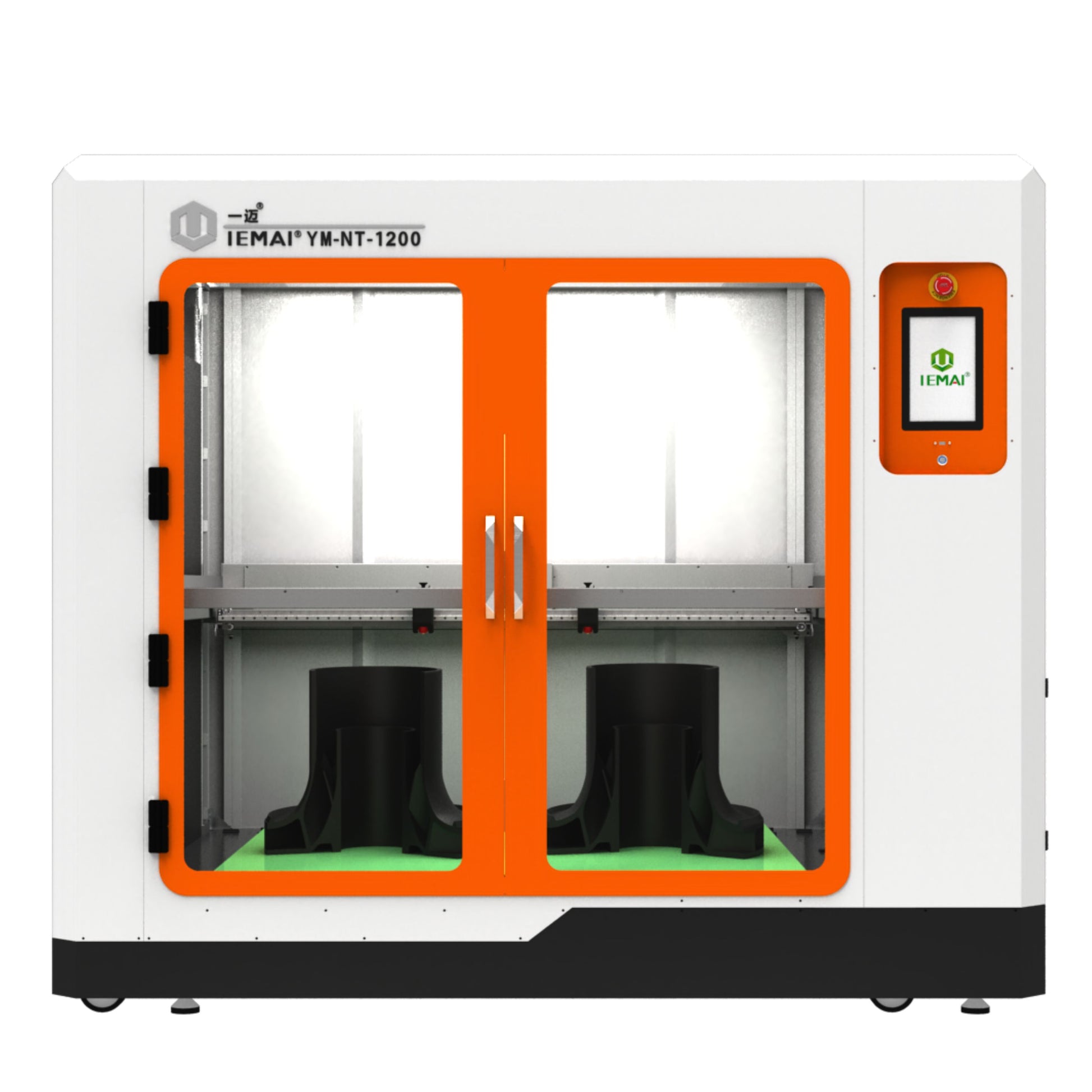

IEMAI 3D YM NT 1200 - REFURB
YM-NT-1200 is specially designed for engineering plastic, with a temperature of 275 °C extruder temperature and 120 °C
hot bed temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the
extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive print.
Technical Specification
Principle: Fused Filament Fabrication (FFF)
Filament Diameter: 1.75/2.85/3.0 mm
Layer Thickness: 0.1 – 0.6 mm
Position Resolution: X / Y：5.86μm Z：1.56μm
Printing Speed: 0-150 mm/s
Noozle Diameter: 0.6 mm (Default), 0.4 mm, 0.8 mm, 1.0 mm (Choosable)
Heated Bed Material: Silicon
Air Filter: Activated Carbon Filter (Choosable)
Technology Certification: CE, RoHS
Supplied Software: IEMAI 3D EXPERT, Cura, Simplify3D
Printing Platform: Vacuum Absorption Platform
File Type: STL, OBJ, 3MF, GCODE
Data Transmission: SD Card, WIFI, USB
Operating System: Windows 64 Bit
Machine Size: 2090×1650×1810 mm
Packing Size:2250×1745×2000 mm
Net Weight: 900KG
Gross Weight: 1000KG
Power: 200~250 V, 50~60 Hz 8400W
Suggest Operating Environment: 15-30 °C, Relative Humidity 10-90 %, No Moisture Condensation
Storage Temperature:25-55 °C, Relative Humidity 10-90 %, No Moisture Condensation
