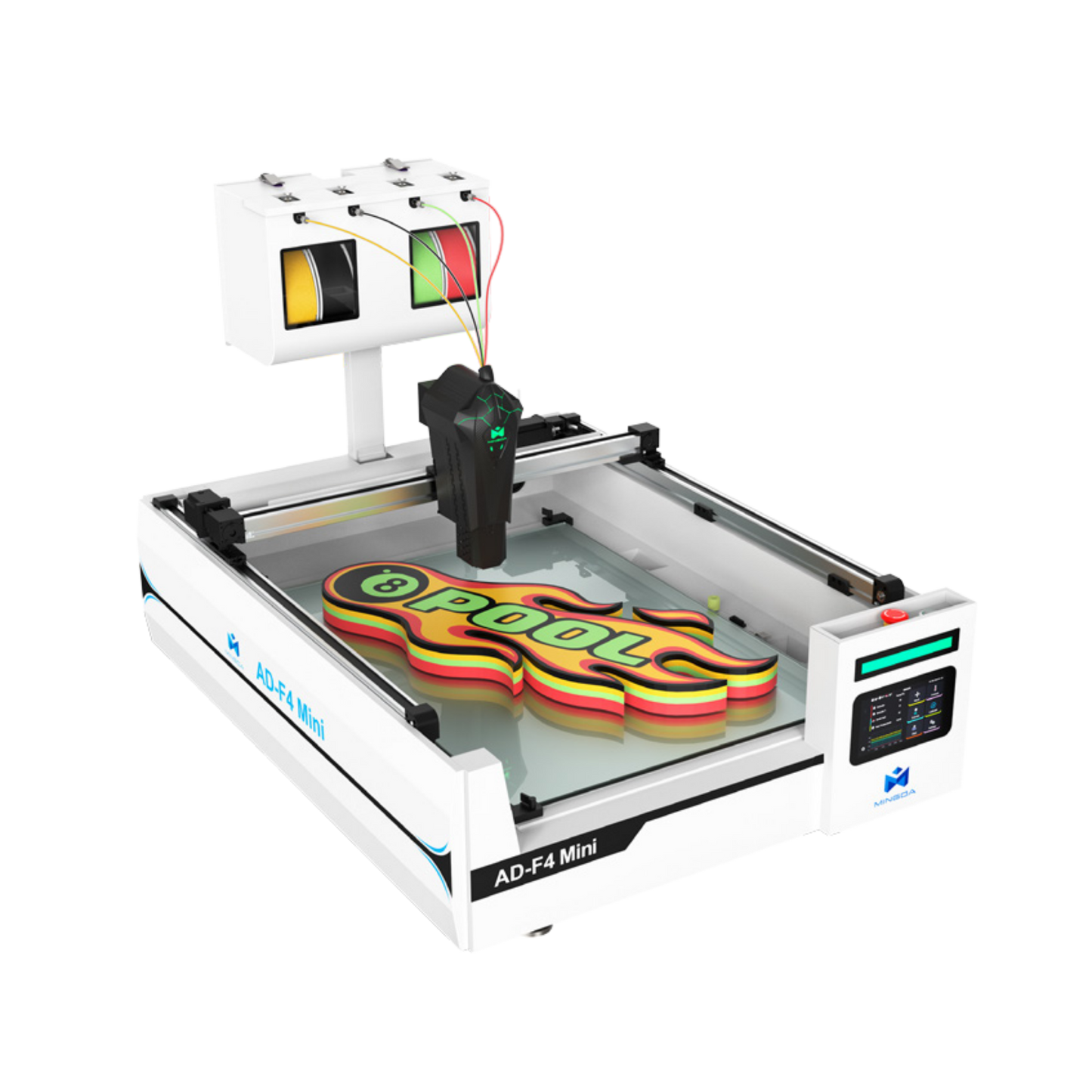

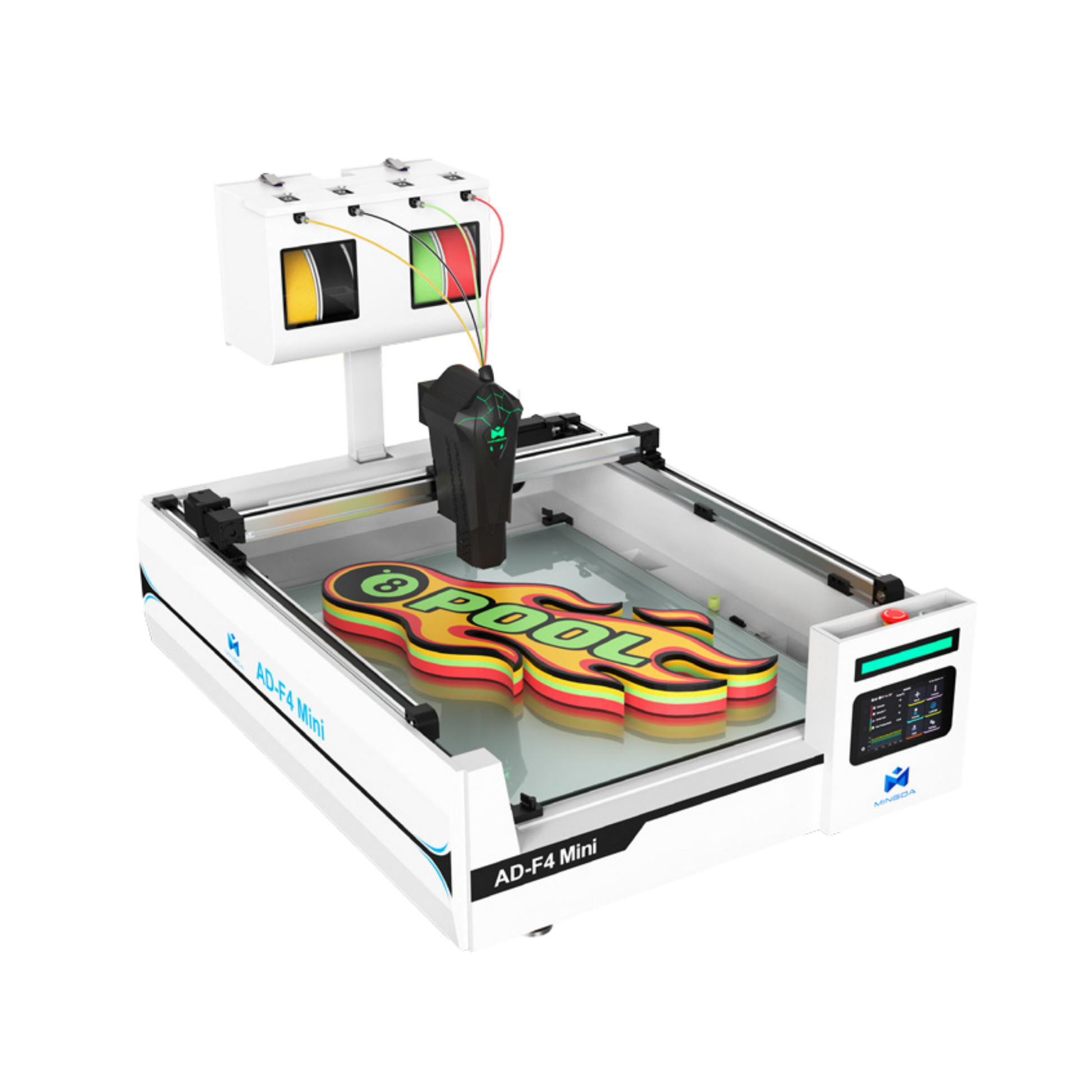

MINGDA AD-F4 Mini Channel Letter 3D Printer 800x600x100mm
£3,838.80
Couldn't load pickup availability
MINGDA AD-F4 Mini
4-Colour High-Speed Letter 3D Printer
The MINGDA AD-F4 Mini is a 4-colour high-speed letter 3D printer featuring an 800 × 600 × 100mm build volume, IMS four-colour feeding system and support for PLA, PETG and PDS materials.
- 800 × 600 × 100mm build volume
- IMS four-colour feeding system
- Maximum print speed of 300mm/s
- Supports PLA, PETG and PDS materials
- SignMaker and MINGDA Slicer software
- WiFi, Ethernet and USB connectivity
Printing Performance
The AD-F4 Mini uses FFF (Fused Filament Fabrication) technology with a 4-in-1-out printing nozzle and supports the following print speeds:
- 0.4mm nozzle: Maximum 300mm/s (Recommended 200mm/s)
- 0.6mm nozzle: Maximum 150mm/s (Recommended 120mm/s)
- Nozzle options: 0.4mm, 0.6mm and optional 0.8mm
Build Volume
Printing size: 800 × 600 × 100mm
Printer Features
- Gravity-sensing auto levelling
- 350°C maximum nozzle temperature
- 80°C maximum heated bed temperature
- Filament break detection
- Power-off resume printing
- 7-inch touch screen
- Tempered glass build platform
- Air-cooled cooling system
- Folding filament tray
Materials
Compatible material types include:
- PLA
- PETG
- PDS
Software
The AD-F4 Mini is supplied with SignMaker and MINGDA Slicer software.
Supported file formats:
- DXF
- SVG
- 3MF
- STL
- STP
- AMF
- OBJ
Supported operating systems:
- Windows
- macOS
Connectivity
- WiFi
- Ethernet
- USB (U-Disk)
Technical Specifications
- Printing Technology: FFF (Fused Filament Fabrication)
- Layer Height: 0.2–0.42mm
- Filament Diameter: 1.75mm
- Maximum Power: 220V / 2000W
- Firmware: Klipper
- Moving Speed: Max XY 500mm/s, Max Z 15mm/s
- Package Dimensions: 125 × 94 × 57cm
- Package Weight: 112kg
- Safety Features: Warning light and emergency stop button
- Certifications: CE, FCC
