MINGDA AD-F4 Pro Channel Letter 3D Printer 1200x800x100mm
£5,998.80
Couldn't load pickup availability

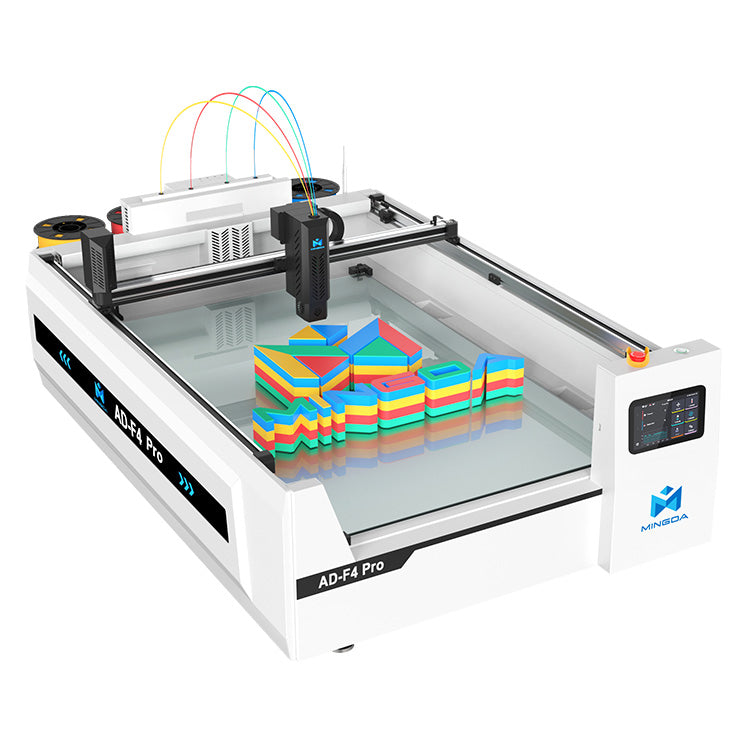

MINGDA AD-F4 Pro
One-Stop 3D Printing Signage Solutions Provider
The MINGDA AD-F4 Pro is a four-colour 3D printer for letter printing. It features a 1200 × 800 × 100mm printing size, an IMS four-colour feeding system and a maximum printing speed of 300mm/s.
- 1200 × 800 × 100mm printing size
- IMS four-colour feeding system
- Maximum printing speed of 300mm/s
- Supports PLA, PETG and PDS materials
- SignMaker and MINGDA Slicer software
- Remote control and monitoring
Klipper and 5X High-Speed
The AD-F4 Pro printing speed reaches up to 300mm/s, with peak acceleration of 10,000mm/s². It can accelerate from 0 to 300mm/s in 0.035 seconds.
- 300mm/s: Travel speed
- 200mm/s: High-speed printing
- 40mm³/s: Flow
IMS Four-Colour Feeding System
The AD-F4 Pro features an IMS four-colour feeding system and can make LED letter printing more flexible and colourful.
Printing Size
- Machine Size: 1109 × 1695 × 636mm
- Printing Size: 1200 × 800 × 100mm
Input Shaper
Input Shaper minimises vibration patterns and makes the surface smoother.
Third-Generation Auto Levelling
The third-generation auto-levelling system is faster and more precise, enhancing first-layer adhesion, saving time on levelling and increasing the success rate of prints.
Air Heating Bed
The air heating bed heats up faster, is more energy-efficient and minimises warping of the models.
MINGDA SignMaker
MINGDA SignMaker supports font generation, vector file reading and 3D model generation. The channel letter modelling software optimises the design and modelling workflow for channel letters.
The printing procedure shown in the brochure is:
- Import a DXF or SVG 2D file.
- Generate a 3D model from the 2D file with one click.
- Adjust the parameters and export the sliced files.
- Print using the AD-F4 Pro.
- Display the completed model.
Remote Control and Monitoring
The AD-F4 Pro supports sending printing tasks through WAN and LAN networks. Users can control and view various aspects of the printer and its printing tasks. Multiple printers can be selected from the device list.
Supported File Formats
- DXF
- SVG
- STL
- STP
- 3MF
- AMF
- OBJ
Supported Operating Systems
- Windows
- macOS
Materials
The nozzle reaches a maximum temperature of 350°C and supports the following materials:
- PLA
- PETG
- PDS
Technical Specifications
- Technical Principle: FFF (Fused Filament Fabrication)
- Printing Size: 1200 × 800 × 100mm
- Layer Thickness: 0.2–0.42mm
- Printing Nozzle: 4-in-1-out
- Number of Trays: 4, maximum 1kg per tray
- Filament Diameter: 1.75mm
- 0.4mm Nozzle Speed: Maximum 300mm/s, recommended 200mm/s
- 0.6mm Nozzle Speed: Maximum 150mm/s, recommended 120mm/s
- Standard Nozzle Diameter: 0.6mm
- Optional Nozzle Diameters: 0.4mm and 0.8mm
- Levelling Method: Gravity-sensing auto levelling
- Nozzle Temperature: Maximum 350°C
- Hot Bed Temperature: Maximum 60°C
- Intelligent Features: Filament break detection and power-off resume printing
Equipment Specifications
- Maximum Power: 220V / 2700W
- Firmware: Klipper
- Data Connection: U-Disk and WiFi
- Operation Screen: 7-inch touchscreen
- Printing Platform: Tempered glass platform
- Cooling System: Air-cooled
- Moving Speed: Maximum XY 500mm/s and maximum Z 15mm/s
- Dimensions: 1695 × 1109 × 636mm
- Package Weight: 165kg
Safety and Certification
- Three-colour warning light
- Emergency stop switch
- Air switch
- CE certified
- FCC certified
