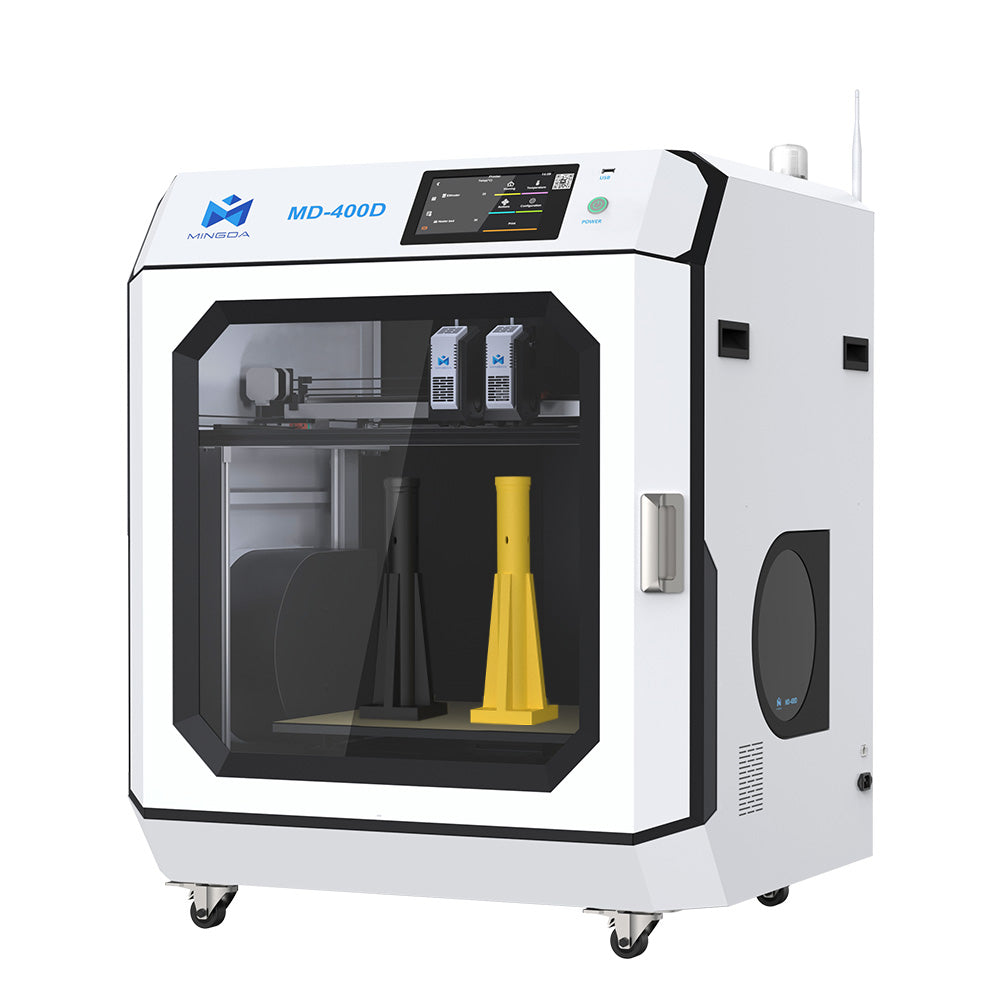

MINGDA MD-400D+ 3D Printer 400x400x400mm

MINGDA MD-400D+

5X Fast High Temperature IDEX 3D Printer

Ideal choice for 2 colors, 2 materials, and mass production printing.

Printing finer complex prototypes and double productivity are why you need the MD-400D+ Independent Dual Extruder 3D Printer for your business.

The MD-400D+ is the newest version of the MD-400D. It uses the MINGDA self-developed MINGDA Pi with increased RAM, storage and processing capabilities.

5X Speed, Breakthrough in Printing Efficiency Once Again

MD-400D+ printing speed up to 300mm/s, 10000mm/s² Peak acceleration, only 0.02s speed up form 0 to 300mm/s, achieving ultra-high efficiency printing.

• 300mm/s Travel speed
• 200mm/s High-Speed
• 40mm³/s Max Flow

Infinite Possibilities with IDEX

Compared with a multi-material unit, IDEX dual-material printing requires less time in filament changing and creates less waste. Plus, IDEX offers the cleanest two-extruder solution that prevents cross-contamination. It creates a clean interface between two materials, embracing hassle-free removal and avoiding stains and weird blending along the seam.

Breakaway Support Filament

Much easier to remove the support, the supported surface comes out clean and smooth.

Soluble Support Filament

Printing complex models with internal geometries and hollow structures is made possible by using water-soluble filament.

1+1>2

Dual-material Prints. In one print, you make the most of two sets of properties. Combine the strength of PETG with the flexibility of TPU for functional parts that can stand daily wear and tear impressively. Print also multi-part objects as a whole. With no assembly, the object attains stronger interconnections, making it less prone to impairment.

• Dual Color Prints
• Print in Parallel
• Copy Mode
• Mirror Mode

Main Advantages

• 5X Faster Print Speed
• 400 × 400 × 400mm Large Build Volume
• IDEX System
• Dual Colors & Dual Materials Mode
• Duplication & Mirror Mode
• 350℃ High Temperature Hot End
• New Cooling System Design
• Camera & WIFI
• Free Leveling
• Input Shaper
• Self-developed MINGDA Pi

Self-Developed MINGDA Pi

The MD-400D+ replaces the previous control platform with the self-developed MINGDA Pi.

• CPU: 8-core Cortex-A55, up to 1.8GHz
• Single-Core CPU Performance: Improved architecture and clock speed, approximately 1.3–1.5 times the previous platform
• Multi-Core CPU Performance: 8 cores, approximately 2.3–2.8 times the previous platform
• GPU: Mali-G57
• NPU: 2 TOPS INT8
• RAM: 4GB DDR4, four times the previous capacity
• Storage: 64GB Samsung eMMC 5.1, twice the previous capacity
• Sequential Read Speed: Approximately 170–250MB/s, approximately 7.5–11 times the previous platform
• Sequential Write Speed: Approximately 90–125MB/s, approximately 4.8–6.7 times the previous platform
• Wi-Fi Bands: 2.4GHz and 5GHz
• CAN Interface: 2 channels

Large Build Volume

Printing size: 400mm*400mm*400mm; meets most prototype printing needs.

3D Printer Materials Suitable for Your Applications

The hot end temperature can reach up to 350℃, allowing for the printing of engineering-grade materials such as carbon fiber, glass fiber, nylon composites, in addition to common materials.

• Common filament: PLA, PETG etc;
• Engineering filament: PET-GF, PET-CF, HtPA-GF, HtPA-CF, HtPA-GF25, HtPA-CF25, PPS, PPS-CF/GF, etc
• Support filament: S-Mulit, S-HtPA, etc
