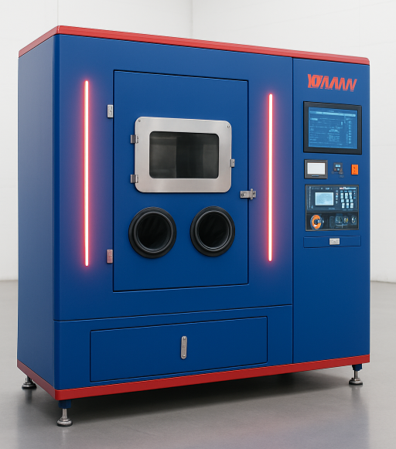

WAAM3D MiniWAAM, Wire Arc Additive Manufacturing Machine

Skip to product information
Option

A research platform for dual-wire alloying, mixed materials, and digital process monitoring

  • Process: Plasma Transferred Arc (PTA) with option to upgrade to Dual-Wire PTA (P-MAX process)
  • Research applications, materials research, prototyping and small to medium-sized metal parts production
  • Dual wire feed system for composition studies and multi-material structure manufacturing, and in-situ alloying
  • Optional Sensor Pack upgrade for digital-based research and advanced process monitoring
  • 4-Axis CNC System; 3-axis overhead plus an additional rotational table with 60kg payload
  • Build envelope; L600 x W600 x H500 mm3
Specification Details and optional upgrades (marked with *)
Machine Size L2400 x W2100 x H2300 mm
Print envelope L600 x W600 x H500 mm
Control System Siemens PLC
Inner Chamber Size Fixed enclosure with fume management and filtration L1600 x W1500 x H1600 mm
WAAM Variant Plasma Transferred Arc (PTA) or Dual Wire Plasma Transferred Arc (PMAX)
Axes Siemens 3 cartesian (overhead) + 1 rotational
Materials Titanium alloys, stainless steel, nickel alloys, and others Multi material functionality
Rotational table 60kg payload; 500 mm diameter
Sensors Process camera, Weld sensors Pyrometer IR camera Shapetech
Controls Manual Wire position control Auto Wire control using Images based AI Auto arc start with interlayer temperature control Auto layer height correction
