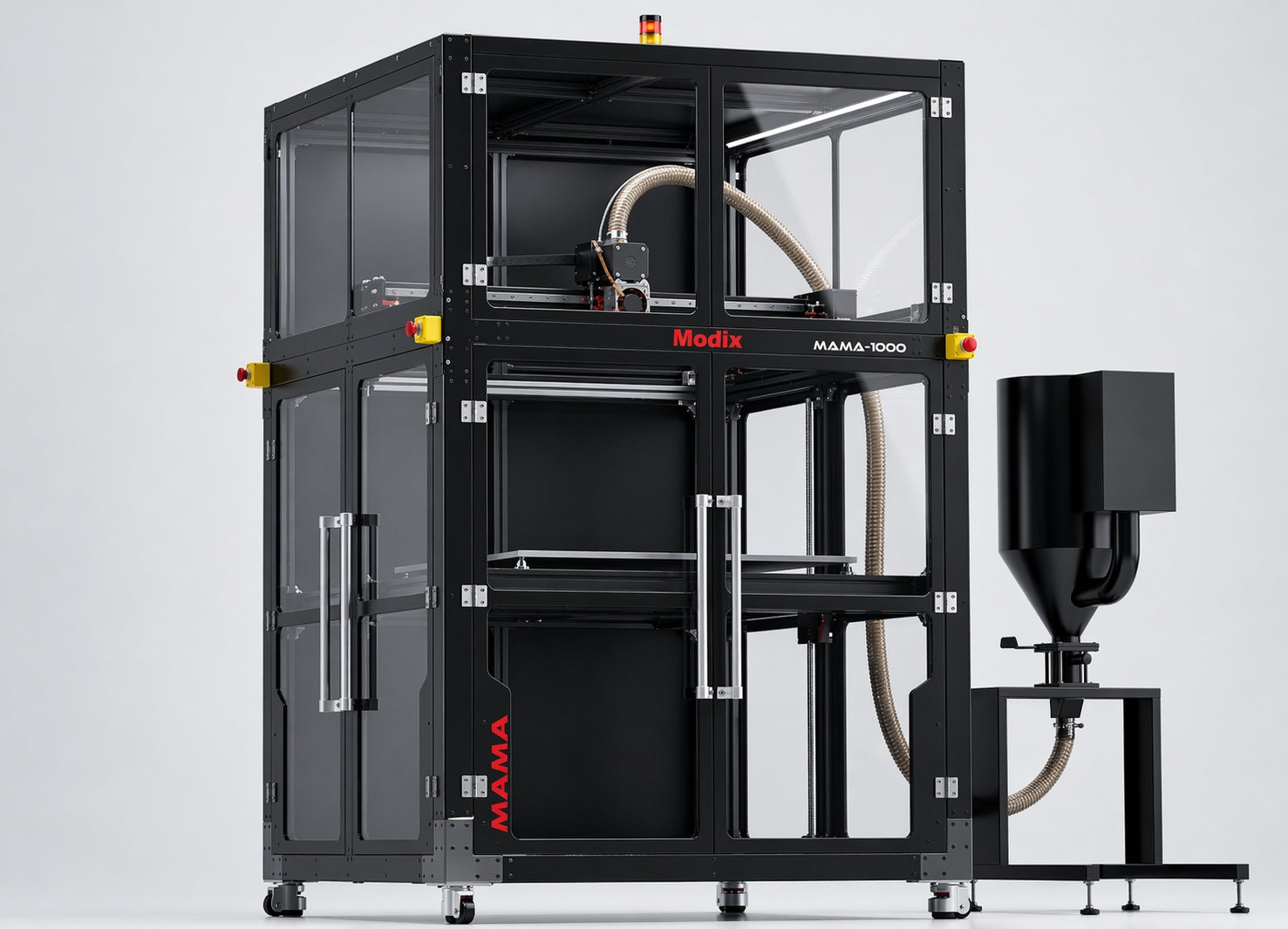

Modix MAMA-1000 Pellet 3D Printer

1 Cubic Meter. Pellet + Filament. Built for Production.

The MAMA-1000 brings Modix’s dual pellet and filament technology to a compact 1 m³ platform — purpose-built for manufacturers, researchers, and fabricators who need industrial capability.

One Machine. Two Print Technologies.

Most industrial 3D printers force you to choose: speed or detail. The MAMA-1000 eliminates that tradeoff — a single machine carries both a high-throughput pellet extruder and a precision filament extruder.

FGF · Pellet Extrusion

DYZE Design Pulsar

Processes raw plastic granules directly — the same material used in injection molding. No filament conversion, no markup. Compatible with PLA, PETG, ABS, ASA, TPU, recycled polymers, and filled composites. Pellets cost $2–8/kg vs. $20–80/kg for filament.

3 KG Per hour max

500 mm³/s flow

3 & 5 mm Nozzle sizes

FFF · Filament Extrusion

Modix Griffin Ultra

Delivers precision detail and fine surface finish on the same machine. Use it for critical interfaces, fine features, and support structures — then switch to pellet mode for the bulk of the part. One machine, zero compromises.

0.5 KG Per hour max

160mm³/s flow

1.6 mm Nozzle size

Pellets In. Parts Out.

Raw plastic goes in, large precise parts come out.

Step 01

Pellets or Compounds

Virgin, recycled, or filled — carbon fiber, minerals, wood composites.

Step 02

Masterbatch

Blend in color and effects. Match any RAL or Pantone.

Step 03

Drying & Feeding

Dry pellets before printing. Compressed air feeds the print head.

---

MAMA-1000 Specifications

• Print Volume:1,000 × 1,000 × 1,000 mm (XYZ) — 1 cubic meter
• Pellet Print Head (FGF):DYZE Design Pulsar — 500 mm³/s, up to 3 kg/hr
• Filament Print Head (FFF):Modix Griffin Ultra — 1.75 mm, 1.6 mm nozzle, 0.5 kg/hr
• Nozzles Included:3 mm · Optional: 1 mm & 5 mm
• Material Compatibility:PLA, ABS, TPE, TPU, PVA, HIPS, PC, PETG, Nylon, composites, recycled polymers, and more
• Enclosure:Included
• Motion System:Closed-loop Nema23 Motors
• Controller:Duet 6HC
• Delivery:Fully assembled and tested
• Dual-Head (IDEX):Available as add-on

What the MAMA-1000 Is Built to Produce

The MAMA series was designed around real industrial workflows — not just demonstrations. Here’s what customers are shipping with it today.

Tooling

Molds & Tooling

Low-temperature molds printed with wood-filled PLA pellets. The wood filler makes post-processing — sanding, drilling, sealing — straightforward.

Wood-filled PLA

Interior & Design

Furniture & Décor

With a 1,000 × 1,000 mm footprint, the MAMA-1000 handles bookshelves, table bases, and light fixtures. Local production using recycled plastic meets growing consumer sustainability demand.

4.5 hours 5.5 kg5 mm nozzle

Visual & Commercial

Signage & Props

Large letters, logos, and custom symbols printed in flame-retardant material for public installation compliance. A 10 kg sign prints in under 9 hours — at a fraction of conventional fabrication cost.

8.75 hours10.1 kg Flame-retardant
