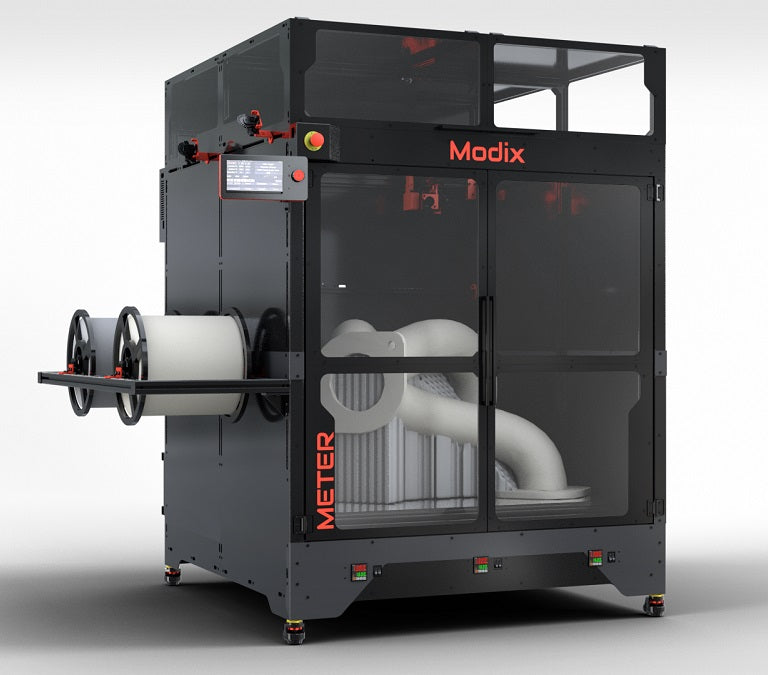

Modix BIG METER V4 3D Printer

£16,798.80
£16,798.80
£16,798.80
Tax included.
Download Product Brochure
Request a Sample

BIG-Meter Highlights

  • Print volume of 1,010 x 1,010 x 1,010 mm
  • Printer dimensions: 1,300 x 1,470 x 1,830 mm
  • Shipping weight: 220kg
  • Delivery method: Self assembly kit
  • Print head: single Griffin extruder, 1.75mm filament. Dual head (IDEX) optional.
  • Duet3D Wifi 32 bit controller & Duex5 Expansion board
  • 4 X Z axis motors are controlled individually providing automatic bed tilt calibration.
  • 100 probing point for automatic bed leveling
  • Minimal Electricity requirements – single phase, 208-240V:
    • EU/AU/UK customers: IEC 309 32A Blue (2P+E) outlet
  • Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years, please select the desired extension below.

Modix 3D printers are designed for future upgrades and new technologies. When a new version is released, an upgrade is offered to our customers.

As creators, we believe that products should be designed to serve for long period of time, not to be replaced when a new model is coming out.

Why a Large 3D Printer?

Printing large models as one object makes them stronger and saves time on post processing. Use cases include

  • Customized large enclosures
  • Manufacturing jigs
  • Prototyping
  • Cast molds
  • Composite plugs
  • Batch production - Modix 3D printers are capable of printing multiple small items in a single sequenced 3D print job.



    Modix 3D printers are designed for future upgrades and new technologies. When a new version is released, an upgrade is offered to our customers.

    As creators, we believe that products should be designed to serve for long period of time, not to be replaced when a new model is coming out.

    Generation 4 - What's new?

    Generation 4 widens Modix’s offering by introducing new capabilities such as printing models with internal geometries, faster printing speed, reduced post process time and higher reliability. With generation 4, all Modix printers  are now shipped with the new Griffin print head, clog and crash detectors.

    Griffin Print Head

    Griffin print head offers high printing quality, impact resist, easy swap and higher printing temperatures than before.


    Clog Detection

    Reliability sensors suite that is designed to save print-jobs on time. It can detect filament run-out, under extrusion and clogs.


    Auto Z Offset Calibration Tool

    Comprehensive set of automatic calibration tools including: bed tilt calibration, bed leveling, gantry alignment and Z offset calibration.





    TECHNICAL SPECIFICATIONS

      General

    Technology

    FFF: Fused Filament Fabrication

    Print volume metric (XYZ)

    1,010x1,010x1,010 mm / ~40 x 40 x 40 inch

    Machine size (WxDxH)

    with enclosure

    1,300x1,470x1,830 mm / ~52x58x72 inch

    Shipping weight

    200 KG

    Assembly

    Self-Assembly

    Closed print chamber

    Included

    Enclosure type

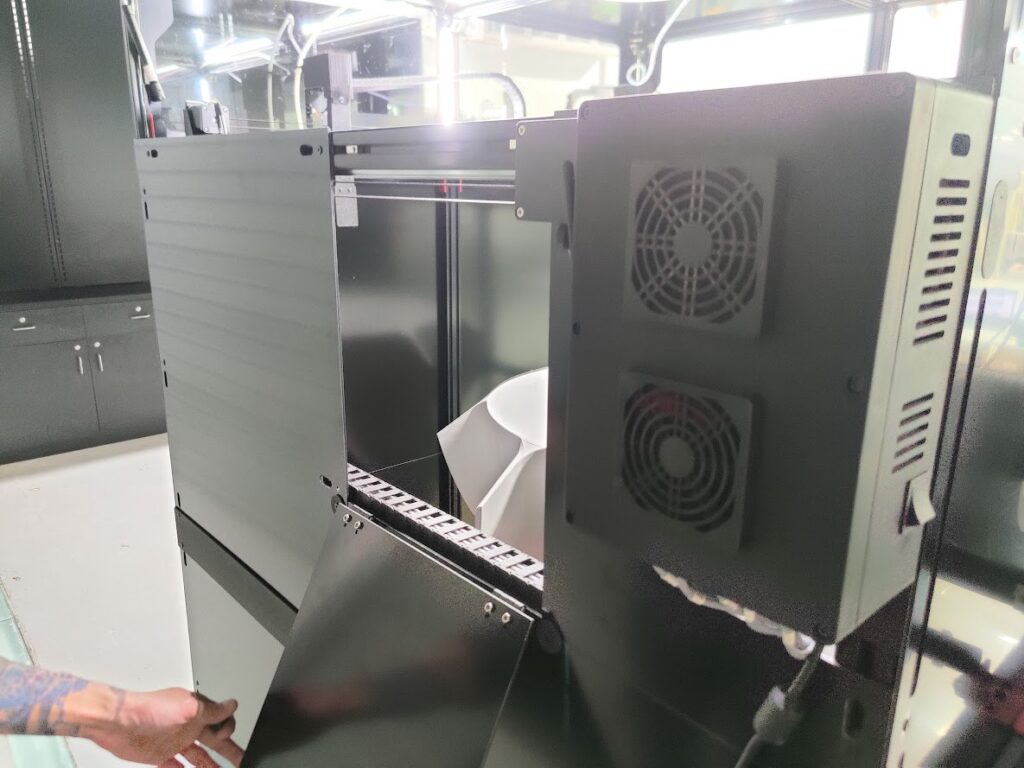

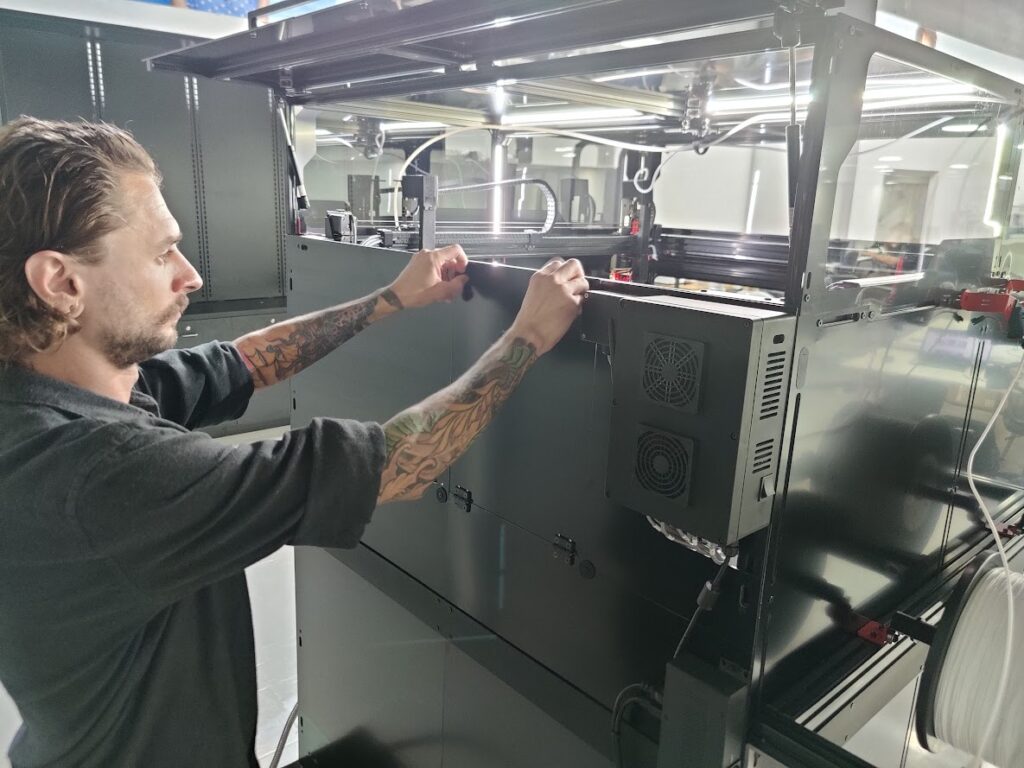

    Aluminum composite panels (ACP), 3mm thick.

    Polycarbonate doors and top lid

    Feet

    Articulated leveling feet included

    Casters included

    Number of print heads

    Two

    Default filament diameter

    1.75mm, can be converted to 3mm by the user

    Extruder brand & model

    E3D Aero Extruder (direct drive)

    Hotend brand & model

    E3D Volcano, optional add-ons:

    V6 (detailed) and E3D Super-Volcano (high flow)

    Included nozzles (mm)

    0.4, 0.6, 0.8 Primary hotend

    0.4 for Secondary hotend

    Hotend max. temperature

    285ºc

    Optional max hotend temp.

    500ºc, requires PT100 thermistor add-on

    Extruder motors

    Motech MT-1703HS168A

    Direct drive extruders gear reduction of 1:3

    Filament runout sensor

    Dedicated sensor per extruder

    X & Y axis linear guides

    HIWIN MGW9

    Z axis guides

    HIWIN MGW9

    X & Y axis drive system

    Gates GT2 width: 9mm, fiberglass reinforced

    Z axis drive system

    SFU1204 Ball screw 2:5 belt gear reduction

    X axis motors

    2 X Motech MT-1705HS200A

    Y axis motor

    1 X Motech MT-1705HS200A

    Z axis motors

    4 X Motech MT-1705HS200A

    Resolution (XYZ)

    4 X 4 X 0.5 micron

    Printing speed

    Up to 150mm/s Depends on nozzle & layer height

    Printing acceleration

    Up to 1000 mm/s2

    Bed plate

    Alcoa Mic-6, 6.35mm milled cast aluminum plate

    Number of heaters

    3 X AC heaters, 1,000 Watt each

    Temperature controller

    Autonics TCN4 PID controller

    Maximum bed temperature

    120ºc

    Bed leveling probe

    BL touch probe

    Bed leveling

    Automatic. Bed shape is measured by probing 100

    different points.

    Bed tilt leveling

    Semi-Automatic, guided by an on-screen macro

    Bed motion system

    4 x ball-nut screws. Each screw is mounted to a

    dedicated stepper motor with a belt gear system

    Electronic controller

    Duet3D: Duet2 Wifi

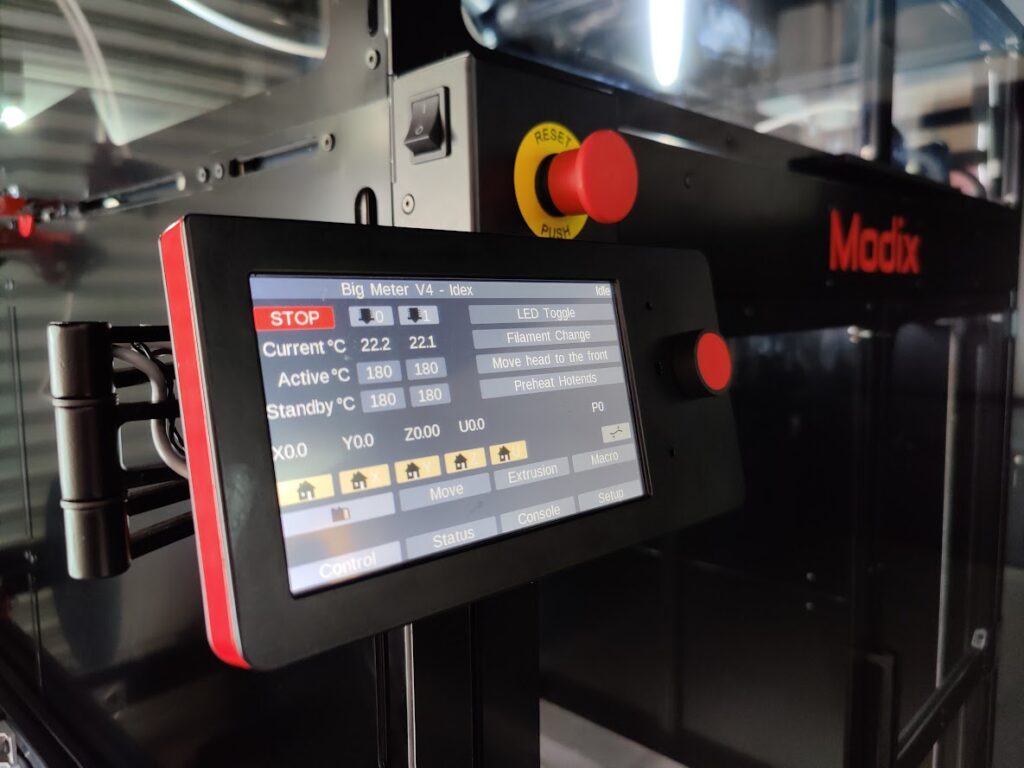

    User interface

    7” Touch screen – PanelDue from Duet3D

    Remote control (WiFi)

    Upload Gcode files right from your desktop

    Direct connectivity

    SD Card, USB cable

    Ethernet

    Optional with Duet3D Ethernet board.

    Should be purchased and replaced by customer

    Electronics (DC) power

    Meanwell 24V/280Watt power supply powering

    the electronic and motion system.  Universal AC input: 110-230V, 50/60 Hz

    Bed heaters (AC) power

    Minimal Electricity requirements:

    32A, single phase, 208-240V:

    N. America customers: NEMA L6-30P outlet  EU/AU/UK : IEC 309 32A Blue (2P+E) outlet
