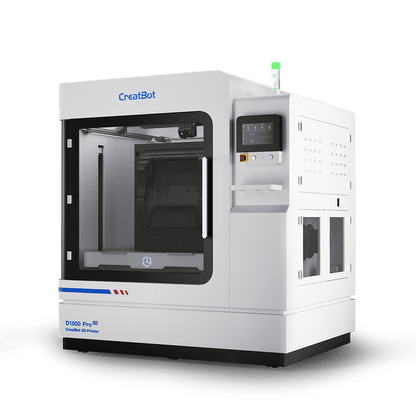

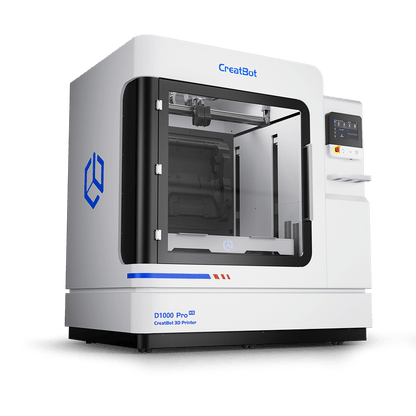

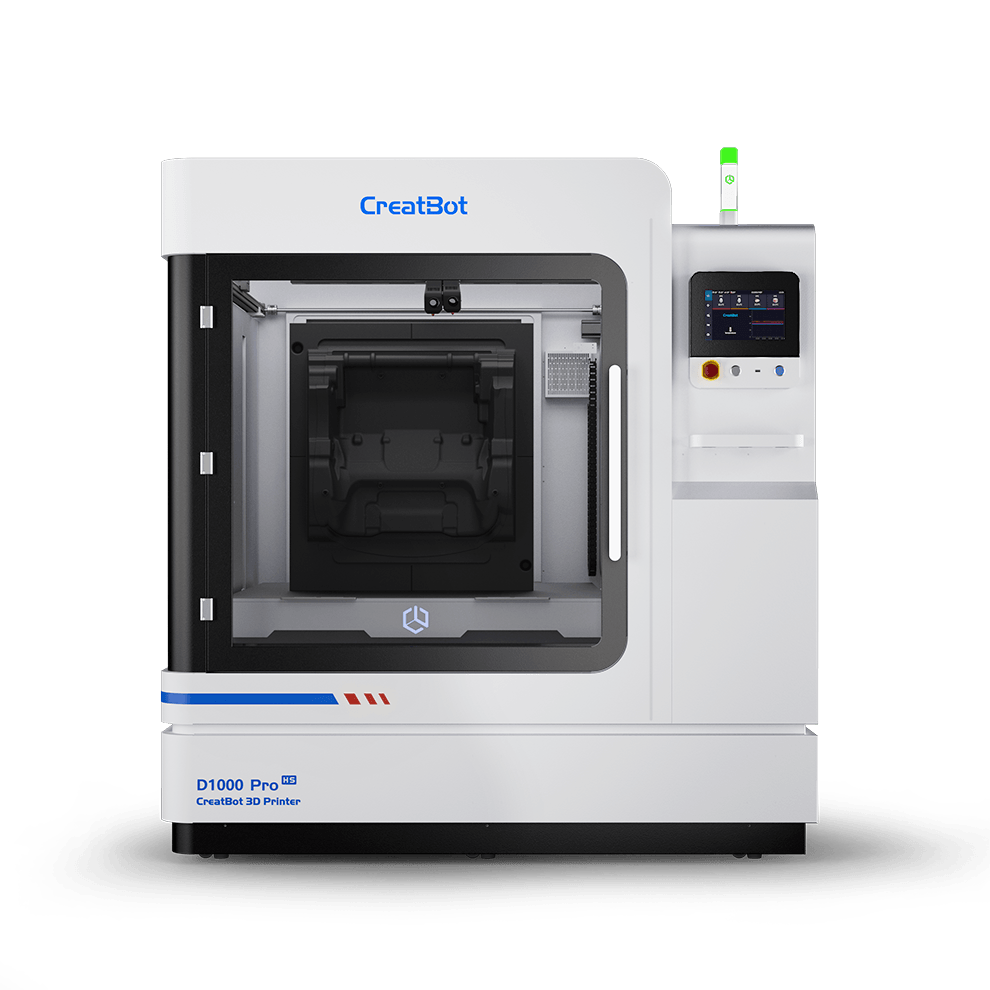

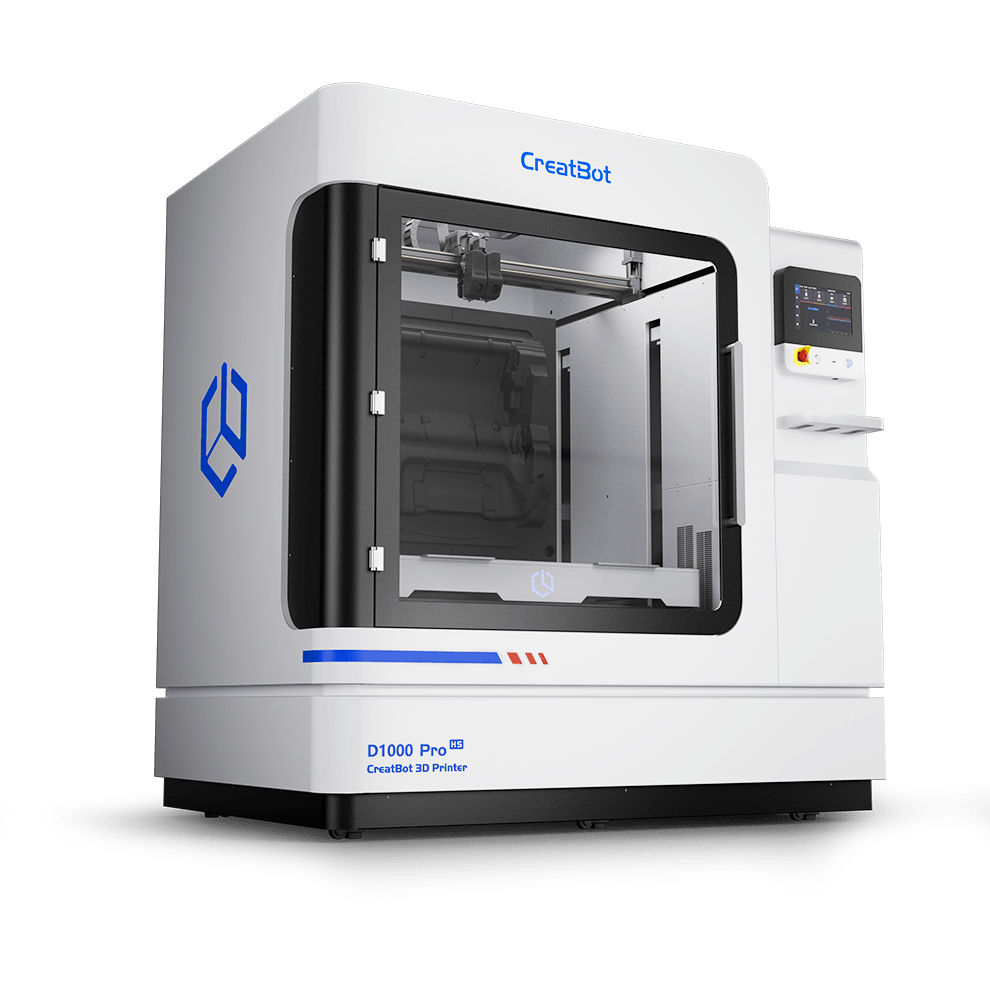

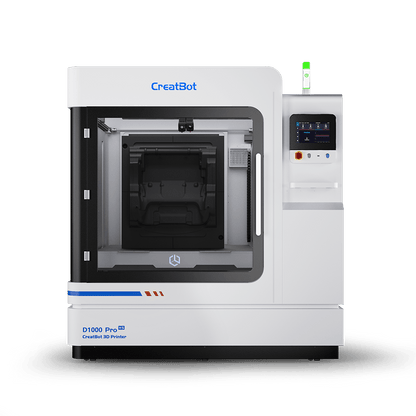

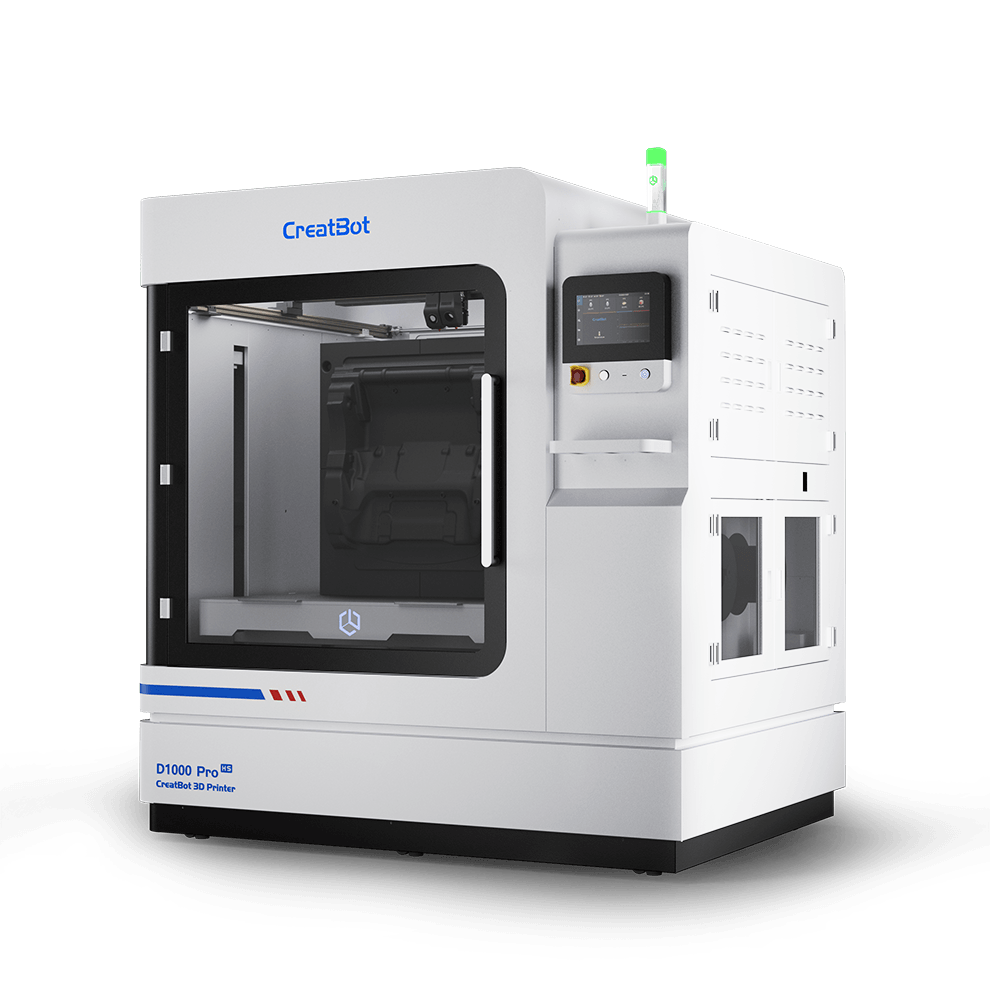

CreatBot D1000 Pro HS
Industrial Grade 1 Cubic Metre High Speed 3D Printer
The CreatBot D1000 Pro HS is a large format industrial 3D printer designed for producing full size parts, prototypes, tools and moulds in-house with high speed, stability and reliability.

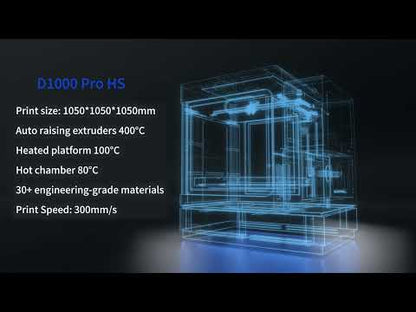

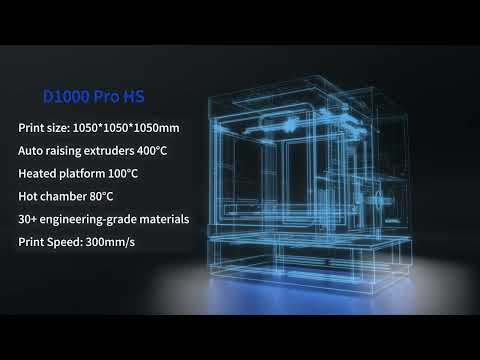

With a massive 1050 × 1050 × 1050mm build volume and stable printing speeds up to 300mm/s, the D1000 Pro HS is engineered for continuous production using engineering-grade materials.
Compatible with large 2 × 5kg filament spools and materials including PLA, ABS, ASA, PET-CF, PA-CF and PPS-CF, the system is built for uninterrupted large-scale printing.
D1000 Pro HS Highlights
- 1050 × 1050 × 1050mm build volume
- High speed printing up to 300mm/s
- 420°C dual extrusion system
- 80°C active heated chamber
- Camera control technology
- Reliable 24/7 operation
- Fully enclosed industrial design
Automatic Dual Nozzle Calibration
The D1000 Pro HS uses a fully automatic AI-assisted calibration system for accurate dual nozzle alignment.
- HD macro camera XY calibration
- AI visual recognition
- XY accuracy: 0.02mm
- Dual photoelectric sensor Z calibration
- Z accuracy: 0.005mm
Eddy Current Bed Levelling
The eddy current levelling system delivers ultra precise bed calibration with 0.001mm probing accuracy. Its non-contact sensor design supports faster levelling, improved first layer adhesion and more reliable large format printing.
Auto-Raising Dual Extruders
The D1000 Pro HS features a smart auto-raising dual extrusion system capable of nozzle temperatures up to 420°C.
- Flow rate: 90mm³/s
- Heat-up time to 400°C: approximately 2 minutes
- Temperature accuracy: ±0.15°C
The upgraded dual nozzle shutter system helps prevent oozing and material contamination during multi-material printing.
Automatic Dual Nozzle Shutter
The automatic nozzle shutter system physically seals the inactive nozzle during printing to reduce oozing and improve print quality during dual material and multi-colour jobs.
Large Scale Engineering Prototypes
The D1000 Pro HS is designed for large-scale prototyping with engineering-grade materials. It is suitable for producing full-size prototypes, tooling and industrial components with high strength and heat resistance.
Materials such as UltraPA-CF can deliver tensile strength up to 80MPa and heat resistance up to 150°C, making the system suitable for demanding industrial applications.
Case Study: Automotive Tooling
Faurecia, a global automotive supplier, uses the D1000 Pro HS to produce high performance seat moulds for major OEMs including Audi, Volkswagen, Nissan and GM.
Active Heated Chamber
The actively heated chamber reaches temperatures up to 80°C to reduce warping and improve consistency when printing engineering materials.
- Reduces thermal stress and warping
- Improves interlayer bonding
- Minimises moisture impact
- Improves process consistency
Thermal Compensation Technology
High chamber temperatures can create frame expansion and mechanical distortion in large format printers. CreatBot uses intelligent chamber heating algorithms and Z-axis compensation technologies to maintain print quality and dimensional accuracy.
- Intelligent heating algorithm for thermal compensation
- Z-axis Magic Box technology
- Reduced deformation during long print cycles
- Improved surface consistency on large parts
Safety Door Protection System
The integrated safety door monitoring system automatically pauses operation when the door is opened, supporting safer industrial operation.
Power Loss Recovery and Filament Detection
The printer automatically saves print progress during power interruptions and can resume printing from the exact stopping point after restart.
Filament detection pauses printing when material runs out, while backup mode allows the secondary nozzle to continue production when needed.
Magnetic Suction Platform
The removable magnetic platform is heat resistant over 100°C and designed for fast removal of oversized printed parts.
Linear Rails and Servo Motors
The D1000 Pro HS uses heavy-duty linear rails and servo motors to maintain smooth, stable motion across the full 1000mm+ build area.
True External Air Cooling
The external air cooling system delivers fresh air into the heated chamber to improve overhang quality, reduce sagging and improve surface finish during high speed printing.
Medical Grade Cooling Pump
The industrial cooling pump is designed for reliable 24/7 operation with low noise and stable airflow.
Eddy Current Sensor Protection
The targeted cooling system helps protect the eddy current sensor from chamber heat during platform probing.
True Air Model Cooling
Fresh external airflow helps solidify material quickly, improving overhangs and reducing stringing in heated chamber environments.
Filament Dry Room
The integrated filament drying compartment maintains a controllable temperature range between 0–70°C to reduce moisture absorption in hygroscopic materials.
Independent Quad-Z Axis
The independent four motor Z-axis system improves levelling, stability and consistency across the full build platform.
Quad-Z Auto-Levelling
The system automatically compensates each corner of the platform to improve flatness and first layer consistency.
Superior Load Capacity
The Quad-Z system supports large, heavy industrial parts while maintaining platform stability during high speed printing.
Anti-Tilt and Torque Correction
The independent motors help reduce physical tilt and mechanical twist across the full build area.
Superior Layer Consistency
Smoother Z-axis travel helps reduce layer banding and improve surface quality on large industrial prints.
Ultra Air Filter System
The integrated HEPA and activated carbon filtration system helps reduce airborne particles, VOCs and odours during printing.
WiFi, LAN and Remote App Control
The D1000 Pro HS supports cloud connectivity, LAN operation and local file transfer via USB.
Users can remotely monitor and control printing operations including speed, pause functions and temperature settings.
Camera Control Technology
Integrated camera monitoring allows users to remotely monitor and control the printing process through the app.
Exceptional Stability
The steel monocoque frame construction helps minimise vibration and maintain stable print quality during high speed, long duration printing.
