Griffin Ultra Print head Modix High Flow Extruder
£960.00
Couldn't load pickup availability

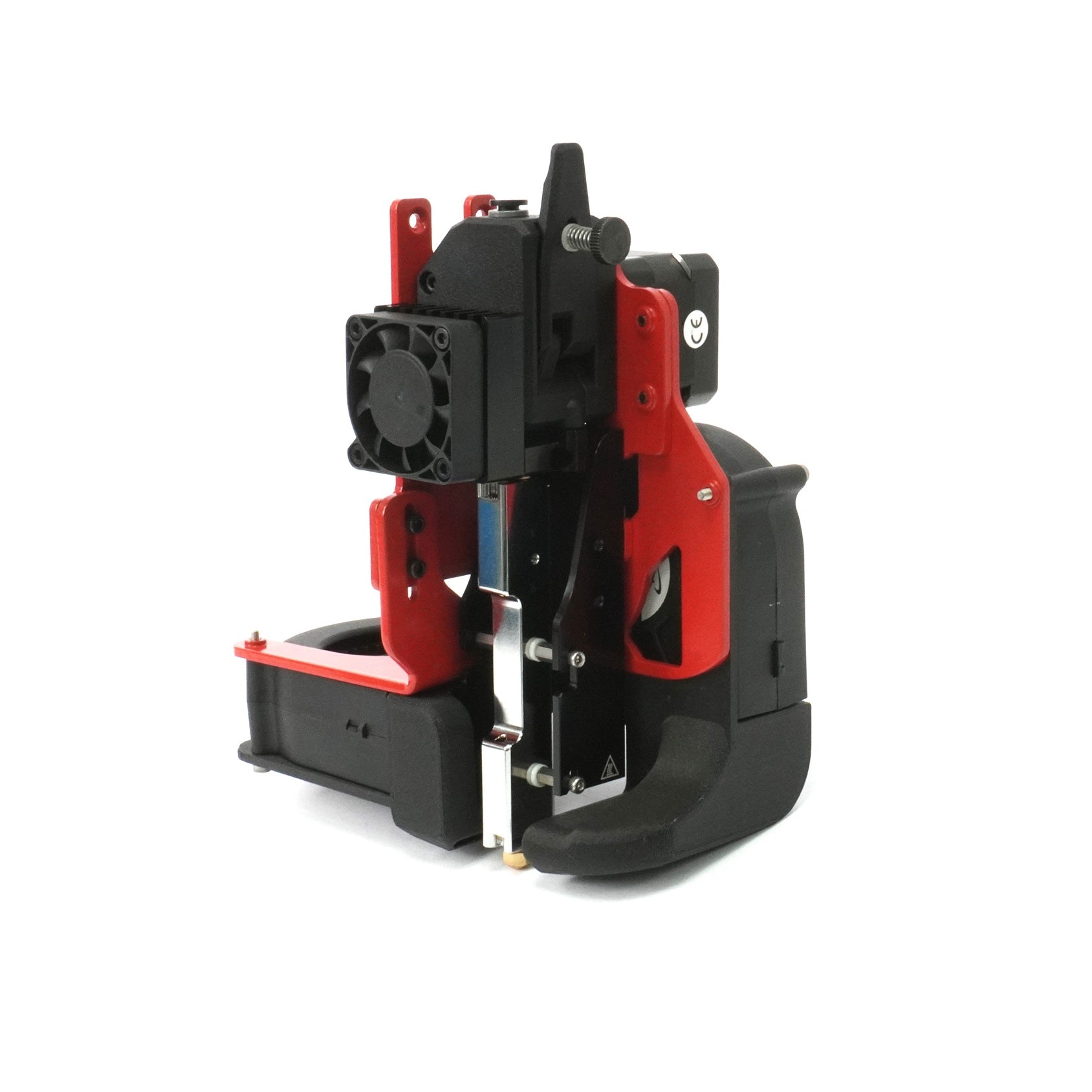

Griffin Ultra Print head
Griffin Ultra is our latest super high-flow hotend, capable of extruding more than 500 grams per hour with 1.75mm filament. With doubled the length of the Griffin High-Flow (four time the standard Griffin) and dual massive cooling fan blowers, it’s a true game-changer. Due to much thicker layers and extrusion width, what once took 12 hours now finishes in just 2 with Griffin Ultra. It is not a low cost add-on, yet it’s a must have for every Modix’s user.
- Compatible with both Gen4 & Gen3 Modix BIG printers.
- Compatible with Gen4 IDEX (and IDEX upgraded Gen3).
- Due to a higher mounting, the nozzle is at the same height as Griffin
and therefore there is no reduction in print dimension on the z axis. - It reduces X axis at 50mm.
- Y axis is affected only in IDEX configuration and is reduced at 50mm.
- Print head weight: 900 grams (including motor, BMG, etc…)
- Nozzle diameters:1.6mm
- It is compatible with the standard Griffin (volcano) nozzles.
- Layer height range between 0.3-1.2mm
- Print speed – up to 250mm/sec (with thin layers of 0.3mm)
-
Flow rate: 160mm³/s @1.6mm nozzle with 1.2mm layer height.
