PolyCore™ PC-7413

Polycore Product Range Features:

1. Application / Industry Driven:  Each material is formulated specifically to fulfil the demand and specific requirements of its targeted industry and applications.
2. Materials built for LFAM / FGF:  PolyCore products have been developed, tested and validated on a variety of pellet systems to guarantee optimal performance and printability
3. End-to-End Technical Support: From material selection to comprehensive printing parameters and testing, the PolyCore engineering team ensures every project is implemented smoothly and successfully.

Product Range Description

PolyCore™ is a specialized family of pellet-based 3D printing materials designed for Large Format Additive Manufacturing (LFAM) and Fused Granular Fabrication (FGF). Utilizing over a decade of expertise in material extrusion 3D printing, Polymaker's PolyCore™ delivers outstanding printability and broad compatibility with most pellet-extrusion 3D printers. Each product in the PolyCore™ family is developed with specific applications in mind—ranging from architecture and furniture to composite molds and tooling. To ensure consistent performance and reliability, all PolyCore™ products are manufactured under a quality control system tailored to the unique demands of LFAM/FGF technologies.

Product Description

PolyCore™ PC-7413 is specially engineered for medium-temperature composite molds & tools applications, supporting autoclave curing at temperature up to 120°C. It has demonstrates exceptional performance and reliability at every stage of the process.

• PC compound with 30% glass fiber reinforcement

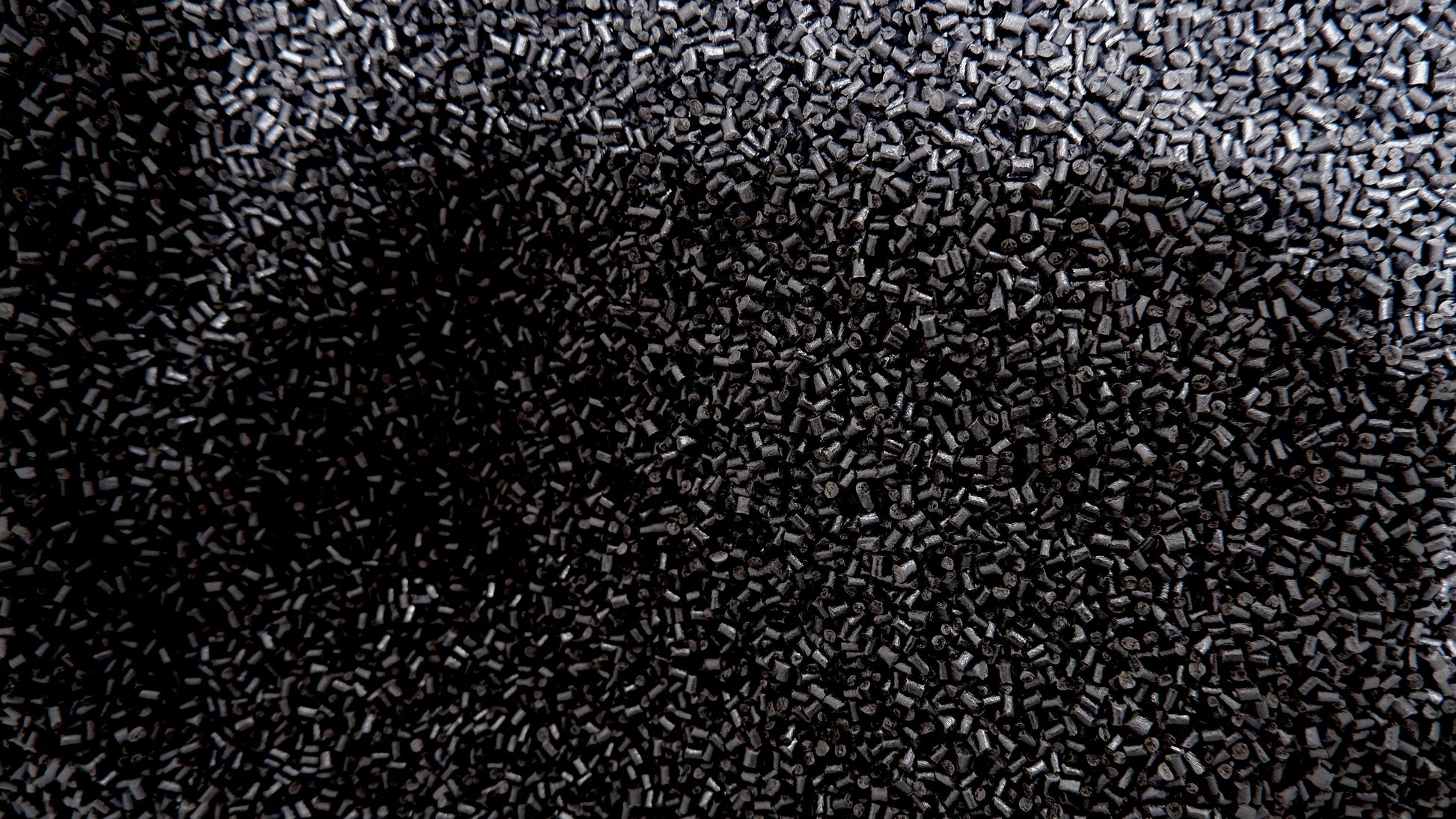

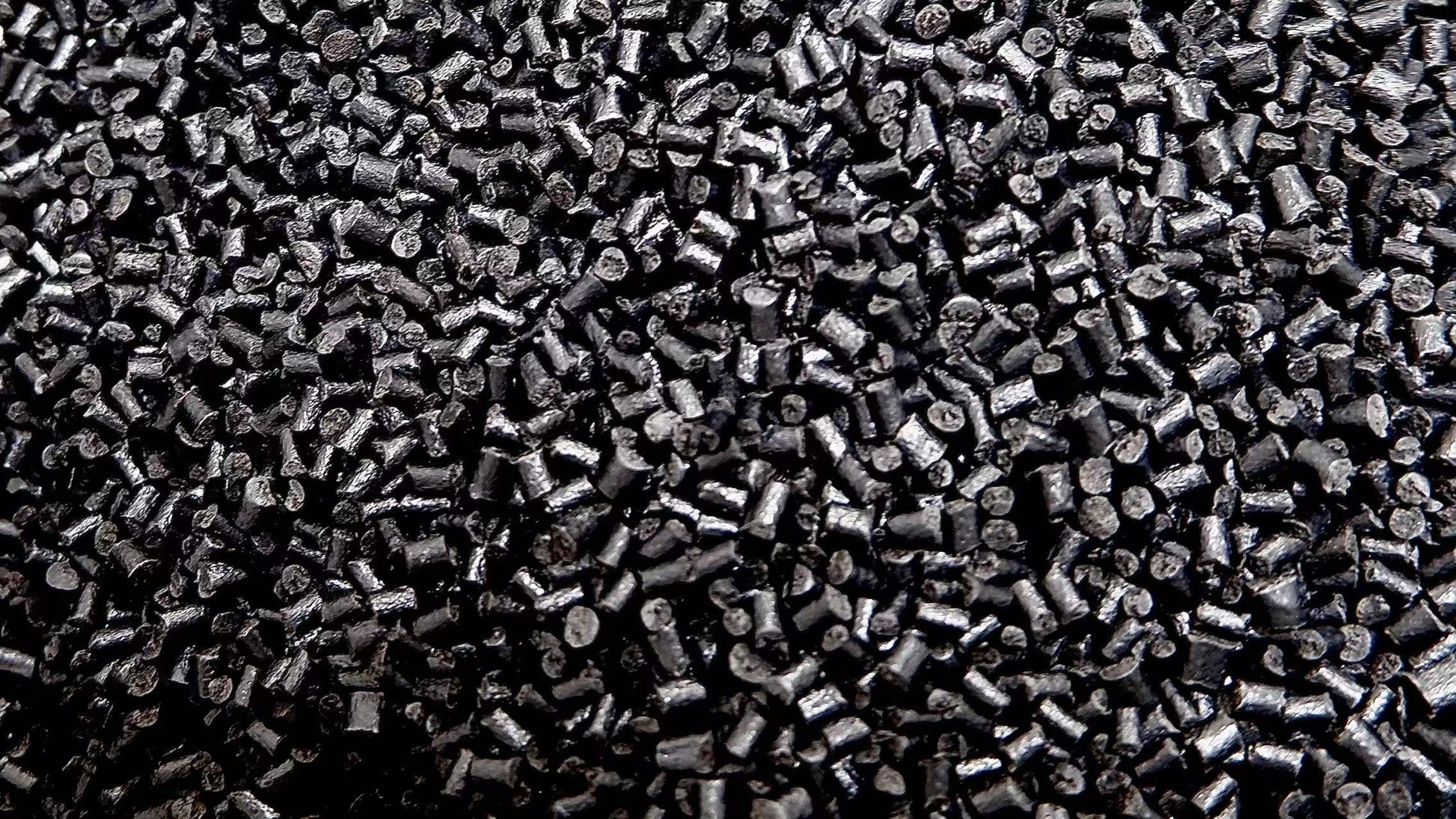

• Pellet size: 2-3mm
• Color: Black
• Available in 25kg bags

Key Features:

• Excellent Heat resistance up to 136°C (HDT ISO75 1.82 MPa)
• ±0.2 mm dimensional tolerance post-autoclave
• Airtight for vacuum infusion (-0.82 bar @ 30 min)

Applications:

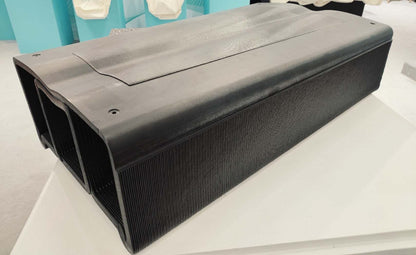

• Composite curing molds for Autoclave (80°C - 120°C)
