DyeMansion Powershot Dual Performance ‐ 400V / 50Hz ‐ incl. Extraction Unit
£123,065.04
Couldn't load pickup availability

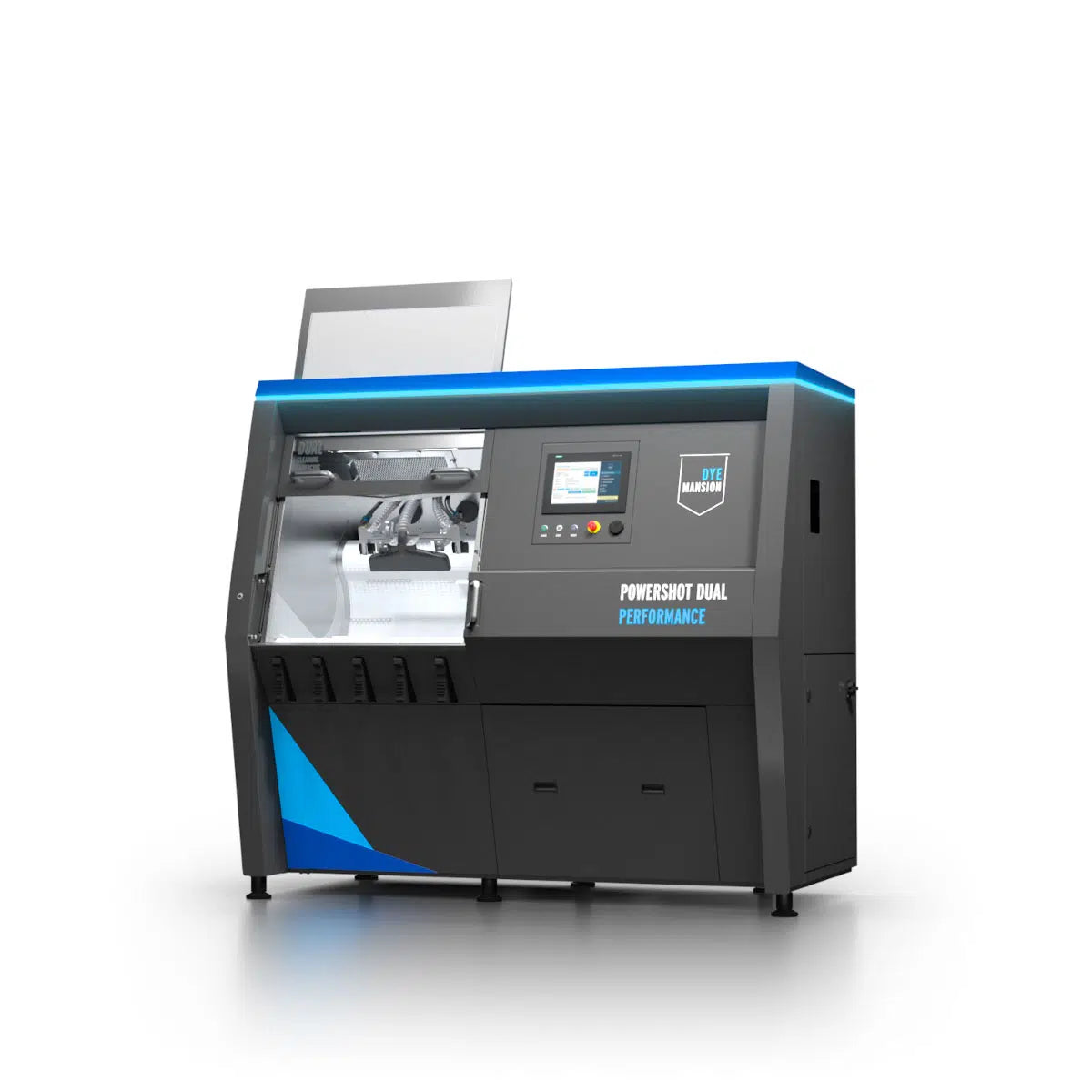

DyeMansion Powershot DUAL Performance
The DyeMansion Powershot DUAL Performance is an advanced 2-in-1 cleaning and surfacing system for industrial 3D printed parts.
Designed for high-volume additive manufacturing, it combines separate cleaning and surfacing processes in one compact, automated machine.
Key Features
- 2-in-1 cleaning and surfacing system
- Built for serial production and high-volume workflows
- Automated processes with auto-unloading
- No need to switch machines between cleaning and surfacing
- Industry 4.0 ready with OPC-UA connectivity
- Small footprint for efficient production environments
- Compatible with SLS, SAF, MJF and HSS technologies
- Suitable for materials including PA12, TPU, TPE and PP
Efficient Cleaning and Surfacing
Parts can be loaded into the front-loading process chamber, the correct DUAL programme selected, and the machine then handles the cleaning and surfacing process automatically.
Once complete, parts can be automatically discharged and prepared for the next stage of the workflow, such as dyeing.
Production-Ready Results
PolyShot Surfacing helps create semi-gloss surfaces with improved scratch resistance and a soft, premium feel. It also provides an ideal base for DyeMansion DeepDye Coloring.
Technical Highlights
- Cycle time: 10 to 20 minutes per process
- Effective volume: 55L
- Part handling: Multi-Belt
- Dimensions: 1535mm x 2205mm x 2065mm
- Capacity per run: up to 1x EOS P396, 1.5x HP Jet Fusion 4200/5200 or 3x Stratasys H350 build jobs
- Media recovery: Sieve system
- Manual blasting: Integrated
Built for the Factory of the Future
With automation technology, OPC-UA connectivity and support for ERP/MES integration, the Powershot DUAL Performance is designed to fit into modern digital production environments.
For businesses looking to reduce manual work, increase throughput and achieve consistent, high-quality finishes, the Powershot DUAL Performance offers a powerful post-processing solution for additive manufacturing.
