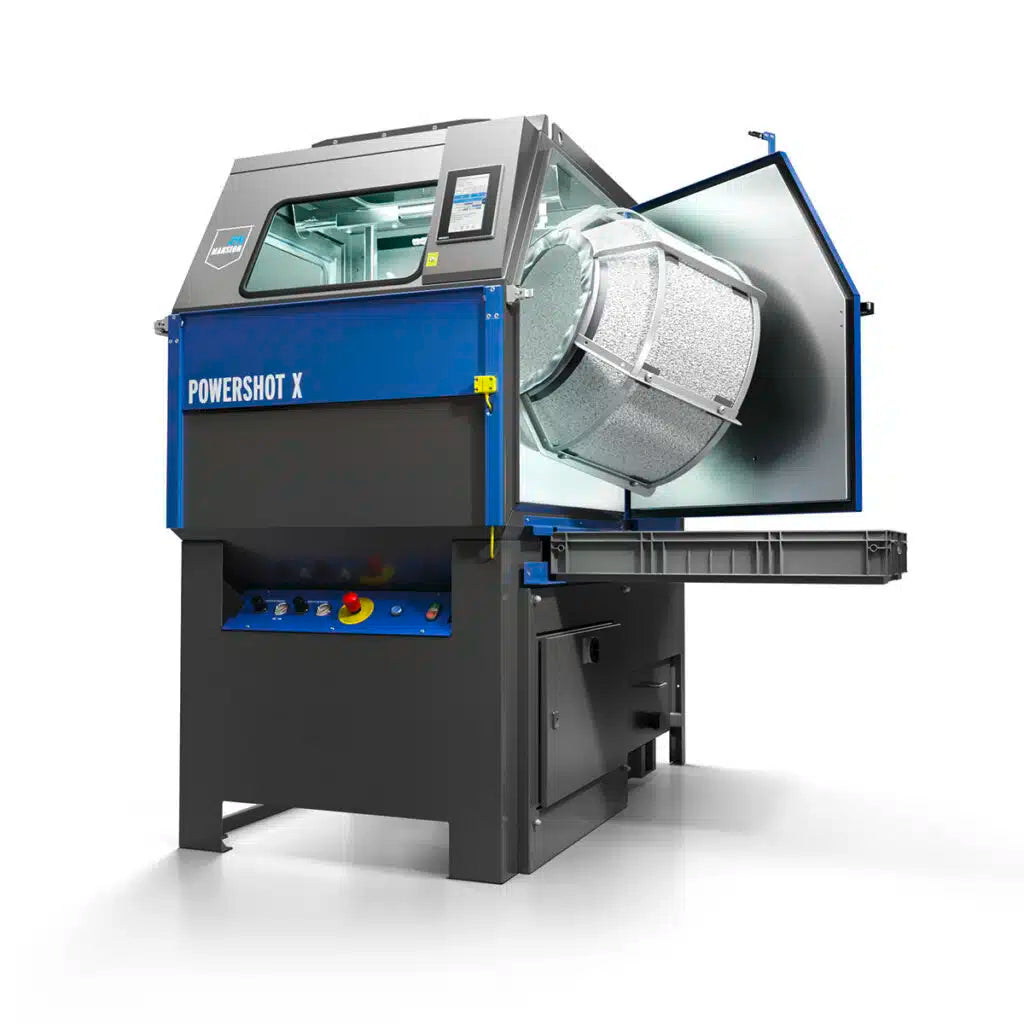

DyeMansion Powershot X industrial cleaning and surface finishing machine ‐ 400V / 50Hz
£36,712.68
Couldn't load pickup availability
DyeMansion Powershot X
The DyeMansion Powershot X is a flexible blasting system for the cleaning and surfacing of 3D printed parts.
With three process modes in one machine, the Powershot X can be used for PolyShot Cleaning, PolyShot Surfacing or a combined Cleaning & Surfacing workflow.
Key Features
- One system with three technologies: PolyShot Cleaning, PolyShot Surfacing and Cleaning & Surfacing
- Designed for automated post-processing with manual loading and unloading
- Ideal for powder bed-based 3D printing workflows
- Helps achieve consistent, reproducible part quality
- Produces premium matt-glossy surfaces with improved scratch resistance
- Low initial investment with strong ROI potential
- Suitable for rigid, flexible and semi-rigid materials
- Compatible with SLS, SAF, MJF and HSS technologies
Flexible Cleaning and Surfacing
The Powershot X allows users to set up the machine in their preferred mode, load parts into the basket, choose the required programme and let the automated process run.
Depending on the selected process, parts can be cleaned, surfaced or prepared for the next step in the Print-to-Product workflow, such as DeepDye Coloring.
Built for Changing Production Needs
Three different modes allow the system to adapt to changing production requirements, whether you need automated part cleaning, a higher-quality end-use finish or a flexible back-up option within your post-processing workflow.
Technical Highlights
- Workflow: Cleaning and Surfacing
- Automation: Automated processes with manual loading and unloading
- Cycle time: Cleaning 5 to 15 minutes, Surfacing 15 to 20 minutes, Cleaning & Surfacing 20 to 40 minutes
- Capacity per run: Up to ¾ EOS P396, 1× HP Jet Fusion 4200/5200 or approximately 1.5 full-sized Stratasys H350 build jobs
- Effective volume: 26L
- Part handling: Rotary basket
- Dimensions: 1700mm x 1310mm x 2030mm
- Media recovery: Cyclone system
- Manual blasting: Integrated
Material Compatibility
The Powershot X is suitable for rigid materials such as PA11 and PA12, as well as flexible and semi-rigid materials including TPU, TPE and PP.
For businesses looking for a flexible, cost-effective way to clean and finish 3D printed parts, the DyeMansion Powershot X offers a powerful all-in-one post-processing solution.
