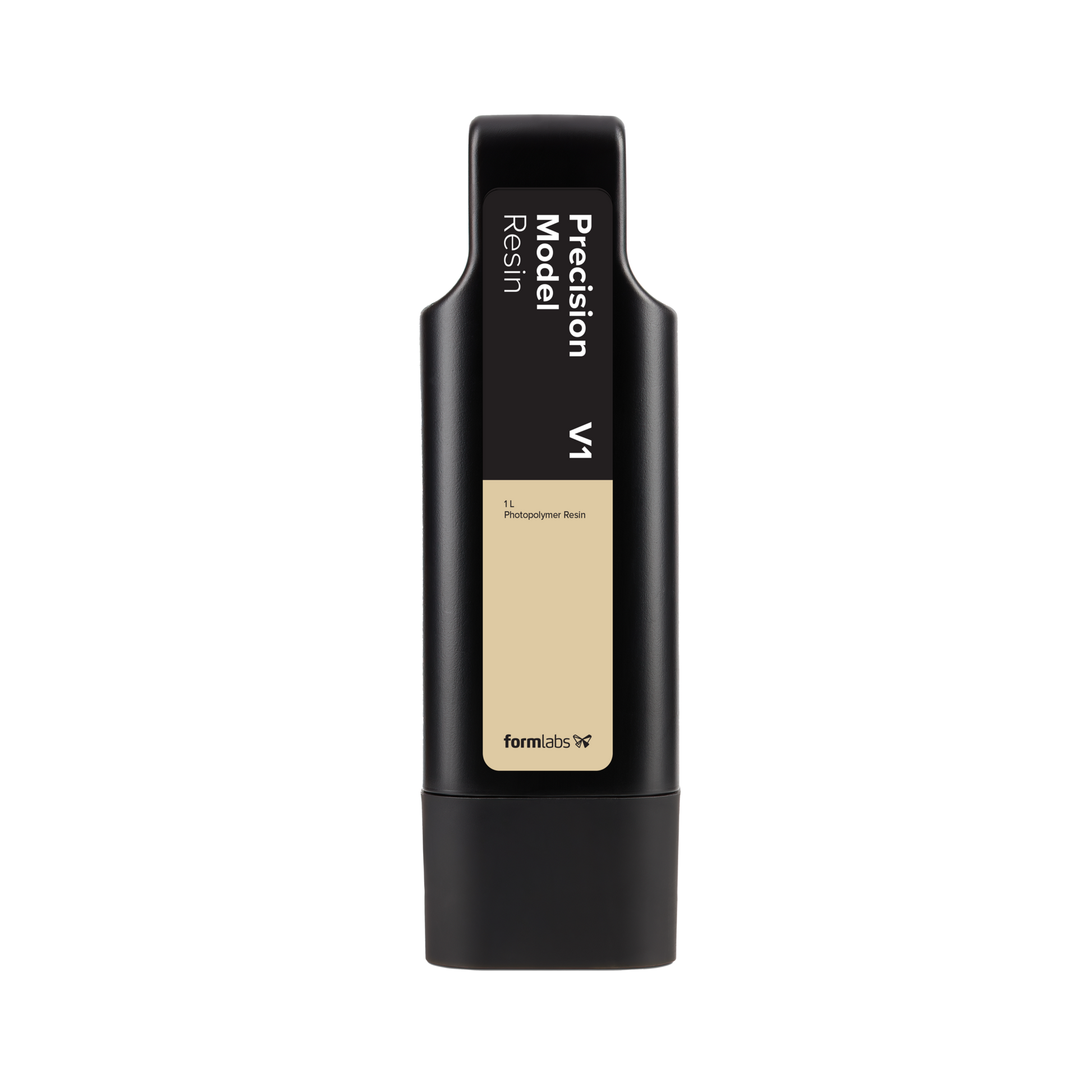

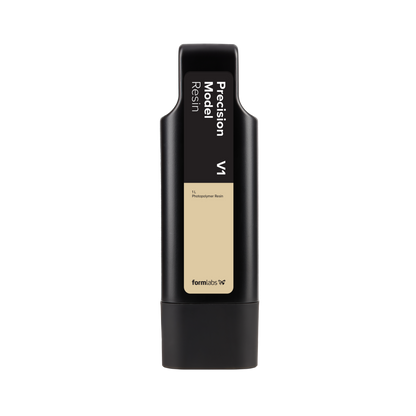

Formlabs Precision Model Resin (Form 4) 1 L
£94.80
Couldn't load pickup availability

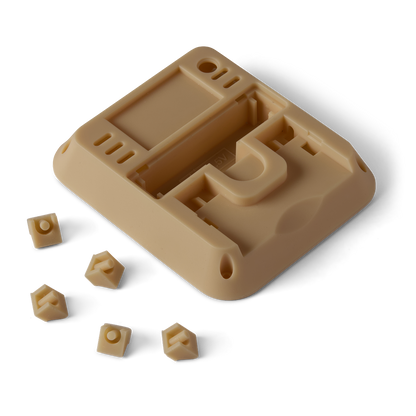

Precision Model Resin is a fast-printing material for the production of high-accuracy models, such as miniatures, figurines, or restorative models in dentistry. Create beautiful models with high opacity, beige colour, and a smooth, matte finish to capture fine details.
Precision Model Resin is the next generation of Model Resin that leverages the Form 4 Series to print three times faster, while offering better accuracy and improved aesthetics.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Categories | General Purpose, Dental |
| Minimum Layer Thickness | 50 micron |
| Colours | Beige, Matte |
| Applications | Dental |
| Ultimate Tensile Strength | 50.0 MPa |
| Tensile Modulus | 2200.0 MPa |
| Elongation at Break | 8.6% |
| Flexural Strength | 87.0 MPa |
| Flexural Modulus | 2300.0 MPa |
| Notched Izod | 32.0 J/m |
| Unnotched Izod | 262.0 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 46.0 °C |
| Heat Deflection Temp. @ 0.45 MPa | 53.5 °C |
| Thermal Expansion | 81.1 μm/m/°C |
Compatibility
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Printer: Form 4, Form 4B, Form 4L, Form 4BL
Why Choose Precision Model Resin?
Precision Model Resin is a high-accuracy 3D printing resin formulated to create restorative models with over 99% of their printed surface area within 100 μm of the design parameters.
Ultra High-Accuracy Models

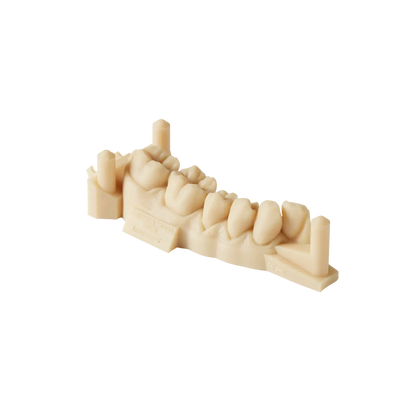

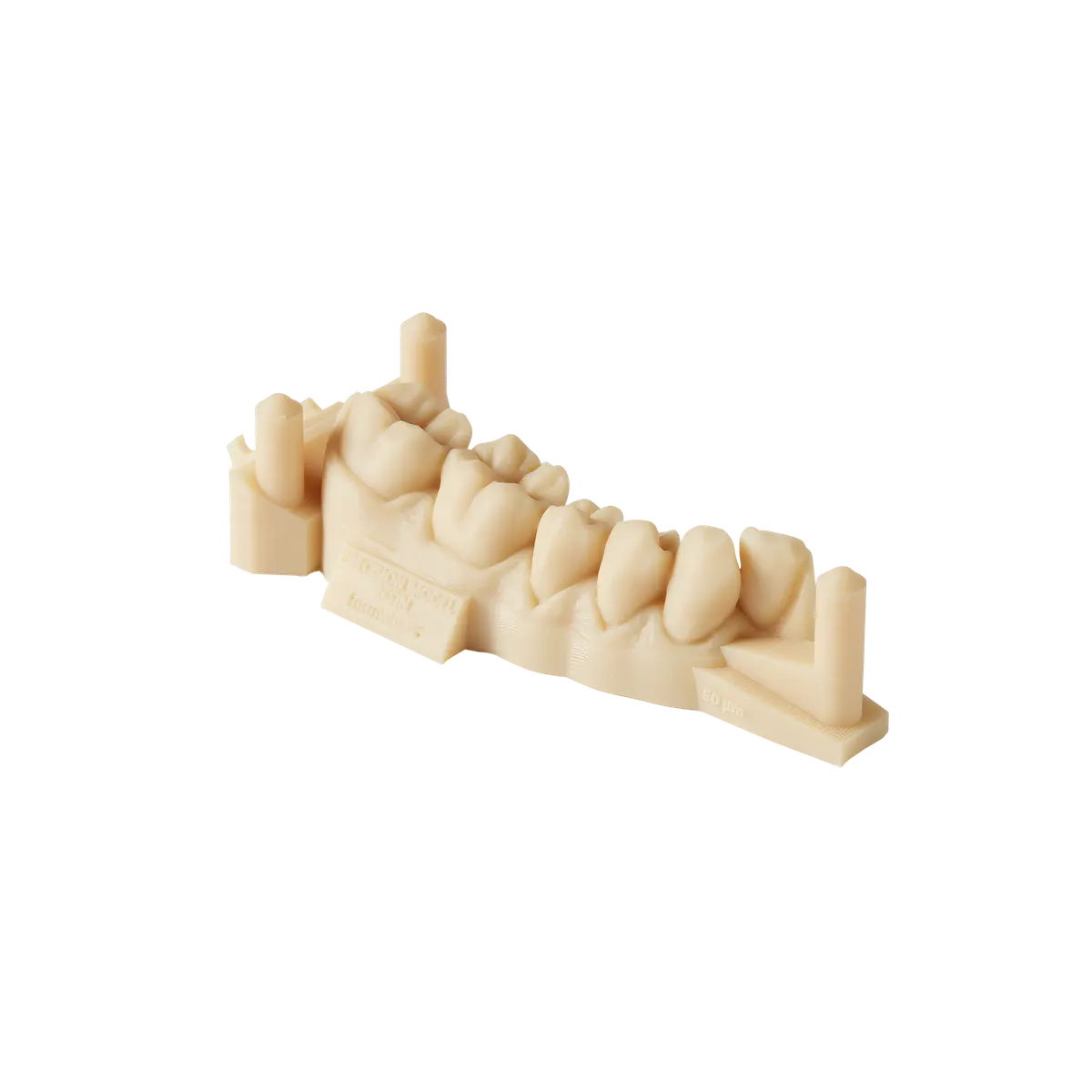

Consistently create restorative models with over 99% of printed surface area within 100 μm of the digital model.
Unmatched Reliability
Print confidently with an end-to-end product ecosystem rigorously validated for continuous uptime and reliability.
Production-Capable Print Speed

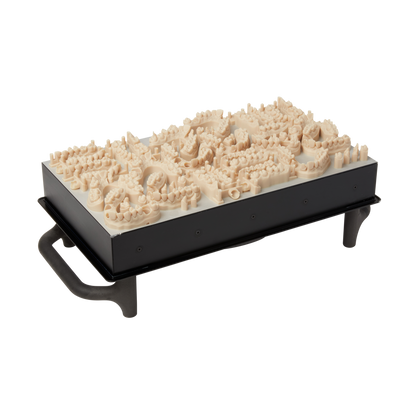

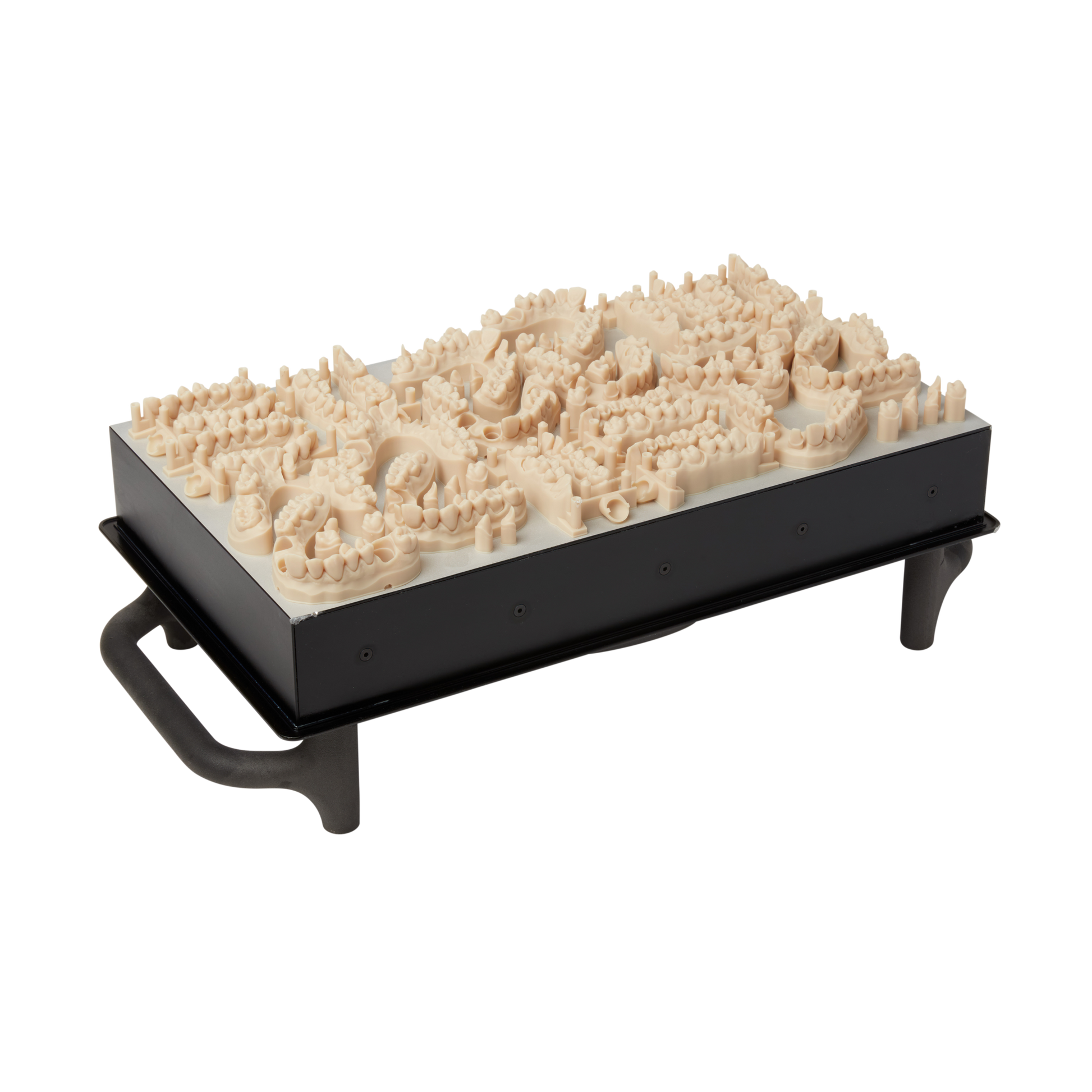

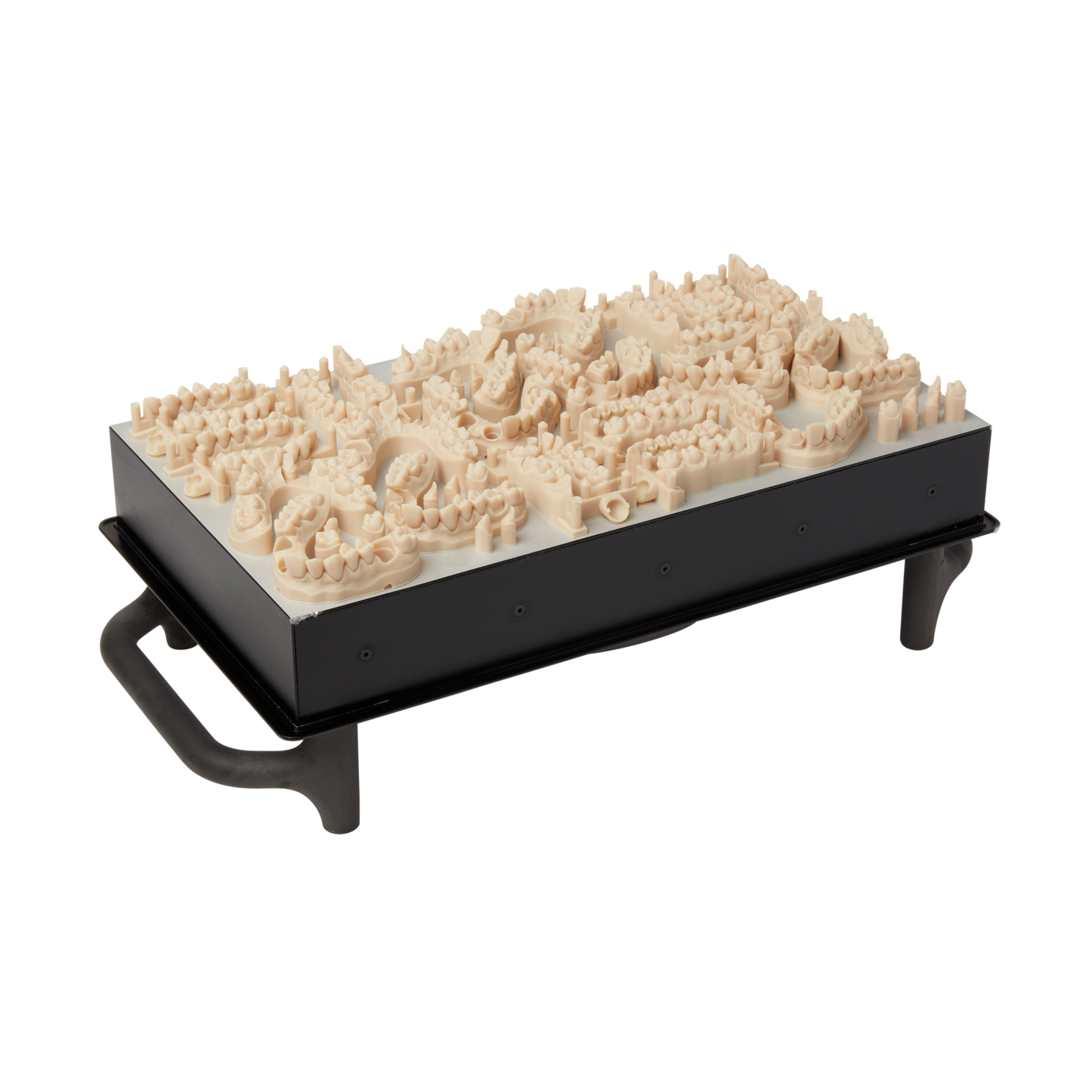

Print eight models in as little as 90 minutes and post-process parts quickly with a 5-minute wash and 5-minute room temperature post-cure.
Gypsum-Like Appearance
Easily visualise crisp margins with the matte, opaque beige colour.
What’s New With Precision Model Resin?
Precision Model Resin is the next generation of Model Resin, formulated to leverage the new Form 4 ecosystem. Compared to Model Resin V3, Precision Model Resin is:
- More accurate: Better fine feature resolution and consistency.
- More opaque and matte: Improved aesthetics to better visualise margin lines.
- Faster: Formulated to take advantage of the new Form 4 ecosystem to print three times faster.
Material Properties
Download the Precision Model Resin Technical Data Sheet
| Parameter | Value |
|---|---|
| Ultimate Tensile Strength | 50 MPa |
| Tensile Modulus | 2.2 GPa |
| Elongation at Break | 8.60% |
| Flexural Strength | 87 MPa |
| Flexural Modulus | 2.3 GPa |
| Notched Izod | 32 J/m |
| Unnotched Izod | 262 J/m |
| Heat Deflection Temperature @ 1.8 MPa | 46.3 °C |
| Heat Deflection Temperature @ 0.45 MPa | 53.5 °C |
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
Settings: Form Wash | Form Wash L
Curing
Post-curing for General Purpose Resins is optional. However, Formlabs recommends a short post-cure to reduce surface tack and improve mechanical properties.
Settings: Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
