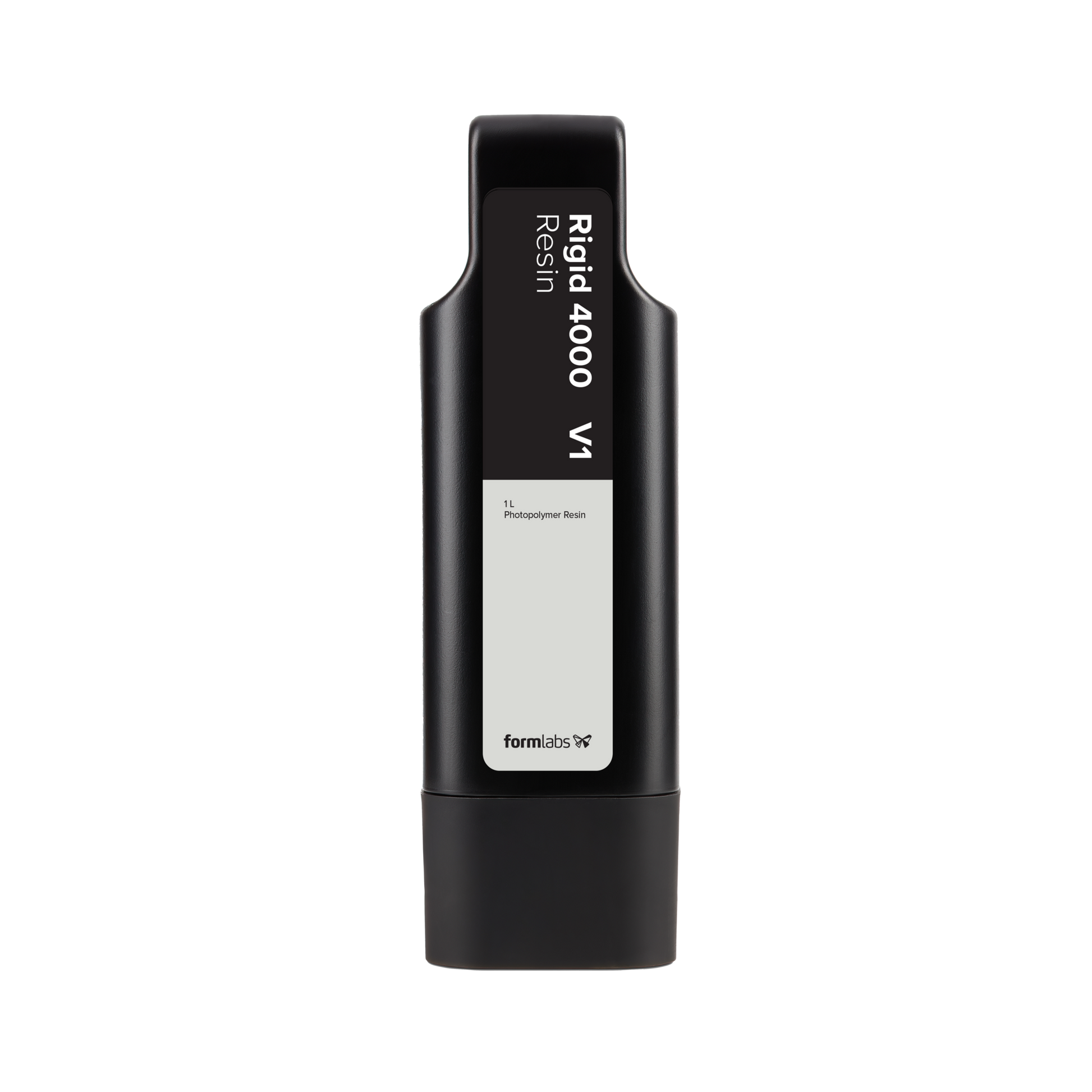

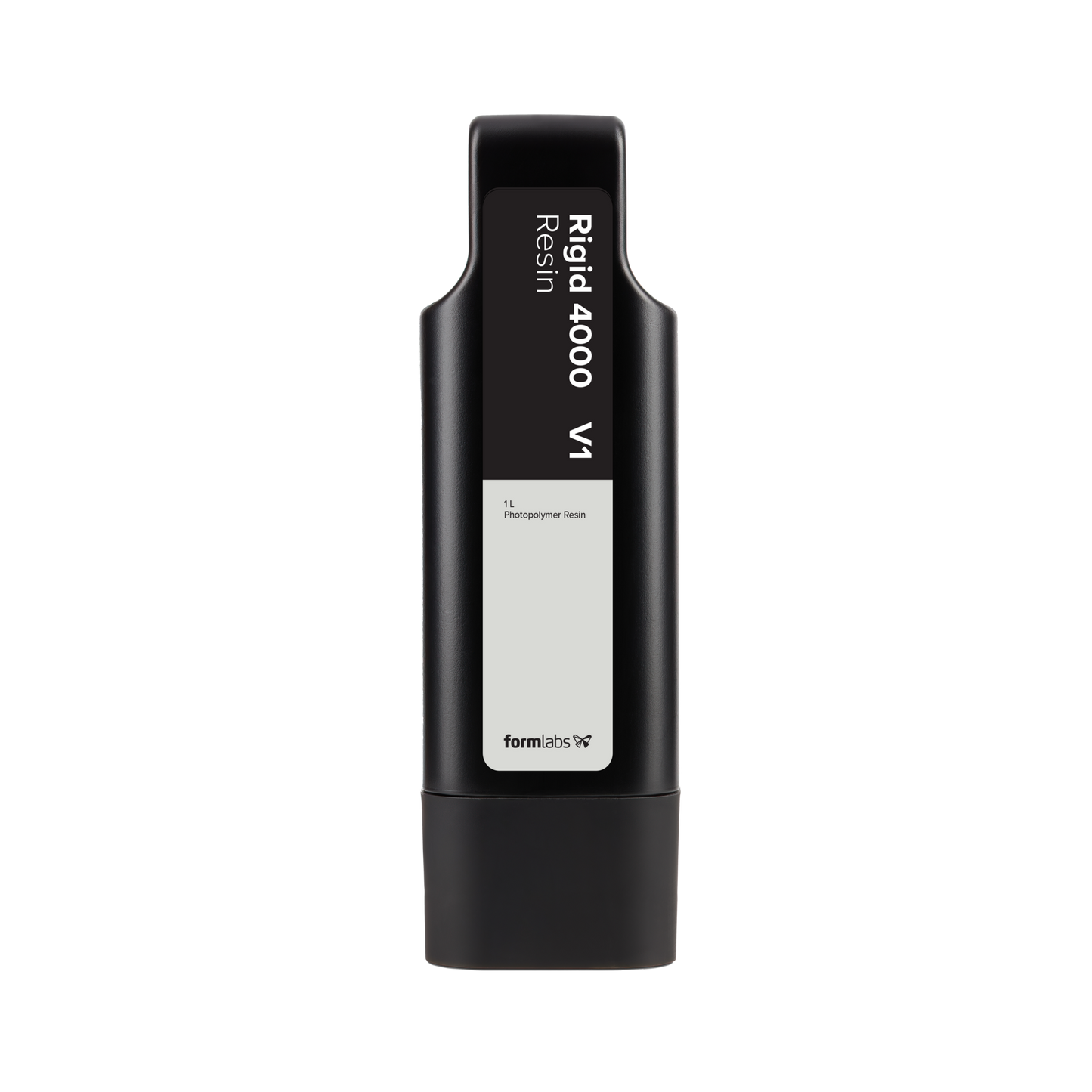

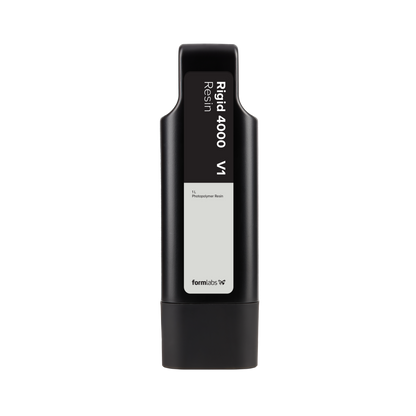

Formlabs Rigid 4000 Resin (Form 4) 1 L
£204.00
Couldn't load pickup availability
Rigid 4000 Resin is a glass-filled resin that is precise and offers similar stiffness to PEEK and PEKK thermoplastics. It prints with a smooth, matte, polished finish and is highly resistant to heat and chemicals.
Choose Rigid 4000 Resin for stiff and strong engineering-grade prototypes, general load-bearing applications, and industrial parts that need to withstand significant loads without bending.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Colours | White |
| Minimum Layer Thickness | 50 micron |
| Categories | High Stiffness, Temperature Resistant |
| Applications | End-Use Parts, Rapid Prototyping |
| Tensile Modulus | 4100.0 MPa |
| Ultimate Tensile Strength | 69.0 MPa |
| Flexural Strength | 105.0 MPa |
| Notched Izod | 23.0 J/m |
| Elongation at Break | 5.3% |
| Heat Deflection Temp. @ 1.8 MPa | 60.0 °C |
| Heat Deflection Temp. @ 0.45 MPa | 77.0 °C |
| Thermal Expansion | 63.0 μm/m/°C |
| Flexural Modulus | 3400.0 MPa |
Compatibility
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank, Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Printer: Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
Why Choose Rigid 4000 Resin?
Rigid 4000 Resin is a glass-filled material that has the highest tensile strength in the Formlabs Engineering Resin Library.
Stiff
Resistant to deformation under a variety of forces, pressures, and torques.
High Thermal and Chemical Resistance
Withstands high temperatures and a variety of chemicals.
Precise
Produce strong, detailed, and accurate moulds or models.
Smooth, Matte Finish
Deliver parts that look and feel like a finished product.
Applications
Produce stiff and strong engineering-grade prototypes that can be load-bearing.
Mounts and Brackets
Create rigid mounts and brackets that withstand load with minimal deflection.
Jigs and Fixtures
Produce accurate, stiff fixtures for production and testing workflows.
Thin-Walled Parts
Print strong, stable parts with thin walls and excellent detail.
Prototypes That Simulate the Stiffness of PEEK
Use Rigid 4000 Resin to simulate the stiffness of high-performance engineering thermoplastics.
Material Properties*
Download Rigid 4000 Resin Technical Data Sheet
| Parameter | Value |
|---|---|
| Ultimate Tensile Strength | 69 MPa |
| Tensile Modulus | 4.1 GPa |
| Elongation | 5.3% |
| Flexural Modulus | 3.4 GPa |
| Notched Izod | 22 J/m |
| Heat Deflection Temp @ 0.45 MPa | 77 ºC |
| Thermal Expansion (0-150 °C) | 63 μm/m/°C |
*Material properties can vary with part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 3, 100 μm Rigid settings and post-cured with a Form Cure for 15 minutes at 80 °C.
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
Settings: Form Wash | Form Wash L
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
Settings: Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
