SHINING 3D
SHINING 3D Aoralscan 3 Intraoral Dental 3D Scanner
Quantity:

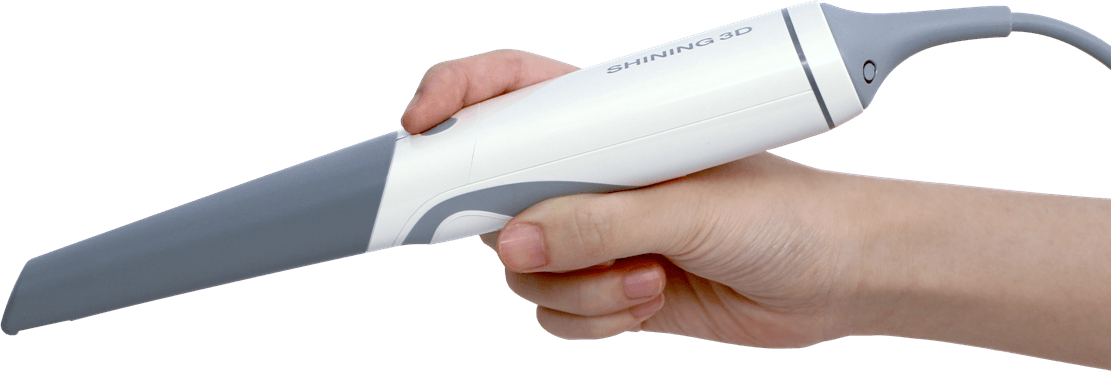

Shining 3D Aoralscan 3 Intraoral Dental 3D Scanner
Aoralscan 3
· Brand New Design
· Fast Speed
· High Accuracy
· Powerful AI Process
· Intuitive Communication
58 %
Greater Scan Field Of View Than Aoralscan 2
16×12 mm
FOV (Standard Tip)
Up to 22 mm
Deep Scan Depth
Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.
2 Tip Sizes
Accommodates adults and children Anti-fogging
up to 100 times
Autoclavable
Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.
Cart Option
The dedicated cart solution was designed to professionally round off the Aoralscan experience in a broad array of working scenarios.

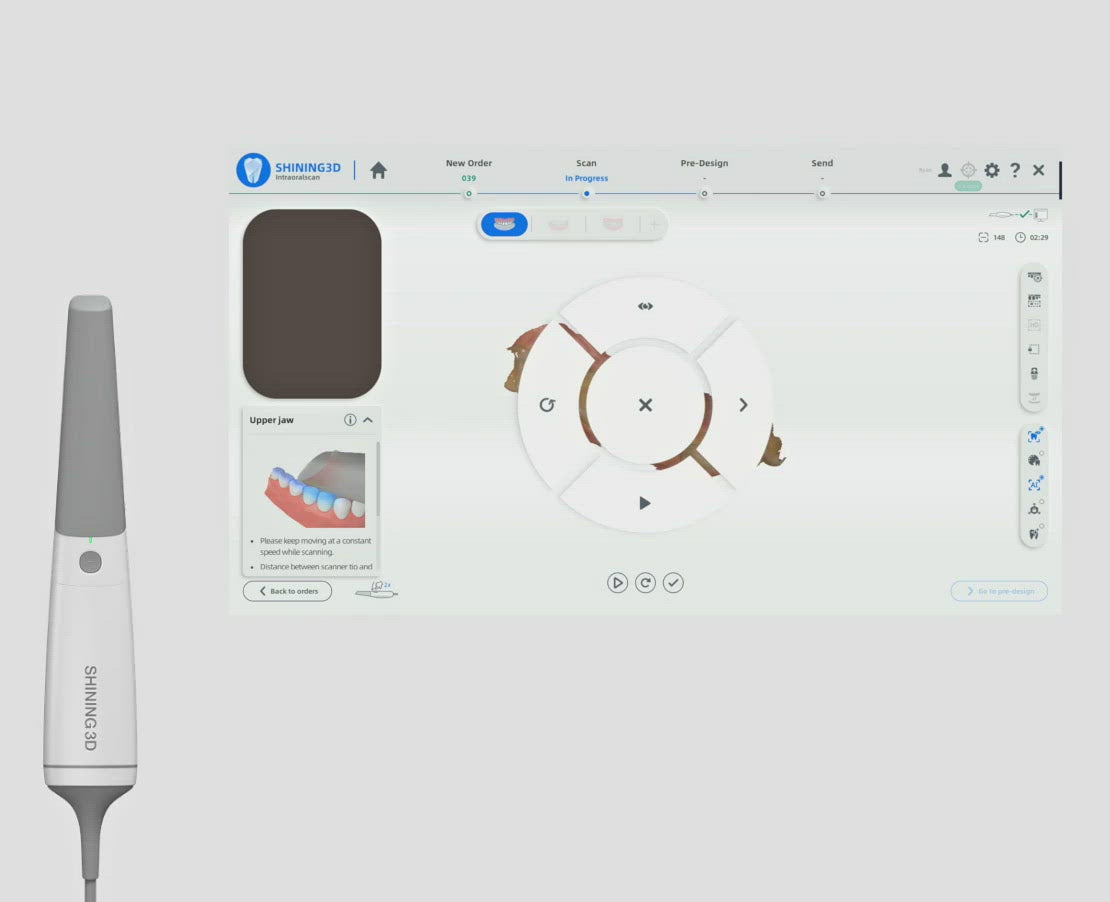

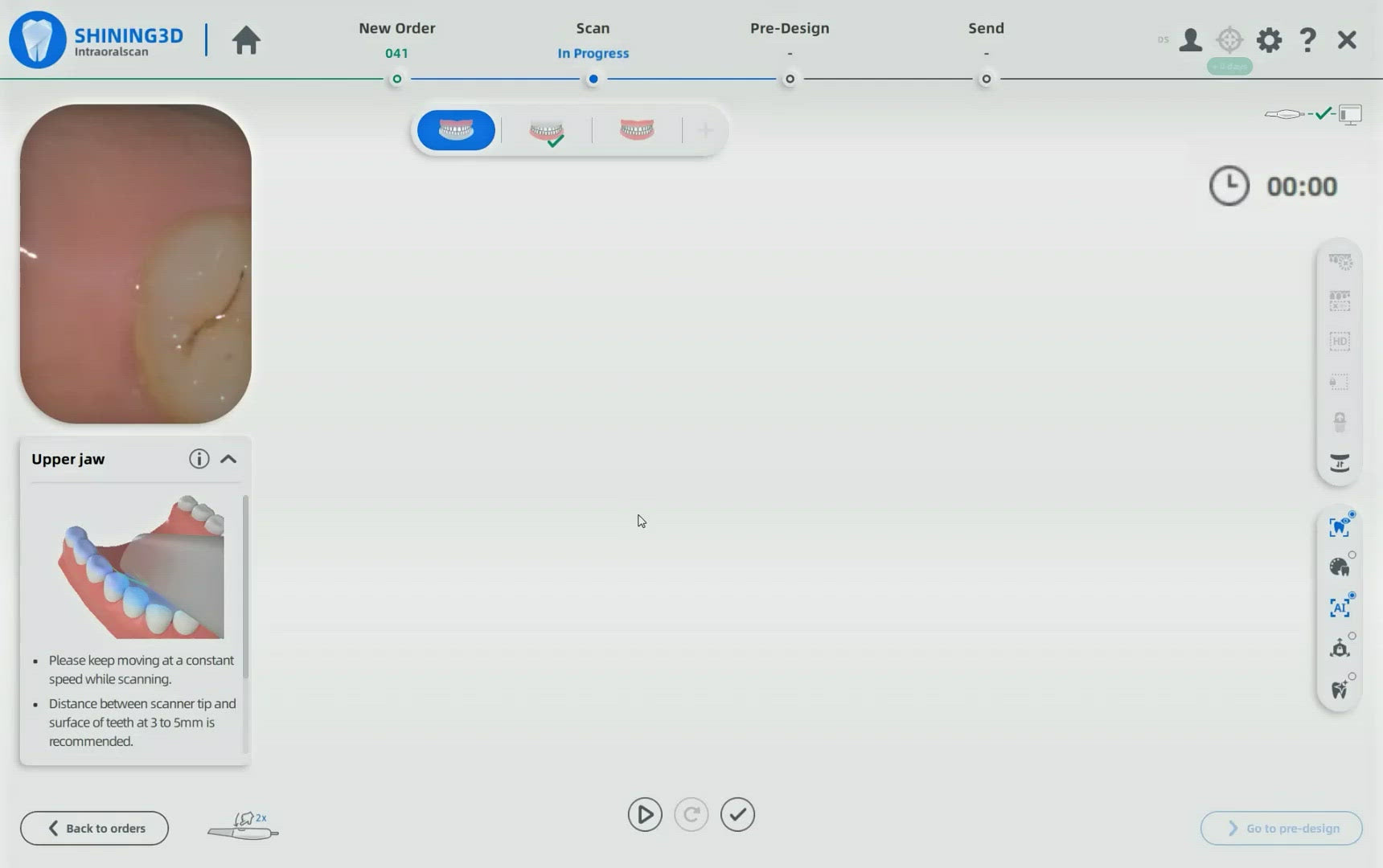

Motion Sensing
Less Contact, Much Safer
Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.

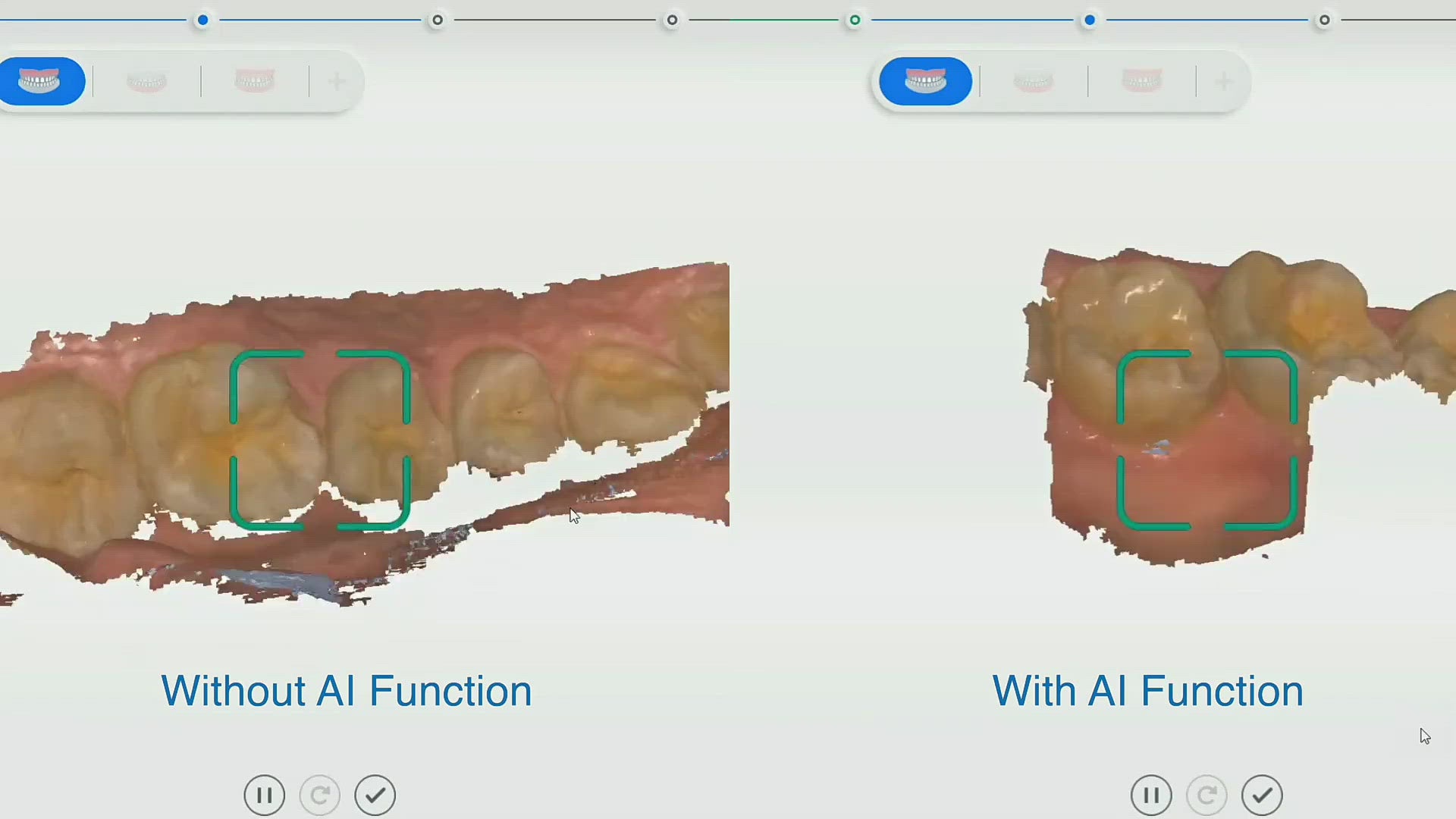

AI Scan
Speed Up The Scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.

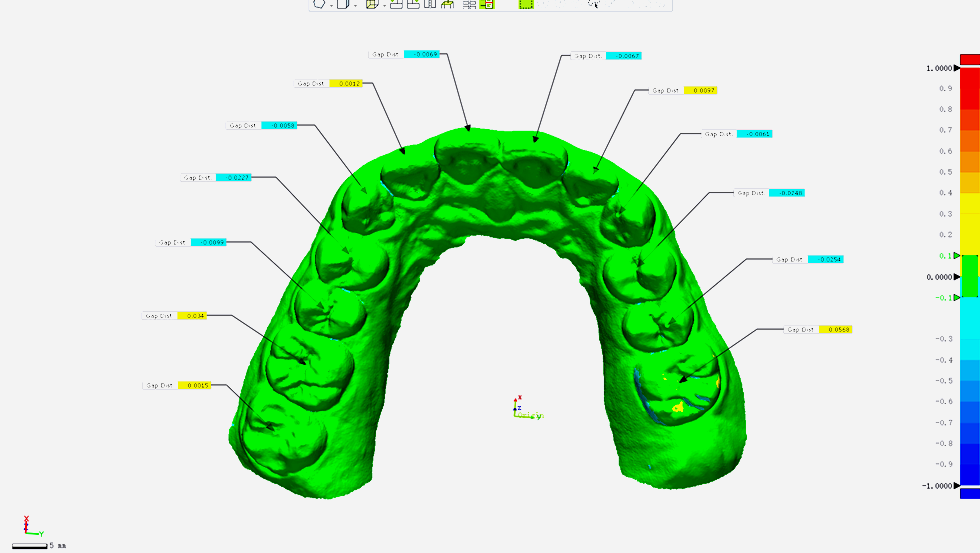

30%
More Accurate
Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.

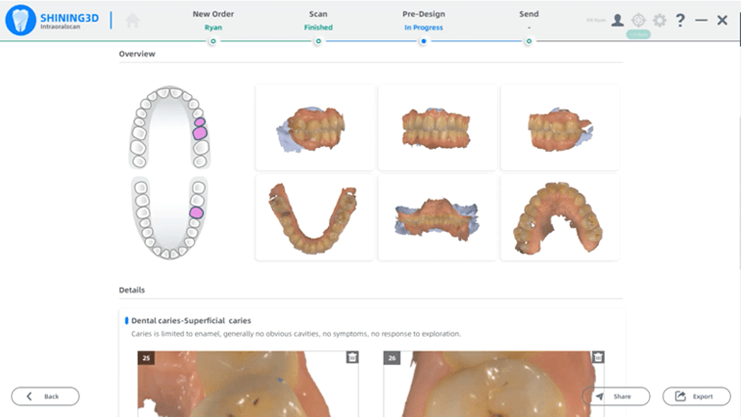

Oral Health
Report
More Informed, More Engaged
Health report includes information such as existing dental caries, missing teeth, dental calculus, pigment, etc. Patients have a better understanding of their oral health.
Technical Specifications
| Scan Field | Standard scanner tip: 16 mm × 12 mm × 22 mm Mini scanner tip: 12 mm × 9 mm × 22 mm |
| Scan Principle | Non-contact scanner with structured light |
| Dimension (L × W × H) | 281 mm × 33 mm × 46 mm |
| Weight | 240 ± 10 g (without cables) |
| Output | STL, OBJ, PLY |
| Connector | USB 3.0 |
| Power Input | 12V DC/3 A |
Recommended PC Configuration |
|
| CPU | Intel Core i7-8700 or higher |
| RAM | 16GB or more |
| Hard Disk Drive | 256 GB SSD or above |
| Graphic Card (GPU) | NVIDIA ® RTX 2060 6GB DDR3 or higher |
| Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating systems |
| Screen Resolution | 1920×1080, 60 Hz or higher |
| I/O Ports | More than 2 Type-A USB 3.0 (or higher) ports |
