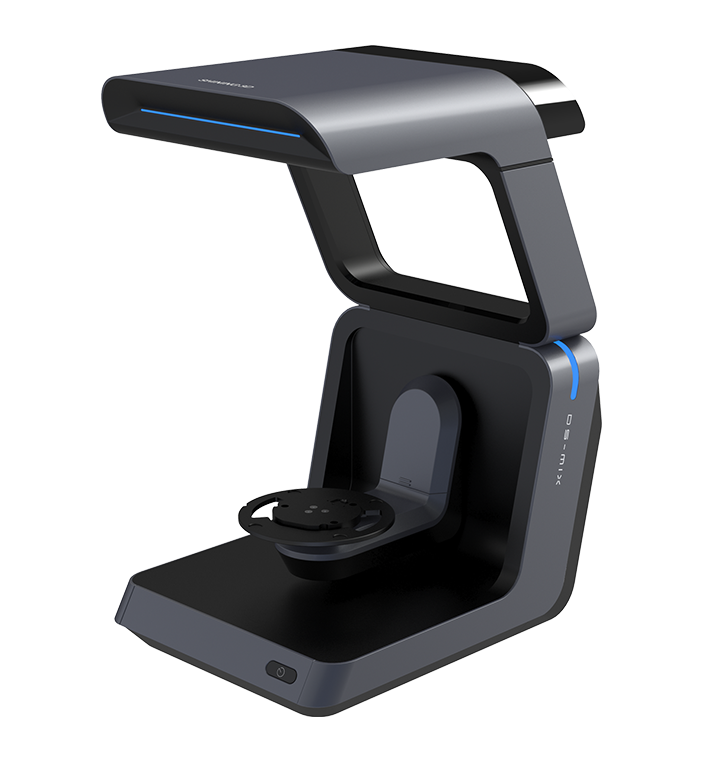

SHINING 3D AutoScan-DS-MIX Dental 3D Scanner

£11,940.00
£11,940.00
£11,940.00
Tax included.

AutoScan-DS-MIX

More Than Details

  • . 2×5.0 MP cameras
  • . Accuracy ≤7μm
  • . Intelligent scan
  • . High-end implant and veneer applications






ULTRA-FINE DETAILS

Thanks to dual 5.0 MP high resolution cameras, AutoScan-DS-MIX can perfectly capture edge lines of abutments and features of scan bodies.

HIGH ACCURACY

Scan accuracy ≤7μm assures reliable scan result.


HIGH EFFICIENCY

AutoScan-DS-MIX supports high efficiency scan mode: 13 seconds for scanning a full arch. With All-in-one scan it can improve scan efficiency by approx. 30%.

Bite

6s

Scan image

1-4Dies/5-8Dies

18/33s

Scan image

Single Jaw

13s

Scan image

Impression

32s

Scan image



ALL-IN-ONE SCAN

Non-separated full jaws scan improves scan process efficiency by approx. 30%


INTELLIGENT ADD-SCAN

With the scan software supporting automatic detection of unscanned surfaces and automatic add-scan, AutoScan-DS-MIX offers intuitive user experience.

SCREW CHANNEL SEALING

Users can seal the screw channel in the scan software, which optimizes the scan workflow.

HIGH COMPATIBILITY

Export .stl and .ply format, flexibly integrated in CAD/CAM solutions.

  • STL
  • PLY

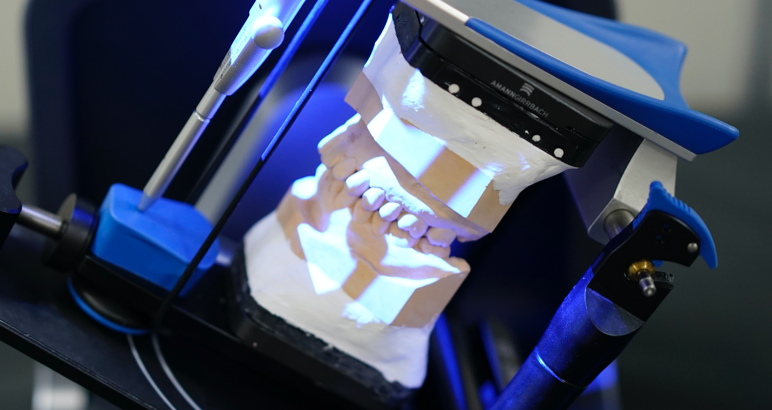

ARTICULATOR SCAN

AutoScan-DS-MIX supports not only dynamic and static two scan modes for most common articulators, but also supports articulator transfer for Artex, Kavo, SAM and Bio-Art.

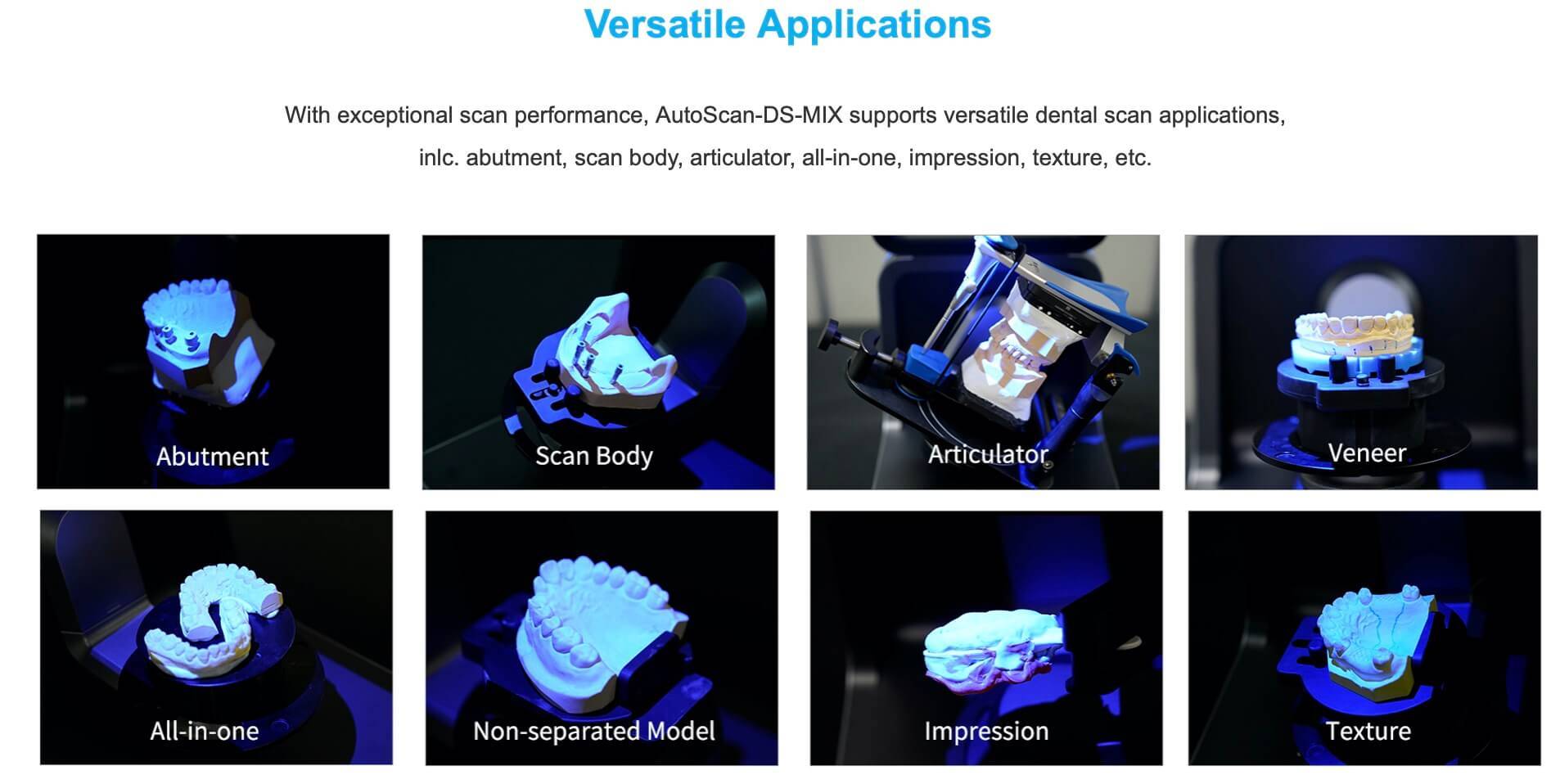

VERSATILE APPLICATION

AutoScan-DS-MIX supports multiple dental scan applications, including abutment, scan body, articulator, veneer, non-separated model, all-in-one, impression, texture etc.
Shining 3D AutoScan-DS-MIX – ADAE Dental Online Store

TECHNICAL SPECIFICATIONS

Camera Resolution 2 x 5.0MP
Accuracy ≤ 7 µm (ISO12836)
Scan Time 6 s for bite scan; 13 s for upper / lower jaw scan; 18s for 1-4 dies scan; 33 for 5-8 dies scan; 32 s for impression scan **
Articulator Scan Dynamic / static; support articulator transfer
Output Format STL, PLY
Light Source Blue Light
Dimension 238 mm * 340 mm * 447 mm
Weight 7.5 kg
Interface USB 3.0
Power Supply DC24 V

* RTX 30 series graphic card can not support AI function for all intraoral scanners and lab scanners.

** Rapid mode for impression; default mode for others
