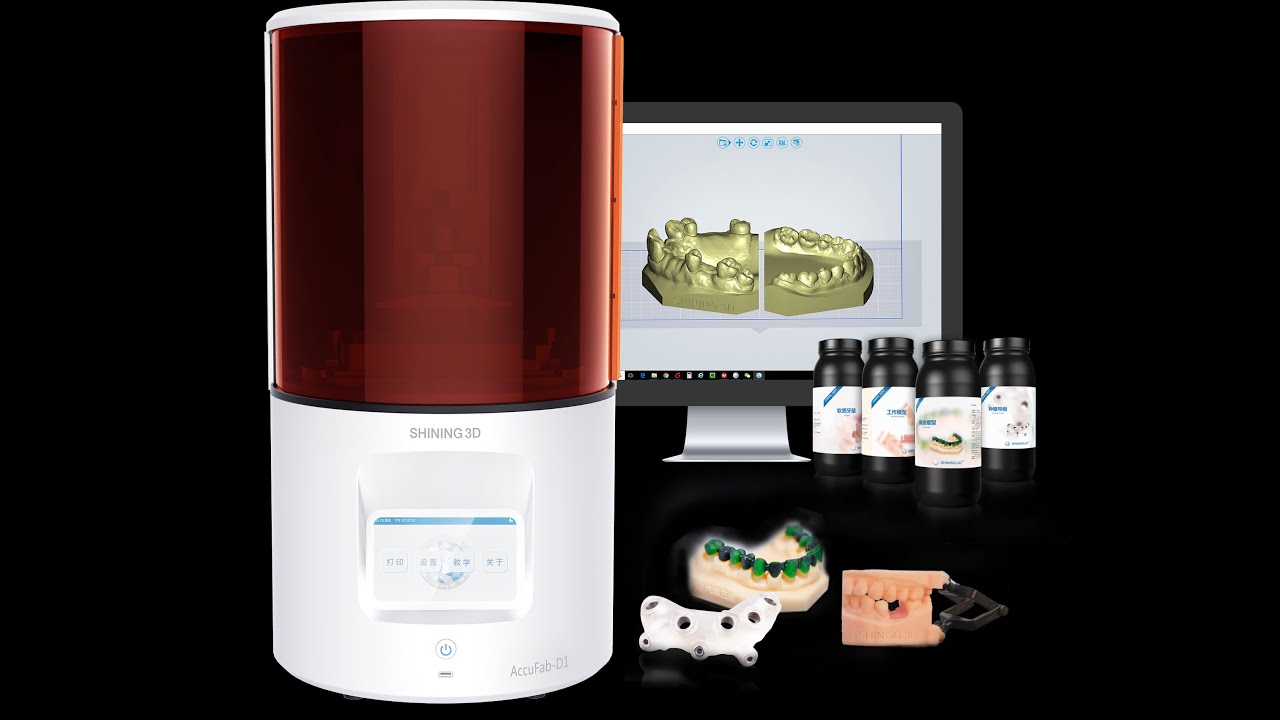

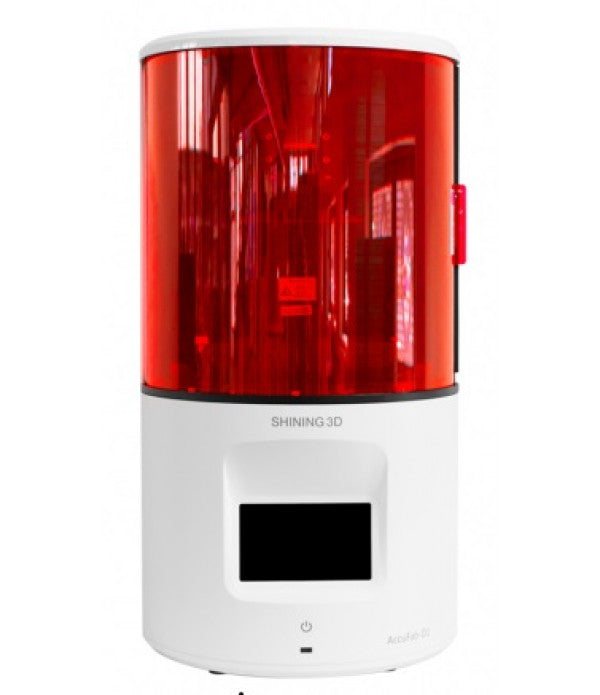

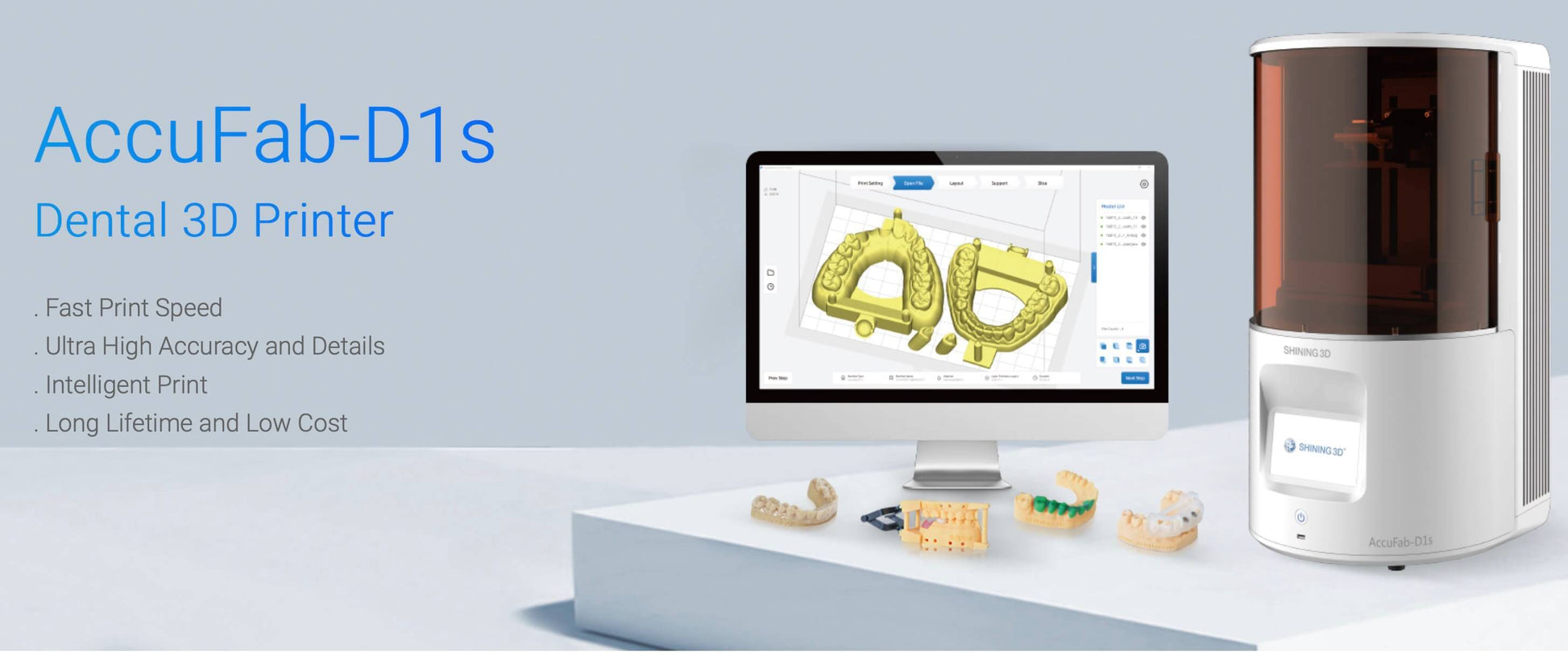

SHINING 3D AccuFab-D1s Dental 3D Printer
SHINING 3D AccuFab-D1s Dental 3D Printer
SHINING 3D AccuFab-D1s Dental 3D Printer

SHINING 3D

SHINING 3D AccuFab-D1s Dental 3D Printer

£6,420.00
Quantity:

SHINING 3D AccuFab-D1s Dental 3D Printer

Dental 3D Printer

  • . Wide Range of Applications
  • . Intuitive Operation
  • . Wireless Connection
  • . Open System & Material





INTUITIVE OPERATION

Powered by SHINING 3D's self-developed software, AccuFab-D1 supports Z-Axis auto-calibration, automatic support creation for convenient post-processing.

WIRELESS CONNECTION

It supports WI-FI connection, offering a smooth process of data transfer and print.

EASY POST-CURING

Featuring easy operation and uniform exposure, the Fab Cure maximizes the mechanical & flexural properties of the parts for further operation of dental workflows.

FINE DETAILS

Use an advanced algorithm with Full-HD 1080p projector to print ultra-fine details.

VERSATILE APPLICATION

AccuFab-D1 can be applied in a wide range of applications, such as dental working model, wax-up, surgical guide, gingiva, customized impression tray, bracket transfer tray, etc

TECHNICAL SPECIFICATIONS

Dimension 396 mm * 406 mm * 755 mm
Weight 30 kg
Build Envelope 144 mm * 81 mm * 180 mm
Print Speed 40 mm / h
Layer Thickness 25 µm, 50 µm, 100 µm
DLP Native Resolution 1920 x 1080, 1080 p
Material Option Open
Interface USB / Ethernet / Wi-Fi

FAB CURE

Dimension 200 mm * 200 mm * 325 mm
Weight 6 kg
Turntable Diameter 160 mm
Maximum Part Height 160 mm
Operating Temperature 10 ~ 30 °C
Power DC 24V, 2.5 A, 60 W
Light Source UV LED
Wavelength 405 nm
LED Power 11 W
Light Intensity 30 mw / cm²

Free advice

Need advice? EVO3D will support your business to help you embark on a complete 3D solution.
