SHINING 3D

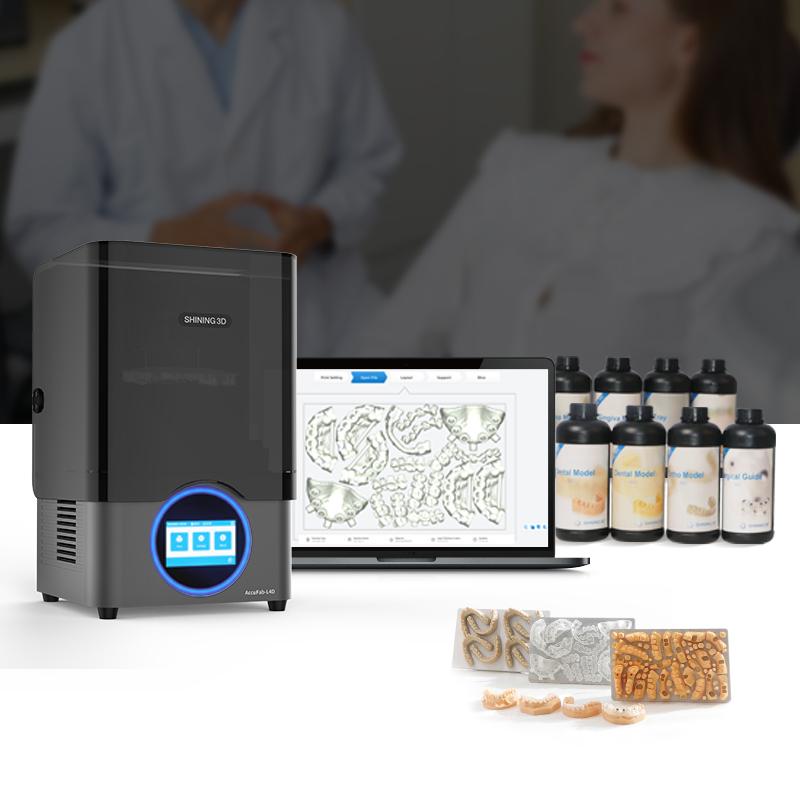

SHINING 3D AccuFab-L4D Dental 3D Printer
AccuFab-L4D Dental 3D Printer
Lit Up For Dentistry
The AccuFab-L4D’s high fidelity of print result brings extraordinary digital dentistry workflow from intraoral scanning to rapid 3D printing
Connecting the Future
Link Aoralscan with AccuFab
Shining 3D intraoral scanner, 3D printer and dental material ecosystem provides exceptional experience in digital dentistry.
AccuDesign
Life-time free upgrade model creator software that comes with AccuFab-L4D
Dental Cloud
SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs.
Unparalleled Accuracy
Accurate Precise
Over 96% of the surface points fits within ±0.1mm
Outstanding Uniformity
High luminance uniformity achieves up to 90%
Beyond the Limits
Provides not only the possibility to obtain features smaller than a pixel, but also superior surface finish.
Large Print Size, 4K Resolution
192*120mm printing size and 4K resolution satisfy the demands of users for efficiency and details.
Reliable Performance
Industrial Grade Optical
High quality optical module with long-life components
State-of-the-Art Robustness
AccuFab-L4D’s 5 million layers tested in real dental clinic condition provides state-of-the-art reliability.
District Cooling System
DCS (District cooling system) maintains the temperature of working screen under 40℃, while extending the 3D printer lifespan significantly.
Multiple Material Options
Shining Dent
Shining Dent covers a wide range of materials for dental 3D printing applications, includes dental model, ortho model, surgical guide, castable wax and gingiva mask.
Certified 3rd Party Material
Shining 3D partners with industry leading brands in dental material, providing more possibility and flexibility.
Professional Dental Software
Plug and Play
Guided interactive operation provides gentle learning curve
Free Updates
Push update of software and material packages
Accuracy Calibration Wizard
Step by step guide for accuracy calibration
TECHNICAL SPECIFICATIONS
| Resolution | 3840*2400 |
| Pixel Size | 0.05 mm |
| Wavelength | 405 nm |
| Light Intensity | >3 mw/cm^2 |
| Print Volume (W x D x H) | 192*120*180 mm |
| Print Speed | 10~50 mm/h（*Print speed varies on materials and layer thickness |
| Print Accuracy* | ±0.05 mm |
| Layer Thickness | 0.025/0.05/0.075/0.1 mm |
| Printer Dimensions | 360*360*530 mm |
| Weight | 19 kg |
| Power Requirements | 110-240 VAC 50/60 Hz 360 W |
| Connectivity | USB dongle, Wi-Fi, Ethernet |
| Packing Dimensions | 480*480*660 mm |
| Packing Weight | 25 kg |
* Based on Shining 3D internal test standard.
