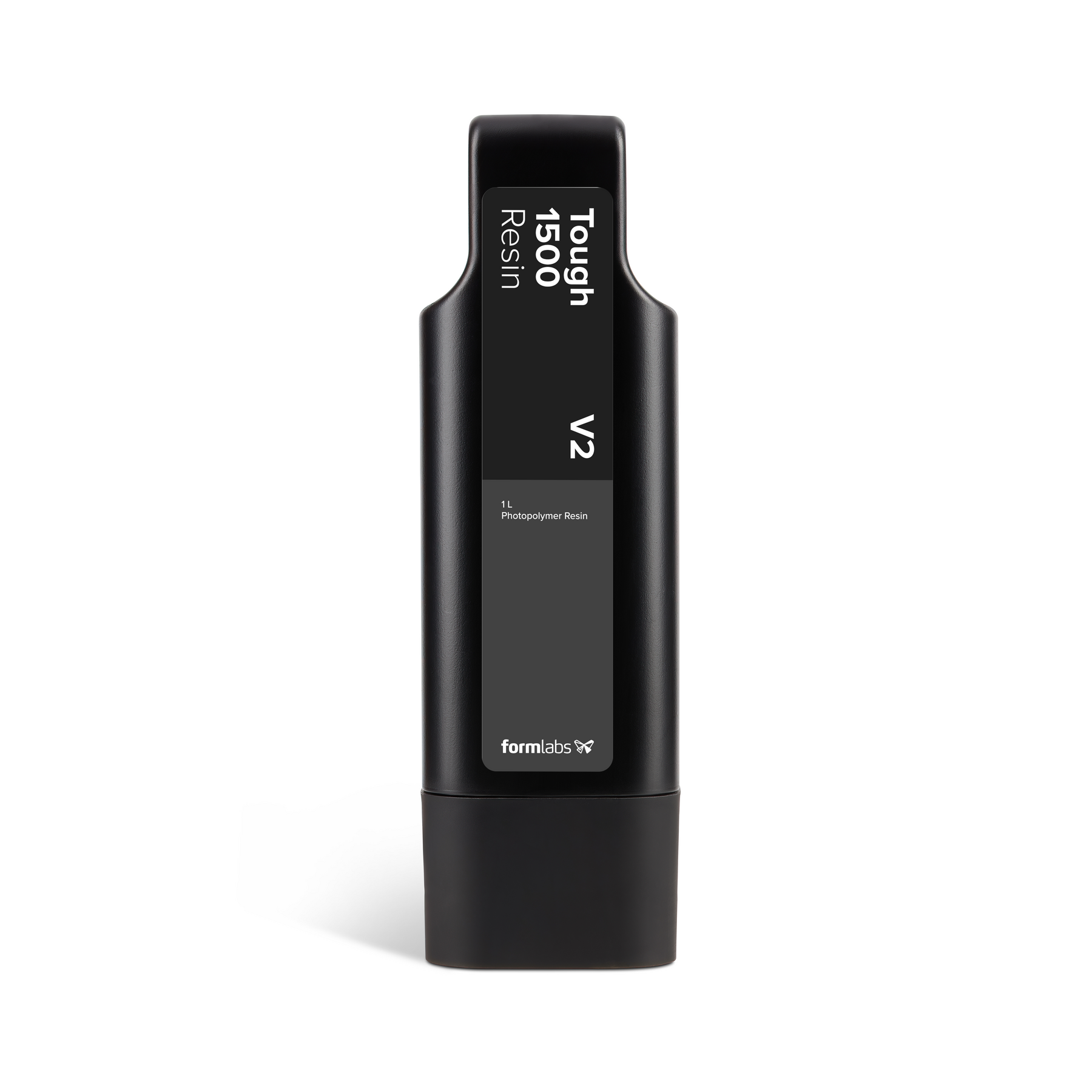

Formlabs Tough 1500 Resin V2 (Form 4) 1 L
£180.00
Couldn't load pickup availability
Tough 1500 Resin V2 is a resilient material with strength, stiffness, and toughness comparable to polypropylene (PP), offering exceptional resistance to fractures, impacts, and shattering.
Create parts that balance stiffness and ductility, whether for compliant mechanisms or rugged enclosures with self-tapping screws and snap fits. Tough 1500 Resin V2 enables a wide range of applications, from functional prototypes to end-use jigs and fixtures.
Tough 1500 Resin V2 is a new material formulation that leverages the Form 4 Series to deliver 10 times higher fracture toughness than the previous version.
| Specification | Value |
|---|---|
| Print Technology | SLA |
| Biocompatibility | Skin Contact |
| Colours | Grey |
| Categories | Impact Resistant |
| Applications | Manufacturing Aids, End-Use Parts, Rapid Prototyping |
| Ultimate Tensile Strength | 34.0 MPa |
| Elongation at Break | 155.0% |
| Flexural Strength | 41.0 MPa |
| Notched Izod | 42.0 J/m |
| Unnotched Izod | 910.0 J/m |
| Gardner at 1/16" (1.9 mm) Thickness | 11.1 J |
| Gardner at 1/32" (0.97 mm) Thickness | 5.9 J |
| Maximum Stress Intensity Factor (Kmax) | 1.7 MPa-m1/2 |
| Work of Fracture (Wf) | 1011.0 J/m |
| Heat Deflection Temp. @ 0.45 MPa | 66.0 °C |
| Heat Deflection Temp. @ 1.8 MPa | 53.0 °C |
| Tensile Modulus | 1460.0 MPa |
| Flexural Modulus | 1370.0 MPa |
| Ross Flexing Fatigue | 8000.0 cycles |
Compatibility
Compatible Build Platform: Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
Compatible Tank: Form 4 Resin Tank, Form 4L Resin Tank
Compatible Printer: Form 4, Form 4L
Why Choose Tough 1500 Resin V2?
Robust, resilient, and ductile material that rivals the toughness of polypropylene.
Tougher Where It Matters
10 times higher work of fracture, so parts don’t fail when drilled, tapped, or cracked. Three times higher Gardner impact strength for thin walls that don’t shatter.
Ductile and Resilient for Long-Lasting Compliant Parts
Extremely high elongation at break of 155% and Ross flex fatigue of 8,000 cycles for features like snap fits and compliant mechanisms.
High Environmental Stability for Demanding Applications
The highest temperature and UV resistance of any high-compliance SLA material, with 66 °C HDT and approximately 30.4% EAB after 400 hours accelerated ageing.
Tough Parts That Don’t Deform Over Time
High creep resistance matching polypropylene, with less than 3% strain under 4 MPa load after two weeks.
*When tested under ASTM D4459 Accelerated Indoor Ageing standard.

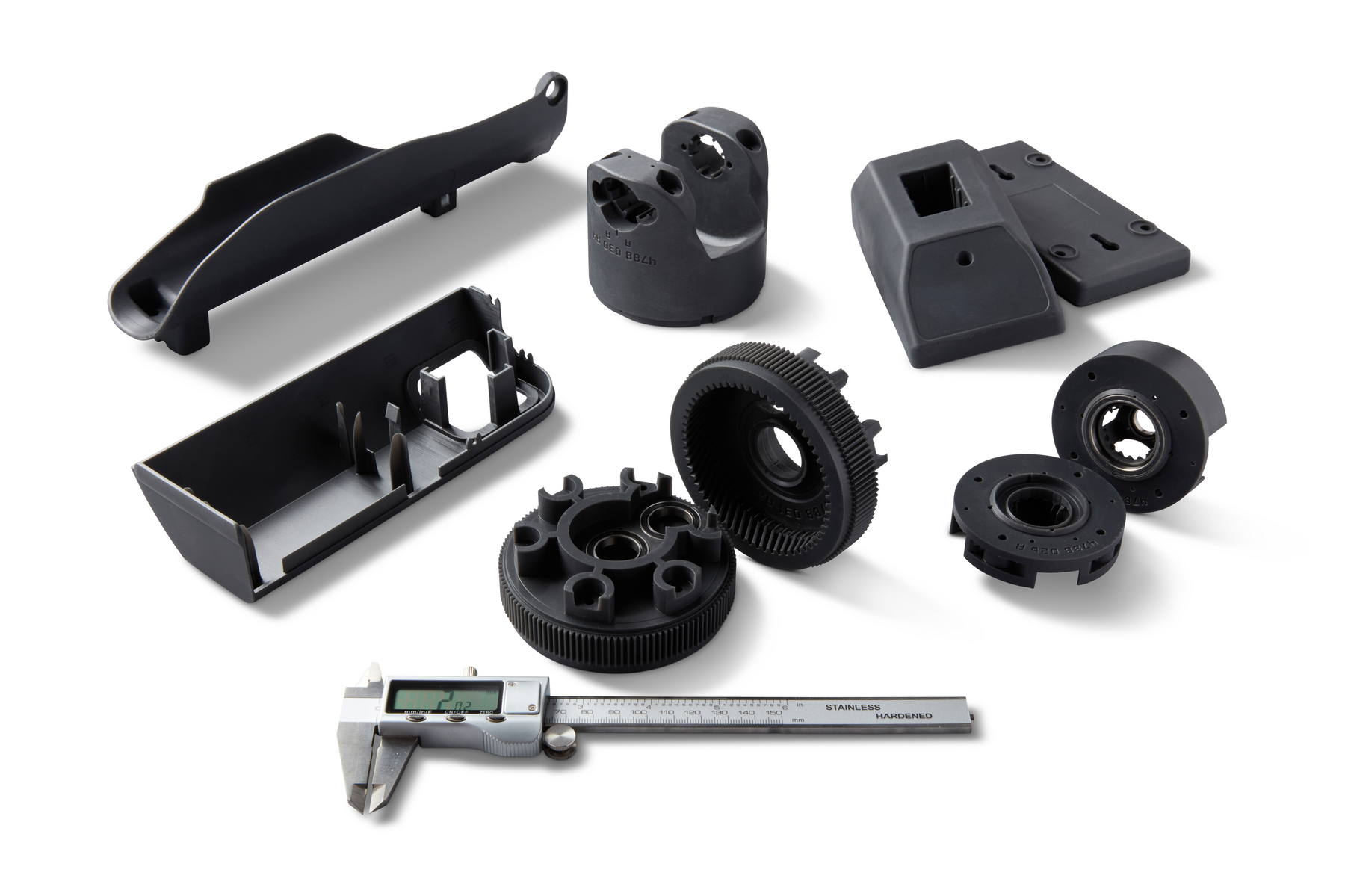

Applications
Tough 1500 Resin V2 is ideal for resilient prototyping or simulating the toughness of polypropylene (PP).
Prototypes Requiring Toughness, Compliance, and Resilience
Simulate the toughness, compliance, and resilience of polypropylene.
Tough and Rugged Enclosures
Create functional enclosures with self-tapping screw bosses and snap fits.
Impact-Resistant Jigs and Fixtures
Produce jigs and fixtures that survive long-term use on the factory floor.
Compliant Mechanisms
Create latches, flexures, dampers, and other parts needing a combination of stiffness and ductility.
Mechanical Properties*
Download Tough 1500 Resin V2 Technical Data Sheet
| Parameter | Tough 1500 Resin V2 | Polypropylene (Extrusion Grade) |
|---|---|---|
| Ultimate Tensile Strength | 34 MPa | 4930 psi | 29.2 MPa | 4235 psi |
| Tensile Modulus | 1460 MPa | 212 ksi | 1600 MPa | 232 ksi |
| Elongation at Break | 155% | 125% |
| Gardner Impact @ 1/32” (0.8 mm) | 5.9 J | 52 in-lb | 2.7 J | 24 in-lb |
| Work of Fracture | 1011 J/m2 | 69.3 ft-lb/ft2 | ~2000 J/m2 | 137 ft-lb/ft2 |
| Heat Deflection Temp @ 0.45 MPa | 66 °C | 151 °F | ~85–100 °C | 185–212 °F |
*Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 4, 100 μm, Tough 1500 V2 settings and post-cured with a Form Cure V2 for 12 minutes at 70 °C.
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
For the best surface finish, Formlabs recommends allowing parts printed in Tough 1500 Resin V2 to air dry for at least 10 minutes after washing, before handling.
Settings: Form Wash | Form Wash L
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
Settings: Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
