Transcan C

EinScan Transcan C

The EinScan Transcan C is a professional-grade 3D scanner that captures exceptionally high resolution and accurate scans of objects from small to medium for various industries. In addition, the 12 mega-pixel cameras produce rich and detailed textured 3D models, giving an intuitionistic image of the physical object.

• Adjustable scanning range to meet various object scanning needs.
• Smoothly interchange between 3 levels of resolution in one project to create great detail with high efficiency.
• 12 MP professional colour cameras provide rich and detailed colour textured 3D model.

Ready-to-Use Dual Scan Range

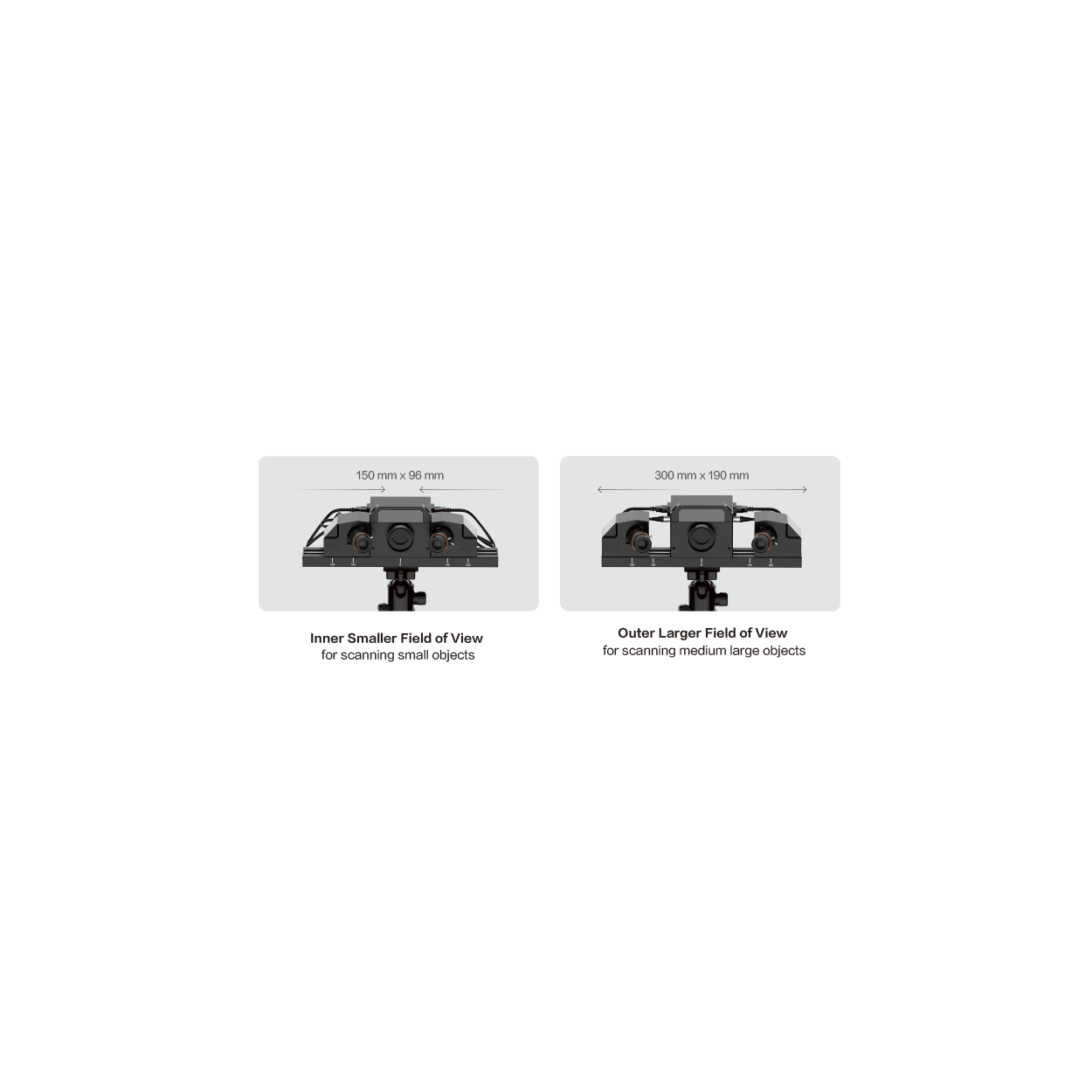

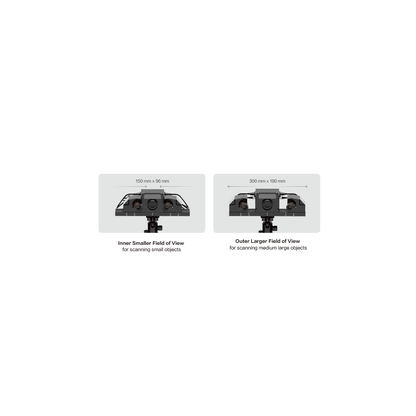

The slide-rail design on the Transcan C makes it easy to switch between the scanning ranges of 150 mm x 96 mm and 300 mm x 190 mm. Scanning objects of different sizes has never been easier!

Multi-Resolution Fusion

The Multi-Resolution Fusion Algorithm on the Transcan C allows a combination of 3 degrees of resolution between high, medium, or low, in one project for complex scanning tasks which highly improves proficiency without duplication of work.

High Colour Fidelity

Two 12 MP colour cameras are installed to capture a detailed 24-bit colour map, replicating the realistic colour of the physical object. Transcan C is the ideal solution to capture colour 3D data for virtual display.

High-Accuracy Scan Data

The Transcan C’s compact design produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position. These results are valuable to many applications for measurement.

Micro Details Reproduction

The minimum point distance the Transcan C can reach 0.0375 mm (resolution) to capture fine details on the surface in its inner position of 150 mm x 96 mm.

Intelligent Operation

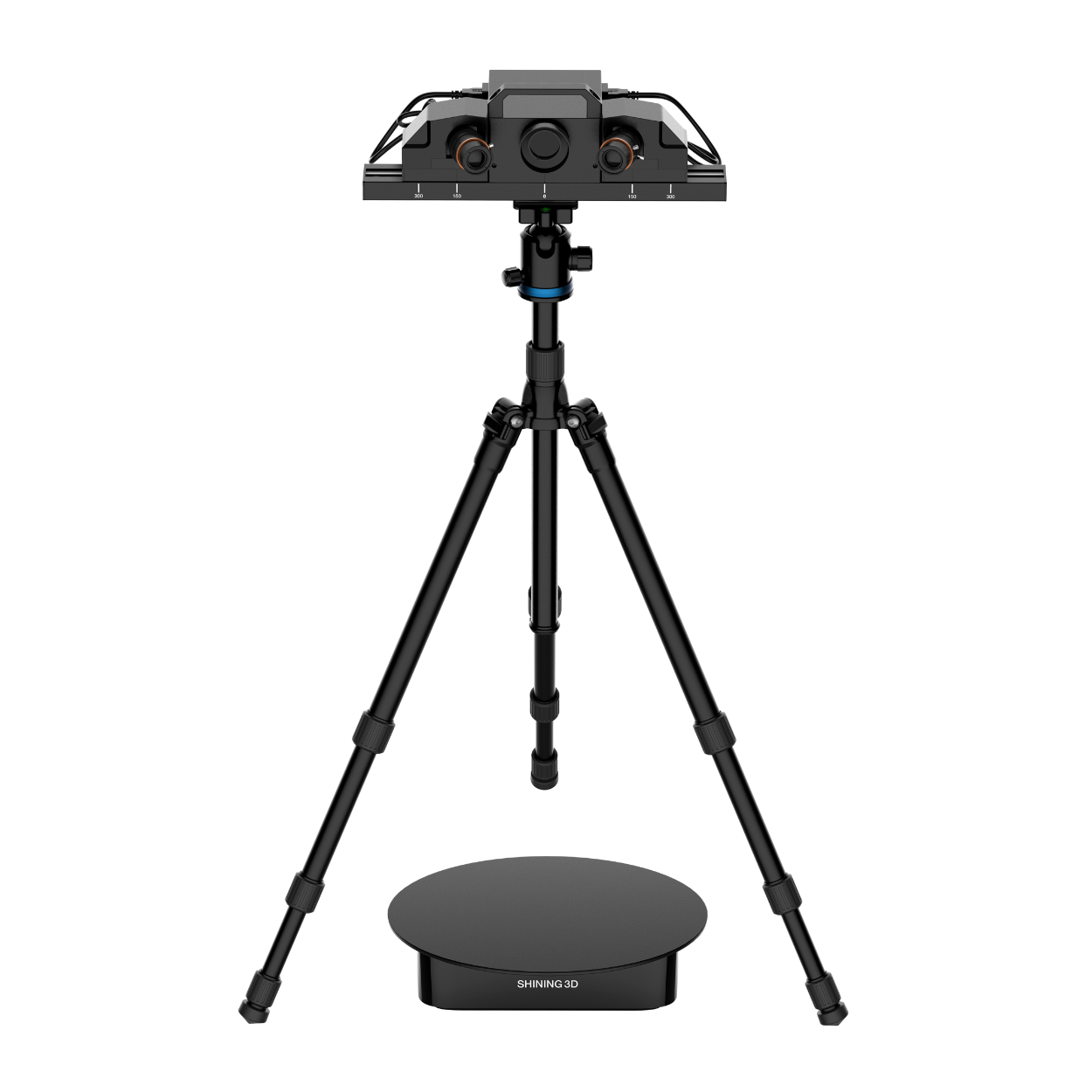

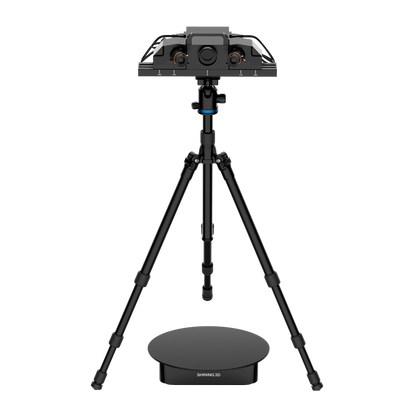

The scanning process is completely automatic with the turntable. Combined with the scanning software's stitching algorithm, this ensures the efficient acquisition of 3D data without manual intervention.

The software interface directs the user through an easy operation process while delivering powerful tools for the hustle-free optimization of the scan results.
