Nexa 3D
xESD Resin 1.5kg for XiP and XiPPro
Quantity:

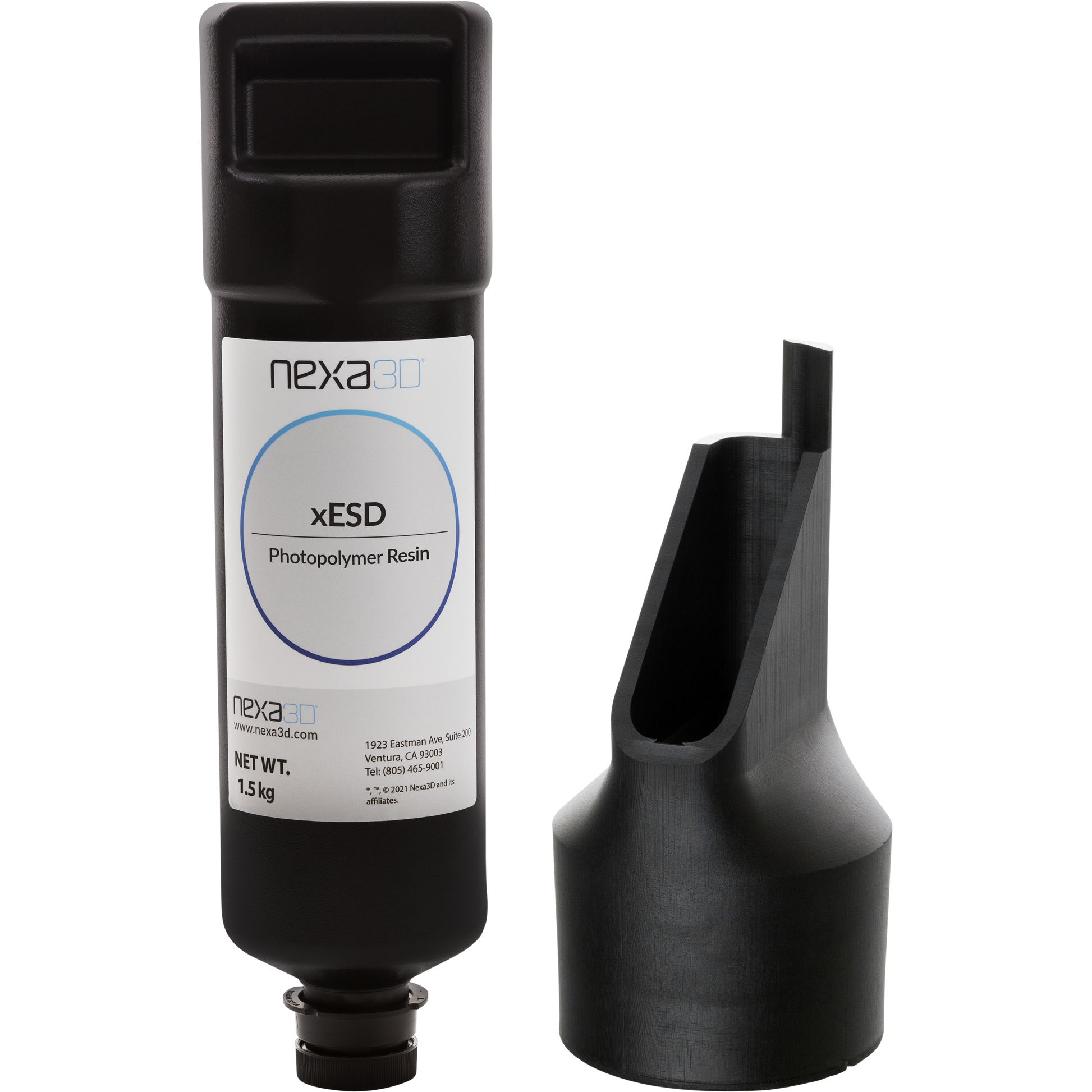

xESD is a black, rigid, static-dissipative photopolymer resin using a urethane dimethacrylate base that includes a stable dispersion of discrete functionalized carbon nanotubes to achieve consistent static dissipative properties.
|
Measurement |
Value |
Test Method |
|---|---|---|
|
Tensile Strength |
68.1 MPa |
ASTM D 638-14 |
|
Tensile Modulus |
2.6 GPa |
ASTM D 638-14 |
|
Yield Strength |
40.6 MPa |
ASTM D 638-14 |
|
Elongation at Break |
3.8% |
ASTM D 638-14 |
|
Flexural Strength |
97.4 MPa |
ASTM D 790-15* |
|
Flexural Modulus |
1.8 GPa |
ASTM D 790-15* |
|
Notched IZOD |
24 J/m |
ASTM D 256-10 |
|
Shore “D” |
87 |
ASTM D 2240-15 |
|
Heat Deflection @1.8MPa |
91.4ºC |
ASTM D 648-16 |
|
Heat Deflection @0.45MPa |
91.3ºC |
ASTM D 648-16 |
|
Surface Resistance |
107 Ω |
ASTM D 257 |
|
Water Absorption |
0.9% |
ASTM D 570-98 |
|
Density |
1.1 g/cm3 |
25°C |
|
Viscosity |
878.1 cps |
25°C |
