Nexa 3D

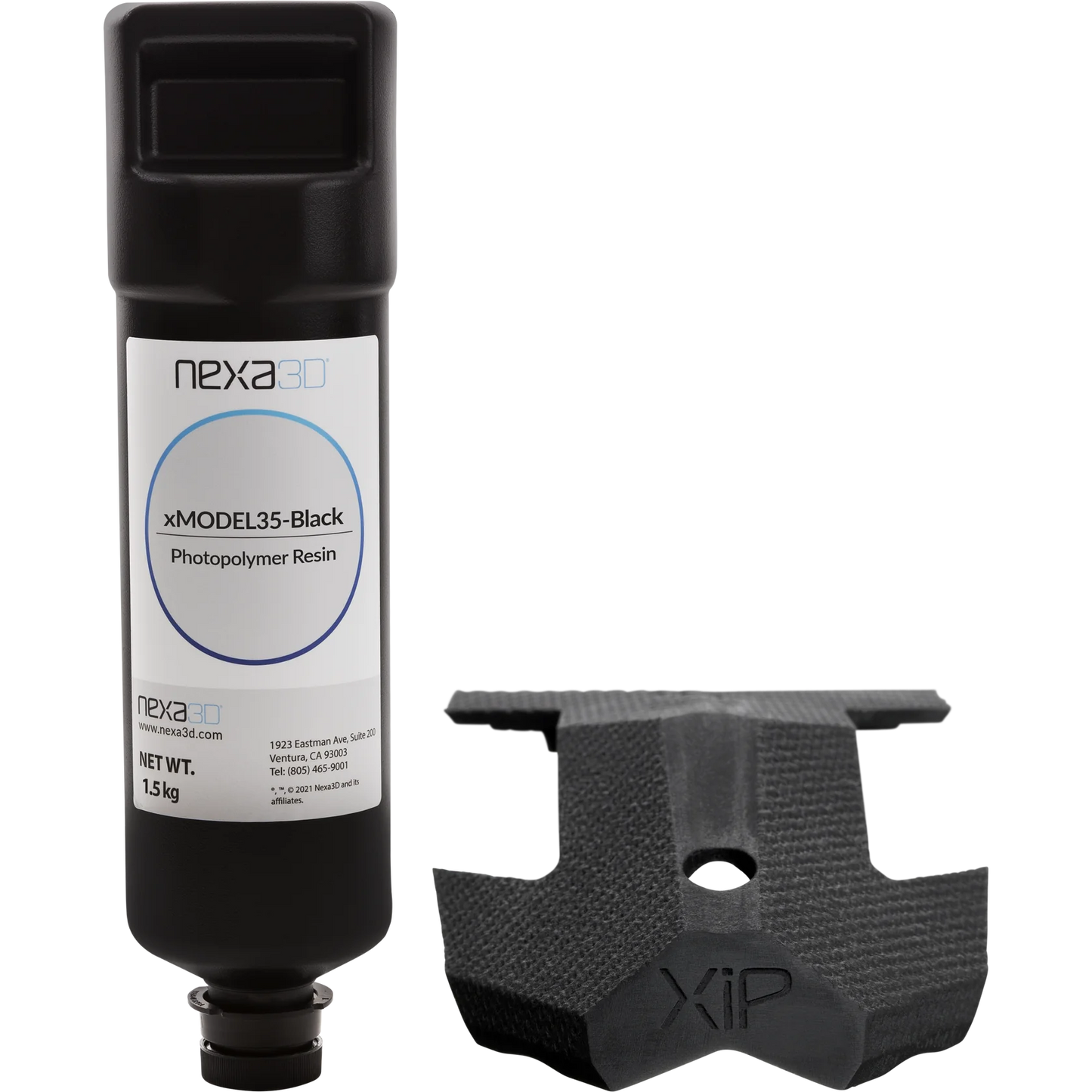

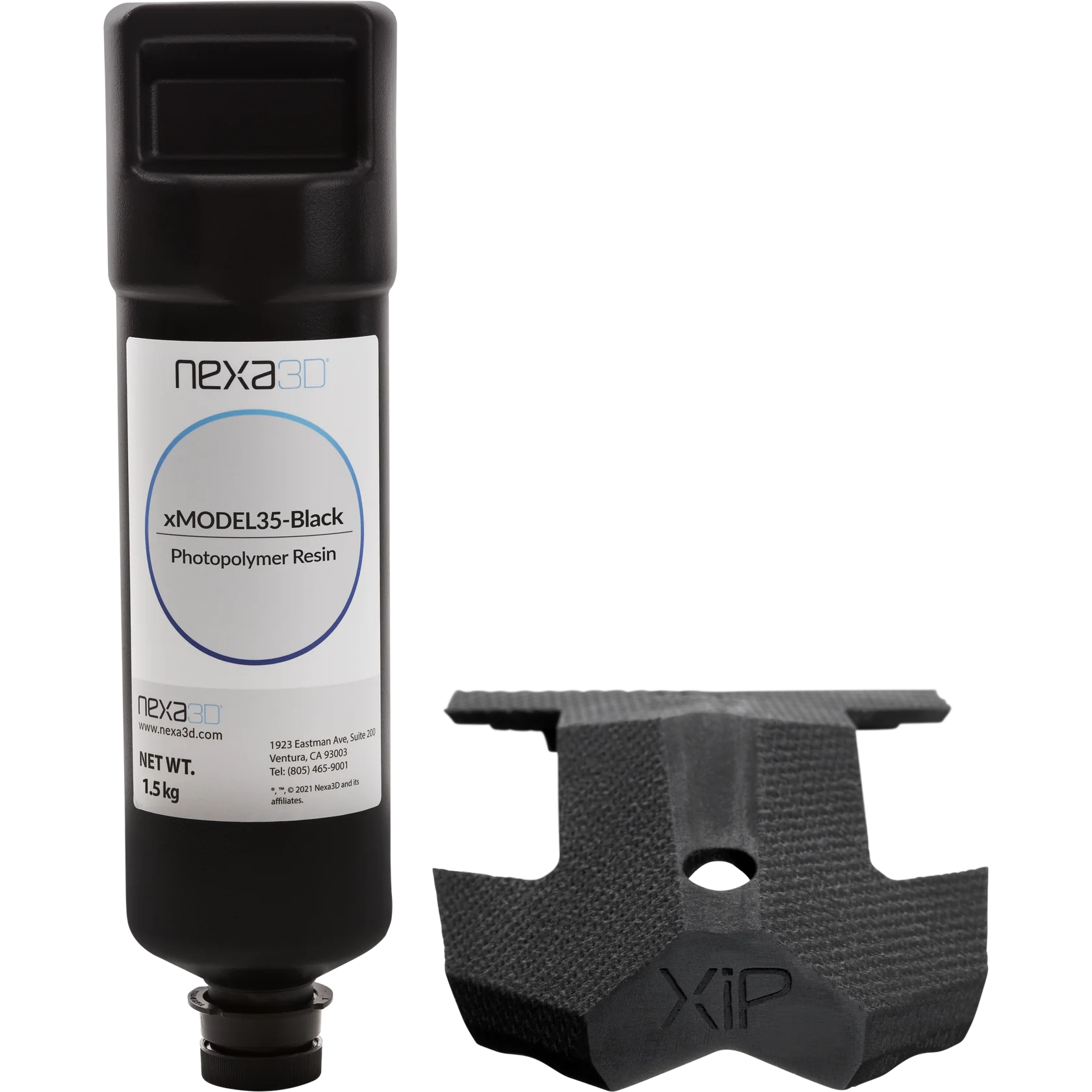

xMODEL35-Black Resin 1.5kg for XiP and XiPPro
Quantity:
Rigid Resin with optimum combination of strength, stiffness and temperature resistance.
|
Measurement |
Value |
Test Method |
|---|---|---|
|
Viscosity, 30 °C |
630 mPas |
Cone/Plate Rheometer1 |
|
Elastic Modulus |
2600 MPa |
ASTM D638 |
|
Ultimate Tensile Strength |
62 MPa |
ASTM D638 |
|
Elongation at Break |
10% |
ASTM D638 |
|
Flexural Modulus |
2300 MPa |
ASTM D790 |
|
Flexural Strength |
108 MPa |
ASTM D790 |
|
Notched IZOD (Machined), 23 °C |
21 J/m |
ASTM D256 |
|
Unnotched IZOD, 23 °C |
112 J/m |
ASTM D256 |
|
HDT at 0.45 MPa |
87°C |
ASTM D648 |
|
Flammability |
HB |
UL 94 1.5 mm |
|
Hardness (Shore D) |
83 |
ASTM D2240 |
|
Water Absorption, Short Term (24 hours |
0.42% |
ASTM D570 |
