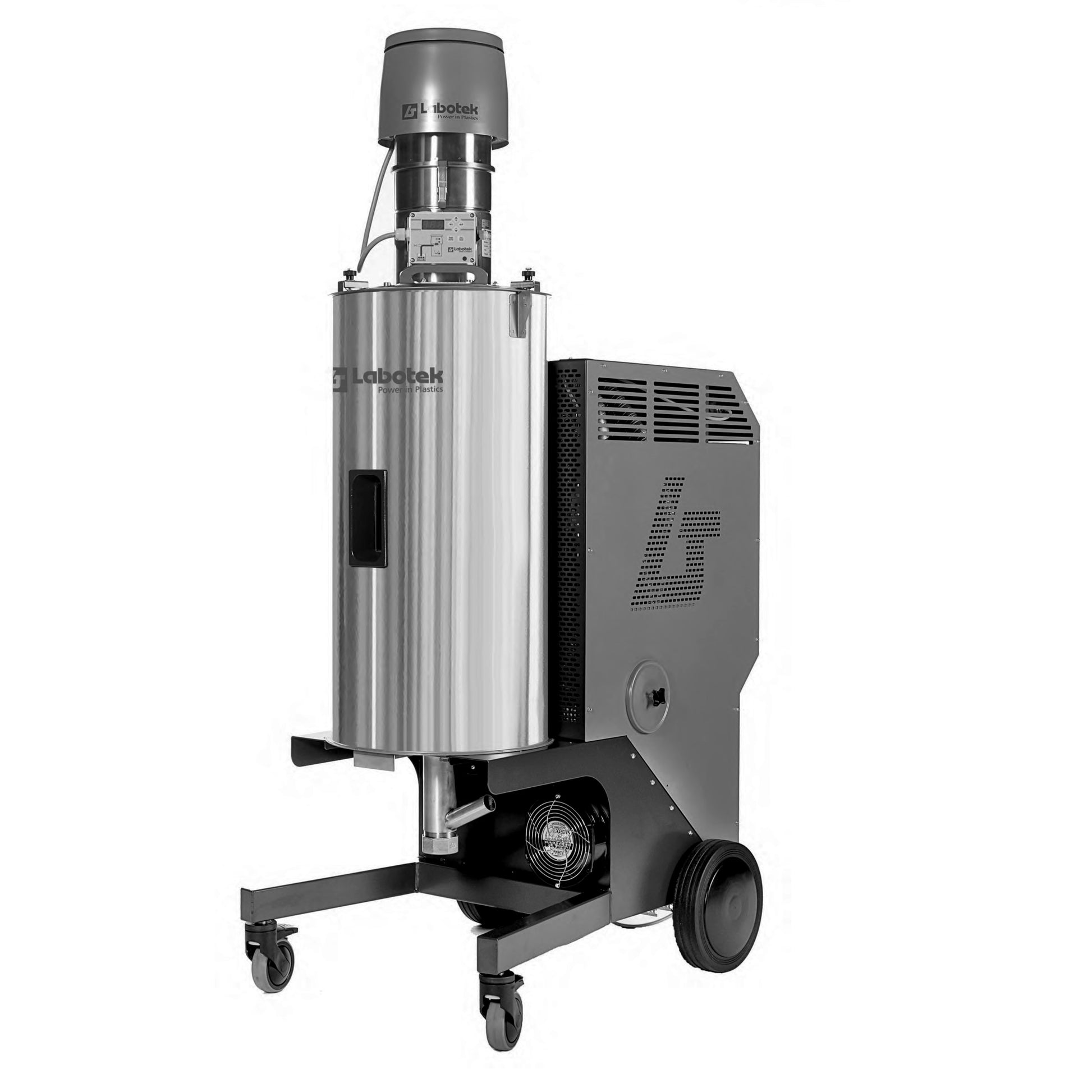

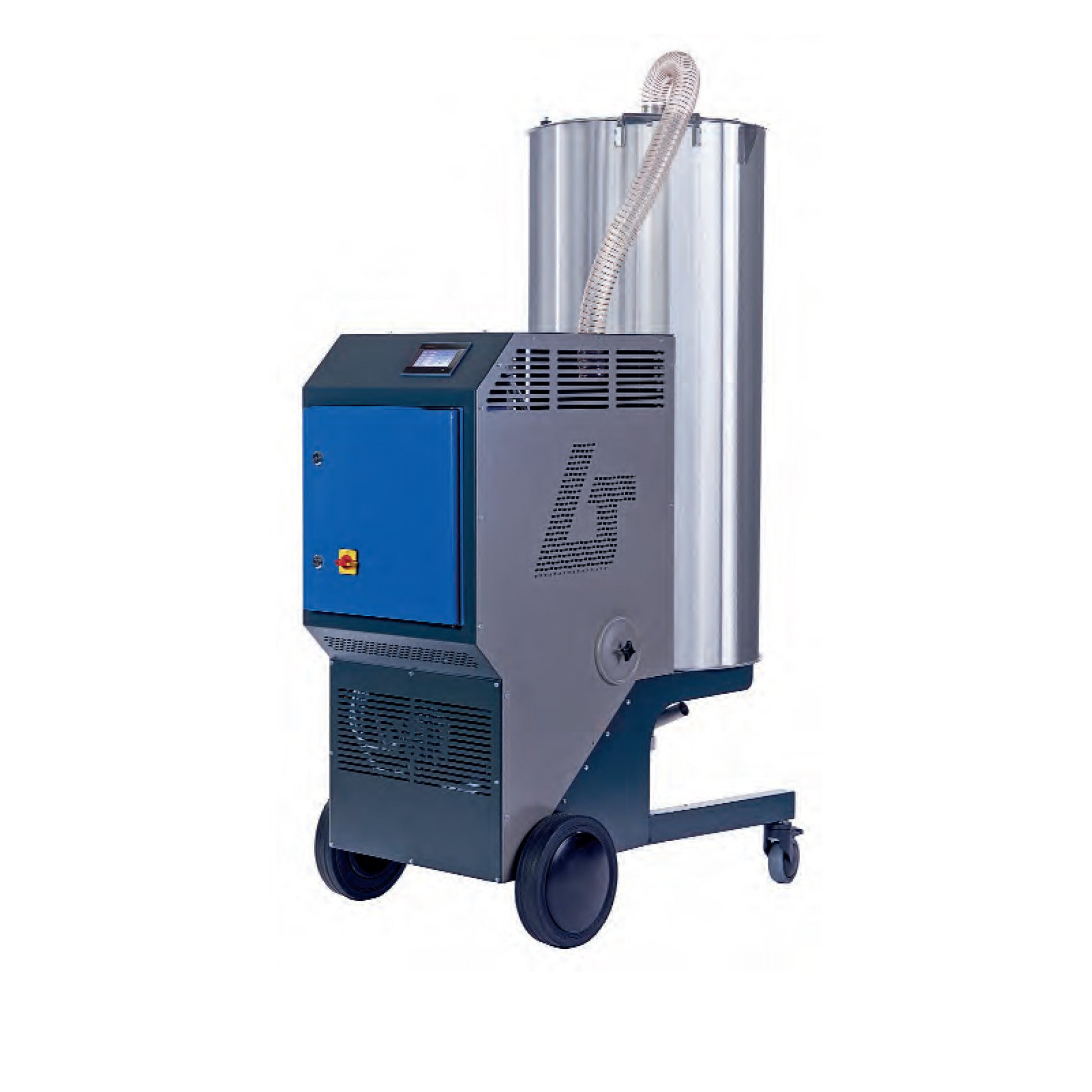

DMR Desiccant Mobile Rotor (Pellet Drier)

DMR-desiccant mobile rotor series ensure maximum energy efficiency and flexibility for small and medium size applications. The compact dryer supplies air flows from 30-90 m3 /h with a constant dew point of -35°C or better thanks to the desiccant rotor technology. Structure of the desiccant rotor is guaranteeing large absorbing capacity and no dust emission.

Standard features and Advantages

PLC control

• Desiccant rotor technology supplying constant dew point

• No cooling water and compressed air needed

• Performance booster 3 levels

• Range of drying temperatur 60-140°C

• Labotek Energy Saving System (LESS)

• Small footprint of only 0.60 m²

• Extra insulated drying hopper made of stainless steel AISI 304

• Removable air distributor

• Drying hopper capacities of 40, 75, 110, 200 and 300 litres

• Manual slide valve below drying hopper

• Stainless steel catch box with drain port

• 3 phase power supply

• Dew point connection gate

• Drying hopper lid prepared for Labotek MiniFeed or SVR 1.5 - 3

• Start / stop timer • Material database

• Comprehensive 3 year warranty, excluding wear parts

Optional features

• Conveying units to & from DMR

• Conveying with dry air from DMR (Closed loop)

• Built-in dew point sensor

• High / low temperature version 40-180°C (cooling water needed)

• Tropical execution for high ambient conditions

• Alarm lamp/acoustic

• Volatile trap

PLC control is standard on the DMR range.

Slide valve and catchbox with drain port is standard on the DMR range.

Extra insulated stainless steel drying hopper, supplied with removable air distributor for easy cleaning.
