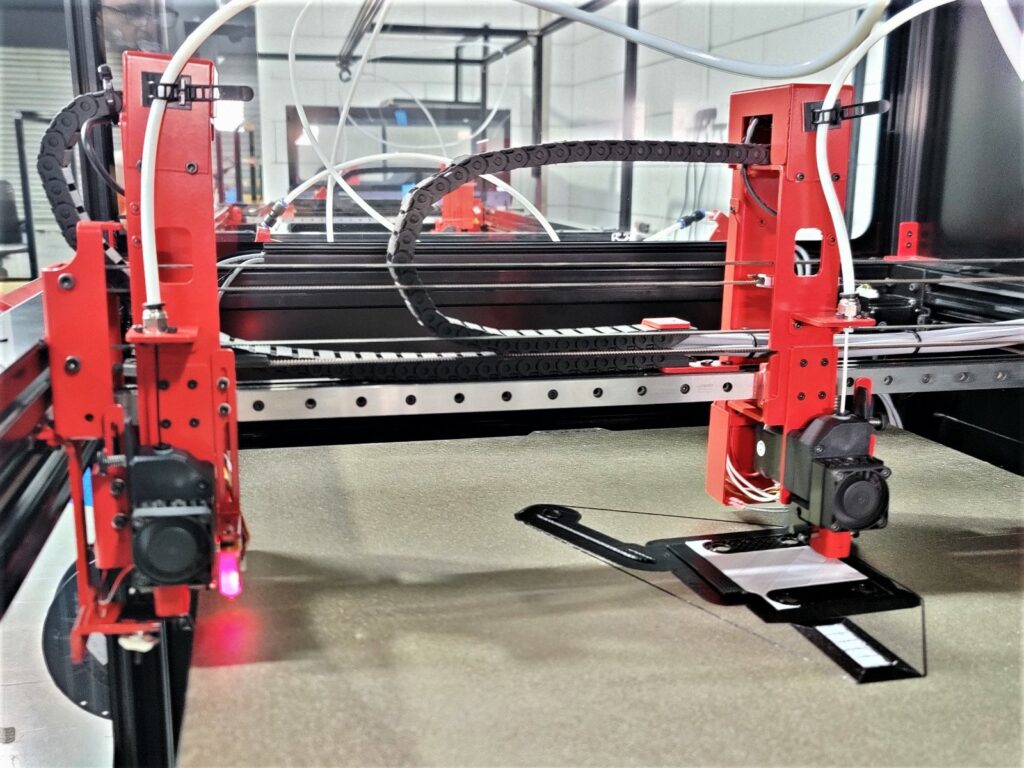

Modix 180X V4 3D Printer
£16,718.29
Couldn't load pickup availability
Modix BIG-180X printer was first introduced in late 2019. Similar to BIG-60, it has all the latest components of generation 4 .
BIG-180X Highlights
- Print volume - 1,800 x 600 x 600 mm
- Premium components
- Self assembly kit
- Multiple add-ons
- Heavy duty design
- Open architecture
- Future ready
- Premium support
Why a Large 3D Printer?
Printing large models as one object makes them stronger and saves time on post processing. Use cases include
- Customized large enclosures
- Manufacturing jigs
- Prototyping
- Cast molds
- Composite plugs
- Batch production - Modix 3D printers are capable of printing multiple small items in a single sequenced 3D print job.
Modix 3D printers are designed for future upgrades and new technologies. When a new version is released, an upgrade is offered to our customers.
As creators, we believe that products should be designed to serve for long period of time, not to be replaced when a new model is coming out.
Generation 4 - What's new?
Generation 4 widens Modix’s offering by introducing new capabilities such as printing models with internal geometries, faster printing speed, reduced post process time and higher reliability. With generation 4, all Modix printers are now shipped with the new Griffin print head, clog and crash detectors.
Griffin Print Head
Griffin print head offers high printing quality, impact resist, easy swap and higher printing temperatures than before.
Clog Detection
Reliability sensors suite that is designed to save print-jobs on time. It can detect filament run-out, under extrusion and clogs.
Auto Z Offset Calibration Tool
Comprehensive set of automatic calibration tools including: bed tilt calibration, bed leveling, gantry alignment and Z offset calibration.
TECHNICAL SPECIFICATIONS
|
Technology |
FFF: Fused Filament Fabrication |
|
Print volume metric (XYZ) |
1,800x600x600 mm / ~70 X 23.6 X 23.6 inch |
|
Machine size (WxDxH) with enclosure |
2,170x1,060x1,430 mm / ~85.4x41.7x56.3 inch |
|
Shipping weight |
200 KG |
|
Assembly |
Self-Assembly |
|
Closed print chamber |
Optional |
|
Enclosure type |
Aluminum composite panels (ACP), 3mm thick. Polycarbonate doors and top lid |
|
Feet |
Articulated leveling feet included Casters optional |
|
Number of print heads |
Two |
|
Default filament diameter |
1.75mm, can be converted to 3mm by the user |
|
Extruder brand & model |
E3D Aero Extruder (direct drive) |
|
Hotend brand & model |
E3D Volcano, optional add-ons: V6 (detailed) and E3D Super-Volcano (high flow) |
|
Included nozzles (mm) |
0.4, 0.6, 0.8 Primary hotend 0.4 for Secondary hotend |
|
Hotend max. temperature |
285ºc |
|
Optional max hotend temp. |
500ºc, requires PT100 thermistor add-on |
|
Extruder motors |
Motech MT-1703HS168A Direct drive extruders gear reduction of 1:3 |
|
Filament runout sensor |
Dedicated sensor per extruder |
|
X & Y axis linear guides |
HIWIN MGW9 |
|
Z axis guides |
HIWIN MGW9 as default |
|
X & Y axis drive system |
Gates GT2 width: 9mm, fiberglass reinforced |
|
Z axis drive system |
SFU1204 Ball screw 2:5 belt gear reduction |
|
X axis motors |
2 X Motech MT-1705HS200A |
|
Y axis motor |
1 X Motech MT-1705HS200A |
|
Z axis motors |
4 X Motech MT-1705HS200A |
|
Resolution (XYZ) |
4 X 4 X 0.5 micron |
|
Printing speed |
Up to 150mm/s Depends on nozzle & layer height |
|
Printing acceleration |
Up to 1000 mm/s2 |
|
Bed plate |
Alcoa Mic-6, 6.35mm milled cast aluminum plate |
|
Number of heaters |
3 X AC heater, 1,350 Watt , triple zone |
|
Temperature controller |
Autonics TCN4 PID controller |
|
Maximum bed temperature |
120ºc |
|
Bed leveling probe |
BL touch probe. |
|
Bed leveling |
Automatic. Bed shape is measured by probing 300 different points. |
|
Bed tilt leveling |
Semi-Automatic, guided by an on-screen macro |
|
Bed motion system |
4 x ball-nut screws. Each screw is mounted to a dedicated stepper motor with a belt gear system |
|
Electronic controller |
Duet3D: Duet2 Wifi |
|
User interface |
7” Touch screen – PanelDue from Duet3D |
|
Remote control (WiFi) |
Upload Gcode files right from your desktop |
|
Direct connectivity |
SD Card, USB cable |
|
Ethernet |
Optional with Duet3D Ethernet board. Should be purchased and replaced by customer |
|
Electronics (DC) power |
Meanwell 24V/280Watt power supply powering the electronic and motion system. Universal AC input: 110-230V, 50/60 Hz |
|
Bed heaters (AC) power |
Minimal Electricity requirements: 32A, single phase, 208-240V: N. America customers: NEMA L6-30P outlet EU/AU/UK : IEC 309 32A Blue (2P+E) outlet |
