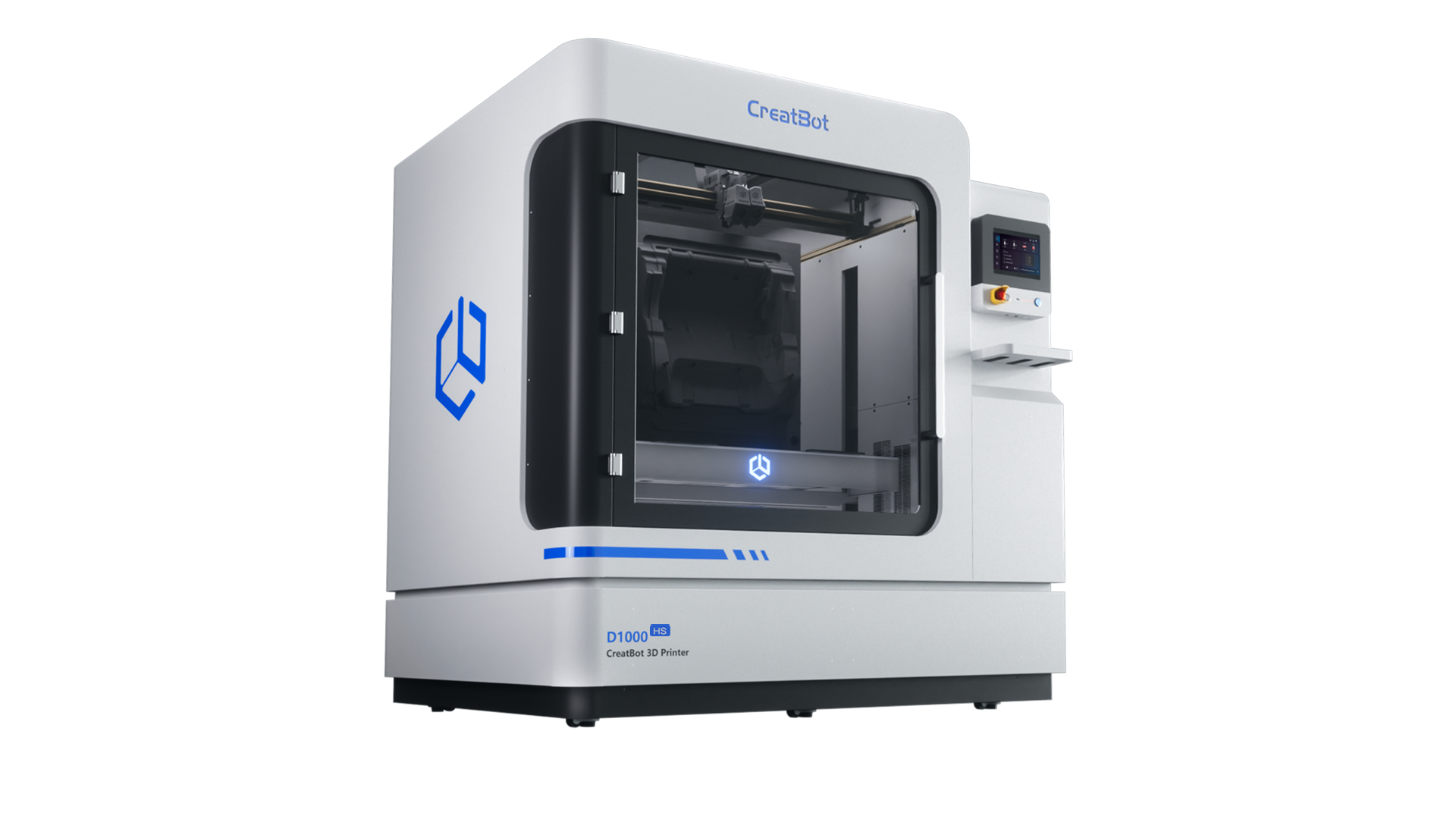

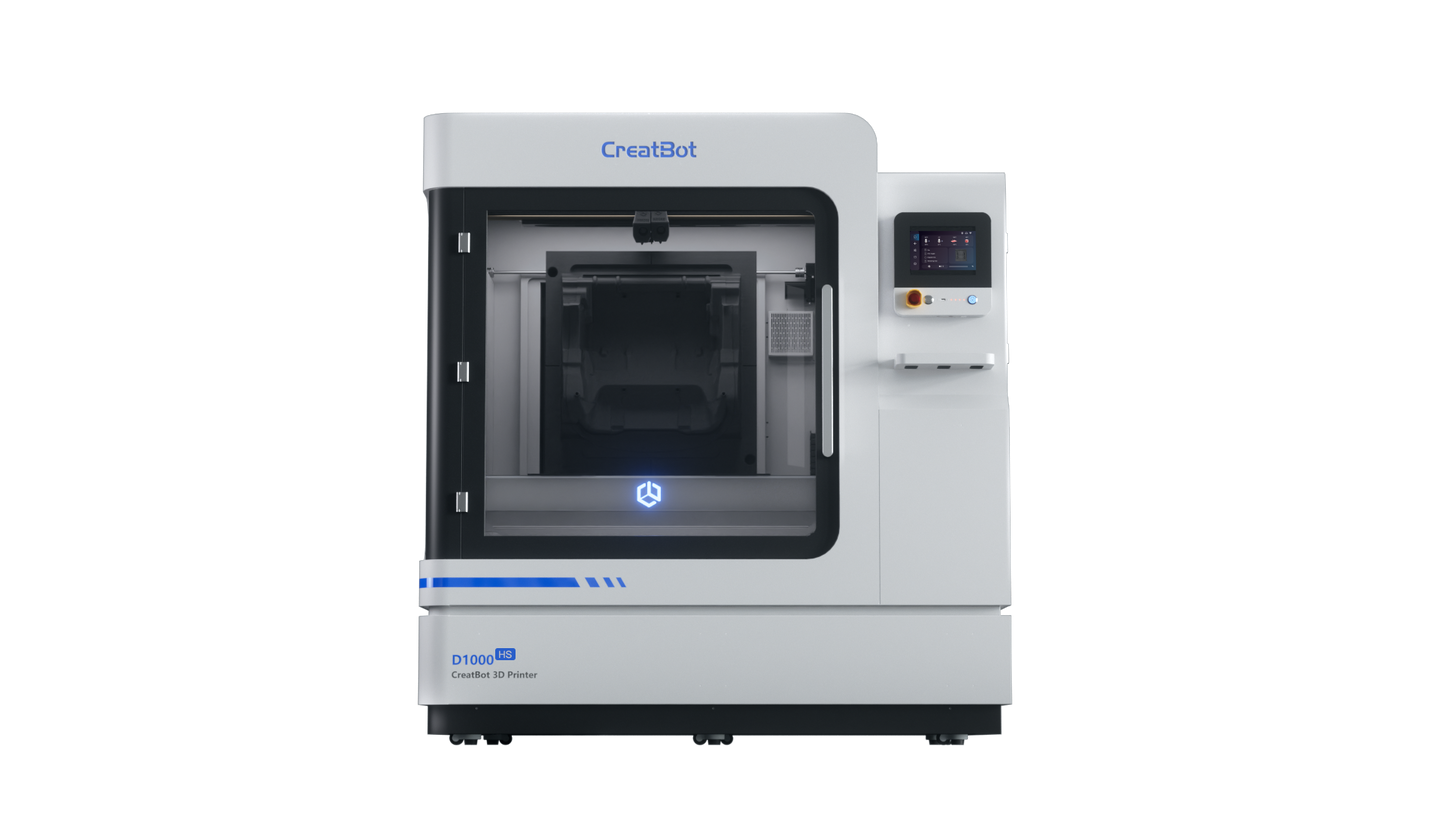

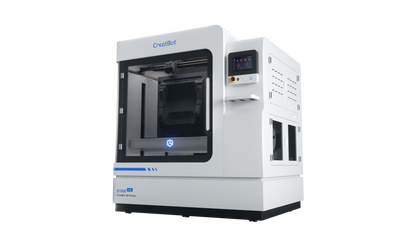

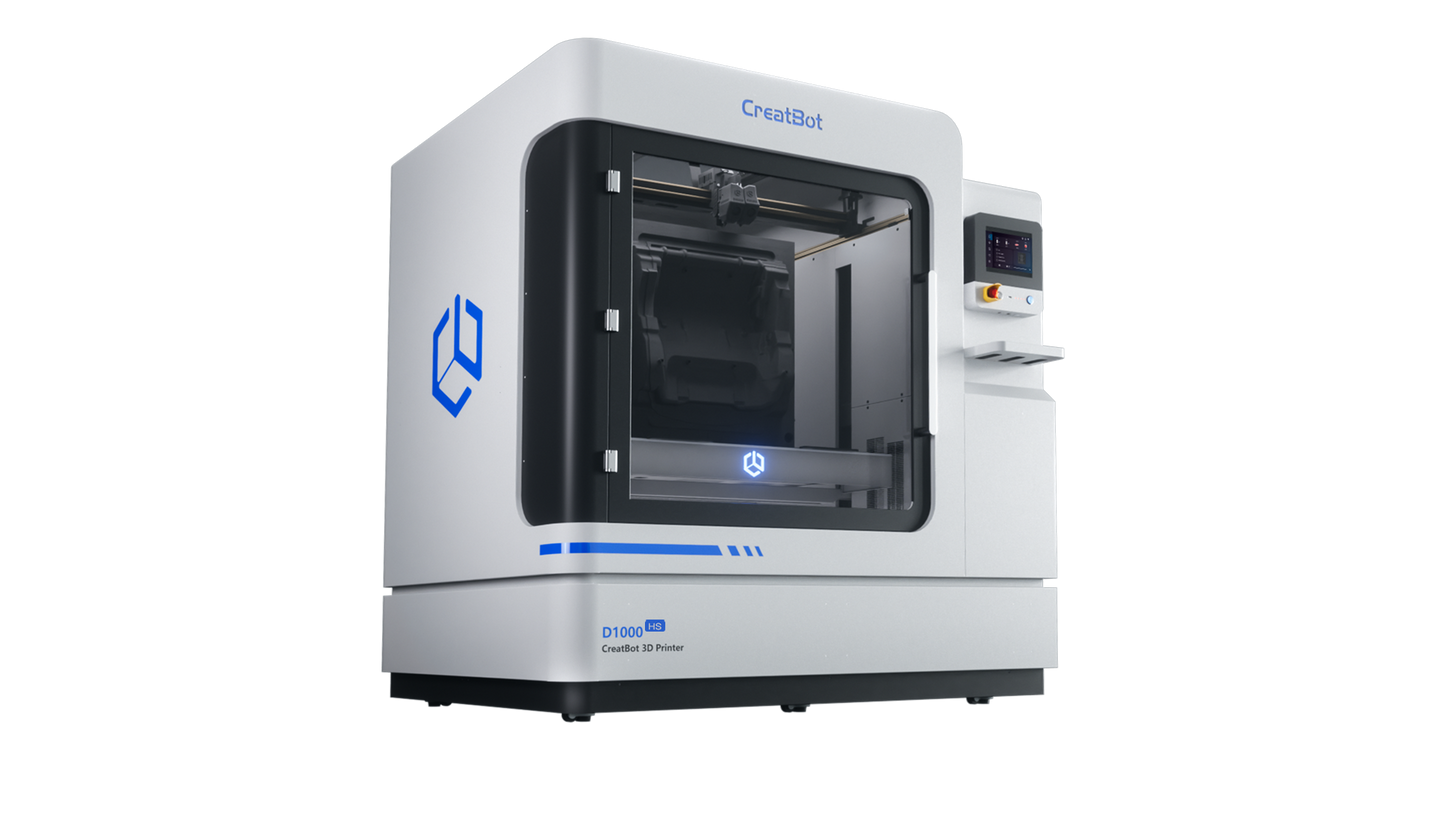

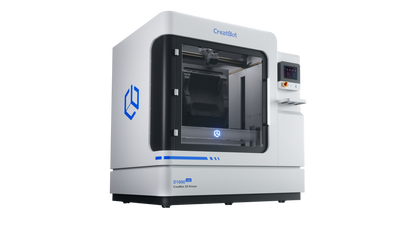

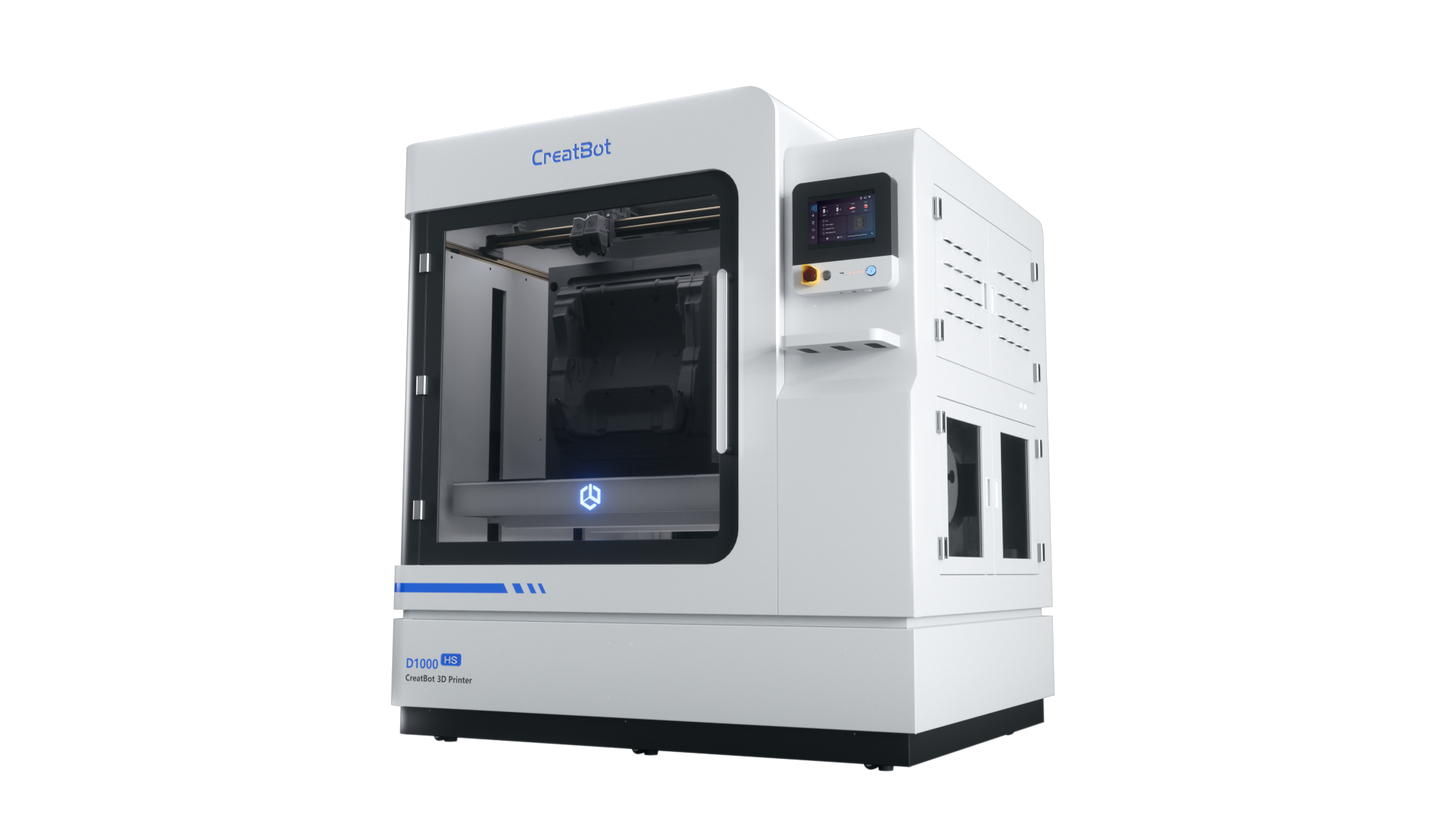

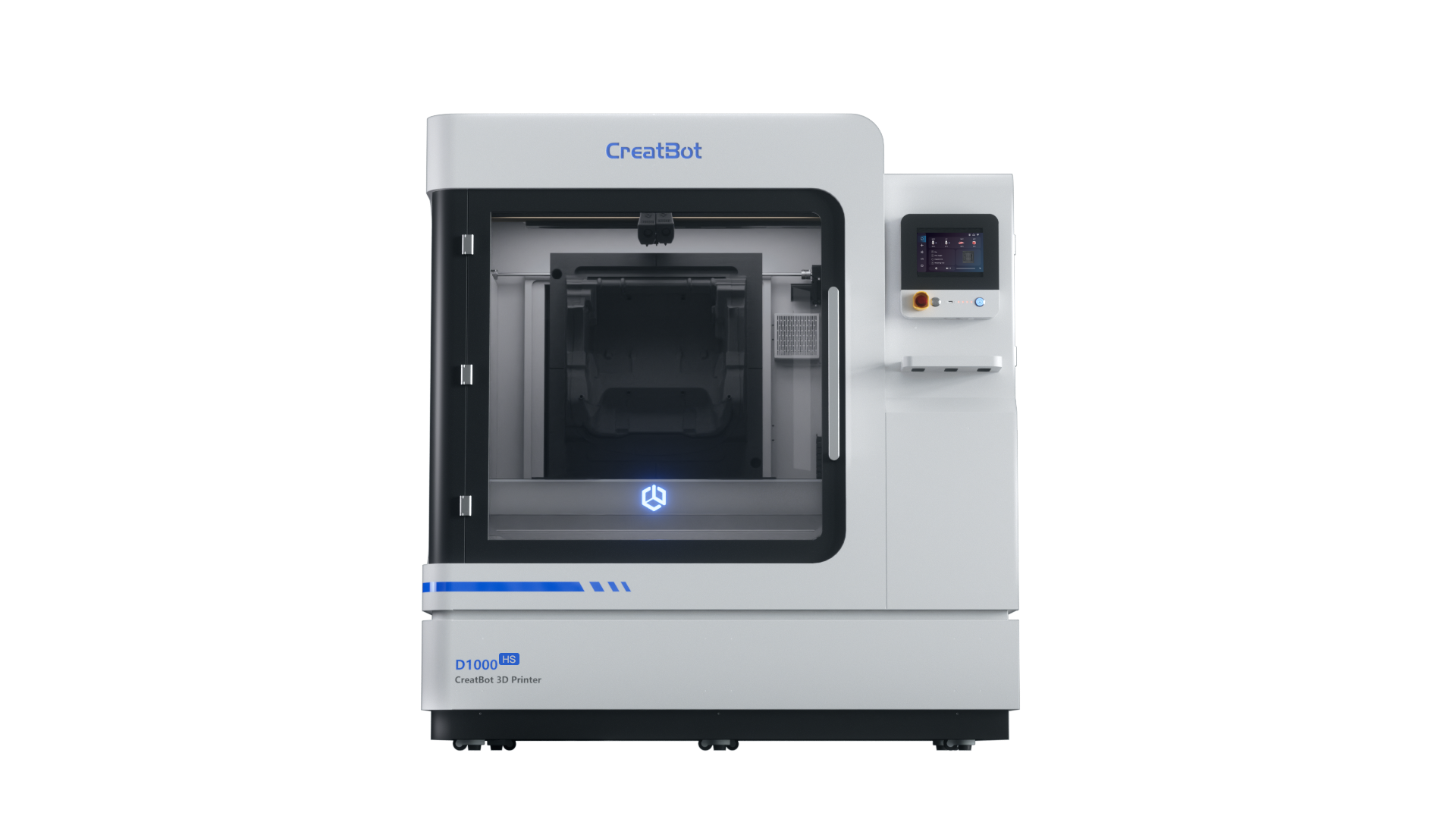

Creatbot D1000 HS
£37,798.80
Couldn't load pickup availability
NO LONGER AVAILABLE- SHOP THE NEW CREATBOT D1000 PRO HS
One Cubic Meter Industrial Grade Large 3D Printer.
D1000 HS is upgraded from the model D1000，it is a new high-speed printing version based on the in-depth development of Klipper. It adopts a new hotend with a flow rate of up to a record-breaking 90 mm³/s. The stable printing speed can reach 300mm/s, which is 5 times the speed of the D1000 model.
With a build volume of over 1000*1000*1000mm, it is the perfect machine for creating large and full size parts, prototype, tools, molds, jigs & fixtures in-house. Within days you can have a fully functional high quality prototype. CreatBot big rolls filament of PLA, ABS, ASA, PA-CF, etc suit well for your big models without worrying frequent replacement of filament. All its features manufactured to the highest standards. Every time, every parts, no mistake.
Every time, every parts, no mistake.
CREATBOT D1000 HS
- 1000*1000*1000mm
- High resolution&speed
- Camera control technology
- Reliable 24/7
- Fully enclosed
Stability
The whole-steel body not only ensure the stability during printing but also greatly extend working life. The optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3d printers with whole-steel body have been working for 9 years and more than 30,000 hours.
Affordable And Reliable Large 3D printer
CreatBot D1000 HS was created to make industrial 3d printing of large-scale objects and prototype as easy as possible. It is an industrial 3d printer that responds to market demand and is embedded with a new smart dual extruder kit, an enclosed heated chamber, automatic leveling system and camera control for big, impressive, prints. Camera control technology allow customers to control printing process with an APP, which can get best printing quality with shortest time without failure. With a fast-heating platform and hot chamber this high-resolution large-print workhorse produces incredible results with high-quality materials. CreatBot D1000 sets a new standard in additive manufacturing and extends the material capabilities of large-scale 3d printers, it brings the possible to greatly reduce cost and time for more companies.
CreatBot D1000 HS will be your best choice with no doubt, if you are looking for an industrial large scale 3d printer for prototype and engineering-grade materials.
The most important, AFFORDABLE for every company!
Technical Specs
| Printing | |
| Print Technology | Fused Deposition Modeling |
| Build Volume | Single Extrusion: 1000*1000*1000 mm Dual Extrusion: 940*1000*1000 mm |
| Number of Nozzles | Auto-rising dual extruders |
| Layer Resolution | 0.05 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, ASA, PETG, PC, Nylon, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, etc. |
| Nozzle Diameter | 0.8mm (0.3-1.0mm optional) |
| Print File Type | STL, OBJ, AMF, Gcode |
| Speed | |
| Print speed | 100-300mm/s |
| Travel speed | 300mm/s |
| Flow rate | 90 mm³/s |
| Software | |
| Software | CreatWare, Orca Slicer, Cura, Simplify3D,Prusa, etc |
| Supported File Types | STL,OBJ,Gcode,AMF,STP,STEP |
| Operating Systems | Windows, macOS |
| Special Function | |
| Air filter | HEPA+Carbon |
| Filament Detection | Pause printing when filament run out |
| Firmware | Klipper - high speed |
| Camera control | Camera remote monitoring and real-time control of the printing process |
| Temperature | |
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 100 ℃ |
| Hot Chamber Temperature | 60 ℃ |
| Filament Dry Room Temperature | 0 ℃/70 ℃ |
| Mechanical | |
| Build Plate | Aviation aluminum plates+removable magnetic platform |
| Build Plate Leveling | Automatic |
| Extruder | Smart Dual Extruders |
| Auto raising extruders | Yes |
| X Y Positioning Precision | 0.011 mm |
| Z Positioning Precision | 0.0025 mm |
| Electrical | |
| Power Requirements | 220~240 V, 50~60 Hz |
| Screen | 10-inch full color touch screen independent operating system (multi-language) |
| Rated Power | Printer: 4000W, Chamber: 4500W |
| Storage Media | U Disk/WIFI |
| Connectivity | USB |
| Size & Weight | |
| Product Dimensions & Weight | 1810*1350*1942mm 650kg |
| Packing Size & Weight | 1980×1520×2200mm 750kg |
