Nexa 3D
QLS 260

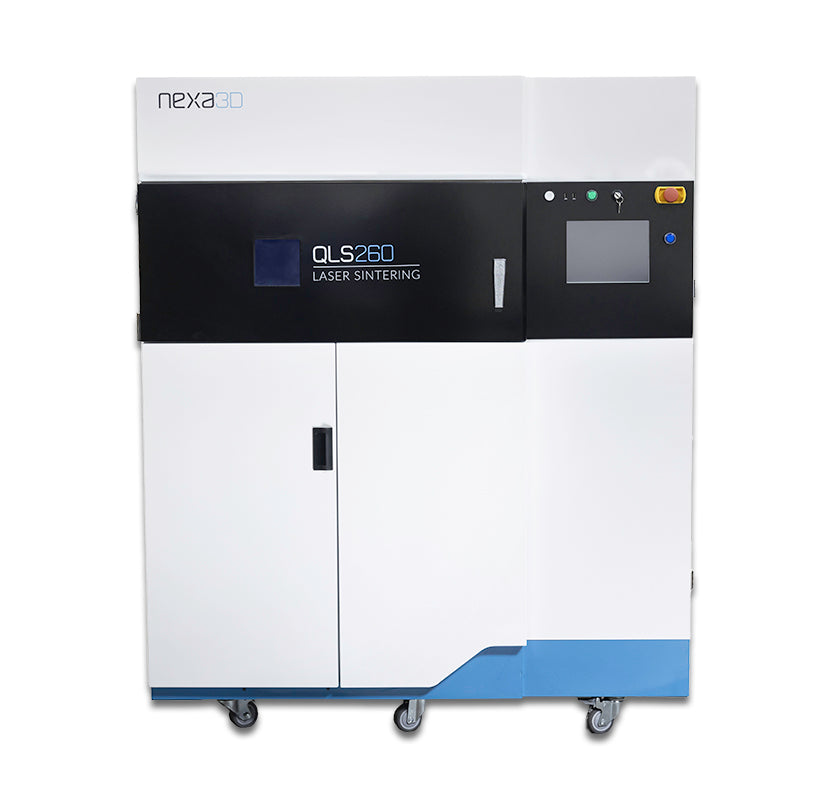

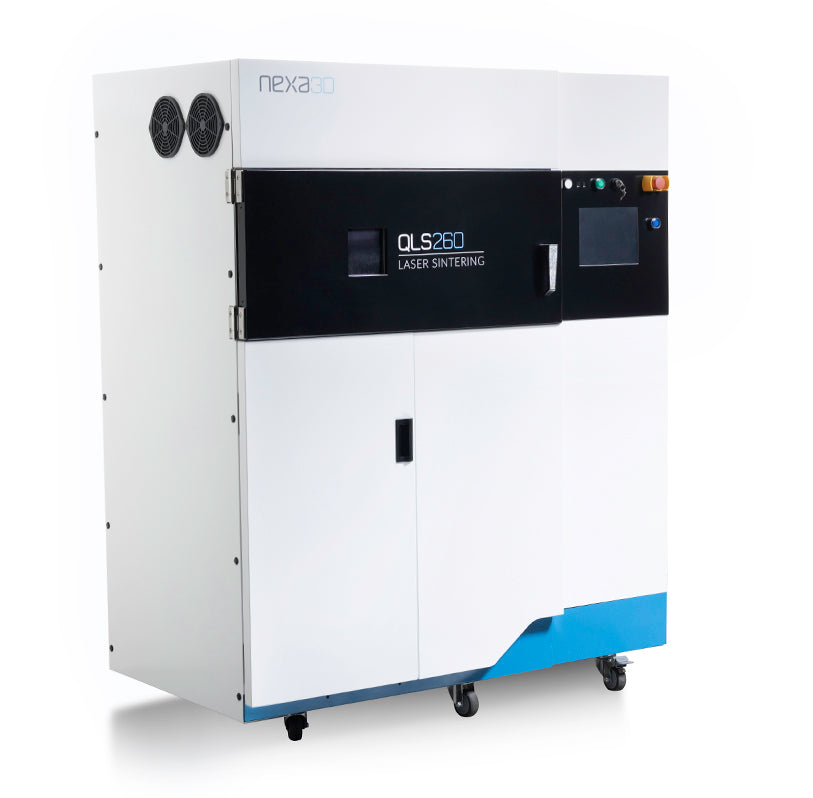

QLS 260 is an open platform selective laser sintering (SLS) 3D printer with an unrivaled 21 hour cycle speed. It uses a single 60 Watt CO2 laser to produce prototypes and production parts with robust mechanical and thermal properties. In addition to a broad range of high-temp thermoplastic and metal materials, it also excels with recycled waste powder from other technologies like multi jet fusion.
Increase Daily Output
With industry-leading cycle time of just 21 hours where the required cooling period is only 2 hours, the QLS 260 is a productivity powerhouse. It uses a single 60 Watt CO2 laser to increase your daily throughput without the need for a lengthy cooling period due to its smaller build chamber.
Material Flexibility
The QLS 260 is an open platform with 16+ qualified materials including a range of Polyamides, PP, PBT, TPU, as well as the patented metal powders from headmade materials®. In addition to the currently qualified materials, it excels with recycled powders from HP and EOS to extend the life of your powders and provide operational sustainability.
Lowest Total Cost of Ownership
With one of the lowest entry points in the professional selective laser sintering market, combined with lower operating costs due to its powder refresh rate of just 20% and use of third party materials, the QLS 260 offers the lowest total cost of ownership for your industrial SLS 3D printing needs.
Open Material Platform
Your production capabilities with the QLS 260 are nearly limitless thanks to its open material platform, wide-use temperature range, and inert processing atmosphere. From common filled and unfilled nylons to rugged polymers like PBT, the QLS 260 is compatible with a versatile range of materials to ensure that you’ll have the right material for the job.
Intuitive Software
QLS 260 is powered by two advanced software suites, NexaX for QLS. NexaX for QLS controls the sintering process and allows users to start and monitor jobs remotely.
Cold Metal Fusion Compatible
Cold Metal Fusion by headmade materials® is a patented process that combines the advantages of fast cycle sintering with established powder metallurgy processes to create titanium and steel parts. Using a polymer-coated metal powder, the QLS 260 produces ‘green’ parts in a low temperature processing environment. Parts then go through a debinding and sintering process that burns out any remaining polymer and sinters metal particles together to form final metal components.

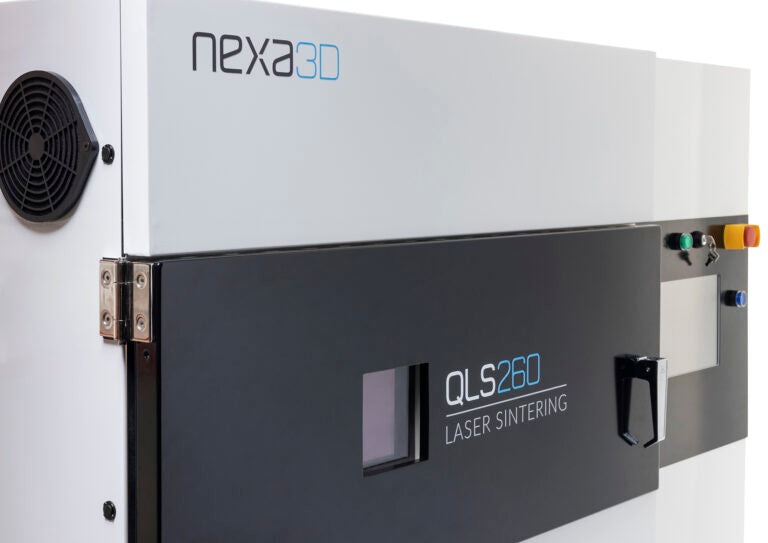

Specifications
Specifications
| Technology | Selective Laser Sintering |
| Build Volume | 230 x 230 x 250 mm (9.0 x 9.0 x 9.8 inch) |
| Laser Performance | 60W CO2 |
| Layer Thickness | 0.06 / 0.08 / 0.1 / 0.15 / 0.2 / 0.3 mm |
| Max. Build Speed | Up to 22 mm / hour (Geometry dependent) |
| N2 System | On-board Nitrogen Generator |
| Accuracy | 0.2mm |
| Full Parameter Access | Yes |
| Printer Dimensions | 148 x 85 x 204 cm (58.3 x 33.5 x 80.3 in) |
FIM = Unlimited Material Options
With Freeform Injection Molding, you no longer have to compromise when selecting what materials to use in your prototyping process. xMOLD parts have been proven across the entire range of thermoplastics, from Polypropylene to PEEK, with fillers including glass and carbon fibers, ceramic and metal powders, and a range of other additives.
FIM = New Levels of Design Freedom
Freeform Injection Molding lets you manage undercuts and other complex part features with ease. Replace sliders, cores and other mechanical complications with soluble FIM molds and FIM elements for simpler mold designs and shorter lead times. Or break new design ground with products boasting impossible-to-mold features.
