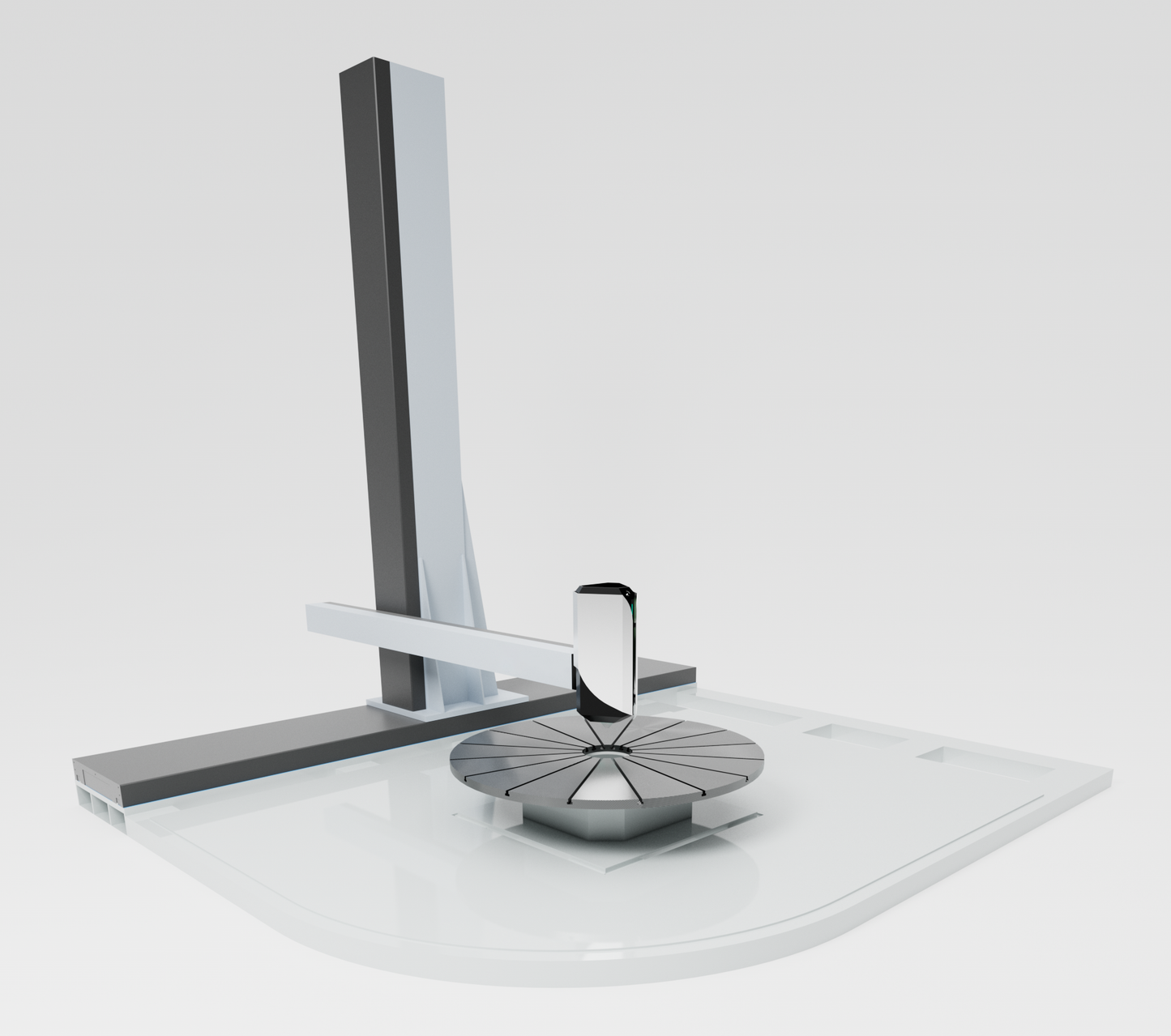

LabAM24 offers a 5-axis simultaneous gantry system that integrates linear XYZ axes with a rotary AC table, designed as a flexible platform for deploying InertOn.
The system configuration is fully customizable in size, payload, and workspace,
allowing it to scale from compact setups to large-format industrial applications.
By combining multi-axis motion with InertOn’s chamber-less deposition capability,
the gantry system enables high-precision, large-volume metal 3D printing without the
constraints of a sealed build chamber.
*Below is a sample technical data sheet for a gantry system attached for reference.
| Category | Item | Specification |
|---|---|---|
| 5-Axis Stage | X, Y, Z Stroke | Custom configuration |
| A, C Stroke | ±45 degrees, 360 degrees | |
| Worktable Size | Custom configuration for flat table or rotary table | |
| Load Capacity | Custom configuration | |
| Axis Accuracy | Under 20 µm/m | |
| Laser System | Laser Type | Triple fibre laser (1 kW) or triple diode laser (700 W) |
| Number of Lasers | 3 units | |
| Wavelength | 1064 nm ±10 | |
| Chiller Type | Water-cooled chiller (2 channels) | |
| Cooling Capacity | 7 kW | |
| Wire Feeding System | Feeder Type | Coaxial servo controlled |
| Wire Diameter Range | 0.6 to 1.0 mm | |
| Motion Control System | CNC Controller Type | Beckhoff CNC controlled |
| Inert Atmosphere | Gas Type | Argon gas (99.999%) |
| Oxygen Sensor | Included | |
| Morphing Shield | Included | |
| Real-Time Feedback | Oxidation Control | Included |
| Printing Quality Control | Included | |
| Software | Operating System | Integrated operating software with interactive HMI |
| CAM | AM toolpath generation with morphing shield functionality | |
| Electrical Requirements | Power Supply | 380 V, three-phase |
| Total Power Consumption | System dependent (TBD) | |
| Dimensions | Machine Size | Custom configuration |
| Weight | Machine Weight | Custom configuration |
| Safety | Fence | Free-standing safety fence |
| Window | Laser safety window |
*Caution: Additional development may be required for integration depending on the system type, configuration and specifications
Laser System
Morphing Shield System
Wire Feeding System
Dimensions & Weight
